HDJ80R-GNPNWQ (1995)

Toyota Land Cruiser

Production Jan 1995 - Jan 1998
Engine 1HDFT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9901)HDJ80,HZJ80..RHD

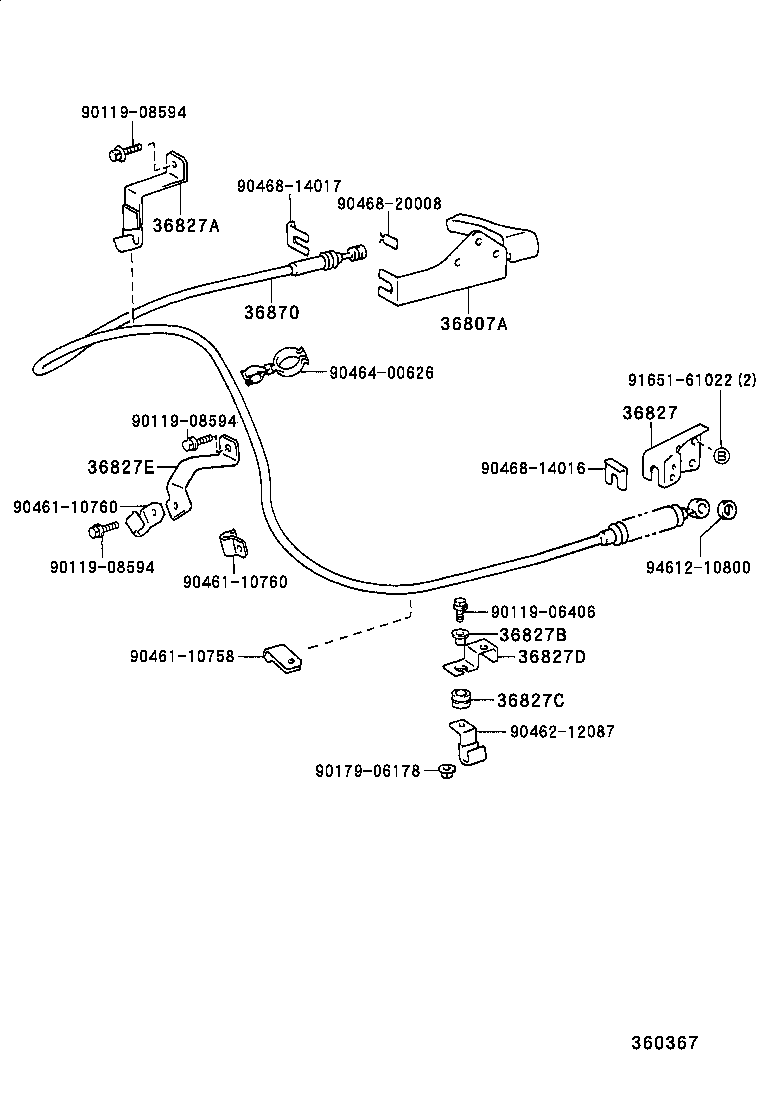

Click highlighted areas on diagram

diagram 36807A 36827 36827A 36827B 36827C 36827D 36827E 36870 9011906406 9011908594 9011908594 9011908594 9017906178 9046110758 9046110760 9046110760 9046212087 9046400626 9046814016 9046814017 9046820008 9165161022 9461210800
Part # Description Qty Price
Common parts
90119-06406
90119-08594
90179-06178
90461-10758
90461-10760
90462-12087
90464-00626
90468-14016
90468-14017
90468-20008
91651-61022
94612-10800
