HDJ80R-GNPEXQ (1990)
Toyota Land Cruiser
(9001-9908)RHD ; (9908-0007)FZJ75,HZJ70,75..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 55345-60010 | ||||
| 90119-06067 | ||||
| 90119-06350 | ||||
| 90159-40159 | ||||
| 90164-50008 | ||||
| 90168-40043 | ||||
| 90168-50027 | ||||
| 90179-06070 | ||||
| 90179-06115 | ||||
| 90179-08102 | ||||
| 90183-05094 | ||||
| 90189-05024 | ||||
| 90339-03003 | ||||
| 90467-06157 | ||||
| 90468-04067 | ||||
| 90468-05047 | ||||
| 90541-03005 | ||||
| 90950-01329 | ||||
| 90950-01725 | ||||
| 91626-40618 | ||||
| 91651-40612 | ||||
| 91651-60816 | ||||
| 93311-16010 | ||||
| 93540-55025 | ||||
| 93560-55016 | ||||
| 93568-15012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7451 | ||||

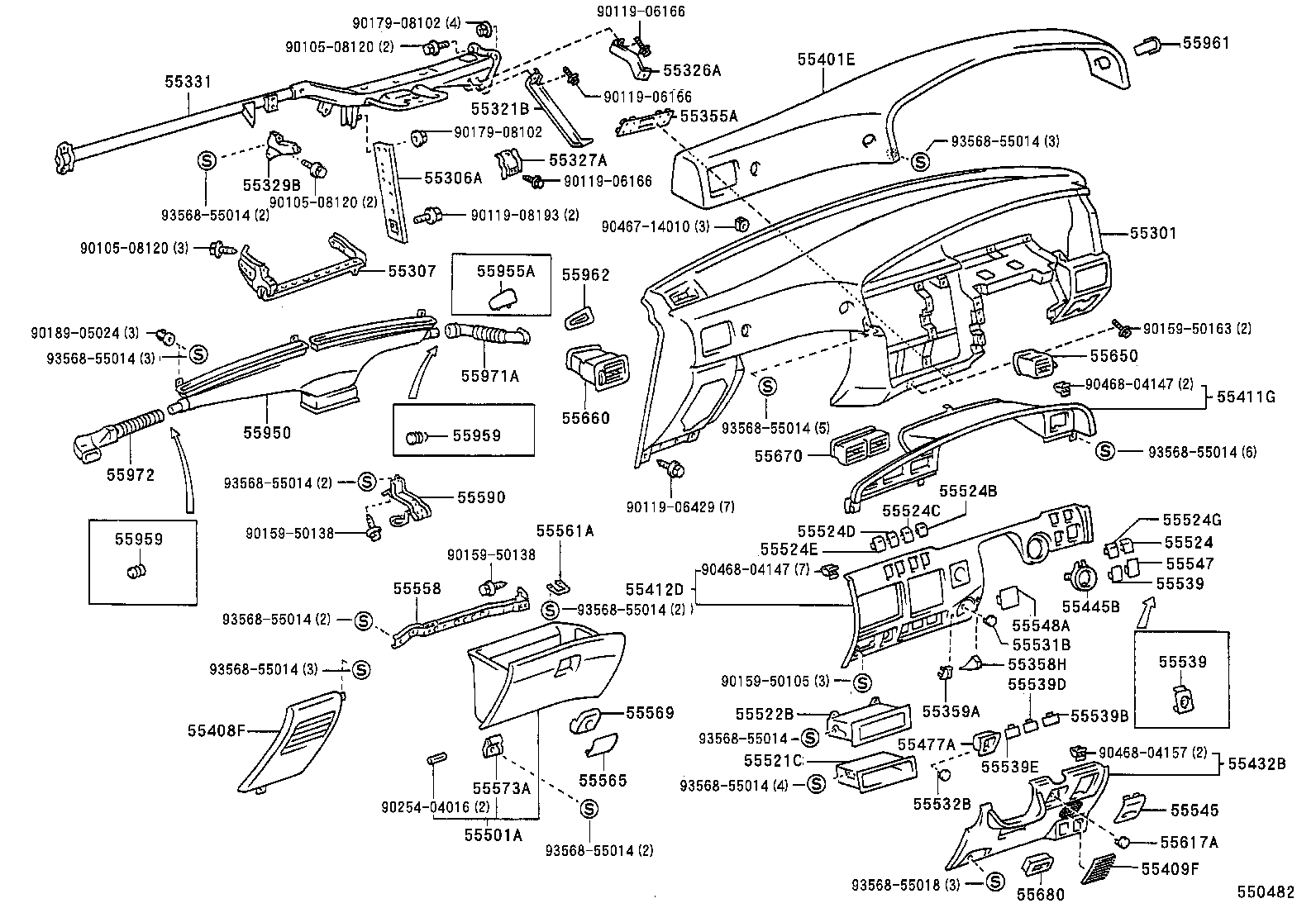

(9001-9501)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-6013006 |
FJ80,FZJ80,HDJ80,HZJ80..RHD SABLE,TRIM4# |
1 | ||
| 55311-6016006 |
FJ80,HDJ80..VX..ARL W(AUTO AIR CONDITIONER),SABLE,TRIM4# |
1 | ||
| 55311-6013003 |
FJ80,FZJ80,HDJ80,HZJ80..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55311-6016003 |
FJ80,HDJ80..VX..ARL W(AUTO AIR CONDITIONER),BLUISH GRAY,TRIM1# |
1 | ||
| 55311-6013003 |
FZJ80,HDJ80,HZJ80..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55311-6013006 |
FZJ80,HDJ80,HZJ80..RHD SABLE,TRIM4# |
1 | ||
| 55311-60340B0 |
FZJ80,HDJ80,HZJ80..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55311-60340E0 |
FZJ80,HDJ80..VX..ARL W(AUTO AIR CONDITIONER),SABLE,TRIM4# |
1 | ||
| 55311-60340B0 |
FZJ80,HDJ80..VX..ARL W(AUTO AIR CONDITIONER),BLUISH GRAY,TRIM1# |
1 | ||
| 55311-60340E0 |
FZJ80,HDJ80,HZJ80..RHD SABLE,TRIM4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-60020 |
FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 55306-60020 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 55307 - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER | ||||
| 55307-60020 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 55307-60020 |
FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 55321B - BRACKET, INSTRUMENT PANEL, NO.1 | ||||
| 55321-60030 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 55321-60030 |
FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 55326A - STAY, INSTRUMENT PANEL, NO.1 | ||||
| 55326-60020 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 55326-60020 |
FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 55327A - STAY, INSTRUMENT PANEL, NO.2 | ||||
| 55327-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 55329B - STAY, INSTRUMENT PANEL, NO.4 | ||||
| 55329-60020 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 55329-60020 |
FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-60020 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 55330-60020 |
FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 55355A - PLATE, INSTRUMENT PANEL | ||||
| 55355-60010 |
FZJ80,HDJ80,HZJ80..ARL,GEN |
1 | ||
| 55355-60010 |
FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-6004003 |
FJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 55401-6004006 |
FJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 55401-6008003 |
FJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 55401-6008006 |
FJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 55401-6008006 |
FZJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 55401-6008003 |
FZJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-6002003 |
FJ80,FZJ80,HDJ80..RHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 55408-6002003 |
FZJ80,HDJ80..RHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 55408-6002006 |
FZJ80,HDJ80..RHD..VX SABLE,TRIM4# |
1 | ||
| 55408-6002006 |
FJ80,FZJ80,HDJ80..RHD..VX SABLE,TRIM4# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-60010E0 |
FZJ80,HDJ80,HZJ80..VX SABLE,TRIM4# |
1 | ||
| 55409-60010B0 |
FZJ80,HDJ80,HZJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-60020 |
FJ80,FZJ80,HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 55411-60020 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-60020 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 55412-60020 |
FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55480-6002006 |
FJ80,FZJ80,HDJ80..RHD..VX SABLE,TRIM4# |
1 | ||
| 55480-6002003 |
FJ80,FZJ80,HDJ80..RHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 55432-6002006 |
FZJ80,HDJ80,HZJ80..RHD SABLE,TRIM4# |
1 | ||
| 55432-6002003 |
FZJ80,HDJ80,HZJ80..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-60010 |
FJ80,FZJ80,HDJ80,HZJ80..VX |
1 | ||
| 55445-60010 |
FZJ80,HDJ80,HZJ80..VX |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 55477-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 55477-60010 |
FZJ80..LUB;HDJ80,HZJ80;FZJ80..LHD..SOB;FZJ80..STD..EFI |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-6006003 |
FJ80,HDJ80,HZJ80..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55501-60061E0 |
FJ80,FZJ80,HDJ80,HZJ80..RHD SABLE,TRIM4# |
1 | ||
| 55501-60061B0 |
FJ80,FZJ80,HDJ80,HZJ80..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55501-60061B0 |
FZJ80,HDJ80,HZJ80..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55501-60061E0 |
FZJ80,HDJ80,HZJ80..RHD SABLE,TRIM4# |
1 | ||
| 55501-6006006 |
FJ80,HDJ80,HZJ80..RHD SABLE,TRIM4# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-1405001 |
FZJ80,HDJ80,HZJ80 BLACK,TRIM1#,4# |
1 | ||
| 55521-14050 |
HDJ80..ARL;HDJ80..LHD..5F;FZJ80..RHD..STD;FZJ80..STD..GCC;FZJ80..SOB..(GX,VX);FZJ80,HZJ80..5F..LUB;HZJ80..LHD..SOB..GEN;HZJ80..SOB..(ARL,GCC);HDJ80,HZJ80..4FC..GEN;FZJ80..4FC..LUB..(GX,STD);FZJ80..4FC..LUB..VX..(ARL,GCC) |
1 | ||
| 55521-1405001 |
HDJ80,HZJ80;FJ80..ARL,GEN;FJ80..STD..GCC BLACK,TRIM1#,4# |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 55524-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 55524B - COVER, SWITCH BASE HOLE | ||||
| 55524-60010 |
HDJ80..ARL;FZJ80..4FC..ARL;FZJ80,HZJ80..5F..VX..GCC;FZJ80,HZJ80..5F..(GX,STD) |
1 | ||
| 55524D - COVER, SWITCH BASE HOLE, NO.5 | ||||
| 55524-60010 |
HDJ80;FZJ80,HZJ80..GX,STD;FZJ80,HZJ80..VX..(ARL,GEN) |
1 | ||
| 55524-60010 |
FJ80,HDJ80..ARL,GEN;FJ80..(GX,STD)..GCC;FZJ80,HZJ80..GX,STD;FZJ80,HZJ80..VX..GEN |
1 | ||
| 55524E - COVER, SWITCH BASE HOLE, NO.6 | ||||
| 55524-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 55524G - COVER, SWITCH BASE HOLE, NO.2 | ||||
| 55524-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 55531B - COVER, CHOKE KNOB HOLE | ||||
| 55617-1001011 |
FZJ80..RHD;FJ80,HDJ80,HZJ80..RHD..(DSL,EFI,TD2) BLACK,TRIM1#,4# |
1 | ||
| 55617-1001022 |
FZJ80,HDJ80,HZJ80..RHD BLACK,TRIM1#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55536-60010 |
HDJ80;FJ80,FZJ80,HZJ80..VX;FJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 55536-60010 |
HDJ80;FZJ80,HZJ80..VX;FZJ80,HZJ80..(GX,STD)..ARL W(RHEOSTAT) |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55536-60010 |
HDJ80;FJ80,FZJ80,HZJ80..VX;FJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 55536-60010 |
HDJ80;FZJ80,HZJ80..VX;FZJ80,HZJ80..(GX,STD)..ARL W(RHEOSTAT) |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-3201011 |
FJ80,FZJ80,HDJ80,HZJ80 BLACK,TRIM1#,4# |
1 | ||
| 55539-3201011 |
FZJ80,HDJ80,HZJ80 BLACK,TRIM1#,4# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201011 |
FJ80,FZJ80,HDJ80,HZJ80 BLACK,TRIM1#,4# |
1 | ||
| 55539-3201011 |
FZJ80,HDJ80,HZJ80 BLACK,TRIM1#,4# |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201011 |
FJ80,FZJ80,HDJ80,HZJ80 BLACK,TRIM1#,4# |
1 | ||
| 55539-3201011 |
FZJ80,HDJ80,HZJ80 BLACK,TRIM1#,4# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55540-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 55540-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR | ||||
| 55558-60020 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 55558-60020 |
FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 55561-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-8910116 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 55565-8910113 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 55565-8910116 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-8910113 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 55569-8910116 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 55569-8910116 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-32010 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 55573-32010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER | ||||
| 55590-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 55590-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-60020 |
FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 55650-60020 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-6002006 |
FJ80,FZJ80,HDJ80,HZJ80..RHD SABLE,TRIM4# |
1 | ||
| 55660-6002003 |
FJ80,FZJ80,HDJ80,HZJ80..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55660-6002003 |
FZJ80,HDJ80,HZJ80..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55660-6002006 |
FZJ80,HDJ80,HZJ80..RHD SABLE,TRIM4# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 55670-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-89101C0 |
HZJ80..SOB..(STD,VX);FZJ80..STD..(ARL,GEN);FZJ80,HDJ80..VX..(ARL,GCC) BLACK,TRIM1# |
1 | ||
| 55680-89101 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 55680-89101C0 |
FZJ80..SOB..VX;HDJ80,HZJ80..STD,VX;FZJ80..LUB..(STD,VX);FZJ80..SOB..STD..(ARL,GEN) BLACK,TRIM1# |
1 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-60020 |
FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 55950-60020 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 55955A - PLATE, DEFROSTER NOZZLE OPENING, NO.1 | ||||
| 55955-6003006 |
FJ80,HDJ80,HZJ80..RHD SABLE,TRIM4# |
1 | ||
| 55955-6003003 |
FJ80,HDJ80,HZJ80..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55959 - COVER, DEFROSTER NOZZLE OPENING, NO.1 | ||||
| 55959-14010 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 55959 - COVER, DEFROSTER NOZZLE OPENING, NO.1 | ||||
| 55959-14010 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-6002003 |
FZJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 55961-6002003 |
HDJ80..RHD;FJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 55961-6002006 |
HDJ80..RHD;FJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 55961-6002006 |
FZJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-6002003 |
HDJ80..RHD;FJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 55962-6002003 |
FZJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 55962-6002006 |
HDJ80..RHD;FJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 55962-6002006 |
FZJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 55971A - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-60020 |
HDJ80..RHD;FJ80,HZJ80..ARL |
1 | ||
| 55971-60020 |
FZJ80,HDJ80,HZJ80..ARL |
1 | ||
| 55972 - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-60010 |
HDJ80..RHD;HZJ80..ARL;FJ80,FZJ80..ARL,GEN |
1 | ||
| 55972-60010 |
FZJ80..ARL,GEN;HDJ80,HZJ80..ARL |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-06166 | ||||
| 90119-06429 | ||||
| 90119-08193 | ||||
| 90159-50105 | ||||
| 90159-50138 | ||||
| 90159-50163 | ||||
| 90179-08102 | ||||
| 90189-05024 | ||||
| 90254-04016 | ||||
| 90467-14010 | ||||
| 90468-04147 | ||||
| 90468-04157 | ||||
| 93568-55014 | ||||
| 93568-55018 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
