HDJ80R-GNPEWQ (1995)

Toyota Land Cruiser

Production Jan 1995 - Jan 1998
Engine 1HDFT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9501- )HDJ80,HZJ80

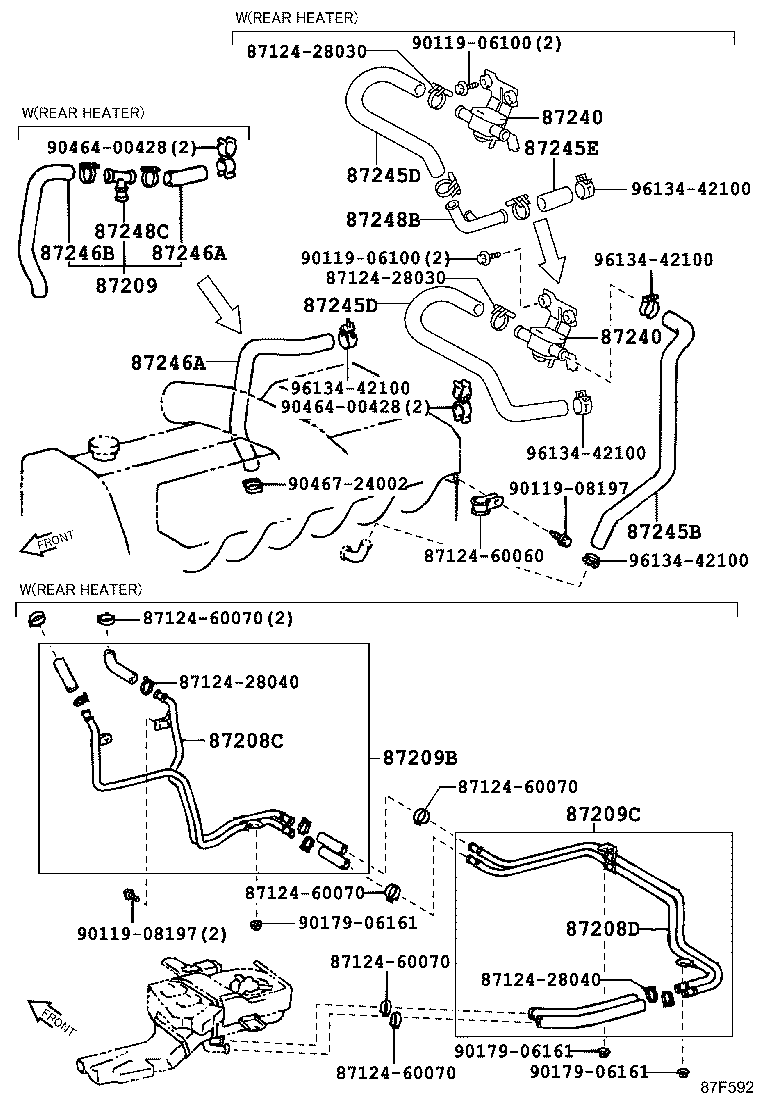

Click highlighted areas on diagram

diagram 8712428030 8712428030 8712428040 8712428040 8712460060 8712460070 8712460070 8712460070 8712460070 8712460070 87208C 87208D 87209 87209B 87209C 87240 87240 87245B 87245D 87245D 87245E 87246A 87246A 87246B 87248B 87248C 9011906100 9011906100 9011908197 9011908197 9017906161 9017906161 9017906161 9046400428 9046400428 9046724002 9613442100 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-60390

HDJ80..TD4;HDJ80..LHD;HDJ80..RHD..5F..TD2;HZJ80..5F..(ARL,GEN)

 1
87209 - HOSE SUB-ASSY, WATER
87209-60360

HDJ80..TD4;HDJ80..LHD;HDJ80..RHD..5F..TD2;HZJ80..5F..(ARL,GEN)

 1
87209-60150

HDJ80,HZJ80..ARL,GEN

 1
87209B - HOSE SUB-ASSY, WATER, B
87209-60260

FJ80,HDJ80,HZJ80..ARL,GEN

 1
87209-60370

HDJ80..TD4;HDJ80..LHD;HDJ80..RHD..5F..TD2;HZJ80..5F..(ARL,GEN)

 1
87209C - HOSE SUB-ASSY, WATER, C
87209-60270

FJ80,HDJ80,HZJ80..ARL,GEN

 1
87240 - VALVE ASSY, HEATER WATER
87240-60080

HDJ80,HZJ80..RHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-60080

HDJ80,HZJ80..RHD

 1
87245B - HOSE, HEATER WATER, INLET B
87245-60110

HDJ80,HZJ80

 1
87245D - HOSE, HEATER WATER, INLET D
87245-60430

HDJ80..TD4;HDJ80..LHD;HDJ80..RHD..5F..TD2;HZJ80..5F..(ARL,GEN)

W(REAR HEATER)

 1
99556-30100

HDJ80,HZJ80

*H,L=50

 1
87245D - HOSE, HEATER WATER, INLET D
87245-60430

HDJ80..TD4;HDJ80..LHD;HDJ80..RHD..5F..TD2;HZJ80..5F..(ARL,GEN)

W(REAR HEATER)

 1
99556-30100

HDJ80,HZJ80

*H,L=50

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

HDJ80..TD4;HDJ80..LHD;HDJ80..RHD..5F..TD2;HZJ80..5F..(ARL,GEN)

*H,L=60

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-60120

HZJ80;HDJ80..4FC;HDJ80..5F..GX;HDJ80..LHD..5F

 1
87245-60610

HDJ80..TD4;HDJ80..LHD;HDJ80..RHD..5F..TD2;HZJ80..5F..(ARL,GEN)

W(REAR HEATER)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-60120

HZJ80;HDJ80..4FC;HDJ80..5F..GX;HDJ80..LHD..5F

 1
87245-60610

HDJ80..TD4;HDJ80..LHD;HDJ80..RHD..5F..TD2;HZJ80..5F..(ARL,GEN)

W(REAR HEATER)

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-60620

HDJ80..TD4;HDJ80..LHD;HDJ80..RHD..5F..TD2;HZJ80..5F..(ARL,GEN)

 1
87248B - PIPE, HEATER WATER INLET, B
87208-60320

HDJ80..TD4;HDJ80..LHD;HDJ80..RHD..5F..TD2;HZJ80..5F..(ARL,GEN)

 1
87248C - PIPE, HEATER WATER INLET, C
87248-95400

HDJ80..TD4;HDJ80..LHD;HDJ80..RHD..5F..TD2;HZJ80..5F..(ARL,GEN)

 1
87248-95400

HDJ80;HZJ80..RHD;HZJ80..LHD..(STD,VX)..GEN

 1
Common parts
87124-28030
87124-28040
87124-60060
87124-60070
90119-06100
90119-08197
90179-06161
90464-00428
90467-24002
96134-42100
