HDJ80R-GNPEWQ (1995)

Toyota Land Cruiser

Production Jan 1995 - Jan 1998
Engine 1HDFT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 9(9001-0701)

Click highlighted areas on diagram

COWL & INSTRUMENT PANEL WIRE

diagram 6477790A00 82119 82131 82132 82132 82141 82142 82143 82143 82241C 82345 82345 82345 82627A 82823T 8401 8401 8401 8401 8401 9011906390 9011906390 9165160614 9165160614
Part # Description Qty Price
Common parts
64777-90A00
90119-06390
91651-60614
Linked diagrams
8401

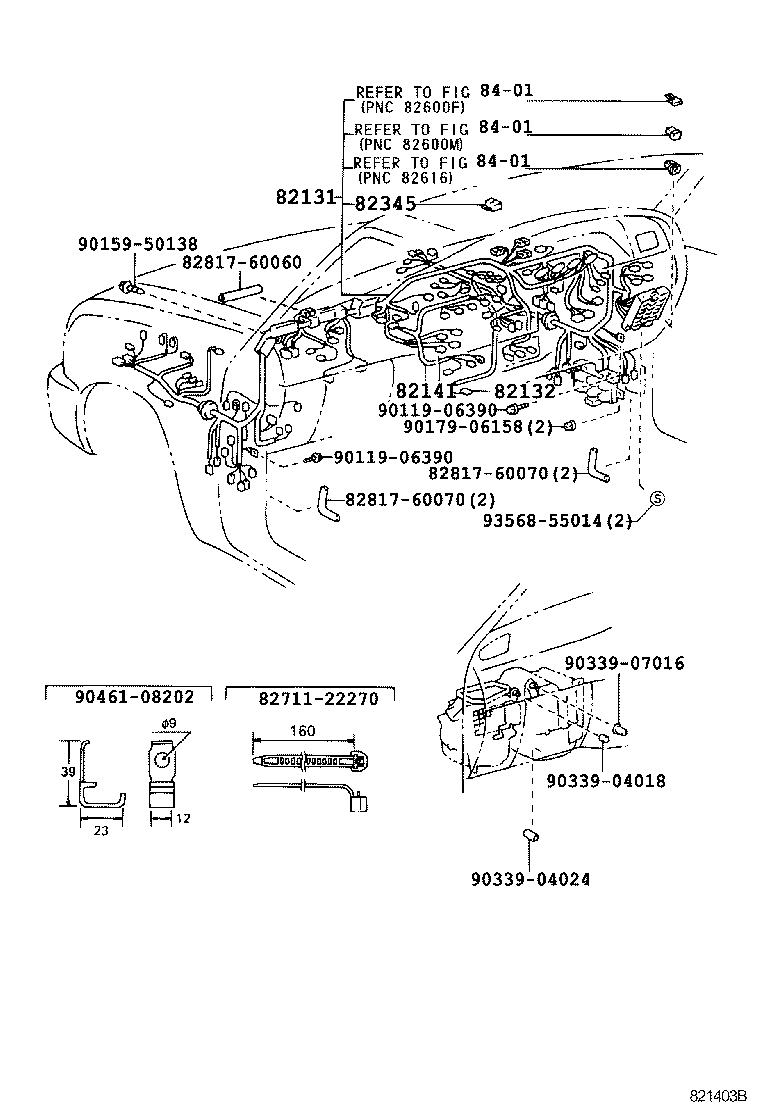

ILLUST NO. 3 OF 8(9501- )RHD

Click highlighted areas on diagram

COWL & INSTRUMENT WIRE

diagram 82131 82132 82141 82345 8271122270 8281760060 8281760070 8281760070 8401 8401 8401 9011906390 9011906390 9015950138 9017906158 9033904018 9033904024 9033907016 9046108202 9356855014
Part # Description Qty Price
82131 - WIRE, COWL
82131-60240

HDJ80..VX..ARL

W(DUAL AIR CONDITIONER)

 1
82131-60230

HDJ80..VX..ARL

 1
82131-60246

HDJ80..VX..TD4

 1
82131-60248

HDJ80..VX..TD4

 1
82131-60247

HDJ80..VX..TD4

 1
82131-60249

HDJ80..VX..TD4

 1
82132 - WIRE, COWL, NO.2
82132-60080

FZJ80,HDJ80..VX..ARL

 1
82141 - WIRE, INSTRUMENT PANEL
82141-60020

FJ80,HDJ80,HZJ80..LUB..ARL

 1
82141-60153

FZJ80,HDJ80,HZJ80..ARL

 1
82141-60152

FZJ80,HDJ80,HZJ80..ARL

 1
Common parts
82711-22270
82817-60060
82817-60070
90119-06390
90159-50138
90179-06158
90339-04018
90339-04024
90339-07016
90461-08202
93568-55014
Linked diagrams
8401
