Toyota Land cruiser HDJ80 ACCELERATOR LINK

HDJ80R-GNPEWQ (1995)

Toyota Land Cruiser

Production Jan 1995 - Jan 1998

Engine 1HDFT

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9501- )TD4

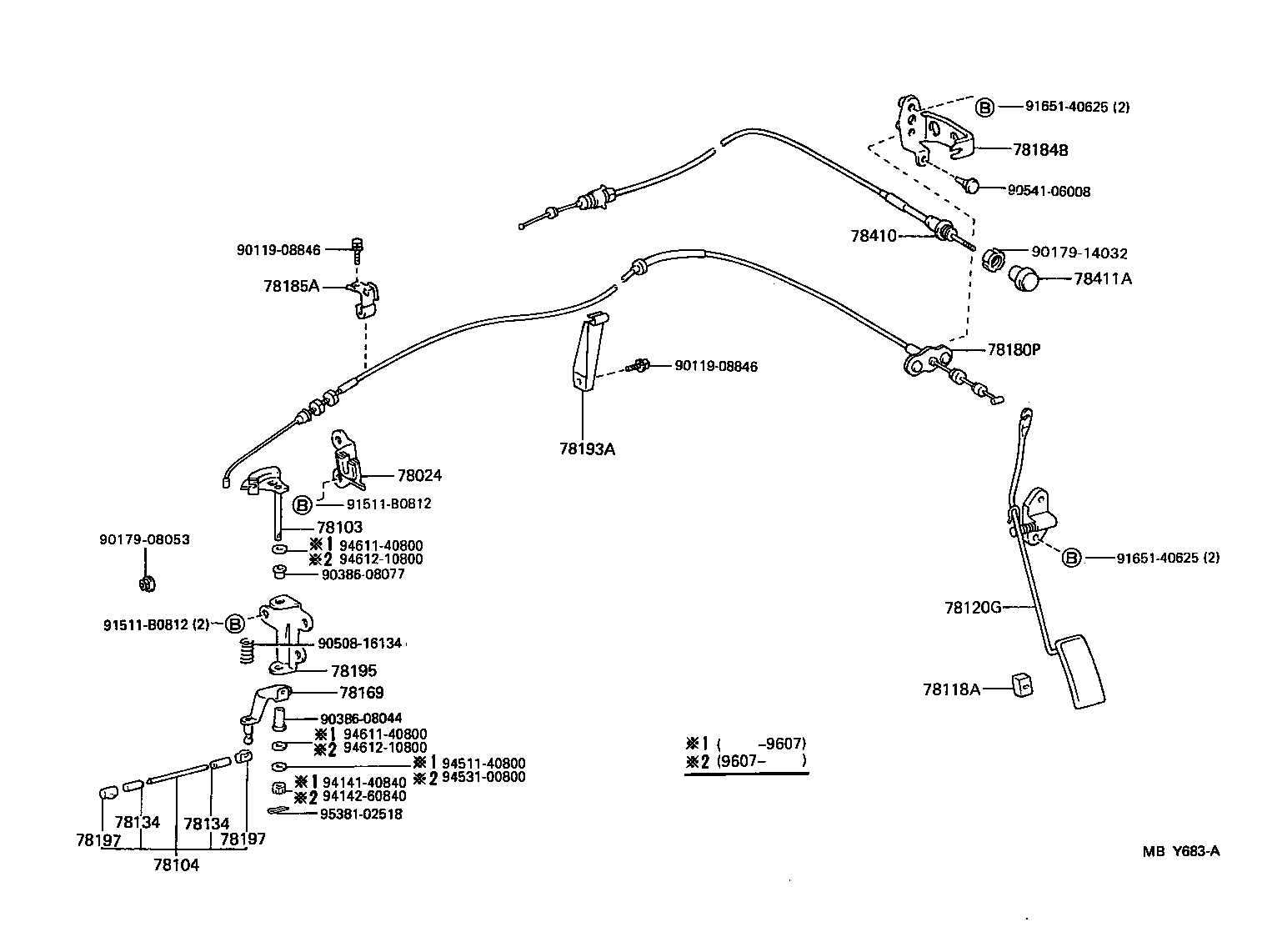

Click highlighted areas on diagram

Part #	Description	Period	Qty
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-60050	HDJ80..TD4	01/1995 - 01/1998	1
78024-60010	HDJ80,HZJ80	01/1990 - 08/1992	1
78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78103-60020	HDJ80,HZJ80	01/1990 - 08/1992	1
78103-60041	HDJ80..TD4	07/1996 - 01/1998	1
78103-60040	HDJ80..TD4	01/1995 - 07/1996	1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-60040	HDJ80..TD4	01/1995 - 01/1998	1
78104-60010	HDJ80,HZJ80	01/1990 - 08/1992	1
78118A - STOPPER, ACCELERATOR PEDAL
78118-60010	FJ80,FZJ80,HDJ80,HZJ80..RHD	01/1990 - 08/1992	1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-60030	FJ80,HDJ80,HZJ80..RHD	01/1990 - 06/1990	1
78134 - END, ACCELERATOR CONNECTING ROD
78134-10010	HDJ80,HZJ80	01/1990 - 08/1992	2
78134 - END, ACCELERATOR CONNECTING ROD
78134-10010	HDJ80,HZJ80	01/1990 - 08/1992	2
78169 - HANGER, ACCELERATOR SPRING
78169-60050	HDJ80..TD4	01/1995 - 01/1998	1
78169-60010	HDJ80,HZJ80	01/1990 - 08/1992	1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-60100	HDJ80..4FC..ARL	01/1990 - 06/1992	1
78180-60120	HDJ80..4FC..ARL W(*CRC)	01/1990 - 08/1992	1
78180-60380	HDJ80..4FC..TD4	01/1995 - 01/1998	1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-60040	HDJ80,HZJ80	01/1990 - 08/1992	1
78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2
78183-60090	HDJ80..TD4	01/1995 - 08/1996	1
78183-60090	HDJ80..TD4;HDJ80..LHD	08/1996 - 01/1998	1
78193A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.3
78193-60010	HDJ80..TD4	01/1995 - 01/1998	1
78195 - BRACKET, ACCELERATOR LINK
78195-60030	HDJ80..TD4	01/1995 - 01/1998	1
78195-60010	HDJ80,HZJ80	01/1990 - 08/1992	1
78197 - CLIP, ACCELERATOR JOINT BALL
78197-10010	HDJ80,HZJ80	01/1990 - 08/1992	2
78197 - CLIP, ACCELERATOR JOINT BALL
78197-10010	HDJ80,HZJ80	01/1990 - 08/1992	2
78410 - CABLE ASSY, THROTTLE CONTROL
78410-60100	HDJ80,HZJ80..RHD	01/1990 - 08/1992	1
78411A - KNOB, THROTTLE CONTROL CABLE
78402-60030	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
Common parts
90119-08846
90179-08053
90179-14032
90386-08044
90386-08077
90508-16134
90541-06008
91511-B0812
91651-40625
94141-40840
94142-60840
94511-40800
94531-00800
94611-40800
94612-10800
95381-02518

(9501- )TD4

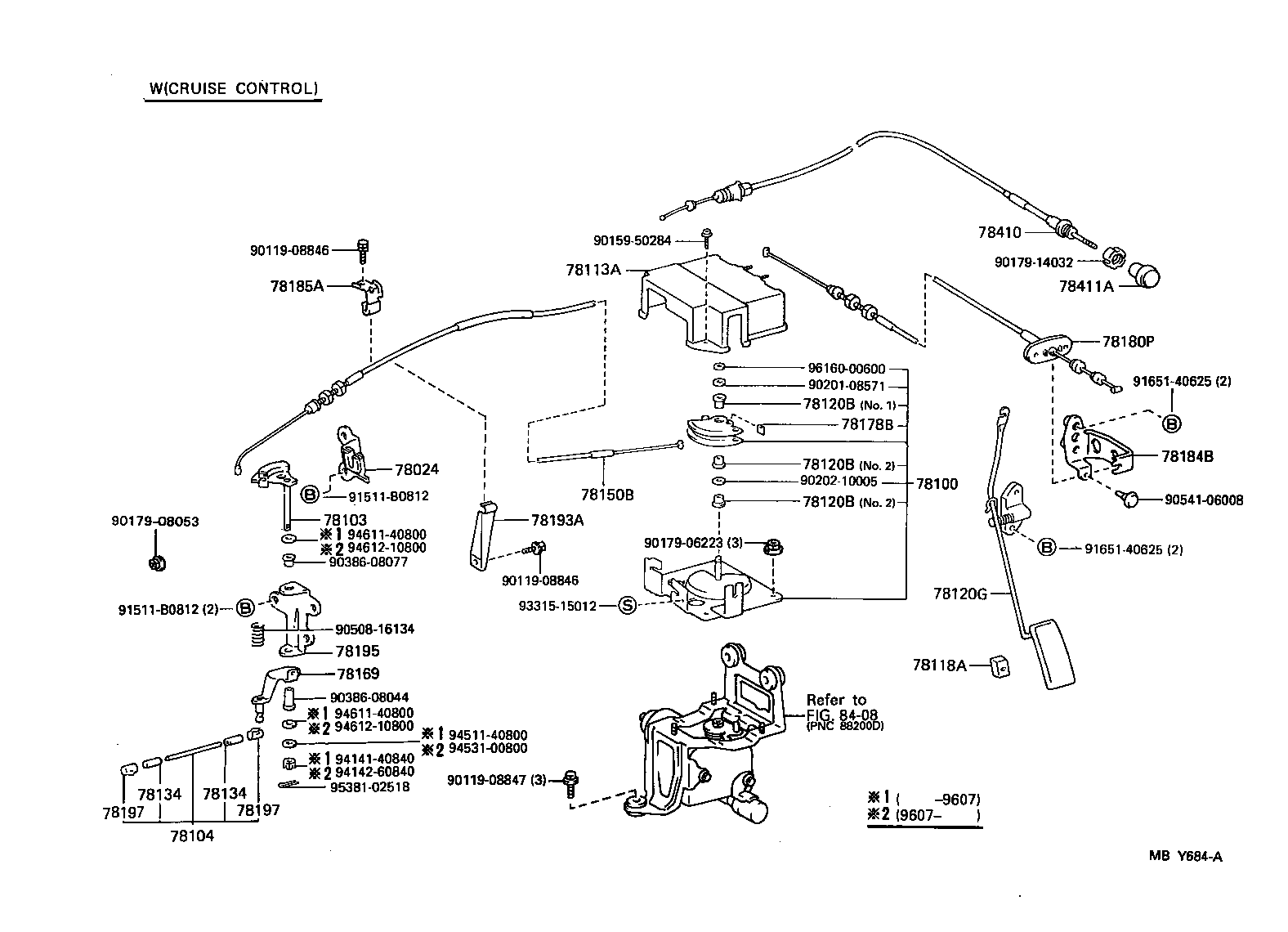

Click highlighted areas on diagram

W(CRUISE CONTROL)

Part #	Description	Period	Qty
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-60050	HDJ80..TD4	01/1995 - 01/1998	1
78024-60010	HDJ80,HZJ80	01/1990 - 08/1992	1
78100 - LINK ASSY, ACCELERATOR
78100-60040	HDJ80..4FC..ARL	01/1990 - 08/1992	1
78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78103-60020	HDJ80,HZJ80	01/1990 - 08/1992	1
78103-60041	HDJ80..TD4	07/1996 - 01/1998	1
78103-60040	HDJ80..TD4	01/1995 - 07/1996	1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-60040	HDJ80..TD4	01/1995 - 01/1998	1
78104-60010	HDJ80,HZJ80	01/1990 - 08/1992	1
78113A - COVER, AUTO DRIVE ACCELERATOR LINK
78113-60040	FJ80,HDJ80..4FC..ARL	01/1990 - 08/1992	1
78113-60040	HDJ80..TD4;HDJ80..LHD	08/1996 - 01/1998	1
78118A - STOPPER, ACCELERATOR PEDAL
78118-60010	FJ80,FZJ80,HDJ80,HZJ80..RHD	01/1990 - 08/1992	1
78120B - BUSH (FOR ACCELERATOR LINK ROD)
90386-08005	FJ80,HDJ80..4FC..ARL NO.1	01/1990 - 08/1992	1
90386-08077	FJ80,HDJ80..4FC..ARL NO.2	01/1990 - 08/1992	1
90386-08077	HDJ80..TD4;HDJ80..LHD NO.2	08/1996 - 01/1998	2
90386-08005	HDJ80..TD4;HDJ80..LHD NO.1	08/1996 - 01/1998	1
78120B - BUSH (FOR ACCELERATOR LINK ROD)
90386-08005	FJ80,HDJ80..4FC..ARL NO.1	01/1990 - 08/1992	1
90386-08077	FJ80,HDJ80..4FC..ARL NO.2	01/1990 - 08/1992	1
90386-08077	HDJ80..TD4;HDJ80..LHD NO.2	08/1996 - 01/1998	2
90386-08005	HDJ80..TD4;HDJ80..LHD NO.1	08/1996 - 01/1998	1
78120B - BUSH (FOR ACCELERATOR LINK ROD)
90386-08005	FJ80,HDJ80..4FC..ARL NO.1	01/1990 - 08/1992	1
90386-08077	FJ80,HDJ80..4FC..ARL NO.2	01/1990 - 08/1992	1
90386-08077	HDJ80..TD4;HDJ80..LHD NO.2	08/1996 - 01/1998	2
90386-08005	HDJ80..TD4;HDJ80..LHD NO.1	08/1996 - 01/1998	1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-60030	FJ80,HDJ80,HZJ80..RHD	01/1990 - 06/1990	1
78134 - END, ACCELERATOR CONNECTING ROD
78134-10010	HDJ80,HZJ80	01/1990 - 08/1992	2
78134 - END, ACCELERATOR CONNECTING ROD
78134-10010	HDJ80,HZJ80	01/1990 - 08/1992	2
78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE
78150-60030	HDJ80..TD4	01/1995 - 01/1998	1
78150-60020	HDJ80..4FC..ARL	01/1990 - 08/1992	1
78169 - HANGER, ACCELERATOR SPRING
78169-60050	HDJ80..TD4	01/1995 - 01/1998	1
78169-60010	HDJ80,HZJ80	01/1990 - 08/1992	1
78178B - DAMPER, ACCEL CONTROL NO.4 ROD BRACKET
78178-14010	HDJ80..TD4;HDJ80..LHD	08/1996 - 01/1998	1
78178-14010	FJ80,HDJ80..4FC..ARL	01/1990 - 08/1992	2
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-60100	HDJ80..4FC..ARL	01/1990 - 06/1992	1
78180-60120	HDJ80..4FC..ARL W(*CRC)	01/1990 - 08/1992	1
78180-60380	HDJ80..4FC..TD4	01/1995 - 01/1998	1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-60040	HDJ80,HZJ80	01/1990 - 08/1992	1
78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2
78183-60090	HDJ80..TD4	01/1995 - 08/1996	1
78183-60090	HDJ80..TD4;HDJ80..LHD	08/1996 - 01/1998	1
78193A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.3
78193-60010	HDJ80..TD4	01/1995 - 01/1998	1
78195 - BRACKET, ACCELERATOR LINK
78195-60030	HDJ80..TD4	01/1995 - 01/1998	1
78195-60010	HDJ80,HZJ80	01/1990 - 08/1992	1
78197 - CLIP, ACCELERATOR JOINT BALL
78197-10010	HDJ80,HZJ80	01/1990 - 08/1992	2
78197 - CLIP, ACCELERATOR JOINT BALL
78197-10010	HDJ80,HZJ80	01/1990 - 08/1992	2
78410 - CABLE ASSY, THROTTLE CONTROL
78410-60100	HDJ80,HZJ80..RHD	01/1990 - 08/1992	1
78411A - KNOB, THROTTLE CONTROL CABLE
78402-60030	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
Common parts
90119-08846
90119-08847
90159-50284
90179-06223
90179-08053
90179-14032
90201-08571
90202-10005
90386-08044
90386-08077
90508-16134
90541-06008
91511-B0812
91651-40625
93315-15012
94141-40840
94142-60840
94511-40800
94531-00800
94611-40800
94612-10800
95381-02518
96160-00600
