HDJ80R-GNPEWQ (1995)

Toyota Land Cruiser

Production Jan 1995 - Jan 1998
Engine 1HDFT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9908)RHD ; (9908-0007)FZJ75,HZJ70,75..RHD

Click highlighted areas on diagram

diagram 55042A 55301 55308B 55315A 55315A 55331 5534560010 5534560010 55349A 55349A 55354 55355B 55356B 55357A 55358K 55381B 55401E 55403 55404C 55412C 55413C 55432D 55468C 55477A 55497A 55498A 55501A 55505D 55521C 55522B 55523 55524 55526 55526 55533 55539 55539B 55539C 55539D 55547 55556 55560A 55561A 55581A 55650 55660 55670 55670 55950 55959 55959A 55969 55969A 55970A 55980A 55989 7451 9011906067 9011906350 9011906350 9011906350 9015940159 9015940159 9016450008 9016450008 9016450008 9016450008 9016450008 9016450008 9016840043 9016850027 9017906070 9017906115 9017908102 9018305094 9018905024 9033903003 9046706157 9046804067 9046805047 9054103005 9095001329 9095001725 9162640618 9162640618 9162640618 9162640618 9162640618 9162640618 9165140612 9165160816 9165160816 9165160816 9165160816 9331116010 9354055025 9356055016 9356055016 9356055016 9356055016 9356815012 9356815012 9356855016 9356855016
Part # Description Qty Price
Common parts
55345-60010
90119-06067
90119-06350
90159-40159
90164-50008
90168-40043
90168-50027
90179-06070
90179-06115
90179-08102
90183-05094
90189-05024
90339-03003
90467-06157
90468-04067
90468-05047
90541-03005
90950-01329
90950-01725
91626-40618
91651-40612
91651-60816
93311-16010
93540-55025
93560-55016
93568-15012
93568-55016
Linked diagrams
7451

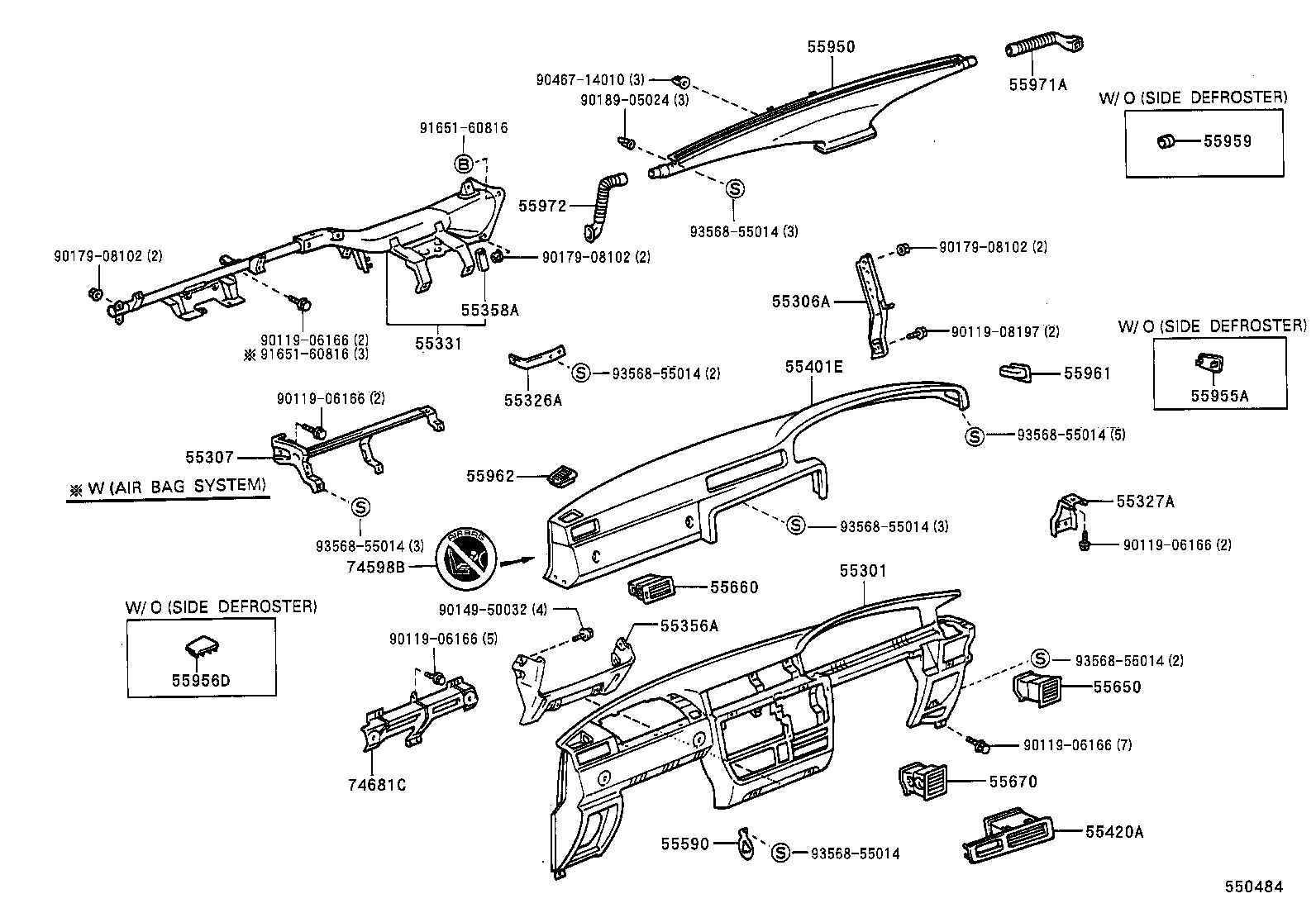

ILLUST NO. 2 OF 3(9501- )RHD

Click highlighted areas on diagram

diagram 55301 55306A 55307 55326A 55327A 55331 55356A 55358A 55401E 55420A 55590 55650 55660 55670 55950 55955A 55956D 55959 55961 55962 55971A 55972 74598B 74681C 9011906166 9011906166 9011906166 9011906166 9011906166 9011908197 9014950032 9017908102 9017908102 9017908102 9018905024 9046714010 9165160816 9165160816 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55311-6013006

FJ80,FZJ80,HDJ80,HZJ80..RHD

SABLE,TRIM4#

 1
55311-6016006

FJ80,HDJ80..VX..ARL

W(AUTO AIR CONDITIONER),SABLE,TRIM4#

 1
55311-6013003

FJ80,FZJ80,HDJ80,HZJ80..RHD

BLUISH GRAY,TRIM1#

 1
55311-6016003

FJ80,HDJ80..VX..ARL

W(AUTO AIR CONDITIONER),BLUISH GRAY,TRIM1#

 1
55311-60400B0

FZJ80,HDJ80,HZJ80..RHD

BLUISH GRAY,TRIM1#

 1
55311-60590E0

FZJ80,HDJ80,HZJ80..ARL

W(*80),OAK,TRIM4#

 1
55311-60400E0

FZJ80,HDJ80,HZJ80..RHD

OAK,TRIM4#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-60020

FJ80,FZJ80,HDJ80,HZJ80..RHD

 1
55307 - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER
55307-60020

FJ80,FZJ80,HDJ80,HZJ80..RHD

 1
55326A - STAY, INSTRUMENT PANEL, NO.1
55326-60020

FJ80,FZJ80,HDJ80,HZJ80..RHD

 1
55327A - STAY, INSTRUMENT PANEL, NO.2
55327-60020

FJ80,FZJ80,HDJ80,HZJ80

 1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-60020

FJ80,FZJ80,HDJ80,HZJ80..RHD

 1
55330-60040

FZJ80,HDJ80,HZJ80..RHD

 1
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-6004003

FJ80,HDJ80,HZJ80..ARL

BLUISH GRAY,TRIM1#

 1
55401-6004006

FJ80,HDJ80,HZJ80..ARL

SABLE,TRIM4#

 1
55401-60140E0

HZJ80..ARL;FZJ80,HDJ80..RHD..(EFI,TD2,TD4)

OAK,TRIM4#

 1
55401-60140B0

HZJ80..ARL;FZJ80,HDJ80..RHD..(EFI,TD2,TD4)

BLUISH GRAY,TRIM1#

 1
55401-60160E0

FZJ80,HDJ80,HZJ80..ARL

W(*80),OAK,TRIM4#

 1
55401-60150E0

FZJ80,HDJ80..VX

W(*80,DRIVER & PASSENGER & SIDE),OAK,TRIM4#

 1
55401-60150B0

FZJ80,HDJ80..VX

W(*80,DRIVER & PASSENGER & SIDE),BLUISH GRAY,TRIM1#

 1
55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER
55596-60010

FZJ80,HDJ80,HZJ80..GX,VX

 1
55590-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-60020

FJ80,FZJ80,HDJ80,HZJ80..RHD

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-6002006

FJ80,FZJ80,HDJ80,HZJ80..RHD

SABLE,TRIM4#

 1
55660-6002003

FJ80,FZJ80,HDJ80,HZJ80..RHD

BLUISH GRAY,TRIM1#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-60020

FJ80,FZJ80,HDJ80,HZJ80..RHD

 1
55955A - PLATE, DEFROSTER NOZZLE OPENING, NO.1
55955-6003006

FJ80,HDJ80,HZJ80..RHD

SABLE,TRIM4#

 1
55955-6003003

FJ80,HDJ80,HZJ80..RHD

BLUISH GRAY,TRIM1#

 1
55959 - COVER, DEFROSTER NOZZLE OPENING, NO.1
55959-14010

FJ80,HDJ80,HZJ80

 2
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-60050E0

FZJ80,HDJ80,HZJ80..ARL

OAK,TRIM4#

 1
55961-60050B0

FZJ80,HDJ80,HZJ80..ARL

BLUISH GRAY,TRIM1#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-60040B0

FZJ80,HDJ80,HZJ80..ARL

BLUISH GRAY,TRIM1#

 1
55962-60040E0

FZJ80,HDJ80,HZJ80..ARL

OAK,TRIM4#

 1
55971A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-60050

FZJ80,HDJ80,HZJ80..ARL

 1
Common parts
90119-06166
90119-08197
90149-50032
90179-08102
90189-05024
90467-14010
91651-60816
93568-55014

ILLUST NO. 3 OF 3(9608- )

Click highlighted areas on diagram

diagram 73960A 9163140618 9165160814
Part # Description Qty Price
Common parts
91631-40618
91651-60814

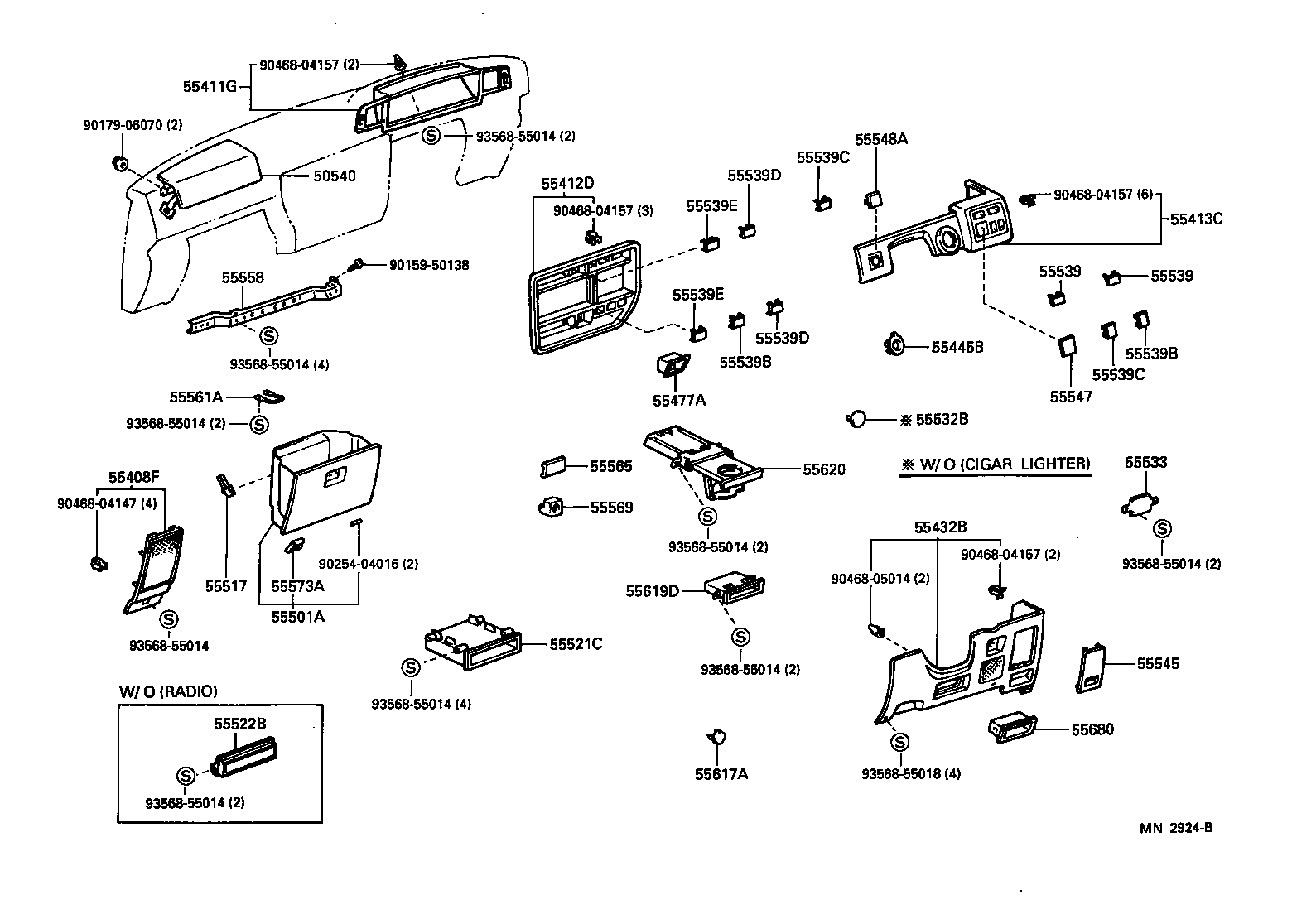

ILLUST NO. 1 OF 3(9501- )RHD

Click highlighted areas on diagram

diagram 50540 55408F 55411G 55412D 55413C 55432B 55445B 55477A 55501A 55517 55521C 55522B 55532B 55533 55539 55539 55539B 55539B 55539C 55539C 55539D 55539D 55539E 55539E 55545 55547 55548A 55558 55561A 55565 55569 55573A 55617A 55619D 55620 55680 9015950138 9017906070 9025404016 9046804147 9046804157 9046804157 9046804157 9046804157 9046805014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855018
Part # Description Qty Price
50540 - DO0R ASSY, AIR BAG PASSENGER
50540-60020E0

FZJ80,HDJ80,HZJ80..ARL

OAK,TRIM4#

 1
55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55408-6002003

FJ80,FZJ80,HDJ80..RHD..VX

BLUISH GRAY,TRIM1#

 1
55408-6002006

FJ80,FZJ80,HDJ80..RHD..VX

SABLE,TRIM4#

 1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-60020

FJ80,FZJ80,HDJ80,HZJ80..RHD..(GX,VX)

 1
55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55412-60020

FJ80,FZJ80,HDJ80,HZJ80..RHD

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55480-6002006

FJ80,FZJ80,HDJ80..RHD..VX

SABLE,TRIM4#

 1
55480-6002003

FJ80,FZJ80,HDJ80..RHD..VX

BLUISH GRAY,TRIM1#

 1
55445B - PLATE, INSTRUMENT PANEL FINISH
55445-60010

FJ80,FZJ80,HDJ80,HZJ80..VX

 1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-60010

HZJ80..GCC,GEN;HZJ80..GX..ARL;FZJ80..LHD..SOB;FZJ80,HDJ80..LUB

 1
55477-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
55477-60010

FZJ80..LUB;HDJ80,HZJ80;FZJ80..LHD..SOB

 1
55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT
55501-6006003

FJ80,HDJ80,HZJ80..RHD

BLUISH GRAY,TRIM1#

 1
55501-60110B0

FZJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
55501-6006006

FJ80,HDJ80,HZJ80..RHD

SABLE,TRIM4#

 1
55501-60110E0

FZJ80,HDJ80,HZJ80

OAK,TRIM4#

 1
55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM
55517-60020

FZJ80,HDJ80,HZJ80

 2
55521C - COVER, STEREO OPENING
55521-1405001

HDJ80,HZJ80;FJ80..ARL,GEN;FJ80..STD..GCC

BLACK,TRIM1#,4#

 1
55539 - COVER, SPARE SWITCH HOLE
55536-60010

HDJ80;FJ80,FZJ80,HZJ80..VX;FJ80,HZJ80..(GX,STD)..ARL

 1
55536-60010

HDJ80;FZJ80,HZJ80..VX;FZJ80,HZJ80..(GX,STD)..ARL

 1
55539 - COVER, SPARE SWITCH HOLE
55536-60010

HDJ80;FJ80,FZJ80,HZJ80..VX;FJ80,HZJ80..(GX,STD)..ARL

 1
55536-60010

HDJ80;FZJ80,HZJ80..VX;FZJ80,HZJ80..(GX,STD)..ARL

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-3201011

FJ80,FZJ80,HDJ80,HZJ80

BLACK,TRIM1#,4#

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-3201011

FJ80,FZJ80,HDJ80,HZJ80

BLACK,TRIM1#,4#

 1
55539D - COVER, SPARE SWITCH HOLE
55539-3201011

FJ80,FZJ80,HDJ80,HZJ80

BLACK,TRIM1#,4#

 1
55539D - COVER, SPARE SWITCH HOLE
55539-3201011

FJ80,FZJ80,HDJ80,HZJ80

BLACK,TRIM1#,4#

 1
55539E - COVER, SPARE SWITCH HOLE
55539-3201011

FJ80,FZJ80,HDJ80,HZJ80

BLACK,TRIM1#,4#

 1
55539E - COVER, SPARE SWITCH HOLE
55539-3201011

FJ80,FZJ80,HDJ80,HZJ80

BLACK,TRIM1#,4#

 1
55545 - COVER, FUSE BOX OPENING
55540-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
55545-60040B0

FZJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
55545-60040E0

FZJ80,HDJ80,HZJ80

OAK,TRIM4#

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR
55558-60020

FJ80,FZJ80,HDJ80,HZJ80..RHD

 1
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
55561-60060

FZJ80,HDJ80,HZJ80

 1
55561-60030

FZJ80,HDJ80,HZJ80

 1
55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK
55565-8910113

FJ80,FZJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
55565-8910116

FJ80,FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
55569 - COVER, GLOVE COMPARTMENT DOOR LOCK
55569-8910113

FJ80,FZJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
55569-8910116

FJ80,FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
55573A - HINGE, GLOVE COMPARTMENT DOOR
55573-32010

FJ80,FZJ80,HDJ80,HZJ80

 2
55620 - HOLDER ASSY, INSTRUMENT PANEL CUP
55620-60010

FZJ80,HDJ80,HZJ80..VX

 1
55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55680-89101

FJ80,FZJ80,HDJ80,HZJ80

 1
55680-89101C0

FZJ80..5F;HDJ80..LHD;FZJ80..4FC..(GX,VX);HDJ80..RHD..5F..TD2;HDJ80,HZJ80..DSL,TD4

BLACK,TRIM1#,4#

 1
Common parts
90159-50138
90179-06070
90254-04016
90468-04147
90468-04157
90468-05014
93568-55014
93568-55018
