HDJ80R-GNPEWQ (1995)

Toyota Land Cruiser

Production Jan 1995 - Jan 1998
Engine 1HDFT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9501-9801)1HDFT

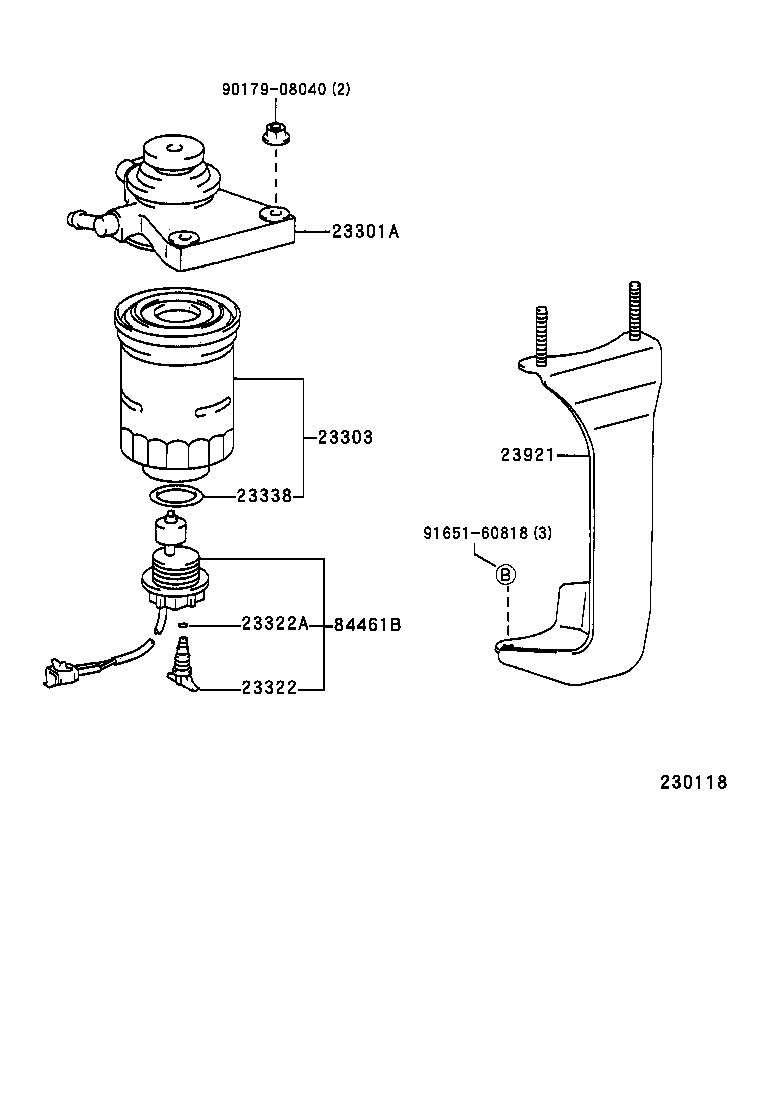

Click highlighted areas on diagram

diagram 23301A 23303 23322 23322A 23338 23921 84461B 9017908040 9165160818
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23380-17261

1HD#..HDJ80

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-56040

1H#..HDJ80,HZJ80

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64020

1H#..HDJ80,HZJ80

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

1H#..HDJ80,HZJ80

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

1H#..HDJ80,HZJ80

 1
23921 - SUPPORT, FUEL FILTER
23904-17010

1H#..HDJ80,HZJ80

 1
84461B - SWITCH, LEVEL WARNING
84461-60050

HDJ80,HZJ80..ARL,GEN

 1
Common parts
90179-08040
91651-60818
