HDJ80R-GNPEWQ (1995)

Toyota Land Cruiser

Production Jan 1995 - Jan 1998
Engine 1HDFT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9501-9801)1HDFT

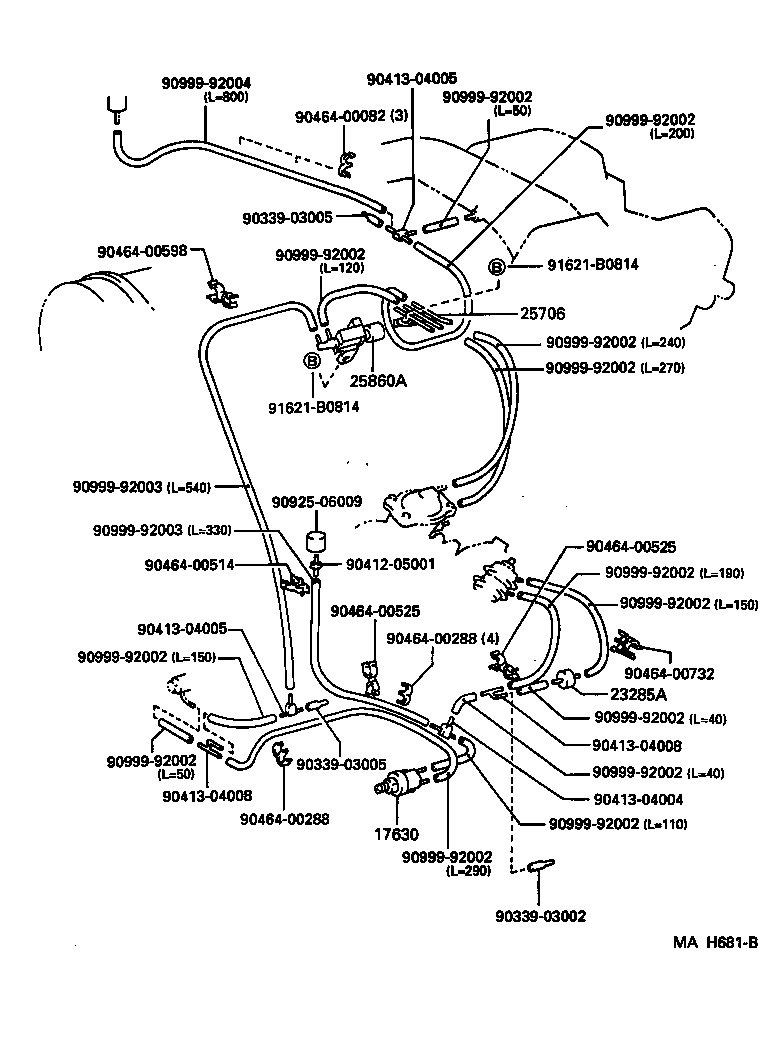

Click highlighted areas on diagram

diagram 17630 23285A 25706 25860A 9033903002 9033903005 9033903005 9041205001 9041304004 9041304005 9041304005 9041304008 9041304008 9046400082 9046400288 9046400288 9046400514 9046400525 9046400525 9046400598 9046400732 9092506009 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992004 91621B0814 91621B0814
Part # Description Qty Price
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-17020

1HDFT..HDJ80

 1
25860A - VALVE, VACUUM SWITCHING, NO.1
90910-12155

1HDFT..HDJ80

 1
Common parts
90339-03002
90339-03005
90412-05001
90413-04004
90413-04005
90413-04008
90464-00082
90464-00288
90464-00514
90464-00525
90464-00598
90464-00732
90925-06009
90999-92002
90999-92003
90999-92004
91621-B0814
