HDJ80R-GNPEWQ (1995)

Toyota Land Cruiser

Production Jan 1995 - Jan 1998
Engine 1HDFT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9501-9801)1HDFT

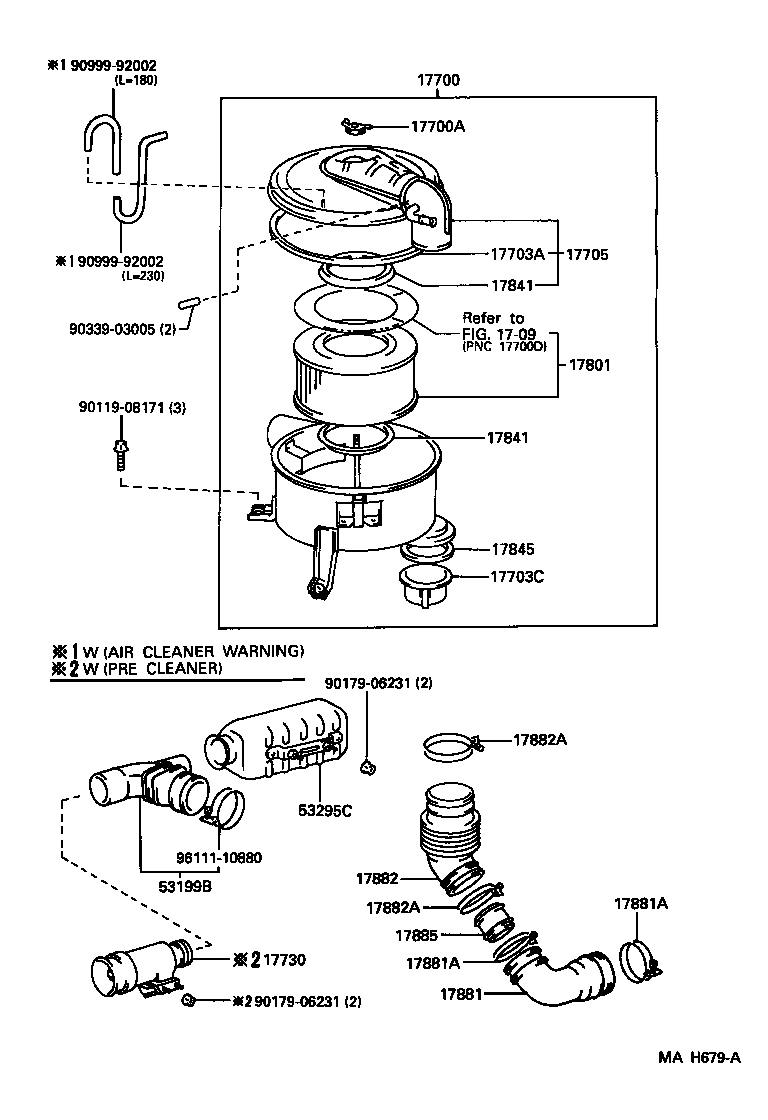

Click highlighted areas on diagram

diagram 1709 17700 17700A 17703A 17703C 17705 17730 17801 17841 17841 17845 17881 17881A 17881A 17882 17882A 17882A 17885 53199B 53295C 9011908171 9017906231 9017906231 9033903005 9099992002 9099992002 9611110880
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-17170

1HDFT..HDJ80

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

1H#..HDJ80,HZJ80

 1
17703A - GASKET(FOR BOTTOM AIR CLEANER FILTER CASE)
17845-61011

1H#..HDJ80,HZJ80

 1
17703C - CAP SUB-ASSY, DUST
17703-68010

1H#..HDJ80,HZJ80

 1
17703-17010

1HD#,1HZ..HDJ80,HZJ80

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-17110

1HDFT..HDJ80

 1
17730 - PRECLEANER ASSY, AIR W/HOSE
17730-17010

1HDT..HDJ80..LHD;1HDT..HDJ80..RHD..5F;1HDFT,1HZ..HDJ80,HZJ80..(GX,VX)..(ARL,GCC)

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-61030

1H#..HDJ80,HZJ80

 1
17841 - GASKET, FILTER ELEMENT
17841-68010

1H#..HDJ80,HZJ80

 2
17841 - GASKET, FILTER ELEMENT
17841-68010

1H#..HDJ80,HZJ80

 2
17845 - GASKET, AIR CLEANER CAP
17845-68030

1H#..HDJ80,HZJ80

 1
53199B - DUCT SUB-ASSY, COOL AIR INTAKE
53207-60090

HDJ80,HZJ80

W(PRE CLEANER) & W/O(SNORKEL)

 1
53207-60030

HDJ80,HZJ80

 1
53207-60121

HDJ80..TD4;HDJ80..LHD;HDJ80..RHD..5F..TD2;HZJ80..5F..(ARL,GEN)

W(PRE CLEANER) & W/O(SNORKEL)

 1
53295C - SILENCER, COOL AIR INTAKE
53295-60020

HDJ80

 1
Common parts
90119-08171
90179-06231
90339-03005
90999-92002
96111-10880
Linked diagrams
1709
