HDJ80R-GNPEWQ (1995)

Toyota Land Cruiser

Production Jan 1995 - Jan 1998
Engine 1HDFT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

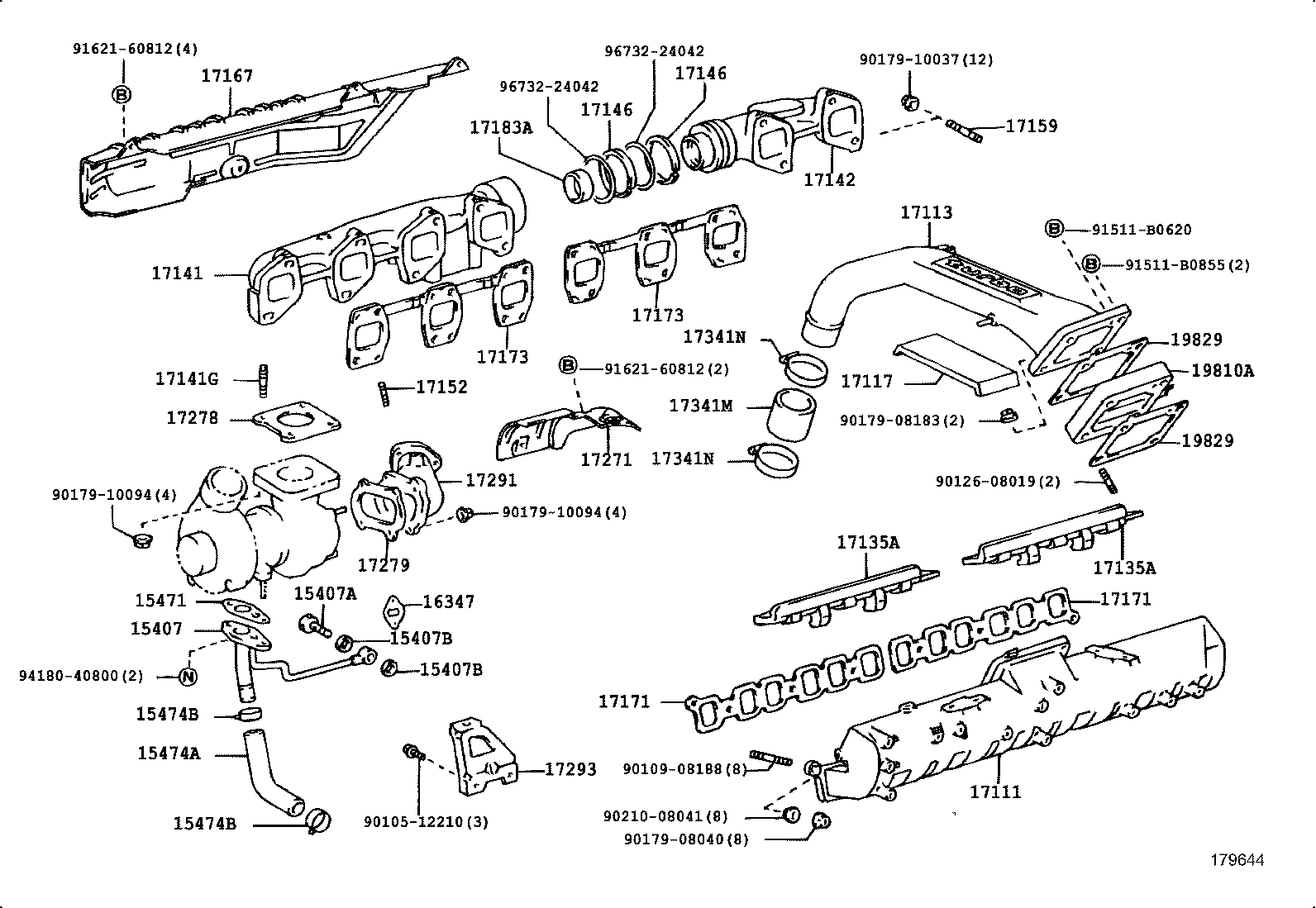

ILLUST NO. 1 OF 2(9501-9801)1HDFT

Click highlighted areas on diagram

diagram 15407 15407A 15407B 15407B 15471 15474A 15474B 15474B 16347 17111 17113 17117 17135A 17135A 17141 17141G 17142 17146 17146 17152 17159 17167 17171 17171 17173 17173 17183A 17271 17278 17279 17291 17293 17341M 17341N 17341N 19810A 19829 19829 9010512210 9010908188 9012608019 9017908040 9017908183 9017910037 9017910094 9017910094 9021008041 91511B0620 91511B0855 9162160812 9162160812 9418040800 9673224042 9673224042
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-17013

1HD#..HDJ80

 1
15407-17012

1HD#..HDJ80

 1
17111 - MANIFOLD, INTAKE
17111-17010

1H#..HDJ80,HZJ80

 1
17101-17020

1HDFT..HDJ80

 1
17113 - PIPE, INTAKE
17113-17040

1HDFT..HDJ80

 1
17117 - INSULATOR, INTAKE PIPE
17117-17020

1HDFT..HDJ80

 1
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-17010

1HDFT..HDJ80

 2
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-17010

1HDFT..HDJ80

 2
17141 - MANIFOLD, EXHAUST
17141-17030

1HDFT..HDJ80

 1
17142 - CASE, EXHAUST MANIFOLD, NO.2
17142-17010

1H#..HDJ80,HZJ80

 1
17142-17020

1HDFT..HDJ80

 1
17146 - RING, EXHAUST MANIFOLD
17151-17010

1H#..HDJ80,HZJ80

 2
17146 - RING, EXHAUST MANIFOLD
17151-17010

1H#..HDJ80,HZJ80

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087

1H#..HDJ80,HZJ80

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10025

1H#..HDJ80,HZJ80

 12
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-17050

1HDFT..HDJ80

 1
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-17010

1H#..HDJ80,HZJ80

 1
17171-17020

1HDFT..HDJ80

 2
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-17010

1H#..HDJ80,HZJ80

 1
17171-17020

1HDFT..HDJ80

 2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-17010

1H#..HDJ80,HZJ80

 2
17173-17020

1HDFT..HDJ80

 2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-17010

1H#..HDJ80,HZJ80

 2
17173-17020

1HDFT..HDJ80

 2
17183A - COLLAR, MANIFOLD
17183-17010

1H#..HDJ80,HZJ80

 1
19810A - HEATER ASSY, INTAKE
19810-17010

1HDFT..HDJ80

 1
19829 - GASKET, INTAKE HEATER
19829-17010

1HDFT..HDJ80

 2
19829 - GASKET, INTAKE HEATER
19829-17010

1HDFT..HDJ80

 2
Common parts
90105-12210
90109-08188
90126-08019
90179-08040
90179-08183
90179-10037
90179-10094
90210-08041
91511-B0620
91511-B0855
91621-60812
94180-40800
96732-24042

ILLUST NO. 2 OF 2(9501-9801)1HDFT

Click highlighted areas on diagram

diagram 04175 16347 17021A 17021B 17025A 17201 17230A 17230B 17230B 17294 17294A 17294A 9017908012 9052304002 9052304002 9162160818 9162160822 9163560618
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-17020

1HDFT..HDJ80

 1
17201 - TURBOCHARGER SUB-ASSY
17201-17030

1HDFT..HDJ80

 1
17230A - REPAIR ACTUAOR ASSY, W/BRACKET
17230-19015

1HDFT..HDJ80

 1
17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET)
90201-08081

1HDFT..HDJ80

T=0.5

 2
90201-08082

1HDFT..HDJ80

T=1.0

 2
90201-08086

1HDFT..HDJ80

T=2.0

 2
90201-08087

1HDFT..HDJ80

T=3.0

 2
17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET)
90201-08081

1HDFT..HDJ80

T=0.5

 2
90201-08082

1HDFT..HDJ80

T=1.0

 2
90201-08086

1HDFT..HDJ80

T=2.0

 2
90201-08087

1HDFT..HDJ80

T=3.0

 2
Common parts
90179-08012
90523-04002
91621-60818
91621-60822
91635-60618
