HDJ80R-GNPEWQ (1995)
Toyota Land Cruiser
(9501-9801)1HDFT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11801-17020 |
1HDFT..HDJ80 STD |
1 | ||
| 11801-17010 |
1H#..HDJ80,HZJ80 STD |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-17010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 13505-17020 |
1HDFT..HDJ80 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13511-17030 |
1HDFT..HDJ80 |
1 | ||
| 13523A - KEY, WOODRUFF(FOR TIMING GEAR) | ||||
| 90280-05004 |
1H#..HDJ80,HZJ80 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-17010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 13528 - GEAR, CAMSHAFT DRIVE | ||||
| 13528-17010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-17010 |
1HDFT..HDJ80 |
1 | ||
| 13540-17011 |
1HDFT..HDJ80 |
1 | ||
| 13556 - SHAFT, TIMING BELT IDLER | ||||
| 13556-17010 |
1HDFT..HDJ80 |
1 | ||
| 13568 - BELT, TIMING | ||||
| 13568-19175 |
1HDFT..HDJ80 |
1 | ||
| 13568-17010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 13571 - PLATE, CAMSHAFT THRUST | ||||
| 13571-17010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 13585A - FLANGE, CAMSHAFT TIMING PULLEY, NO.1 | ||||
| 13585-17010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 13586 - FLANGE, CAMSHAFT TIMING PULLEY, NO.2 | ||||
| 13586-17010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 13613 - GEAR, INJECTION PUMP DRIVE | ||||
| 13613-17010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 13613-17020 |
1HDFT..HDJ80 |
1 | ||
| 13613D - BEARING, RADIAL BALL | ||||
| 90363-60004 |
1H#..HDJ80,HZJ80 |
1 | ||
| 13708 - SCREW SUB-ASSY, VALVE ADJUSTING | ||||
| 13708-17010 |
1HDFT..HDJ80 |
12 | ||
| 13708 - SCREW SUB-ASSY, VALVE ADJUSTING | ||||
| 13708-17010 |
1HDFT..HDJ80 |
12 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-17020 |
1HDFT..HDJ80 |
12 | ||
| 13711-17010 |
1H#..HDJ80,HZJ80 |
6 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02053 |
1H#..HDJ80,HZJ80 |
12 | ||
| 90913-02096 |
1HDFT..HDJ80 |
24 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02053 |
1H#..HDJ80,HZJ80 |
12 | ||
| 90913-02096 |
1HDFT..HDJ80 |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-35026 |
1HDFT..HDJ80 |
24 | ||
| 90504-49001 |
1H#..HDJ80,HZJ80 |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-35026 |
1HDFT..HDJ80 |
24 | ||
| 90504-49001 |
1H#..HDJ80,HZJ80 |
12 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-17020 |
1HDFT..HDJ80 |
12 | ||
| 13715-17010 |
1H#..HDJ80,HZJ80 |
6 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
1HDFT..HDJ80 |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
1HDFT..HDJ80 |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-54020 |
1H#..HDJ80,HZJ80 |
12 | ||
| 13741-17010 |
1HDFT..HDJ80 |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-54020 |
1H#..HDJ80,HZJ80 |
12 | ||
| 13741-17010 |
1HDFT..HDJ80 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03014 |
1H#..HDJ80,HZJ80 |
24 | ||
| 90913-03027 |
1HDFT..HDJ80 |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03014 |
1H#..HDJ80,HZJ80 |
24 | ||
| 90913-03027 |
1HDFT..HDJ80 |
48 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-17010 |
1HDFT..HDJ80 |
6 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90179-08049 |
1HDFT..HDJ80 |
24 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90179-08049 |
1HDFT..HDJ80 |
24 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90179-08049 |
1HDFT..HDJ80 |
24 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05024 |
1HDFT..HDJ80 |
12 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13802-17010 |
1HDFT..HDJ80 |
6 | ||
| 13819 - BRIDGE, VALVE | ||||
| 13819-17010 |
1HDFT..HDJ80 |
12 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-17010 |
1HDFT..HDJ80 |
1 | ||
| Common parts | ||||
| 90105-08100 | ||||
| 90119-14005 | ||||
| 90176-14002 | ||||
| 90201-12073 | ||||
| 90250-06068 | ||||
| 90301-23005 | ||||
| 91511-80620 | ||||
| 91533-60610 | ||||

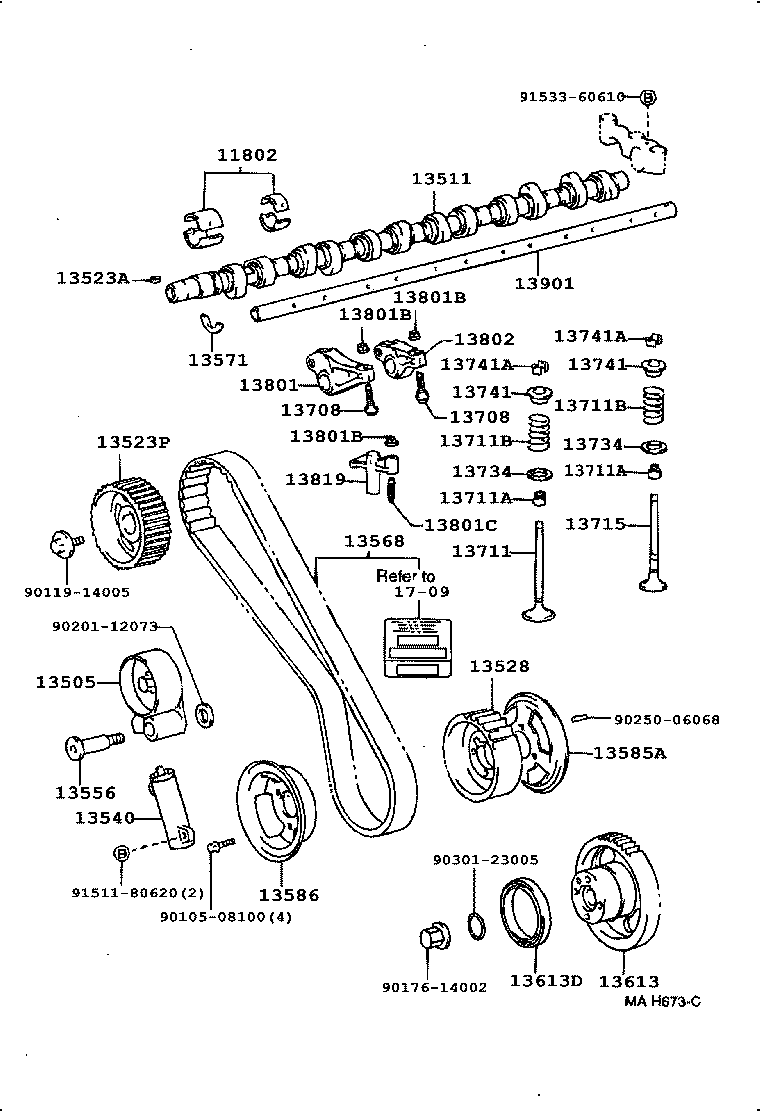

| Linked diagrams | ||||
| 1709 | ||||
