HDJ80R-GNPEWQ (1995)

Toyota Land Cruiser

Production Jan 1995 - Jan 1998
Engine 1HDFT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9501-9801)1HDFT

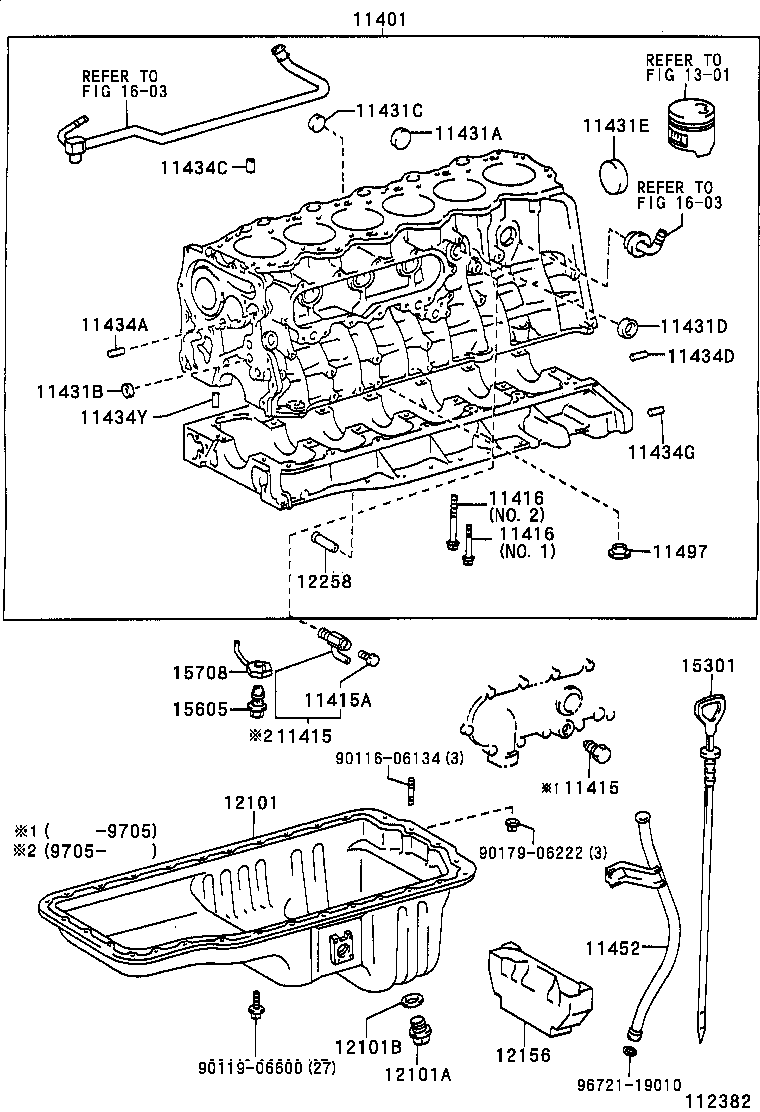

Click highlighted areas on diagram

diagram 11401 11415 11415 11415A 11416 11416 11431A 11431B 11431C 11431D 11431E 11434A 11434C 11434D 11434G 11434Y 11452 11497 12101 12101A 12101B 12156 12258 1301 15301 15605 15708 1603 1603 9011606134 9011906600 9017906222 9672119010
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-19895

1HDFT..HDJ80

 1
11401-19896

1HDFT..HDJ80

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09075

1HD#,1HZ..HDJ80,HZJ80

 1
90910-09088

1H#..HDJ80,HZJ80

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09075

1HD#,1HZ..HDJ80,HZJ80

 1
90910-09088

1H#..HDJ80,HZJ80

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

1H#..HDJ80,HZJ80

 1
90910-09087

1HD#,1HZ..HDJ80,HZJ80

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90119-08182

1H#..HDJ80,HZJ80

NO.1

 15
90910-02098

1H#..HDJ80,HZJ80

NO.2

 14
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90119-08182

1H#..HDJ80,HZJ80

NO.1

 15
90910-02098

1H#..HDJ80,HZJ80

NO.2

 14
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-35002

1H#..HDJ80,HZJ80

 3
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-41800

1H#..HDJ80,HZJ80

 4
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-42500

1H#..HDJ80,HZJ80

 1
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-43500

1H#..HDJ80,HZJ80

 6
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-45000

1H#..HDJ80,HZJ80

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

1H#..HDJ80,HZJ80

L=18,OD=8

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08074

1H#..HDJ80,HZJ80

L=15,OD=8

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068

1H#..HDJ80,HZJ80

L=11,OD=6

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-08054

1H#..HDJ80,HZJ80

 2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-12006

1H#..HDJ80,HZJ80

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-17011

1HD#,1HZ..HDJ80,HZJ80

 1
11452-17010

1H#..HDJ80,HZJ80

 1
11497 - GASKET, CYLINDER BLOCK OIL HOLE
11497-17010

1H#..HDJ80,HZJ80

 1
12101 - PAN SUB-ASSY, OIL
12101-17071

1HDFT,1HZ..HDJ80,HZJ80..ARL

 1
12101-17020

1H#..HDJ80,HZJ80

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1H#..HDJ80,HZJ80

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12027

1H#..HDJ80,HZJ80

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-17010

1H#..HDJ80,HZJ80

 1
15301-17030

1HD#,1HZ..HDJ80,HZJ80

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-54010

1H#..HDJ80,HZJ80

 6
15605-17030

1HD#,1HZ..HDJ80,HZJ80

 6
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-17020

1HDFT..HDJ80

 6
15708-17010

1H#..HDJ80,HZJ80

 6
Common parts
90116-06134
90119-06600
90179-06222
96721-19010
