HDJ80R-GNPEWQ (1995)

Toyota Land Cruiser

Production Jan 1995 - Jan 1998
Engine 1HDFT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9501-9801)1HDFT

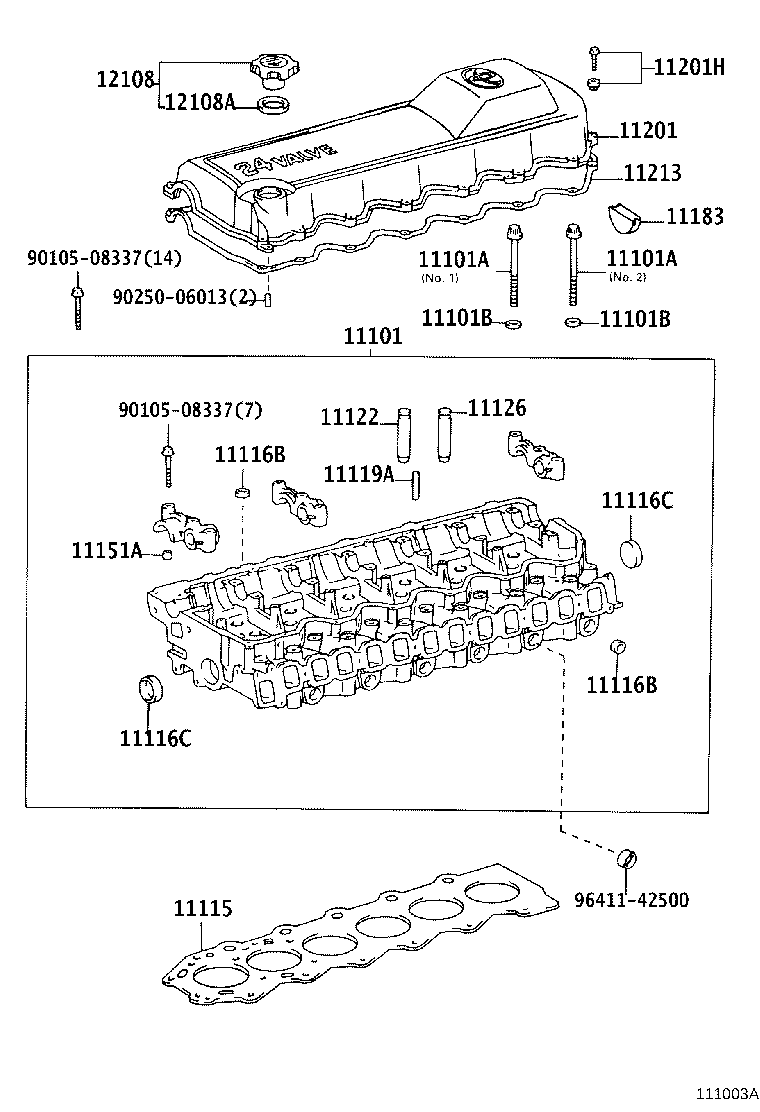

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101B 11101B 11115 11116B 11116B 11116C 11116C 11119A 11122 11126 11151A 11183 11201 11201H 11213 12108 12108A 9010508337 9010508337 9025006013 9641142500
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-17040

1HDFT..HDJ80

 1
11101-17041

1HDFT..HDJ80

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02119

1HDFT..HDJ80

NO.2

 20
90910-02096

1HDFT..HDJ80

NO.1

 6
90910-02096

1H#..HDJ80,HZJ80

 26
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02119

1HDFT..HDJ80

NO.2

 20
90910-02096

1HDFT..HDJ80

NO.1

 6
90910-02096

1H#..HDJ80,HZJ80

 26
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-11032

1HD#,1HZ..HDJ80,HZJ80

 26
90201-11027

1H#..HDJ80,HZJ80

 26
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-11032

1HD#,1HZ..HDJ80,HZJ80

 26
90201-11027

1H#..HDJ80,HZJ80

 26
11115 - GASKET, CYLINDER HEAD
11115-1701003

1H#..HDJ80,HZJ80

MARK 3,REFER REPAIR MANUAL

 1
11115-1701005

1H#..HDJ80,HZJ80

MARK 5,REFER REPAIR MANUAL

 1
11115-1703001

1HDFT..HDJ80

MARK 1,REFER REPAIR MANUAL

 1
11115-1701001

1H#..HDJ80,HZJ80

MARK 1,REFER REPAIR MANUAL

 1
11115-1703003

1HDFT..HDJ80

MARK 3,REFER REPAIR MANUAL

 1
11115-1703005

1HDFT..HDJ80

MARK 5,REFER REPAIR MANUAL

 1
11116B - PLUG, TIGHT, NO.2
96411-62500

1HDFT..HDJ80

 10
96411-43500

1H#..HDJ80,HZJ80

 1
11116B - PLUG, TIGHT, NO.2
96411-62500

1HDFT..HDJ80

 10
96411-43500

1H#..HDJ80,HZJ80

 1
11116C - PLUG, TIGHT, NO.3
96411-44000

1H#..HDJ80,HZJ80

 1
96411-64000

1HDFT..HDJ80

 2
96411-44000

1HDFT..HDJ80

 2
11116C - PLUG, TIGHT, NO.3
96411-44000

1H#..HDJ80,HZJ80

 1
96411-64000

1HDFT..HDJ80

 2
96411-44000

1HDFT..HDJ80

 2
11119A - PIN, STRAIGHT, NO.1
90250-09007

1HDFT..HDJ80

L=53.5,OD=9

 12
11122 - BUSH, INTAKE VALVE GUIDE
11123-54020

1H#..HDJ80,HZJ80

O/S 0.05

 6
11122-54020

1H#..HDJ80,HZJ80

STD

 6
11122-17010

1HDFT..HDJ80

STD

 12
11123-17010

1HDFT..HDJ80

O/S 0.05

 12
11126 - BUSH, EXHAUST VALVE GUIDE
11122-17010

1HDFT..HDJ80

STD

 12
11123-54020

1H#..HDJ80,HZJ80

O/S 0.05

 6
11122-54020

1H#..HDJ80,HZJ80

STD

 6
11123-17010

1HDFT..HDJ80

O/S 0.05

 12
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021

1H#..HDJ80,HZJ80

L=8,OD=11

 14
11183 - PLUG, SEMICIRCULAR
11183-54011

1H#..HDJ80,HZJ80

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-17010

1H#..HDJ80,HZJ80

 1
11201-17030

1HDFT..HDJ80

 1
11201H - BOLT(FOR CYLINDER HEAD COVER)
90109-06274

1HDFT..HDJ80

 12
90901-19047

1HDFT..HDJ80

 12
11213 - GASKET, CYLINDER HEAD COVER
11213-17010

1H#..HDJ80,HZJ80

 1
11213-17020

1HDFT..HDJ80

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-55010

1H#..HDJ80,HZJ80

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37004

1H#..HDJ80,HZJ80

 1
Common parts
90105-08337
90250-06013
96411-42500
