HDJ80R-GNMEXQ (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9208)HDJ80,HZJ80

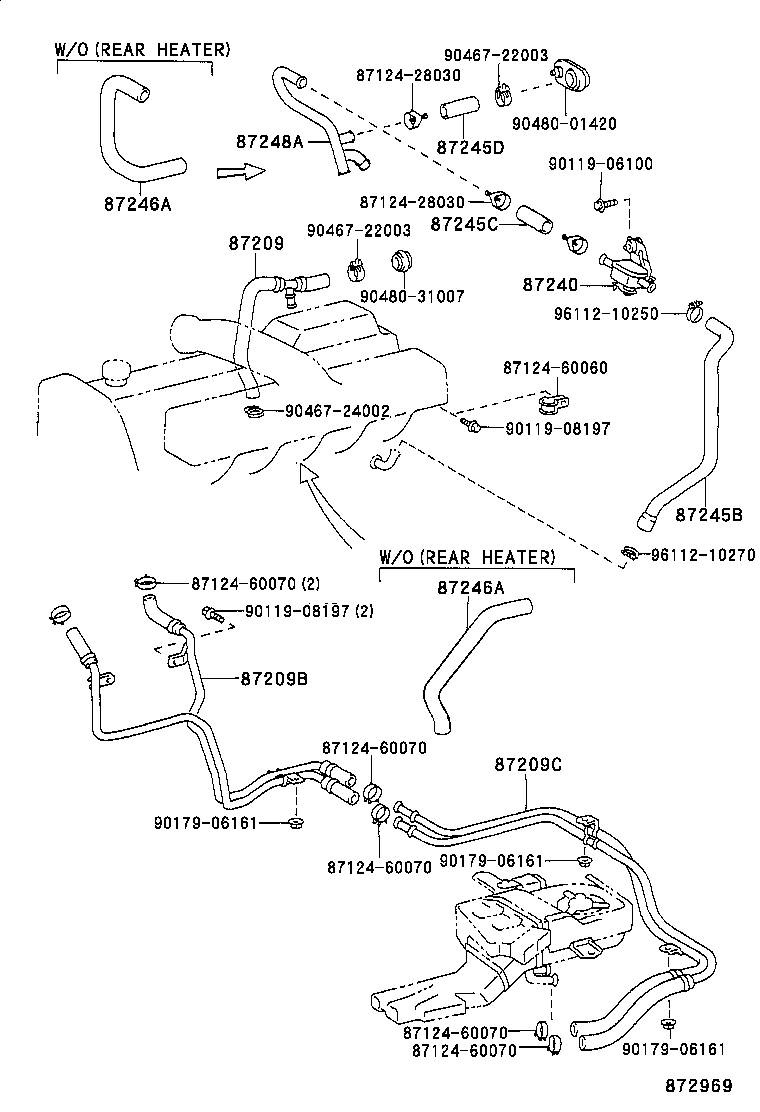

Click highlighted areas on diagram

diagram 8712428030 8712428030 8712460060 8712460070 8712460070 8712460070 8712460070 8712460070 87209 87209B 87209C 87240 87245B 87245C 87245D 87246A 87246A 87248A 9011906100 9011908197 9011908197 9017906161 9017906161 9017906161 9046722003 9046722003 9046724002 9048001420 9048031007 9611210250 9611210270
Part # Description Qty Price
87209 - HOSE SUB-ASSY, WATER
87209-60150

HDJ80,HZJ80..ARL,GEN

 1
87209-60150

HDJ80,HZJ80..ARL,GEN

 1
87209B - HOSE SUB-ASSY, WATER, B
87209-60260

FJ80,HDJ80,HZJ80..ARL,GEN

 1
87209-60301

FZJ80,HDJ80,HZJ80..ARL,GEN

 1
87209-60300

HDJ80..RHD;HDJ80..4FC..GEN;FZJ80,HZJ80..ARL,GEN

 1
87209-60300

FZJ80,HDJ80,HZJ80..ARL,GEN

 1
87209C - HOSE SUB-ASSY, WATER, C
87209-60270

FJ80,HDJ80,HZJ80..ARL,GEN

 1
87209-60440

FZJ80,HDJ80,HZJ80..ARL,GEN

 1
87209-60120

FJ80..VX;HDJ80..RHD;HDJ80..4FC..GEN;FZJ80,HZJ80..ARL,GEN

 1
87240 - VALVE ASSY, HEATER WATER
87240-60130

FZJ80,HDJ80,HZJ80..RHD

 1
87240-60080

HDJ80,HZJ80..RHD

 1
87240-60130

FZJ80,HDJ80,HZJ80..RHD

 1
87245B - HOSE, HEATER WATER, INLET B
87245-60320

HDJ80,HZJ80

 1
87245-60110

HDJ80,HZJ80

 1
87245C - HOSE, HEATER WATER ,INLET C
99556-30100

HDJ80,HZJ80

*H,L=55

 1
99556-30100

HDJ80,HZJ80

*H,L=60

 1
87245D - HOSE, HEATER WATER, INLET D
99556-30100

HDJ80,HZJ80

*H,L=50

 1
99556-30100

FZJ80;HDJ80..ARL..TD2

*H,L=50

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-60090

HDJ80..RHD..5F..VX

 1
87245-60090

HDJ80..RHD..5F..VX

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-60090

HDJ80..RHD..5F..VX

 1
87245-60090

HDJ80..RHD..5F..VX

 1
87248A - PIPE, HEATER WATER INLET, A
87208-60380

HDJ80,HZJ80..4FC,5F

 1
87208-60370

HDJ80,HZJ80..ARL,GEN

W(REAR HEATER)

 1
87248-60480

FZJ80..4FC..(GX,VX)..GEN;FZJ80..5F..LUB..(STD,VX)..GEN;FZJ80,HDJ80..(ARL,GCC)..(CBR,EFI,TD2)

REAR

 1
Common parts
87124-28030
87124-60060
87124-60070
90119-06100
90119-08197
90179-06161
90467-22003
90467-24002
90480-01420
90480-31007
96112-10250
96112-10270

(9208-9501)HDJ80,HZJ80

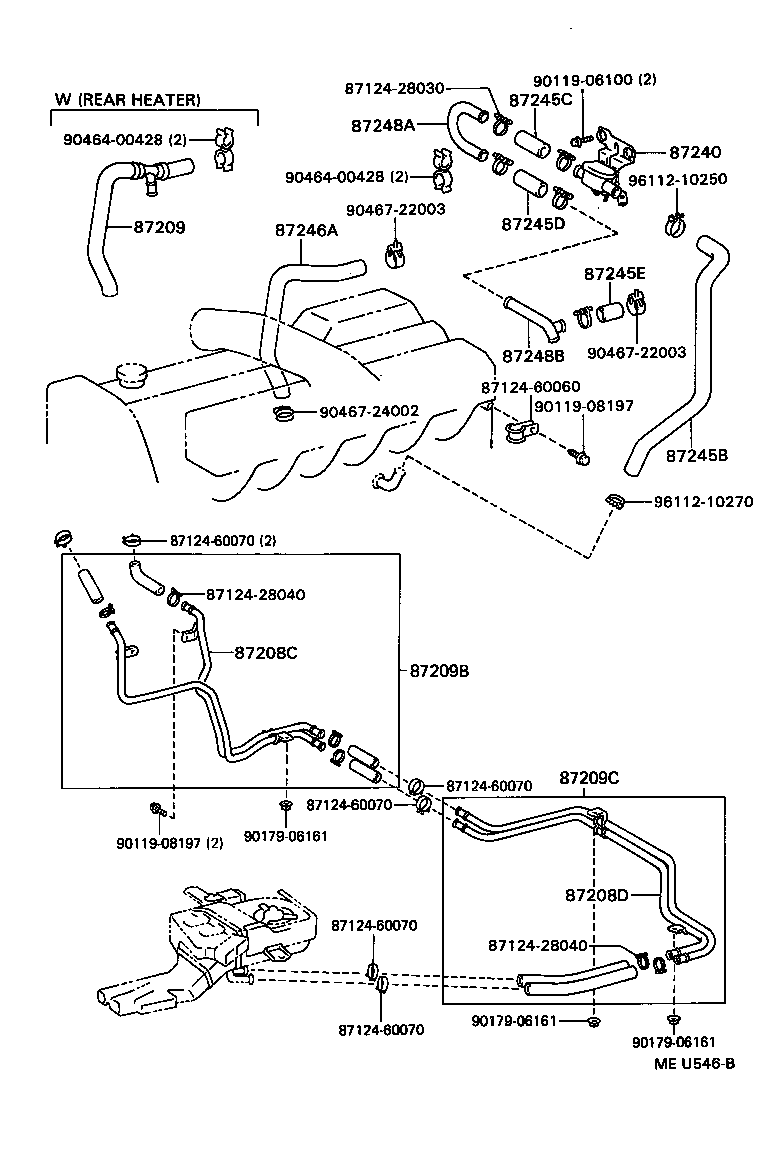

Click highlighted areas on diagram

diagram 8712428030 8712428040 8712428040 8712460060 8712460070 8712460070 8712460070 8712460070 8712460070 87208C 87208D 87209 87209B 87209C 87240 87245B 87245C 87245D 87245E 87246A 87248A 87248B 9011906100 9011908197 9011908197 9017906161 9017906161 9017906161 9046400428 9046400428 9046722003 9046722003 9046724002 9611210250 9611210270
Part # Description Qty Price
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-60350

FZJ80,HDJ80,HZJ80..ARL,GEN

 1
87209 - HOSE SUB-ASSY, WATER
87209-60150

HDJ80,HZJ80..ARL,GEN

 1
87209-60150

HDJ80,HZJ80..ARL,GEN

 1
87209B - HOSE SUB-ASSY, WATER, B
87209-60260

FJ80,HDJ80,HZJ80..ARL,GEN

 1
87209-60301

FZJ80,HDJ80,HZJ80..ARL,GEN

 1
87209-60300

HDJ80..RHD;HDJ80..4FC..GEN;FZJ80,HZJ80..ARL,GEN

 1
87209-60300

FZJ80,HDJ80,HZJ80..ARL,GEN

 1
87209C - HOSE SUB-ASSY, WATER, C
87209-60270

FJ80,HDJ80,HZJ80..ARL,GEN

 1
87209-60440

FZJ80,HDJ80,HZJ80..ARL,GEN

 1
87209-60120

FJ80..VX;HDJ80..RHD;HDJ80..4FC..GEN;FZJ80,HZJ80..ARL,GEN

 1
87240 - VALVE ASSY, HEATER WATER
87240-60130

FZJ80,HDJ80,HZJ80..RHD

 1
87240-60080

HDJ80,HZJ80..RHD

 1
87240-60130

FZJ80,HDJ80,HZJ80..RHD

 1
87245B - HOSE, HEATER WATER, INLET B
87245-60320

HDJ80,HZJ80

 1
87245-60110

HDJ80,HZJ80

 1
87245C - HOSE, HEATER WATER ,INLET C
99556-30100

HDJ80,HZJ80

*H,L=55

 1
99556-30100

HDJ80,HZJ80

*H,L=60

 1
87245D - HOSE, HEATER WATER, INLET D
99556-30100

HDJ80,HZJ80

*H,L=50

 1
99556-30100

FZJ80;HDJ80..ARL..TD2

*H,L=50

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

FZJ80;HDJ80..ARL..TD2;HDJ80,HZJ80..LHD

*H,L=65

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-60090

HDJ80..RHD..5F..VX

 1
87245-60090

HDJ80..RHD..5F..VX

 1
87248A - PIPE, HEATER WATER INLET, A
87208-60380

HDJ80,HZJ80..4FC,5F

 1
87208-60370

HDJ80,HZJ80..ARL,GEN

W(REAR HEATER)

 1
87248-60480

FZJ80..4FC..(GX,VX)..GEN;FZJ80..5F..LUB..(STD,VX)..GEN;FZJ80,HDJ80..(ARL,GCC)..(CBR,EFI,TD2)

REAR

 1
87248B - PIPE, HEATER WATER INLET, B
87208-60240

HDJ80,HZJ80

 1
87208-60250

HDJ80,HZJ80..ARL,GEN

W(REAR HEATER)

 1
Common parts
87124-28030
87124-28040
87124-60060
87124-60070
90119-06100
90119-08197
90179-06161
90464-00428
90467-22003
90467-24002
96112-10250
96112-10270
