HDJ80R-GNMEXQ (1990)
Toyota Land Cruiser
ILLUST NO. 1 OF 3(9001- )
FRONT(MAKER OPTION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-22270 | ||||
| 87128-60050 | ||||
| 87128-60060 | ||||
| 88688-60430 | ||||
| 90099-14122 | ||||
| 90119-06373 | ||||
| 90159-60198 | ||||
| 90179-06274 | ||||
| 91611-60812 | ||||
| 91651-40616 | ||||
ILLUST NO. 3 OF 3(9001- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

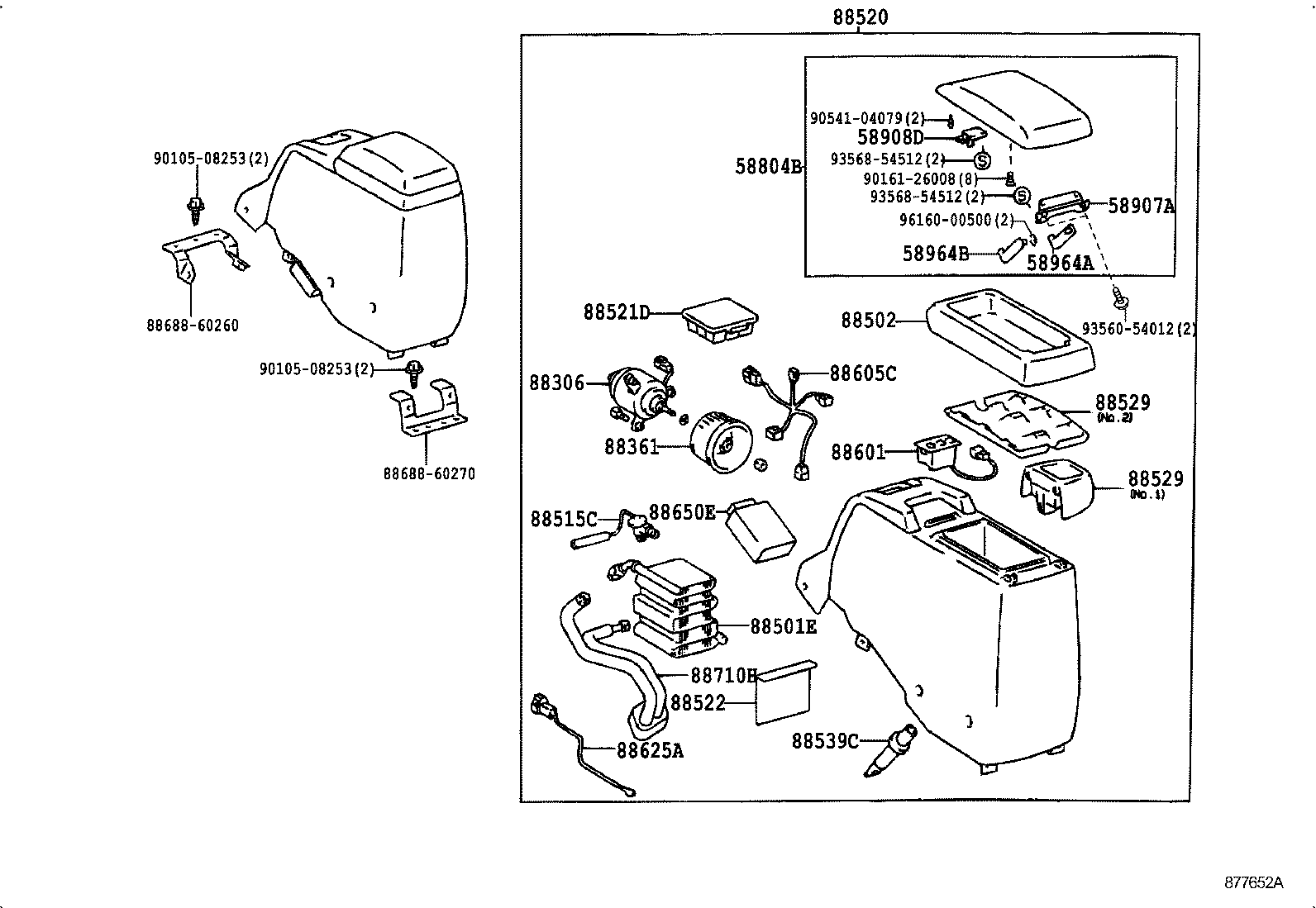

ILLUST NO. 3 OF 3(9001-9208)GX,VX
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-60050 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88550-60050 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-87004 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 87105-87004 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88501E - EVAPOLATOR SUB-ASSY, COOLER (COOL BOX) | ||||
| 88501-60070 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88501-60070 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88501-60070 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-60040 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88502-60040 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88502-60010 |
FZJ80..RHD..5F..LUB;FZJ80..4FC..GX..ARL;HDJ80,HZJ80..RHD..(GX,VX);FZJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 88502-60010E0 |
FZJ80..RHD..5F..LUB;FZJ80..4FC..GX..ARL;HDJ80,HZJ80..RHD..(GX,VX);FZJ80,HZJ80..VX..(ARL,GCC) SABLE,TRIM4# |
1 | ||
| 88515C - VALVE, COOLING BOX EXPANSION | ||||
| 88515-60010 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88515-60010 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88515-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-6001003 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) BLUISH GRAY,TRIM1# |
1 | ||
| 88520-6001006 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) SABLE,TRIM4# |
1 | ||
| 88520-6001006 |
FJ80,HDJ80,HZJ80..RHD..(GX,VX) SABLE,TRIM4# |
1 | ||
| 88520-60050E0 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) SABLE,TRIM4# |
1 | ||
| 88520-60110E0 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) SABLE,TRIM4# |
1 | ||
| 88520-60050B0 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) BLUEISH GRAY,TRIM1# |
1 | ||
| 88520-60060B0 |
FZJ80,HDJ80..VX..ARL W(COOL B0X=LEATHER C0VERED),BLUEISH GRAY,TRIM1# |
1 | ||
| 88520-6001003 |
FJ80,HDJ80,HZJ80..RHD..(GX,VX) BLUISH GRAY,TRIM1# |
1 | ||
| 88522 - DOOR, COOLING UNIT | ||||
| 88522-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88522-60010 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88529 - TRAY, COOLING BOX | ||||
| 88529-6001003 |
FJ80,HDJ80,HZJ80..GX,VX BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 88529-90A00 |
FJ80,HDJ80,HZJ80..GX,VX NO.2 |
1 | ||
| 88529-60020E0 |
FZJ80..RHD..5F..LUB;FZJ80..4FC..GX..ARL;HDJ80,HZJ80..RHD..(GX,VX);FZJ80,HZJ80..VX..(ARL,GCC) SABLE,TRIM4# |
1 | ||
| 88529-6001006 |
FJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4#,NO.1 |
1 | ||
| 88529-6001003 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 88529-90A00 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) NO.2 |
1 | ||
| 88529-6001006 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) SABLE,TRIM4#,NO.1 |
1 | ||
| 88529 - TRAY, COOLING BOX | ||||
| 88529-6001003 |
FJ80,HDJ80,HZJ80..GX,VX BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 88529-90A00 |
FJ80,HDJ80,HZJ80..GX,VX NO.2 |
1 | ||
| 88529-60020E0 |
FZJ80..RHD..5F..LUB;FZJ80..4FC..GX..ARL;HDJ80,HZJ80..RHD..(GX,VX);FZJ80,HZJ80..VX..(ARL,GCC) SABLE,TRIM4# |
1 | ||
| 88529-6001006 |
FJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4#,NO.1 |
1 | ||
| 88529-6001003 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 88529-90A00 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) NO.2 |
1 | ||
| 88529-6001006 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) SABLE,TRIM4#,NO.1 |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-60130 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88539-60130 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88539-60130 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88601 - SWITCH SUB-ASSY, COOLER CONTROL | ||||
| 88601-60020 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88601-60020 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 | ||||
| 88605-60550 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88605-60550 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88605-60550 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88625A - THERMISTOR, COOLER NO.2 | ||||
| 88625-60070 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88625-60070 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-90A06 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88650-90A06 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-60680 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88710-60680 |
FJ80,HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 88710-60700 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| Common parts | ||||
| 88688-60260 | ||||
| 88688-60270 | ||||
| 90105-08253 | ||||

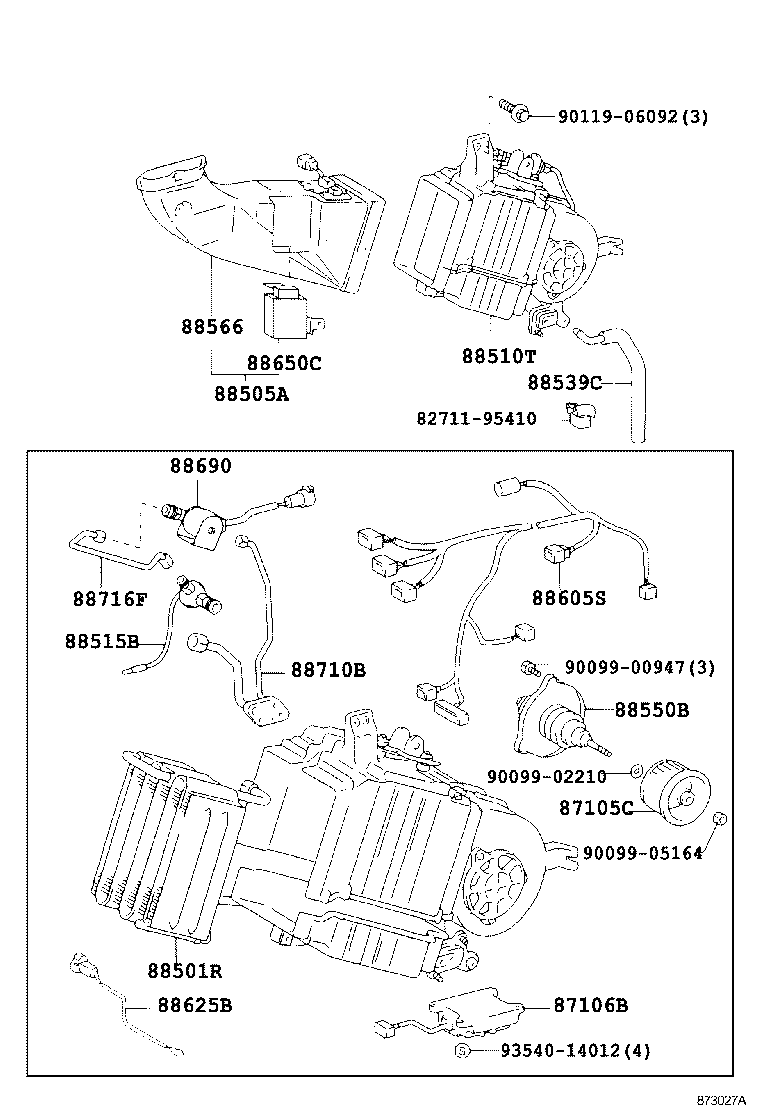

ILLUST NO. 2 OF 3(9001-9305)GX,VX
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-14020 |
FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 87105-14020 |
FJ80,FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) | ||||
| 87106-60070 |
FJ80,FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-60040 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88501-60040 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88501-60040 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88505A - DUCT SUB-ASSY, AIR CONDITIONER | ||||
| 88505-60010 |
FJ80,FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88510-60290 |
FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 88510-60290 |
FJ80,FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-87002 |
FZJ80,HDJ80..GX,VX;HZJ80..5F..(GX,VX);FJ80..VX..(ARL,GCC) |
1 | ||
| 88515-87002 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-60060 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88550-60060 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88566 - DUCT, COOLER AIR, NO.1 | ||||
| 88566-60030 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88566-60030 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-60440 |
FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 88605-60440 |
FJ80,FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 88625B - THERMISTOR, COOLER NO.3 | ||||
| 88625-28150 |
FJ80,FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-60110 |
FJ80,FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) NO.2 |
1 | ||
| 88650-20590 |
FJ80,FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 88690 - VALVE ASSY, COOLER MAGNET | ||||
| 88691-95J05 |
FJ80,FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 88691-95J05 |
FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-60470 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88710-60470 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88710-60470 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-6A100 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-6A100 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-6A100 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| Common parts | ||||
| 90099-00947 | ||||
| 90099-02210 | ||||
| 90099-05164 | ||||
| 90119-06092 | ||||
| 93540-14012 | ||||
ILLUST NO. 2 OF 3(9305- )GX,VX
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-14020 |
FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 87105-14020 |
FJ80,FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) | ||||
| 87106-60070 |
FJ80,FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-60040 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88501-60040 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88501-60040 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88505A - DUCT SUB-ASSY, AIR CONDITIONER | ||||
| 88505-60010 |
FJ80,FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88510-60290 |
FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 88510-60290 |
FJ80,FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-87002 |
FZJ80,HDJ80..GX,VX;HZJ80..5F..(GX,VX);FJ80..VX..(ARL,GCC) |
1 | ||
| 88515-87002 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-60130 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88539-60130 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88539-60130 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-60060 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88550-60060 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88566 - DUCT, COOLER AIR, NO.1 | ||||
| 88566-60030 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88566-60030 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-60440 |
FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 88605-60440 |
FJ80,FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 88625B - THERMISTOR, COOLER NO.3 | ||||
| 88625-28150 |
FJ80,FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-60110 |
FJ80,FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) NO.2 |
1 | ||
| 88650-20590 |
FJ80,FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 88690 - VALVE ASSY, COOLER MAGNET | ||||
| 88691-95J05 |
FJ80,FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 88691-95J05 |
FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-60470 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88710-60470 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88710-60470 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-6A100 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-6A100 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-6A100 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| Common parts | ||||
| 82711-95410 | ||||
| 90099-00947 | ||||
| 90099-02210 | ||||
| 90099-05164 | ||||
| 90119-06092 | ||||
| 93540-14012 | ||||
ILLUST NO. 1 OF 3(9001- )RHD
FRONT---MAKER OPT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138C - RESISTOR, BLOWER | ||||
| 87138-60240 |
FJ80,HDJ80..VX..ARL |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-60020 |
FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 88501-60111 |
FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 88501-60110 |
FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 88501-60020 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-60220 |
FJ80,HDJ80..VX..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88510-60240 |
FJ80,HDJ80..VX..ARL DUAL AIR CONDITIONER |
1 | ||
| 88510-60220 |
FZJ80,HDJ80..VX..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88510-60240 |
FZJ80,HDJ80..VX..ARL DUAL AIR CONDITIONER |
1 | ||
| 88510-60620 |
FZJ80,HDJ80..VX..ARL DUAL AIR CONDITIONER |
1 | ||
| 88510-60600 |
FZJ80,HDJ80..VX..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-60220 |
FJ80,HDJ80..VX..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88510-60240 |
FJ80,HDJ80..VX..ARL DUAL AIR CONDITIONER |
1 | ||
| 88510-60220 |
FZJ80,HDJ80..VX..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88510-60240 |
FZJ80,HDJ80..VX..ARL DUAL AIR CONDITIONER |
1 | ||
| 88510-60620 |
FZJ80,HDJ80..VX..ARL DUAL AIR CONDITIONER |
1 | ||
| 88510-60600 |
FZJ80,HDJ80..VX..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-14062 |
HDJ80,HZJ80;FZJ80..ARL,GCC |
1 | ||
| 88515-14062 |
HDJ80;HZJ80..GX,STD;FJ80,HZJ80..LUB..VX..(DSL,EFI);FJ80,FZJ80..(GX,STD)..(ARL,GCC) |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-60060 |
FJ80..GCC,GEN;FJ80..GX..EFI;HZJ80..RHD..GEN;HDJ80,HZJ80..(GX,VX)..(ARL,GCC) |
1 | ||
| 88539-60060 |
FJ80..GCC,GEN;FJ80..GX..EFI;HZJ80..RHD..GEN;HDJ80,HZJ80..LUB..ARL |
1 | ||
| 88539-60100 |
FJ80..RHD..LUB;HDJ80..VX..ARL;FJ80..RHD..STD..GEN AUTOMATIC AIR CONDITIONER |
1 | ||
| 88539-60060 |
FJ80..GX..EFI;FJ80,HZJ80..RHD..GEN;HDJ80,HZJ80..LUB..ARL |
1 | ||
| 88539-60110 |
FZJ80..RHD;HDJ80..4FC..ARL;HZJ80..RHD..GEN;HDJ80..RHD..5F..VX |
1 | ||
| 88539-60110 |
HDJ80..RHD..VX;FZJ80,HZJ80..RHD;FJ80..RHD..(GX,STD) |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-60390 |
FJ80,HDJ80..VX..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88605-60400 |
FJ80,HDJ80..VX..ARL DUAL AIR CONDITIONER |
1 | ||
| 88605-60390 |
FZJ80,HDJ80..VX..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88605-60400 |
FZJ80,HDJ80..VX..ARL DUAL AIR CONDITIONER |
1 | ||
| 88605-60401 |
FZJ80,HDJ80..VX..ARL DUAL AIR CONDITIONER |
1 | ||
| 88605-60391 |
FZJ80,HDJ80..VX..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60050 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 88626-60010 |
HZJ80..GX..ARL;FJ80,HDJ80..EFI,TD2;FZJ80,HZJ80..GCC,GEN |
1 | ||
| 88626-60010 |
HZJ80..GCC,GEN;HZJ80..GX..ARL;FJ80,HDJ80..GX,VX;FJ80..STD..(GCC,GEN) |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-16090 |
FJ80,HDJ80,HZJ80..GX,VX NO.1 |
1 | ||
| 88630-60030 |
FZJ80,HDJ80,HZJ80..GX,VX NO.3 |
1 | ||
| 88630-16090 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) NO.1 |
1 | ||
| 88630-20020 |
FJ80,FZJ80,HDJ80,HZJ80..VX NO.2 |
1 | ||
| 88630-60030 |
HDJ80..ARL;FZJ80..RHD..GX;FZJ80,HDJ80..LHD..(GX,VX);FJ80,HZJ80..(GX,VX)..(DSL,EFI) NO.3 |
1 | ||
| 88630-16090 |
FZJ80,HDJ80,HZJ80..GX,VX NO.1 |
1 | ||
| 88630-20020 |
FZJ80,HDJ80,HZJ80..VX NO.2 |
1 | ||
| 88630-60030 |
FJ80,HDJ80,HZJ80..GX,VX NO.3 |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-16090 |
FJ80,HDJ80,HZJ80..GX,VX NO.1 |
1 | ||
| 88630-60030 |
FZJ80,HDJ80,HZJ80..GX,VX NO.3 |
1 | ||
| 88630-16090 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) NO.1 |
1 | ||
| 88630-20020 |
FJ80,FZJ80,HDJ80,HZJ80..VX NO.2 |
1 | ||
| 88630-60030 |
HDJ80..ARL;FZJ80..RHD..GX;FZJ80,HDJ80..LHD..(GX,VX);FJ80,HZJ80..(GX,VX)..(DSL,EFI) NO.3 |
1 | ||
| 88630-16090 |
FZJ80,HDJ80,HZJ80..GX,VX NO.1 |
1 | ||
| 88630-20020 |
FZJ80,HDJ80,HZJ80..VX NO.2 |
1 | ||
| 88630-60030 |
FJ80,HDJ80,HZJ80..GX,VX NO.3 |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-02004 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 90987-02004 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 90987-02004 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 90987-03001 |
HDJ80..VX..ARL;FJ80,FZJ80..RHD..VX |
2 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 90987-03001 |
HDJ80..VX..ARL;FJ80,FZJ80..RHD..VX |
2 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-60080 |
FJ80,HDJ80..VX..ARL |
1 | ||
| 88650-22340 |
FJ80,HDJ80..VX..ARL AUTO AIR CONDITIONER |
1 | ||
| 88650-60080 |
FZJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) NO.1 |
1 | ||
| 88650-22340 |
FZJ80,HDJ80..VX..ARL NO.2 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-60080 |
FJ80,HDJ80..VX..ARL |
1 | ||
| 88650-22340 |
FJ80,HDJ80..VX..ARL AUTO AIR CONDITIONER |
1 | ||
| 88650-60080 |
FZJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) NO.1 |
1 | ||
| 88650-22340 |
FZJ80,HDJ80..VX..ARL NO.2 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-60240 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 88710-60490 |
HZJ80..RHD..GEN;FZJ80,HZJ80..LUB..ARL;FZJ80,HDJ80..RHD..(CBR,TD2) |
1 | ||
| 88710-60240 |
FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| Common parts | ||||
| 87116-14010 | ||||
| 88569-60020 | ||||
| 88897-60010 | ||||
| 90099-04381 | ||||
| 90159-50144 | ||||
| 90159-60198 | ||||
| 90179-06054 | ||||
ILLUST NO. 3 OF 3(9208- )
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58804B - PANEL SUB-ASSY, COOLING BOX, UPPER | ||||
| 58804-60010E0 |
FZJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4# |
1 | ||
| 58908D - LOCK SUB-ASSY, COOLING BOX DOOR | ||||
| 58908-60010E0 |
FZJ80..RHD..5F..LUB;FZJ80..4FC..GX..ARL;HDJ80,HZJ80..RHD..(GX,VX);FZJ80,HZJ80..VX..(ARL,GCC) SABLE,TRIM4# |
1 | ||
| 58964A - STOPPER, COOLING BOX DOOR, NO.1 | ||||
| 58964-30040 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 58964B - STOPPER, COOLING BOX DOOR, NO.2 | ||||
| 58964-30050 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-60050 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88550-60050 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-87004 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 87105-87004 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88501E - EVAPOLATOR SUB-ASSY, COOLER (COOL BOX) | ||||
| 88501-60070 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88501-60070 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88501-60070 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-60040 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88502-60040 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88502-60010 |
FZJ80..RHD..5F..LUB;FZJ80..4FC..GX..ARL;HDJ80,HZJ80..RHD..(GX,VX);FZJ80,HZJ80..VX..(ARL,GCC) |
1 | ||
| 88502-60010E0 |
FZJ80..RHD..5F..LUB;FZJ80..4FC..GX..ARL;HDJ80,HZJ80..RHD..(GX,VX);FZJ80,HZJ80..VX..(ARL,GCC) SABLE,TRIM4# |
1 | ||
| 88515C - VALVE, COOLING BOX EXPANSION | ||||
| 88515-60010 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88515-60010 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88515-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-6001003 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) BLUISH GRAY,TRIM1# |
1 | ||
| 88520-6001006 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) SABLE,TRIM4# |
1 | ||
| 88520-6001006 |
FJ80,HDJ80,HZJ80..RHD..(GX,VX) SABLE,TRIM4# |
1 | ||
| 88520-60050E0 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) SABLE,TRIM4# |
1 | ||
| 88520-60110E0 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) SABLE,TRIM4# |
1 | ||
| 88520-60050B0 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) BLUEISH GRAY,TRIM1# |
1 | ||
| 88520-60060B0 |
FZJ80,HDJ80..VX..ARL W(COOL B0X=LEATHER C0VERED),BLUEISH GRAY,TRIM1# |
1 | ||
| 88520-6001003 |
FJ80,HDJ80,HZJ80..RHD..(GX,VX) BLUISH GRAY,TRIM1# |
1 | ||
| 88522 - DOOR, COOLING UNIT | ||||
| 88522-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88522-60010 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88529 - TRAY, COOLING BOX | ||||
| 88529-6001003 |
FJ80,HDJ80,HZJ80..GX,VX BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 88529-90A00 |
FJ80,HDJ80,HZJ80..GX,VX NO.2 |
1 | ||
| 88529-60020E0 |
FZJ80..RHD..5F..LUB;FZJ80..4FC..GX..ARL;HDJ80,HZJ80..RHD..(GX,VX);FZJ80,HZJ80..VX..(ARL,GCC) SABLE,TRIM4# |
1 | ||
| 88529-6001006 |
FJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4#,NO.1 |
1 | ||
| 88529-6001003 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 88529-90A00 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) NO.2 |
1 | ||
| 88529-6001006 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) SABLE,TRIM4#,NO.1 |
1 | ||
| 88529 - TRAY, COOLING BOX | ||||
| 88529-6001003 |
FJ80,HDJ80,HZJ80..GX,VX BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 88529-90A00 |
FJ80,HDJ80,HZJ80..GX,VX NO.2 |
1 | ||
| 88529-60020E0 |
FZJ80..RHD..5F..LUB;FZJ80..4FC..GX..ARL;HDJ80,HZJ80..RHD..(GX,VX);FZJ80,HZJ80..VX..(ARL,GCC) SABLE,TRIM4# |
1 | ||
| 88529-6001006 |
FJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4#,NO.1 |
1 | ||
| 88529-6001003 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 88529-90A00 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) NO.2 |
1 | ||
| 88529-6001006 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) SABLE,TRIM4#,NO.1 |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-60130 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88539-60130 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88539-60130 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88601 - SWITCH SUB-ASSY, COOLER CONTROL | ||||
| 88601-60020 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88601-60020 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 | ||||
| 88605-60550 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88605-60550 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88605-60550 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88625A - THERMISTOR, COOLER NO.2 | ||||
| 88625-60070 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88625-60070 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-90A06 |
FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88650-90A06 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-60680 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88710-60680 |
FJ80,HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 88710-60700 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| Common parts | ||||
| 88688-60260 | ||||
| 88688-60270 | ||||
| 90105-08253 | ||||
| 90161-26008 | ||||
| 90541-04079 | ||||
| 93560-54012 | ||||
| 93568-54512 | ||||
| 96160-00500 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
