HDJ80R-GNMEXQ (1990)
Toyota Land Cruiser
ILLUST NO. 1 OF 2(9001-0701) ; (0701-0808)LX
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90467-08008 | ||||
| 91621-40614 | ||||
| 91661-60616 | ||||
| 93540-55010 | ||||
| 93560-54014 | ||||

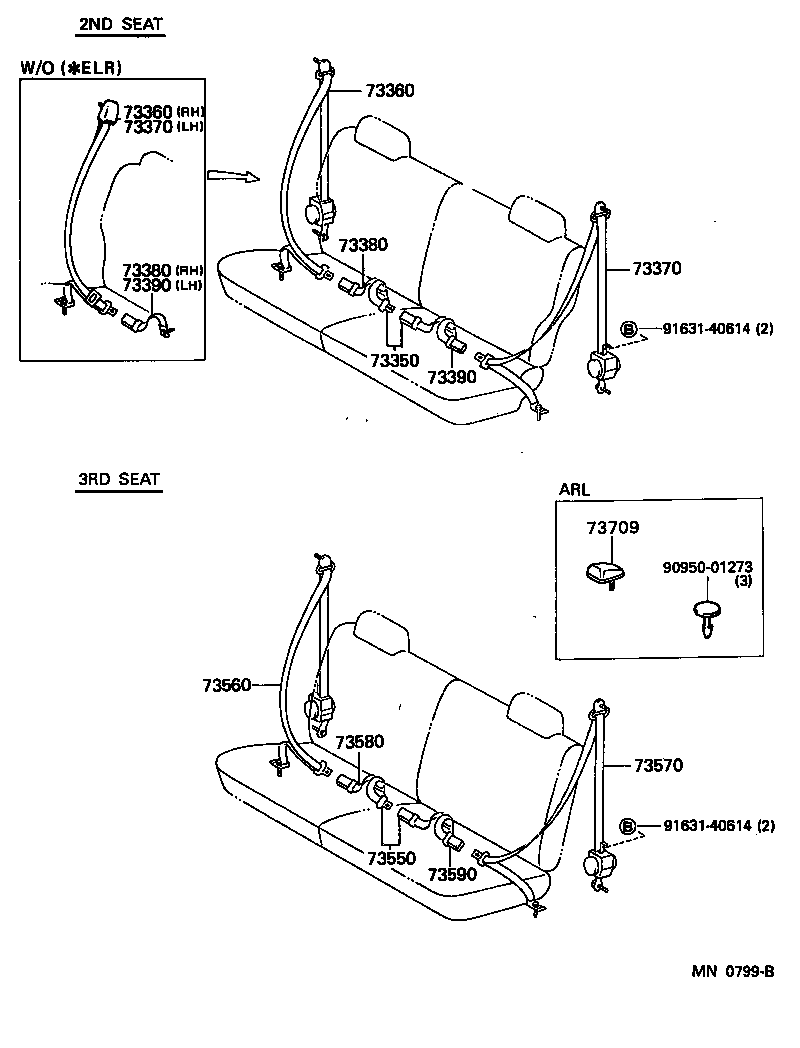

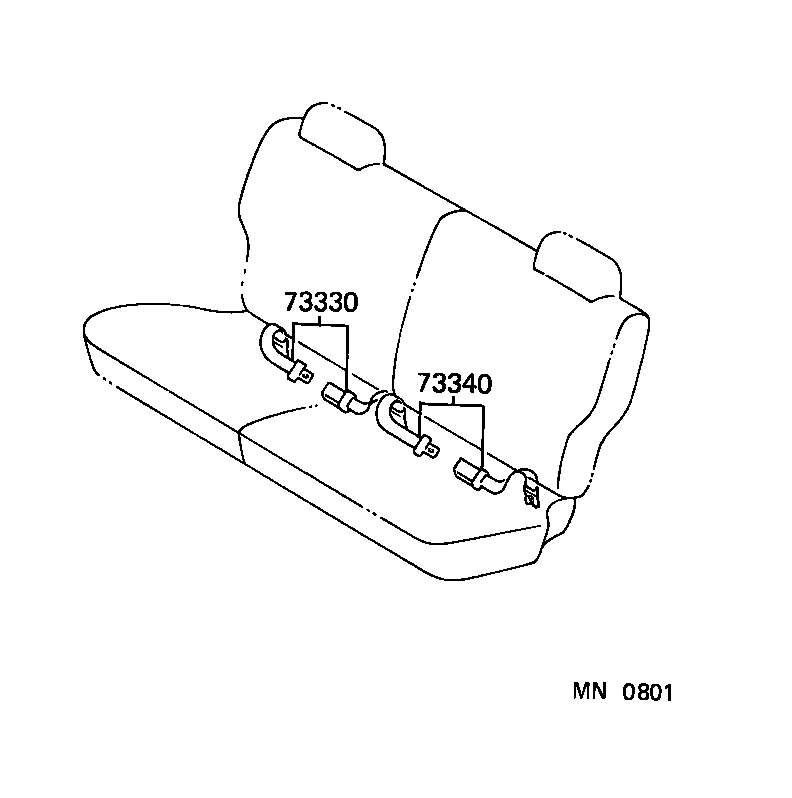

ILLUST NO. 2 OF 2(9001-0701) ; (0701-0808)LX
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-11007 | ||||
| 90183-04046 | ||||
| 90204-11042 | ||||
| 90467-08008 | ||||
| 93540-25012 | ||||
| 93540-55010 | ||||

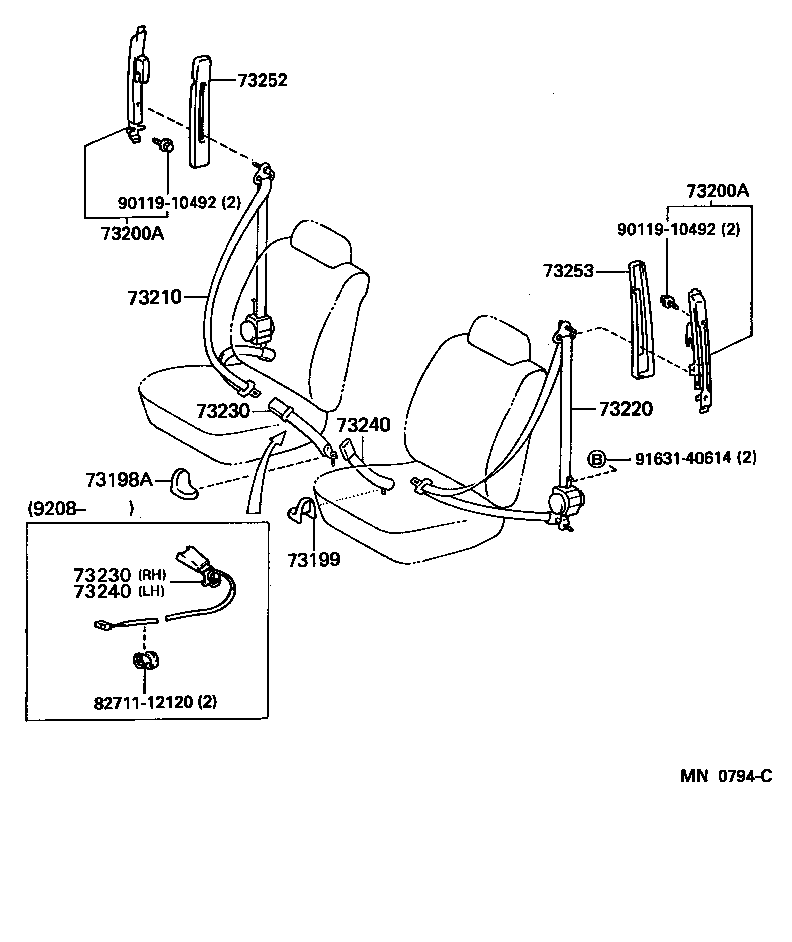

ILLUST NO. 1 OF 3(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-6001003 |
FZJ80,HDJ80..VX..ARL LIGHT GRAY,TRIM1# |
2 | ||
| 73200-6001003 |
FJ80,HDJ80..VX..ARL LIGHT GRAY,TRIM1# |
2 | ||
| 73200-6001006 |
FJ80,HDJ80..VX..ARL LIGHT SABLE,TRIM4# |
2 | ||
| 73200-6001006 |
FZJ80,HDJ80..VX..ARL LIGHT SABLE,TRIM4# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-6001003 |
FZJ80,HDJ80..VX..ARL LIGHT GRAY,TRIM1# |
2 | ||
| 73200-6001003 |
FJ80,HDJ80..VX..ARL LIGHT GRAY,TRIM1# |
2 | ||
| 73200-6001006 |
FJ80,HDJ80..VX..ARL LIGHT SABLE,TRIM4# |
2 | ||
| 73200-6001006 |
FZJ80,HDJ80..VX..ARL LIGHT SABLE,TRIM4# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-6004003 |
FJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73210-6005003 |
FJ80,HDJ80..VX..ARL W(ADJUSTABLE SHOULDER BELT ANCHOR),BLUISH GRAY,TRIM1# |
1 | ||
| 73210-6004006 |
FJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73210-6005006 |
FJ80,HDJ80..VX..ARL W(ADJUSTABLE SHOULDER BELT ANCHOR),SABLE,TRIM4# |
1 | ||
| 73210-6004006 |
FZJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73210-6005006 |
FZJ80,HDJ80..VX..ARL W(ADJUSTABLE SHOULDER BELT ANCHOR),SABLE,TRIM4# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-6004003 |
FJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73220-6005003 |
FJ80,HDJ80..VX..ARL W(ADJUSTABLE SLIDE ANCHOR),BLUISH GRAY,TRIM1# |
1 | ||
| 73220-6005006 |
FJ80,HDJ80..VX..ARL W(ADJUSTABLE SLIDE ANCHOR),SABLE,TRIM4# |
1 | ||
| 73220-6004006 |
FJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73220-6004006 |
FZJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73220-6005006 |
FZJ80,HDJ80..VX..ARL W(ADJUSTABLE SLIDE ANCHOR),SABLE,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-6001003 |
FJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73230-6001006 |
FJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73230-60011E0 |
FZJ80..LUB;HDJ80,HZJ80;FZJ80..SOB..(ARL,GEN);FZJ80..SOB..(GX,VX)..GCC SABLE,TRIM4# |
1 | ||
| 73230-6001003 |
FZJ80,HZJ80..VX..GCC;FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 73230-6001006 |
FZJ80,HZJ80..VX..GCC;FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN SABLE,TRIM4# |
1 | ||
| 73230-60200E0 |
FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) W(POWER SEAT),SABLE,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-6001003 |
FJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73230-6001006 |
FJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73230-60011E0 |
FZJ80..LUB;HDJ80,HZJ80;FZJ80..SOB..(ARL,GEN);FZJ80..SOB..(GX,VX)..GCC SABLE,TRIM4# |
1 | ||
| 73230-6001003 |
FZJ80,HZJ80..VX..GCC;FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 73230-6001006 |
FZJ80,HZJ80..VX..GCC;FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN SABLE,TRIM4# |
1 | ||
| 73230-60200E0 |
FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) W(POWER SEAT),SABLE,TRIM4# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-6001006 |
HDJ80..5F..VX..ARL;FJ80,HDJ80..4FC..ARL SABLE,TRIM4# |
1 | ||
| 73230-6001003 |
HDJ80..5F..VX..ARL;FJ80,HDJ80..4FC..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73230-6001006 |
FJ80,HDJ80,HZJ80..4FC;FZJ80,HDJ80,HZJ80..5F..VX..(ARL,GEN) SABLE,TRIM4# |
1 | ||
| 73230-60011E0 |
HDJ80..4FC;HDJ80..5F..VX;FZJ80..RHD..VX;FZJ80..4FC..GX..ARL;FZJ80,HZJ80..LHD..GEN SABLE,TRIM4# |
1 | ||
| 73230-6001003 |
FJ80,HDJ80,HZJ80..4FC;FZJ80,HDJ80,HZJ80..5F..VX..(ARL,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 73230-60200E0 |
FZJ80,HDJ80..VX..ARL W(POWER SEAT),SABLE,TRIM4# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-6001006 |
HDJ80..5F..VX..ARL;FJ80,HDJ80..4FC..ARL SABLE,TRIM4# |
1 | ||
| 73230-6001003 |
HDJ80..5F..VX..ARL;FJ80,HDJ80..4FC..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73230-6001006 |
FJ80,HDJ80,HZJ80..4FC;FZJ80,HDJ80,HZJ80..5F..VX..(ARL,GEN) SABLE,TRIM4# |
1 | ||
| 73230-60011E0 |
HDJ80..4FC;HDJ80..5F..VX;FZJ80..RHD..VX;FZJ80..4FC..GX..ARL;FZJ80,HZJ80..LHD..GEN SABLE,TRIM4# |
1 | ||
| 73230-6001003 |
FJ80,HDJ80,HZJ80..4FC;FZJ80,HDJ80,HZJ80..5F..VX..(ARL,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 73230-60200E0 |
FZJ80,HDJ80..VX..ARL W(POWER SEAT),SABLE,TRIM4# |
1 | ||
| 73252 - COVER, SHOULDER BELT ANCHOR ADJUST, RH | ||||
| 73252-6001006 |
FZJ80,HDJ80..VX..ARL LIGHT SABLE,TRIM4# |
1 | ||
| 73252-6001006 |
FJ80,HDJ80..VX..ARL LIGHT SABLE,TRIM4# |
1 | ||
| 73252-6001003 |
FJ80,HDJ80..VX..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 73252-6001003 |
FZJ80,HDJ80..VX..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 73253 - COVER, SHOULDER BELT ANCHOR ADJUST, LH | ||||
| 73253-6001003 |
FJ80,HDJ80..VX..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 73253-6001006 |
FJ80,HDJ80..VX..ARL LIGHT SABLE,TRIM4# |
1 | ||
| 73253-6001006 |
FZJ80,HDJ80..VX..ARL LIGHT SABLE,TRIM4# |
1 | ||
| 73253-6001003 |
FZJ80,HDJ80..VX..ARL LIGHT GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 90119-10492 | ||||
| 91631-40614 | ||||

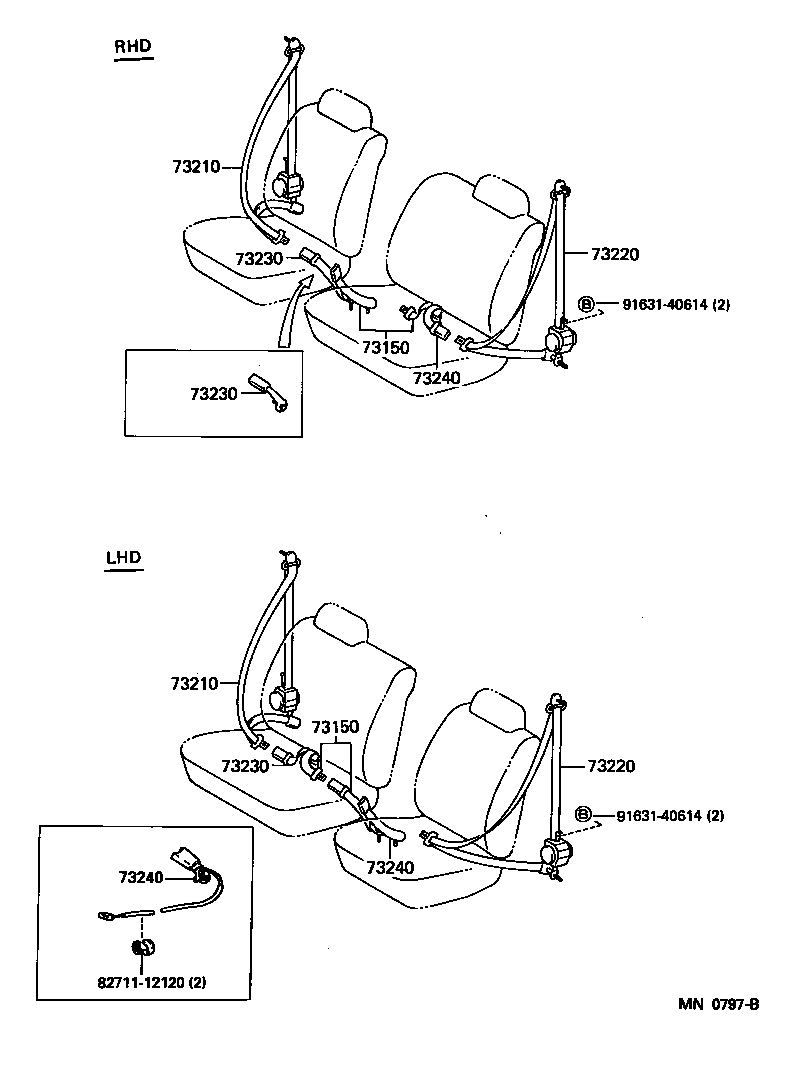

ILLUST NO. 1 OF 3(9001- )
W(CENTER SEAT BELT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-6004003 |
FJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73210-6005003 |
FJ80,HDJ80..VX..ARL W(ADJUSTABLE SHOULDER BELT ANCHOR),BLUISH GRAY,TRIM1# |
1 | ||
| 73210-6004006 |
FJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73210-6005006 |
FJ80,HDJ80..VX..ARL W(ADJUSTABLE SHOULDER BELT ANCHOR),SABLE,TRIM4# |
1 | ||
| 73210-6004006 |
FZJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73210-6005006 |
FZJ80,HDJ80..VX..ARL W(ADJUSTABLE SHOULDER BELT ANCHOR),SABLE,TRIM4# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-6004003 |
FJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73210-6005003 |
FJ80,HDJ80..VX..ARL W(ADJUSTABLE SHOULDER BELT ANCHOR),BLUISH GRAY,TRIM1# |
1 | ||
| 73210-6004006 |
FJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73210-6005006 |
FJ80,HDJ80..VX..ARL W(ADJUSTABLE SHOULDER BELT ANCHOR),SABLE,TRIM4# |
1 | ||
| 73210-6004006 |
FZJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73210-6005006 |
FZJ80,HDJ80..VX..ARL W(ADJUSTABLE SHOULDER BELT ANCHOR),SABLE,TRIM4# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-6004003 |
FJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73220-6005003 |
FJ80,HDJ80..VX..ARL W(ADJUSTABLE SLIDE ANCHOR),BLUISH GRAY,TRIM1# |
1 | ||
| 73220-6005006 |
FJ80,HDJ80..VX..ARL W(ADJUSTABLE SLIDE ANCHOR),SABLE,TRIM4# |
1 | ||
| 73220-6004006 |
FJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73220-6004006 |
FZJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73220-6005006 |
FZJ80,HDJ80..VX..ARL W(ADJUSTABLE SLIDE ANCHOR),SABLE,TRIM4# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-6004003 |
FJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73220-6005003 |
FJ80,HDJ80..VX..ARL W(ADJUSTABLE SLIDE ANCHOR),BLUISH GRAY,TRIM1# |
1 | ||
| 73220-6005006 |
FJ80,HDJ80..VX..ARL W(ADJUSTABLE SLIDE ANCHOR),SABLE,TRIM4# |
1 | ||
| 73220-6004006 |
FJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73220-6004006 |
FZJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73220-6005006 |
FZJ80,HDJ80..VX..ARL W(ADJUSTABLE SLIDE ANCHOR),SABLE,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-6001003 |
FJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73230-6001006 |
FJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73230-60011E0 |
FZJ80..LUB;HDJ80,HZJ80;FZJ80..SOB..(ARL,GEN);FZJ80..SOB..(GX,VX)..GCC SABLE,TRIM4# |
1 | ||
| 73230-6001003 |
FZJ80,HZJ80..VX..GCC;FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 73230-6001006 |
FZJ80,HZJ80..VX..GCC;FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN SABLE,TRIM4# |
1 | ||
| 73230-60200E0 |
FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) W(POWER SEAT),SABLE,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-6001003 |
FJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73230-6001006 |
FJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73230-60011E0 |
FZJ80..LUB;HDJ80,HZJ80;FZJ80..SOB..(ARL,GEN);FZJ80..SOB..(GX,VX)..GCC SABLE,TRIM4# |
1 | ||
| 73230-6001003 |
FZJ80,HZJ80..VX..GCC;FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 73230-6001006 |
FZJ80,HZJ80..VX..GCC;FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN SABLE,TRIM4# |
1 | ||
| 73230-60200E0 |
FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) W(POWER SEAT),SABLE,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-6001003 |
FJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73230-6001006 |
FJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73230-60011E0 |
FZJ80..LUB;HDJ80,HZJ80;FZJ80..SOB..(ARL,GEN);FZJ80..SOB..(GX,VX)..GCC SABLE,TRIM4# |
1 | ||
| 73230-6001003 |
FZJ80,HZJ80..VX..GCC;FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 73230-6001006 |
FZJ80,HZJ80..VX..GCC;FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN SABLE,TRIM4# |
1 | ||
| 73230-60200E0 |
FZJ80,HDJ80,HZJ80..VX..(ARL,GCC) W(POWER SEAT),SABLE,TRIM4# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-6001006 |
HDJ80..5F..VX..ARL;FJ80,HDJ80..4FC..ARL SABLE,TRIM4# |
1 | ||
| 73230-6001003 |
HDJ80..5F..VX..ARL;FJ80,HDJ80..4FC..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73230-6001006 |
FJ80,HDJ80,HZJ80..4FC;FZJ80,HDJ80,HZJ80..5F..VX..(ARL,GEN) SABLE,TRIM4# |
1 | ||
| 73230-60011E0 |
HDJ80..4FC;HDJ80..5F..VX;FZJ80..RHD..VX;FZJ80..4FC..GX..ARL;FZJ80,HZJ80..LHD..GEN SABLE,TRIM4# |
1 | ||
| 73230-6001003 |
FJ80,HDJ80,HZJ80..4FC;FZJ80,HDJ80,HZJ80..5F..VX..(ARL,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 73230-60200E0 |
FZJ80,HDJ80..VX..ARL W(POWER SEAT),SABLE,TRIM4# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-6001006 |
HDJ80..5F..VX..ARL;FJ80,HDJ80..4FC..ARL SABLE,TRIM4# |
1 | ||
| 73230-6001003 |
HDJ80..5F..VX..ARL;FJ80,HDJ80..4FC..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73230-6001006 |
FJ80,HDJ80,HZJ80..4FC;FZJ80,HDJ80,HZJ80..5F..VX..(ARL,GEN) SABLE,TRIM4# |
1 | ||
| 73230-60011E0 |
HDJ80..4FC;HDJ80..5F..VX;FZJ80..RHD..VX;FZJ80..4FC..GX..ARL;FZJ80,HZJ80..LHD..GEN SABLE,TRIM4# |
1 | ||
| 73230-6001003 |
FJ80,HDJ80,HZJ80..4FC;FZJ80,HDJ80,HZJ80..5F..VX..(ARL,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 73230-60200E0 |
FZJ80,HDJ80..VX..ARL W(POWER SEAT),SABLE,TRIM4# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-6001006 |
HDJ80..5F..VX..ARL;FJ80,HDJ80..4FC..ARL SABLE,TRIM4# |
1 | ||
| 73230-6001003 |
HDJ80..5F..VX..ARL;FJ80,HDJ80..4FC..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73230-6001006 |
FJ80,HDJ80,HZJ80..4FC;FZJ80,HDJ80,HZJ80..5F..VX..(ARL,GEN) SABLE,TRIM4# |
1 | ||
| 73230-60011E0 |
HDJ80..4FC;HDJ80..5F..VX;FZJ80..RHD..VX;FZJ80..4FC..GX..ARL;FZJ80,HZJ80..LHD..GEN SABLE,TRIM4# |
1 | ||
| 73230-6001003 |
FJ80,HDJ80,HZJ80..4FC;FZJ80,HDJ80,HZJ80..5F..VX..(ARL,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 73230-60200E0 |
FZJ80,HDJ80..VX..ARL W(POWER SEAT),SABLE,TRIM4# |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 91631-40614 | ||||
ILLUST NO. 2 OF 3(9001- )
3-POINT TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER | ||||
| 73330-6002003 |
FJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73330-6002006 |
FJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73350-60080E0 |
HDJ80;FZJ80..LHD;FZJ80..ARL;HZJ80..STD,VX;HZJ80..LUB..GX;HZJ80..GX..GCC SABLE,TRIM4# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-6004006 |
FJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73360-6004003 |
FJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73360-60041E0 |
FZJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73360-60041B0 |
FZJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-6004006 |
FJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73360-6004003 |
FJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73360-60041E0 |
FZJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73360-60041B0 |
FZJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-6002006 |
FJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73370-60021B0 |
FZJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73370-6002003 |
FJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73370-60021E0 |
FZJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-6002006 |
FJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73370-60021B0 |
FZJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73370-6002003 |
FJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73370-60021E0 |
FZJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-6003003 |
FJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73380-6003006 |
FJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73380-60031E0 |
FZJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-6003003 |
FJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73380-6003006 |
FJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73380-60031E0 |
FZJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73380-6003003 |
FJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73380-60031E0 |
FZJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73380-6003006 |
FJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73380-6003003 |
FJ80,HDJ80,HZJ80..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73380-60031E0 |
FZJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73380-6003006 |
FJ80,HDJ80,HZJ80..ARL SABLE,TRIM4# |
1 | ||
| 73550 - BELT ASSY, REAR NO.2 SEAT LAP TYPE, CENTER | ||||
| 73550-6002003 |
FJ80,HDJ80,HZJ80..LUB..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73550-60021E0 |
FZJ80,HDJ80,HZJ80..LUB..ARL SABLE,TRIM4# |
1 | ||
| 73550-6002006 |
FJ80,HDJ80,HZJ80..LUB..ARL SABLE,TRIM4# |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-6002003 |
FJ80,HDJ80,HZJ80..LUB..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73560-60021E0 |
FZJ80,HDJ80,HZJ80..LUB..ARL SABLE,TRIM4# |
1 | ||
| 73560-6002006 |
FJ80,HDJ80,HZJ80..LUB..ARL SABLE,TRIM4# |
1 | ||
| 73560-60021B0 |
FZJ80,HDJ80,HZJ80..LUB..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-60021E0 |
FZJ80,HDJ80,HZJ80..LUB..ARL SABLE,TRIM4# |
1 | ||
| 73570-60021B0 |
FZJ80,HDJ80,HZJ80..LUB..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73570-6002003 |
FJ80,HDJ80,HZJ80..LUB..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73570-6002006 |
FJ80,HDJ80,HZJ80..LUB..ARL SABLE,TRIM4# |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73580-60011E0 |
FZJ80..RHD..LUB;HZJ80..SOB..GX..GEN;HDJ80,HZJ80..LUB..ARL SABLE,TRIM4# |
1 | ||
| 73580-6002006 |
FJ80,HDJ80,HZJ80..LUB..ARL SABLE,TRIM4# |
1 | ||
| 73580-6002003 |
FJ80,HDJ80,HZJ80..LUB..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73580-6002006 |
FJ80,HDJ80,HZJ80..LUB..ARL SABLE,TRIM4# |
1 | ||
| 73580-6002003 |
FJ80,HDJ80,HZJ80..LUB..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73580-60011E0 |
FZJ80..RHD..LUB;HZJ80..SOB..GX..GEN;HDJ80,HZJ80..LUB..ARL SABLE,TRIM4# |
1 | ||
| 73709 - BRACKET SUB-ASSY, TETHER ANCHOR | ||||
| 73708-20030B2 |
FZJ80,HDJ80..VX..ARL BLACK,TRIM1#,4# |
1 | ||
| Common parts | ||||
| 90950-01273 | ||||
| 91631-40614 | ||||
ILLUST NO. 2 OF 3(9001- )
2-POINT TYPE
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
