HDJ80L-GNPEX (1990)
Toyota Land Cruiser
(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51077 - BRACKET SUB-ASSY, SIDE STEP, NO.2 | ||||
| 51077-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 51077-60020 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 51077-60030 |
FZJ80,HDJ80,HZJ80..GX,VX W(*OF) |
2 | ||
| 51078 - BRACKET SUB-ASSY, SIDE STEP, NO.3 | ||||
| 51077-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 51077-60030 |
FZJ80,HDJ80,HZJ80..GX,VX W(*OF) |
2 | ||
| 51077-60020 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 51079 - BRACKET SUB-ASSY, SIDE STEP | ||||
| 51079-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 51079-60010 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 51079-60020 |
FZJ80,HDJ80,HZJ80..GX,VX W(*OF) |
2 | ||
| 51079A - BRACKET SUB-ASSY, SIDE STEP, NO.3 | ||||
| 51078-60020 |
FZJ80,HDJ80,HZJ80..GX,VX W(*OF) |
2 | ||
| 51079-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 51078-60010 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 51083 - STEP SUB-ASSY, RH | ||||
| 51083-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 51083-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 51084 - STEP SUB-ASSY, LH | ||||
| 51084-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 51084-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 51759A - COVER, SIDE DOOR STEP PLATE, REAR LH | ||||
| 51759-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 51773B - COVER, SIDE DOOR STEP PLATE, FRONT RH | ||||
| 51773-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 51774A - COVER, SIDE DOOR STEP PLATE, FRONT LH | ||||
| 51774-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 51779A - COVER, SIDE DOOR STEP PLATE, REAR RH | ||||
| 51779-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 55142A - BRACKET, FOOT REST MOUNTING, NO.2 | ||||
| 55142-60040 |
FZJ80,HDJ80,HZJ80..LHD..(GX,VX) |
1 | ||
| 55142-60040 |
FZJ80..GCC..EFI;FZJ80..GX..GEN..EFI;FZJ80,HDJ80,HZJ80..LHD..(GX,VX)..(CBR,DSL,TD2) |
1 | ||
| 55142-60020 |
HDJ80,HZJ80..LHD..LUB;FJ80..LHD..5F..(GX,VX)..GEN;FJ80..(4F,4FC)..(GX,VX)..CBR |
1 | ||
| 55142A - BRACKET, FOOT REST MOUNTING, NO.2 | ||||
| 55142-60040 |
FZJ80,HDJ80,HZJ80..LHD..(GX,VX) |
1 | ||
| 55142-60040 |
FZJ80..GCC..EFI;FZJ80..GX..GEN..EFI;FZJ80,HDJ80,HZJ80..LHD..(GX,VX)..(CBR,DSL,TD2) |
1 | ||
| 55142-60020 |
HDJ80,HZJ80..LHD..LUB;FJ80..LHD..5F..(GX,VX)..GEN;FJ80..(4F,4FC)..(GX,VX)..CBR |
1 | ||
| 57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 57051-60021 |
FZJ80..(GX,STD)..EFI;FZJ80..VX..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4 |
1 | ||
| 57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 57052-60021 |
FZJ80..(GX,STD)..EFI;FZJ80..VX..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4 |
1 | ||
| 57206A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2 | ||||
| 57206-60030 |
FJ80,HZJ80..LHD..4FC..GX;FJ80,HDJ80,HZJ80..LHD..VX |
1 | ||
| 57206-60060 |
FJ80,HDJ80,HZJ80..4FC;FZJ80,HDJ80,HZJ80..5F..VX |
1 | ||
| 57206-60061 |
HDJ80..TD4;HDJ80..4FC..TD2;HDJ80..5F..LUB..VX;FZJ80..5F..GCC..EFI;FZJ80..4FC..(ARL,GCC);FZJ80,HZJ80..4FC..GX..GEN;FZJ80,HZJ80..VX..(CBR,DSL) |
1 | ||
| 57401C - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57401-60022 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 57401-60050 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 57401-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 57402C - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57402-60041 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 57402-60022 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 57402-60040 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 57403B - REINFORCE SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57403-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 57403-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 57404A - REINFORCE SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57404-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 57404-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 57408C - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-60012 |
FZJ80..(GX,STD)..EFI;FZJ80..VX..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4 |
1 | ||
| 57408-60011 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 57408-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 57468B - BRACKET, FRONT SEAT, REAR | ||||
| 57468-60011 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 57468-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 57468-60012 |
FZJ80..(GX,STD)..EFI;FZJ80..VX..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4 |
2 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-60190 |
FJ80,HDJ80,HZJ80..4FC..GEN W(FR & RR HEATER) |
1 | ||
| 58111-60200 |
FJ80,HDJ80,HZJ80..4FC..GEN W(FR & RR HEATER & COOL BOX) |
1 | ||
| 58111-60170 |
FJ80,HDJ80,HZJ80..LHD..4FC |
1 | ||
| 58111-60180 |
FJ80,HDJ80,HZJ80..LHD..4FC W(COOL BOX) |
1 | ||
| 58111-60201 |
FZJ80,HDJ80..4FC..GEN W(COOL BOX & FR & RR HEATER) |
1 | ||
| 58111-60181 |
FZJ80,HDJ80..LHD..4FC W(COOL BOX) |
1 | ||
| 58111-60302 |
FZJ80,HDJ80..LHD..4FC..GEN W(FR & RR HEATER) |
1 | ||
| 58111-60202 |
FZJ80,HDJ80..LHD..4FC..GEN W(COOL BOX & FR & RR HEATER) |
1 | ||
| 58111-60292 |
HDJ80..LHD..4FC;FZJ80..4FC..VX..GCC;FZJ80..LHD..4FC..(GX,STD) |
1 | ||
| 58111-60182 |
FZJ80..4FC..GCC;HDJ80..LHD..4FC;FZJ80..GX..GEN..EFI W(COOL BOX) |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-60020 |
HDJ80,HZJ80..4FC;FZJ80..4FC..(GX,STD);FZJ80..4FC..VX..(ARL,GCC) |
1 | ||
| 58123-60020 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-60020 |
HDJ80,HZJ80..4FC;FZJ80..4FC..(GX,STD);FZJ80..4FC..VX..(ARL,GCC) |
1 | ||
| 58123-60020 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 58171-60010 |
FZJ80..(GX,STD)..EFI;FZJ80..VX..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4 |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58192-60020 |
HDJ80,HZJ80..LHD..LUB;FJ80..LHD..5F..(GX,VX)..GEN;FJ80..(4F,4FC)..(GX,VX)..CBR |
1 | ||
| 58192-60020 |
FZJ80,HDJ80,HZJ80..LHD..(GX,VX) |
1 | ||
| 58192-60020 |
FZJ80..STD..GCC;FZJ80,HDJ80,HZJ80..LHD..(GX,VX) |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58192-60020 |
HDJ80,HZJ80..LHD..LUB;FJ80..LHD..5F..(GX,VX)..GEN;FJ80..(4F,4FC)..(GX,VX)..CBR |
1 | ||
| 58192-60020 |
FZJ80,HDJ80,HZJ80..LHD..(GX,VX) |
1 | ||
| 58192-60020 |
FZJ80..STD..GCC;FZJ80,HDJ80,HZJ80..LHD..(GX,VX) |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 58291B - BOOT, TRANSFER SHIFT LEVER | ||||
| 58290-60010 |
FZJ80,HDJ80,HZJ80..4FC |
1 | ||
| 58290-60010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 58991A - BRACKET, CONSOLE BOX MOUNTING, UPPER RH | ||||
| 58991-60030 |
HDJ80..LUB;FZJ80,HZJ80..4FC..GX..GEN;FZJ80,HZJ80..VX..GEN..(CBR,DSL);FZJ80,HZJ80..(GX,VX)..(ARL,GCC) |
1 | ||
| 58991B - BRACKET, CONSOLE BOX MOUNTING, FRONT | ||||
| 58991-60010 |
HDJ80..4FC;HDJ80..5F..VX;FJ80,HZJ80..4FC..GX;FJ80,FZJ80,HZJ80..VX |
1 | ||
| 58991-60010 |
HDJ80;FZJ80..GX..GEN..EFI;FZJ80,HZJ80..VX..GEN;FZJ80,HZJ80..(GX,VX)..(ARL,GCC) |
1 | ||
| 58992 - BRACKET, CONSOLE BOX MOUNTING, UPPER LH | ||||
| 58992-60020 |
FZJ80..GX..GEN..EFI;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4 |
1 | ||
| 58994A - BRACKET, CONSOLE BOX MOUNTING, NO.4 | ||||
| 58997-60010 |
FZJ80..LHD..LUB;HDJ80,HZJ80..LHD;FJ80..LHD..(GX,VX);FZJ80..SOB..(GX,VX);FJ80,FZJ80..LHD..SOB..STD..GEN |
1 | ||
| 58997-60010 |
HZJ80..LHD;FZJ80..SOB..(GX,VX);FZJ80..GX..GEN..EFI;FZJ80..LUB..GCC..EFI;FZJ80,HDJ80..LHD..LUB..(CBR,TD2) |
1 | ||
| Common parts | ||||
| 90109-06187 | ||||
| 90115-06166 | ||||
| 90115-06243 | ||||
| 90119-06048 | ||||
| 90119-06171 | ||||
| 90119-06283 | ||||
| 90119-08594 | ||||
| 90119-08863 | ||||
| 90159-60266 | ||||
| 90179-08174 | ||||
| 90189-06172 | ||||
| 90333-20001 | ||||
| 90467-09030 | ||||
| 90950-01398 | ||||
| 90950-01557 | ||||
| 90950-01871 | ||||
| 90950-01882 | ||||
| 90950-06010 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||

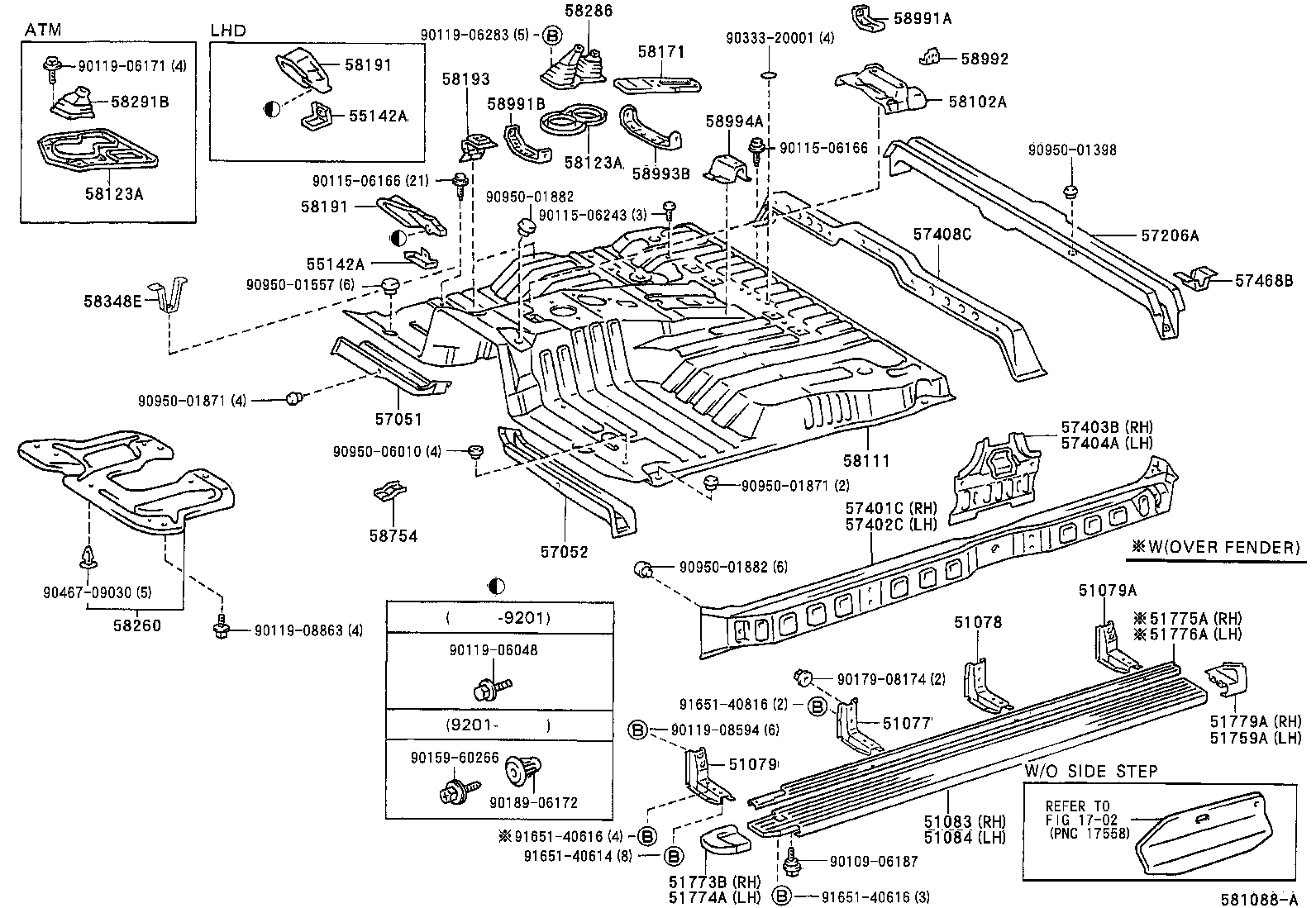

| Linked diagrams | ||||
| 1702 | ||||
