HDJ80L-GNPEX (1990)
Toyota Land Cruiser
(9001-0701)FJ7#,FZJ70,73,74,75,HDJ7#,HJ75,HZJ7#,KZJ7#,LJ7#,PZJ7#,RJ7# ; (9001-0808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08701 | ||||
| 90119-08867 | ||||
| 90119-08A78 | ||||
| 90119-10769 | ||||
| 90179-14064 | ||||
| 90201-12061 | ||||
| 90386-38004 | ||||
| 90910-07022 | ||||
| 91611-60820 | ||||
| 93239-15014 | ||||
| 94130-61200 | ||||
(9001-0701)FZJ79..CBU ; (9001-0701)FZJ79..ARL ;(9001-0701)FZJ71,78..GCC ; (9001-07
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08701 | ||||
| 90119-08867 | ||||
| 90119-08A78 | ||||
| 90119-10769 | ||||
| 90179-14064 | ||||
| 90201-12061 | ||||
| 90386-38004 | ||||
| 90910-07022 | ||||
| 91611-60820 | ||||
| 93239-15014 | ||||
| 94130-61200 | ||||

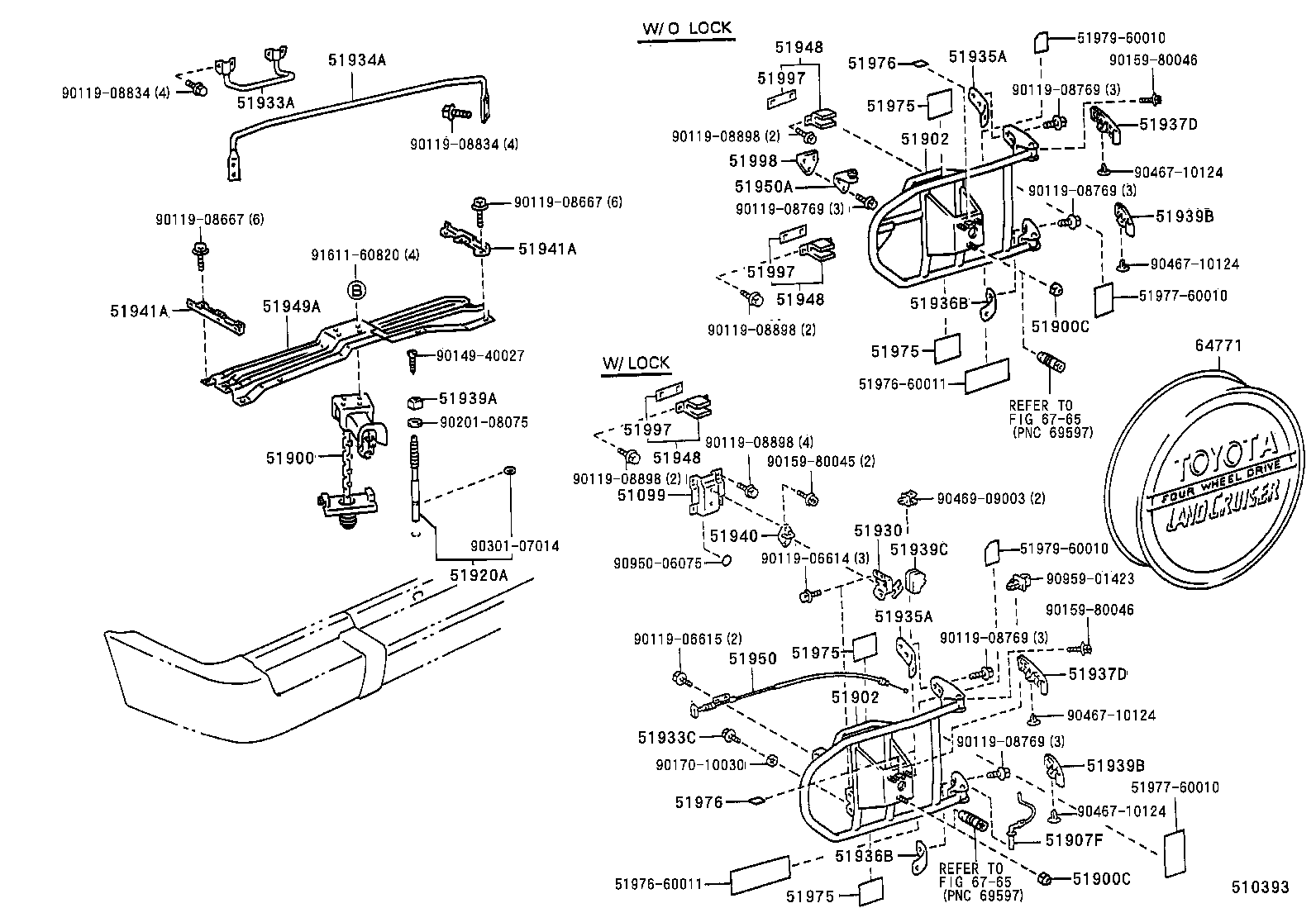

(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51099 - PLATE SUB-ASSY, SPARE | ||||
| 51099-60010 |
FJ80,HDJ80,HZJ80..LUB |
1 | ||
| 51099-60011 |
FZJ80,HDJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51099-60011 |
HDJ80..LHD..LUB;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51099-60010 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51900 - CARRIER ASSY, SPARE WHEEL | ||||
| 51900-60140 |
FJ80,HZJ80..SOB..(GX,VX)..GCC;FJ80,HDJ80,HZJ80..LUB..(GCC,GEN) W(SPARE WHEEL CARRIER(FLOOR) & ALUMINUM WHEEL & 31X10.50R15LT-6 TIRE) |
1 | ||
| 51900-60140 |
HZJ80..STD,VX;HZJ80..LUB..GX;FJ80,FZJ80,HDJ80..LUB;FJ80,FZJ80..SOB..(STD,VX);FJ80,FZJ80,HZJ80..SOB..GX..GCC |
1 | ||
| 51900-60120 |
FJ80,HDJ80,HZJ80..LUB;FJ80,HZJ80..SOB..(GX,VX)..GCC W(ALUMINUM WHEEL) |
1 | ||
| 51900-60120 |
FZJ80,HDJ80,HZJ80..GX,VX W(ALUMINUM WHEEL) |
1 | ||
| 51900-60120 |
FJ80,HZJ80..SOB..(GX,VX)..GCC;FJ80,HDJ80,HZJ80..LUB..(GCC,GEN) W(ALUMINUM WHEEL) |
1 | ||
| 51900-60140 |
HZJ80..STD,VX;HZJ80..LUB..GX;FZJ80,HDJ80..LUB;FZJ80..SOB..(STD,VX);FZJ80,HZJ80..SOB..GX..GCC |
1 | ||
| 51900-60140 |
HZJ80..5F..LUB..GEN;FZJ80,HZJ80..SOB..(GX,VX)..GCC;FZJ80,HDJ80..LUB..(GX,VX)..(GCC,GEN) W(SPARE WHEEL CARRIER(FLOOR) & ALUMINUM WHEEL & 31X10.50R15LT-6 TIRE) |
1 | ||
| 51900-60120 |
FJ80,FZJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN) W(ALUMINUM WHEEL) |
1 | ||
| 51900-60140 |
FJ80,HZJ80..SOB..(GX,VX)..GCC;FJ80,HDJ80,HZJ80..LUB..(GCC,GEN) W(31X10.50R15LT-6 TIRE) |
1 | ||
| 51900-60170 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 51900-60140 |
FZJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN) W(SPARE WHEEL CARRIER(FLOOR)) |
1 | ||
| 51900C - NUT, SPARE WHEEL, HUB | ||||
| 90942-01081 |
FJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN) W(ALUMINUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR W/LOCK) |
2 | ||
| 90942-01082 |
HDJ80,HZJ80;FJ80..GX,VX;FJ80..STD..(ARL,GEN) W(SPARE WHEEL CARRIER(BACK DOOR W/LOCK)) |
2 | ||
| 90942-01020 |
FJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN) W(SPARE WHEEL CARRIER(BACK DOOR W/LOCK) |
2 | ||
| 90942-01082 |
FJ80..STD..GEN;HDJ80,HZJ80..GCC,GEN;FJ80..(GX,VX)..(GCC,GEN) W(SPARE WHEEL CARRIER(BACK DOOR W/LOCK)) |
2 | ||
| 90942-01082 |
FJ80..STD..GCC;HZJ80..STD..ARL;FJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN) W(SPARE WHEEL CARRIER(BACK DOOR W/LOCK) |
2 | ||
| 90942-01082 |
FJ80..STD..GCC;FJ80,HDJ80,HZJ80..GEN W(SPARE WHEEL CARRIER(BACK DOOR)) |
3 | ||
| 90942-01082 |
FJ80..STD..GCC;FJ80,HDJ80,HZJ80..ARL,GEN W(SPARE WHEEL CARRIER(BACK DOOR)) |
3 | ||
| 90942-01081 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..(GX,VX)..GEN W(ALUMINUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR W/O LOCK)) |
3 | ||
| 90942-01020 |
HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN W(SPARE WHEEL CARRIER(BACK DOOR W/LOCK)) |
2 | ||
| 90942-01020 |
FJ80,FZJ80..STD..GCC;FJ80,FZJ80,HDJ80,HZJ80..GEN W(SPARE WHEEL CARRIER(BACK DOOR)) |
3 | ||
| 90942-01081 |
HDJ80,HZJ80..LUB..GEN;FJ80..LUB..(ARL,GEN)..CBR W(ALUMINUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR W/O LOCK)) |
3 | ||
| 90942-01081 |
FZJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN) W(ALUMINIUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR W/LOCK)) |
2 | ||
| 90942-01081 |
HZJ80..5F..(GX,VX)..(GCC,GEN);FZJ80,HDJ80..(GX,VX)..(GCC,GEN) W(ALUMINUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR)) |
2 | ||
| 90942-01077 |
HDJ80..LHD;FZJ80..4FC..GEN;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..LUB..(GX,VX)..GEN..(CBR,DSL) W(ALUMINUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR)) |
3 | ||
| 90942-01077 |
HDJ80..LHD;FZJ80..4FC..GEN;FZJ80..GCC..EFI;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..5F..(GX,VX)..(GCC,GEN)..(CBR,DSL) W(ALUMINUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR W/LOCK)) |
2 | ||
| 90942-01020 |
FZJ80..STD..GCC;FZJ80,HDJ80,HZJ80..GEN W(SPARE WHEEL CARRIER(BACK DOOR)) |
3 | ||
| 90942-01020 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) W(SPARE WHEEL CARRIER(BACK DOOR W/LOCK)) |
2 | ||
| 90942-01020 |
FZJ80..GEN;HDJ80..LHD;HZJ80..5F..GEN;HDJ80..RHD..5F..TD2 W(SPARE WHEEL CARRIER(BACK DOOR)) |
3 | ||
| 90942-01081 |
FZJ80..RHD..GX..CBR;HDJ80,HZJ80..LUB..GEN;FZJ80..LHD..LUB..(GX,VX)..GEN W(ALUMINUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR)) |
3 | ||
| 51900C - NUT, SPARE WHEEL, HUB | ||||
| 90942-01081 |
FJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN) W(ALUMINUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR W/LOCK) |
2 | ||
| 90942-01082 |
HDJ80,HZJ80;FJ80..GX,VX;FJ80..STD..(ARL,GEN) W(SPARE WHEEL CARRIER(BACK DOOR W/LOCK)) |
2 | ||
| 90942-01020 |
FJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN) W(SPARE WHEEL CARRIER(BACK DOOR W/LOCK) |
2 | ||
| 90942-01082 |
FJ80..STD..GEN;HDJ80,HZJ80..GCC,GEN;FJ80..(GX,VX)..(GCC,GEN) W(SPARE WHEEL CARRIER(BACK DOOR W/LOCK)) |
2 | ||
| 90942-01082 |
FJ80..STD..GCC;HZJ80..STD..ARL;FJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN) W(SPARE WHEEL CARRIER(BACK DOOR W/LOCK) |
2 | ||
| 90942-01082 |
FJ80..STD..GCC;FJ80,HDJ80,HZJ80..GEN W(SPARE WHEEL CARRIER(BACK DOOR)) |
3 | ||
| 90942-01082 |
FJ80..STD..GCC;FJ80,HDJ80,HZJ80..ARL,GEN W(SPARE WHEEL CARRIER(BACK DOOR)) |
3 | ||
| 90942-01081 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..(GX,VX)..GEN W(ALUMINUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR W/O LOCK)) |
3 | ||
| 90942-01020 |
HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN W(SPARE WHEEL CARRIER(BACK DOOR W/LOCK)) |
2 | ||
| 90942-01020 |
FJ80,FZJ80..STD..GCC;FJ80,FZJ80,HDJ80,HZJ80..GEN W(SPARE WHEEL CARRIER(BACK DOOR)) |
3 | ||
| 90942-01081 |
HDJ80,HZJ80..LUB..GEN;FJ80..LUB..(ARL,GEN)..CBR W(ALUMINUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR W/O LOCK)) |
3 | ||
| 90942-01081 |
FZJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN) W(ALUMINIUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR W/LOCK)) |
2 | ||
| 90942-01081 |
HZJ80..5F..(GX,VX)..(GCC,GEN);FZJ80,HDJ80..(GX,VX)..(GCC,GEN) W(ALUMINUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR)) |
2 | ||
| 90942-01077 |
HDJ80..LHD;FZJ80..4FC..GEN;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..LUB..(GX,VX)..GEN..(CBR,DSL) W(ALUMINUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR)) |
3 | ||
| 90942-01077 |
HDJ80..LHD;FZJ80..4FC..GEN;FZJ80..GCC..EFI;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..5F..(GX,VX)..(GCC,GEN)..(CBR,DSL) W(ALUMINUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR W/LOCK)) |
2 | ||
| 90942-01020 |
FZJ80..STD..GCC;FZJ80,HDJ80,HZJ80..GEN W(SPARE WHEEL CARRIER(BACK DOOR)) |
3 | ||
| 90942-01020 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) W(SPARE WHEEL CARRIER(BACK DOOR W/LOCK)) |
2 | ||
| 90942-01020 |
FZJ80..GEN;HDJ80..LHD;HZJ80..5F..GEN;HDJ80..RHD..5F..TD2 W(SPARE WHEEL CARRIER(BACK DOOR)) |
3 | ||
| 90942-01081 |
FZJ80..RHD..GX..CBR;HDJ80,HZJ80..LUB..GEN;FZJ80..LHD..LUB..(GX,VX)..GEN W(ALUMINUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR)) |
3 | ||
| 51902 - CARRIER SUB-ASSY, SPARE WHEEL | ||||
| 51903-60080 |
FJ80,HDJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51903-60080 |
FJ80,HDJ80,HZJ80..LUB |
1 | ||
| 51903-60082 |
FZJ80,HDJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51903-60081 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51903-60083 |
HDJ80..LHD..LUB;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51902 - CARRIER SUB-ASSY, SPARE WHEEL | ||||
| 51903-60080 |
FJ80,HDJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51903-60080 |
FJ80,HDJ80,HZJ80..LUB |
1 | ||
| 51903-60082 |
FZJ80,HDJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51903-60081 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51903-60083 |
HDJ80..LHD..LUB;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51907F - STOPPER SUB-ASSY, SPARE WHEEL CARRIER | ||||
| 51907-60060 |
FJ80,HDJ80,HZJ80..LUB |
1 | ||
| 51907-60060 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51907-60060 |
HDJ80..LHD..LUB;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51920A - SHAFT ASSY, SPARE WHEEL CARRIER DRIVE | ||||
| 51920-60020 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 51920-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 51930 - LOCK ASSY, SPARE WHEEL CARRIER | ||||
| 51930-89101 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51930-89101 |
HDJ80..LHD..LUB;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51930-89101 |
FJ80,HDJ80,HZJ80..LUB |
1 | ||
| 51933A - STOPPER, SPARE WHEEL, NO.1 | ||||
| 51933-60060 |
FZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 51933C - STOPPER, SPARE WHEEL | ||||
| 51933-89101 |
FJ80,HDJ80,HZJ80..LUB |
1 | ||
| 51933-89101 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51933-60070 |
FZJ80,HDJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51933-60070 |
HDJ80..LHD..LUB;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51934A - STOPPER, SPARE WHEEL, NO.2 | ||||
| 51934-60060 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 51935A - CUSHION, SPARE WHEEL CARRIER HINGE, UPPER | ||||
| 51935-60050 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 51935-60050 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 51935-60050 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 51935A - CUSHION, SPARE WHEEL CARRIER HINGE, UPPER | ||||
| 51935-60050 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 51935-60050 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 51935-60050 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 51936B - CUSHION, SPARE WHEEL CARRIER HINGE, LOWER | ||||
| 51936-60060 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 51936-60060 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 51936-60060 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 51936B - CUSHION, SPARE WHEEL CARRIER HINGE, LOWER | ||||
| 51936-60060 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 51936-60060 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 51936-60060 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 51937D - COVER, SPARE WHEEL CARRIER HINGE, UPPER | ||||
| 51937-60030 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 51937-60030 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 51937-60030 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 51937D - COVER, SPARE WHEEL CARRIER HINGE, UPPER | ||||
| 51937-60030 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 51937-60030 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 51937-60030 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 51939A - CAP, SPARE WHEEL CARRIER HANDLE | ||||
| 51939-60030 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 51939-60030 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 51939B - COVER, SPARE WHEEL CARRIER LOCK | ||||
| 51939-60020 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 51939-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 51939-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 51939B - COVER, SPARE WHEEL CARRIER LOCK | ||||
| 51939-60020 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 51939-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 51939-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 51939C - COVER, SPARE WHEEL CARRIER HINGE | ||||
| 51939-89102 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51939-89102 |
HDJ80..LHD..LUB;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51939-89102 |
FJ80,HDJ80,HZJ80..LUB |
1 | ||
| 51940 - STRIKER ASSY, SPARE WHEEL CARRIER LOCK | ||||
| 51940-89101 |
HDJ80..LHD..LUB;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51940-89101 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51940-89101 |
FJ80,HDJ80,HZJ80..LUB |
1 | ||
| 51941A - BRACKET, SPARE WHEEL CARRIER | ||||
| 51944-60020 |
FJ80,FZJ80,HDJ80,HZJ80 LH |
1 | ||
| 51944-60020 |
FZJ80,HDJ80,HZJ80 LH |
1 | ||
| 51943-60040 |
HDJ80,HZJ80;FZJ80..ARL,GCC;FZJ80..RHD..CBR RH |
1 | ||
| 51943-60040 |
FZJ80,HDJ80,HZJ80 RH |
1 | ||
| 51944-60020 |
HDJ80,HZJ80;FZJ80..ARL,GCC;FZJ80..RHD..CBR LH |
1 | ||
| 51943-60040 |
FJ80,FZJ80,HDJ80,HZJ80 RH |
1 | ||
| 51941A - BRACKET, SPARE WHEEL CARRIER | ||||
| 51944-60020 |
FJ80,FZJ80,HDJ80,HZJ80 LH |
1 | ||
| 51944-60020 |
FZJ80,HDJ80,HZJ80 LH |
1 | ||
| 51943-60040 |
HDJ80,HZJ80;FZJ80..ARL,GCC;FZJ80..RHD..CBR RH |
1 | ||
| 51943-60040 |
FZJ80,HDJ80,HZJ80 RH |
1 | ||
| 51944-60020 |
HDJ80,HZJ80;FZJ80..ARL,GCC;FZJ80..RHD..CBR LH |
1 | ||
| 51943-60040 |
FJ80,FZJ80,HDJ80,HZJ80 RH |
1 | ||
| 51948 - STOPPER, SPARE WHEEL CARRIER AUXILIARY | ||||
| 51905-60010 |
FJ80,HDJ80,HZJ80..LUB |
1 | ||
| 51905-60010 |
HDJ80..LHD..LUB;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51905-60010 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51948 - STOPPER, SPARE WHEEL CARRIER AUXILIARY | ||||
| 51905-60010 |
FJ80,HDJ80,HZJ80..LUB |
1 | ||
| 51905-60010 |
HDJ80..LHD..LUB;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51905-60010 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51948 - STOPPER, SPARE WHEEL CARRIER AUXILIARY | ||||
| 51905-60010 |
FJ80,HDJ80,HZJ80..LUB |
1 | ||
| 51905-60010 |
HDJ80..LHD..LUB;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51905-60010 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51949A - CROSSMEMBER, SPARE WHEEL CARRIER | ||||
| 51949-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 51949-60010 |
HDJ80,HZJ80;FZJ80..ARL,GCC;FZJ80..RHD..CBR |
1 | ||
| 51949-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 51950 - CABLE ASSY, SPARE WHEEL CARRIER LOCK CONTROL | ||||
| 51950-60030 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51950-60030 |
HDJ80..LHD..LUB;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51950-60020 |
FJ80,HDJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51950-60020 |
FJ80,HDJ80,HZJ80..LUB |
1 | ||
| 51975 - FILM, SPARE WHEEL CARRIER | ||||
| 51975-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 51975-60010 |
FJ80,HDJ80,HZJ80..LUB |
1 | ||
| 51975-60010 |
FJ80,HDJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51975-60010 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 51975-60010 |
HDJ80..LHD..LUB;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51975 - FILM, SPARE WHEEL CARRIER | ||||
| 51975-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 51975-60010 |
FJ80,HDJ80,HZJ80..LUB |
1 | ||
| 51975-60010 |
FJ80,HDJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51975-60010 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 51975-60010 |
HDJ80..LHD..LUB;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51975 - FILM, SPARE WHEEL CARRIER | ||||
| 51975-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 51975-60010 |
FJ80,HDJ80,HZJ80..LUB |
1 | ||
| 51975-60010 |
FJ80,HDJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51975-60010 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 51975-60010 |
HDJ80..LHD..LUB;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51975 - FILM, SPARE WHEEL CARRIER | ||||
| 51975-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 51975-60010 |
FJ80,HDJ80,HZJ80..LUB |
1 | ||
| 51975-60010 |
FJ80,HDJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51975-60010 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 51975-60010 |
HDJ80..LHD..LUB;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51976 - FILM, SPARE WHEEL CARRIER, NO.2 | ||||
| 51976-60020 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..TD2;HZJ80..5F..(GCC,GEN) |
1 | ||
| 51976 - FILM, SPARE WHEEL CARRIER, NO.2 | ||||
| 51976-60020 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..TD2;HZJ80..5F..(GCC,GEN) |
1 | ||
| 51997 - PAD, SPARE WHEEL STOPPER | ||||
| 51997-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 51997-60020 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 51997-60020 |
HDJ80..LHD..LUB;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51997-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 51997 - PAD, SPARE WHEEL STOPPER | ||||
| 51997-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 51997-60020 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 51997-60020 |
HDJ80..LHD..LUB;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51997-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 51997 - PAD, SPARE WHEEL STOPPER | ||||
| 51997-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 51997-60020 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 51997-60020 |
HDJ80..LHD..LUB;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..LUB..(GCC,GEN) |
1 | ||
| 51997-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 64771 - COVER, SPARE WHEEL | ||||
| 64771-60130 |
FJ80,FZJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN) W(31X10.50R15LT-6 TIRE) |
1 | ||
| 64771-60110 |
FJ80..STD..GCC;FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 64771-60110 |
FJ80,FZJ80..STD..GCC;FJ80,FZJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 51976-60011 | ||||
| 51977-60010 | ||||
| 51979-60010 | ||||
| 90119-06614 | ||||
| 90119-06615 | ||||
| 90119-08667 | ||||
| 90119-08769 | ||||
| 90119-08834 | ||||
| 90119-08898 | ||||
| 90149-40027 | ||||
| 90159-80045 | ||||
| 90159-80046 | ||||
| 90170-10030 | ||||
| 90201-08075 | ||||
| 90301-07014 | ||||
| 90467-10124 | ||||
| 90469-09003 | ||||
| 90950-06075 | ||||
| 90959-01423 | ||||
| 91611-60820 | ||||
| Linked diagrams | ||||
| 6765 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
