HDJ80L-GNPEX (1990)
Toyota Land Cruiser
(9001-9201)4FC
A440F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91511-60620 | ||||
| 91511-60820 | ||||
(9001- )4FC
A440F,A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

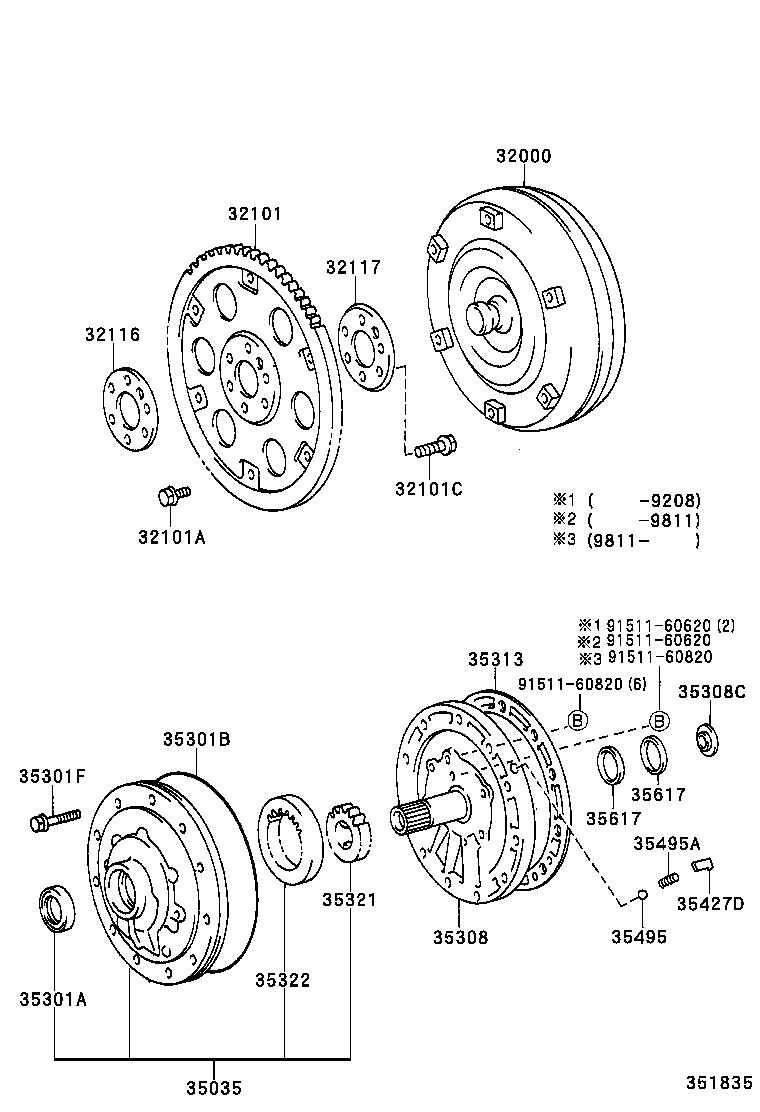

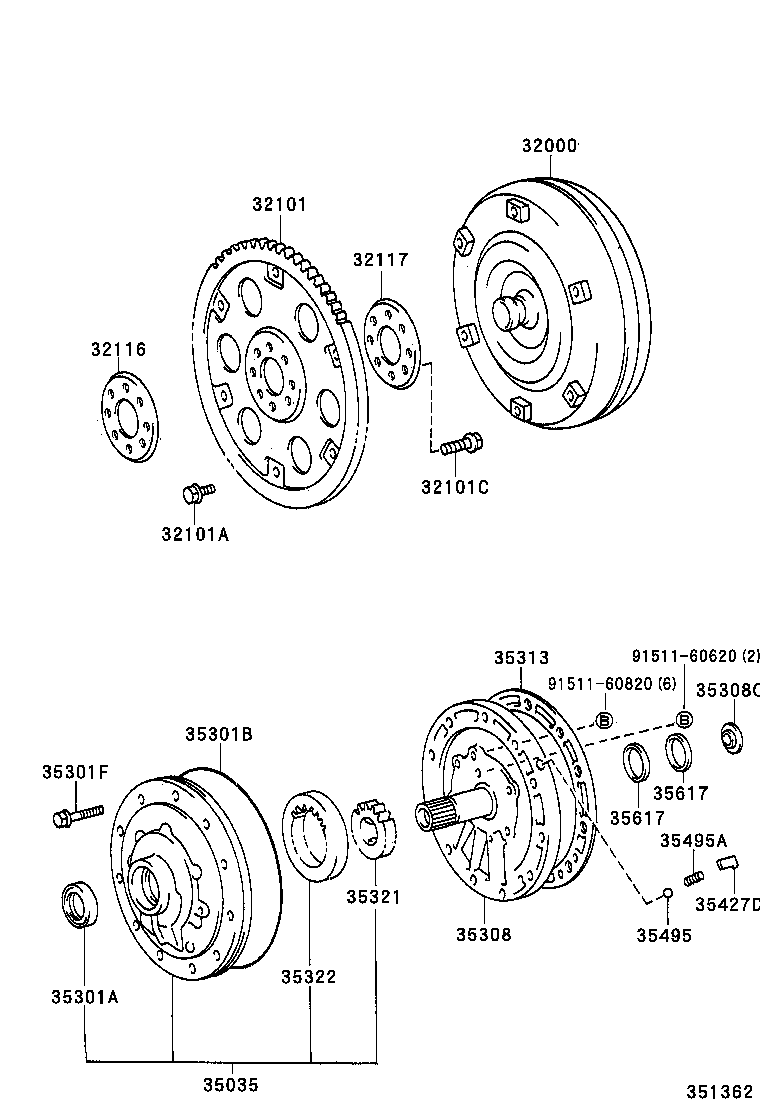

| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-60060 |
HDJ80..4FC |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-60040 |
HDJ80,HZJ80..4FC |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-10611 |
HDJ80,HZJ80..4FC *10-1.25PX15-10,GREEN |
1 | ||
| 90119-10611 |
FZJ80,HDJ80..4FC *10-1.25PX15-10,GREEN |
1 | ||
| 90119-10613 |
HDJ80,HZJ80..4FC *10-1.25PX15-10,BLACK |
5 | ||
| 90119-10789 |
HDJ80..LHD..4FC;FZJ80..GX..GEN..EFI;FZJ80,HDJ80..4FC..(ARL,GCC)..(EFI,TD4) *10-1.25PX14-9,GREEN |
1 | ||
| 90119-10613 |
FZJ80,HDJ80..4FC *10-1.25PX15-10,BLACK |
5 | ||
| 90119-10790 |
HDJ80..LHD..4FC;FZJ80..GX..GEN..EFI;FZJ80,HDJ80..4FC..(ARL,GCC)..(EFI,TD4) *10-1.25PX14-9,BLACK |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-12198 |
HDJ80,HZJ80..4FC |
8 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-60030 |
HDJ80,HZJ80..4FC |
1 | ||
| 35035 - BODY SUB-ASSY, FR OIL PUMP & GEAR | ||||
| 35035-60010 |
HDJ80..4FC |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-42010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99029 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08213 |
HDJ80..4FC *8-1.25PX60-20 |
1 | ||
| 90105-08212 |
HDJ80..4FC *8-1.25PX60-30 |
10 | ||
| 35308 - COVER SUB-ASSY, FRONT OIL PUMP | ||||
| 35308-60010 |
HDJ80..4FC |
1 | ||
| 35308-60030 |
HDJ80..4FC |
1 | ||
| 35308C - RACE, THRUST BEARING (FOR FRONT OIL PUMP COVER) | ||||
| 35789-36040 |
FJ80,HDJ80,HZJ80..4FC T=0.8 |
1 | ||
| 35789-36050 |
FJ80,HDJ80,HZJ80..4FC T=1.0 |
1 | ||
| 35789-36060 |
FJ80,HDJ80,HZJ80..4FC..(DSL,EFI,TD2) T=1.4 |
1 | ||
| 35789-36060 |
FJ80,HDJ80,HZJ80..4FC T=1.4 |
1 | ||
| 35789-36040 |
FJ80,HDJ80,HZJ80..4FC..(DSL,EFI,TD2) T=0.8 |
1 | ||
| 35789-36050 |
FJ80,HDJ80,HZJ80..4FC..(DSL,EFI,TD2) T=1.0 |
1 | ||
| 35313 - GASKET, FRONT OIL PUMP COVER | ||||
| 35313-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-60020 |
HDJ80..4FC T=11.967-11.982 |
1 | ||
| 35321-60010 |
HDJ80..4FC T=11.983-11.998 |
1 | ||
| 35321-60030 |
HDJ80..4FC T=11.999-12.014 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-60020 |
HDJ80..4FC T=11.967-11.982 |
1 | ||
| 35322-60030 |
HDJ80..4FC T=11.999-12.014 |
1 | ||
| 35322-60010 |
HDJ80..4FC T=11.983-11.998 |
1 | ||
| 35427D - SEAT, CHECK VALVE SPRING | ||||
| 35427-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35495 - BALL, CHECK | ||||
| 35495-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35495A - SPRING, COMPRESSION (FOR CHECK BALL) | ||||
| 90501-18677 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-36010 |
FZJ80,HDJ80..4FC |
2 | ||
| 35617-36010 |
FJ80,HDJ80,HZJ80..4FC |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-36010 |
FZJ80,HDJ80..4FC |
2 | ||
| 35617-36010 |
FJ80,HDJ80,HZJ80..4FC |
2 | ||
| Common parts | ||||
| 91511-60620 | ||||
| 91511-60820 | ||||
