HDJ80L-GNMEX (1990)
Toyota Land Cruiser
ILLUST NO. 1 OF 3(9001-9908)FZJ75,HZJ70..ARL ; (9001-0701)FJ75,FZJ75,HZJ75,PZJ75..CBR,DSL ; (9401-99
FUEL SUB TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06621 | ||||
| 90119-08701 | ||||
| 90119-10153 | ||||
| 90119-10539 | ||||
| 90119-10556 | ||||
| 90159-40155 | ||||
| 90460-65002 | ||||
| 90461-06174 | ||||
| 90461-12296 | ||||
| 90464-00239 | ||||
| 90467-20134 | ||||
| 91626-B0818 | ||||
| 91651-40614 | ||||
| 91651-60814 | ||||
| 91651-60820 | ||||
| 91665-40616 | ||||
| 93383-15014 | ||||
| 93383-A6014 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(9001- )
AUXILIARY FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08277 | ||||
| 90202-11006 | ||||
| 90950-01088 | ||||
| 90950-01555 | ||||

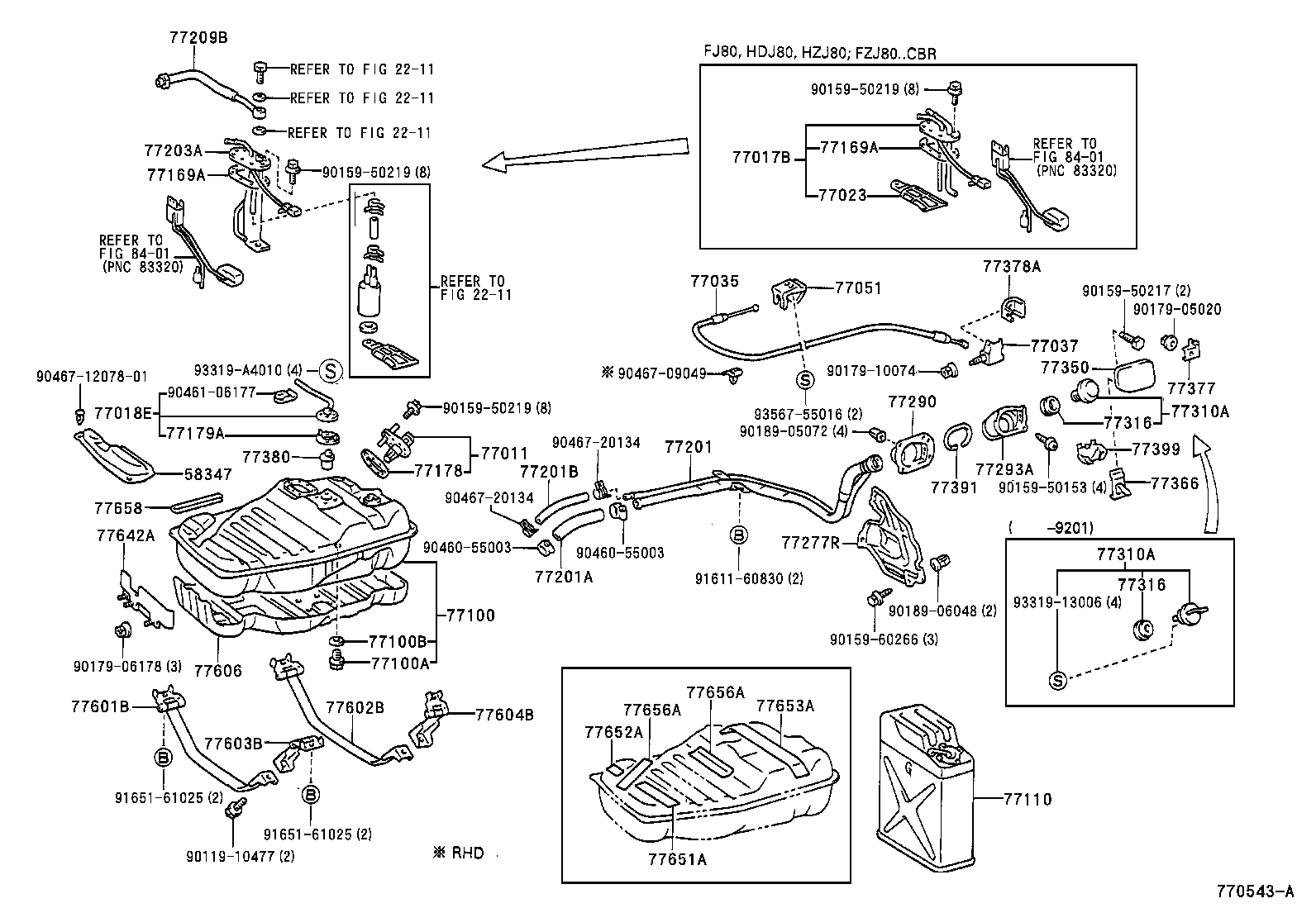

ILLUST NO. 1 OF 3(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-60030 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77011-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-60150 |
HDJ80 |
1 | ||
| 77017-60110 |
HDJ80 W(SUB TANK),SUB-TANK |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77018-60030 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-60010 |
HDJ80 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-60020 |
FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 77035-60020 |
FJ80,FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77037-12050 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-3006003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 77051-3006006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 77051-3006006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-69055 |
FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK |
1 | ||
| 77001-69015 |
FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK |
1 | ||
| 77001-69055 |
HZJ80..ARL,GEN;FJ80,HDJ80..CBR,TD2 W(SUB TANK),SUB-TANK |
1 | ||
| 77100-60912 |
HZJ80..VX..GCC;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..(ARL,GEN)..(CBR,DSL,TD2) W(SUB TANK),SUB-TANK |
1 | ||
| 77001-69015 |
FJ80,FZJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77001-69055 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK),SUB-TANK |
1 | ||
| 77001-69015 |
HZJ80..ARL,GEN;HZJ80..VX..GCC;FJ80,HDJ80..CBR,TD2;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK),MAIN-TANK |
1 | ||
| 77001-69055 |
HZJ80..GX..ARL;HDJ80..RHD..5F..TD2;HZJ80..5F..(GCC,GEN);FZJ80..LHD..SOB..STD;FZJ80..4FC..(GX,VX)..GEN;FZJ80,HDJ80..(ARL,GCC)..(EFI,TD4);FZJ80,HDJ80..LHD..(GX,VX)..(CBR,TD2) W(SUB TANK),SUB-TANK |
1 | ||
| 77001-69065 |
FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4 MAIN-TANK |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 90105-12116 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 90430-12245 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77110 - TANK ASSY, AUXILIARY FUEL | ||||
| 77110-60011 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 77110-60011 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(SUB FUEL TANK) |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
HDJ80,HZJ80;FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR W(SUB TANK),SUB-TANK |
1 | ||
| 77169-60010 |
FJ80,FZJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77169-60010 |
FZJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77169-60010 |
HDJ80,HZJ80;FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR W(SUB TANK),MAIN-TANK |
1 | ||
| 77169-14020 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK |
1 | ||
| 77169-60010 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
HDJ80,HZJ80;FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR W(SUB TANK),SUB-TANK |
1 | ||
| 77169-60010 |
FJ80,FZJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77169-60010 |
FZJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77169-60010 |
HDJ80,HZJ80;FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR W(SUB TANK),MAIN-TANK |
1 | ||
| 77169-14020 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK |
1 | ||
| 77169-60010 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-35030 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77178-35030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77179-26010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60310 |
HDJ80,HZJ80;FJ80..GCC,GEN W(SUB TANK) |
1 | ||
| 77201-60330 |
HDJ80,HZJ80;FJ80..GCC,GEN |
1 | ||
| 77201-60311 |
HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK) |
1 | ||
| 77201-60331 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77201-60331 |
HDJ80,HZJ80;FZJ80..GCC,GEN |
1 | ||
| 77201-60311 |
HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK) |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 77213-60090 |
FJ80,FZJ80,HDJ80,HZJ80 MARK=TANK |
1 | ||
| 95311-13013 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD *H,L=130,W(SUB TANK) |
1 | ||
| 95311-13013 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 *H,L=130,W(SUB TANK) |
1 | ||
| 77201B - HOSE, FUEL, NO.2(FOR FUEL TANK INLET PIPE) | ||||
| 95311-13022 |
FJ80,FZJ80,HDJ80,HZJ80 L=220 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77277-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77290-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77290-60010 |
HDJ80..LHD;HZJ80..GCC,GEN;HZJ80..GX..ARL;HDJ80..RHD..5F..TD2;FZJ80,HDJ80..CBR,EFI,TD4 |
1 | ||
| 77290-60020 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK) |
1 | ||
| 77290-60020 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK) |
1 | ||
| 77290-60020 |
HZJ80..GX..ARL;FZJ80..4FC..GEN;HDJ80..RHD..5F..TD2;HZJ80..5F..(GCC,GEN);FZJ80..LHD..SOB..STD;FZJ80,HDJ80..(ARL,GCC)..(EFI,TD4);FZJ80,HDJ80..LHD..(GX,VX)..(CBR,TD2) W(SUB TANK) |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-60050 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77293-60050 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-35061 |
HDJ80,HZJ80 |
1 | ||
| 77310-35110 |
HDJ80,HZJ80 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-35061 |
HDJ80,HZJ80 |
1 | ||
| 77310-35110 |
HDJ80,HZJ80 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77316-12050 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 77316-16010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77316-12050 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 77316-16010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77350-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-22020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77360-22020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77377-20030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77378A - COVER, FUEL FILLER OPENING LID LOCK | ||||
| 77378-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77378-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77380-26010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77391-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77399 - HANGER, FUEL TANK CAP | ||||
| 77399-22010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 77399-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77399-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-60150 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77601-60150 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77601-60150 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK),MAIN-TANK |
1 | ||
| 77601-60140 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK |
1 | ||
| 77601-60140 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK),SUB-TANK |
1 | ||
| 77601-60150 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-60050 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK |
1 | ||
| 77602-60050 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK),SUB-TANK |
1 | ||
| 77602-60060 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77602-60060 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK |
1 | ||
| 77602-60060 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77602-60060 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK),MAIN-TANK |
1 | ||
| 77603B - BAND SUB-ASSY, FUEL TANK, NO.2 RH | ||||
| 77603-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77603-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77604B - BAND SUB-ASSY, FUEL TANK, NO.2 LH | ||||
| 77604-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77604-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60050 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 77606-60070 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-60080 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK),SUB-TANK |
1 | ||
| 77651-60090 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK),MAIN-TANK |
1 | ||
| 77651-60080 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK |
1 | ||
| 77651-60090 |
FZJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77651-60090 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77651-60090 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-60040 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK |
1 | ||
| 77652-60050 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77652-60050 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77652-60050 |
HDJ80..LHD;HZJ80..GCC,GEN;HZJ80..GX..ARL;HDJ80..RHD..5F..TD2;FZJ80,HDJ80..CBR,EFI,TD4 |
1 | ||
| 77652-60040 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK),SUB-TANK |
1 | ||
| 77652-60050 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK |
1 | ||
| 77652-60050 |
HDJ80;HZJ80..5F;FZJ80..LHD..SOB..STD;FZJ80..(ARL,GCC)..EFI;FZJ80..LHD..(GX,VX)..CBR;FZJ80..4FC..(GX,VX)..GEN W(SUB TANK),MAIN-TANK |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77653-60050 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK |
1 | ||
| 77653-60040 |
FZJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77653-60040 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK |
1 | ||
| 77653-60050 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK),SUB-TANK |
1 | ||
| 77653-60040 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK),MAIN-TANK |
1 | ||
| 77656A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-60030 |
FJ80,FZJ80,HDJ80,HZJ80 80X262 |
1 | ||
| 77655-60010 |
FJ80,FZJ80,HDJ80,HZJ80 80X330 |
1 | ||
| 77654-60030 |
FZJ80,HDJ80,HZJ80 80X262 |
1 | ||
| 77655-60010 |
FZJ80,HDJ80,HZJ80 80X330 |
1 | ||
| 77656A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-60030 |
FJ80,FZJ80,HDJ80,HZJ80 80X262 |
1 | ||
| 77655-60010 |
FJ80,FZJ80,HDJ80,HZJ80 80X330 |
1 | ||
| 77654-60030 |
FZJ80,HDJ80,HZJ80 80X262 |
1 | ||
| 77655-60010 |
FZJ80,HDJ80,HZJ80 80X330 |
1 | ||
| 77658 - MOULDING, FUEL TANK EDGE | ||||
| 77658-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77658-60040 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 90119-10477 | ||||
| 90159-50153 | ||||
| 90159-50217 | ||||
| 90159-50219 | ||||
| 90159-60266 | ||||
| 90179-05020 | ||||
| 90179-06178 | ||||
| 90179-10074 | ||||
| 90189-05072 | ||||
| 90189-06048 | ||||
| 90460-55003 | ||||
| 90461-06177 | ||||
| 90467-09049 | ||||
| 90467-1207801 | ||||
| 90467-20134 | ||||
| 91611-60830 | ||||
| 91651-61025 | ||||
| 93319-13006 | ||||
| 93319-A4010 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8401 | ||||

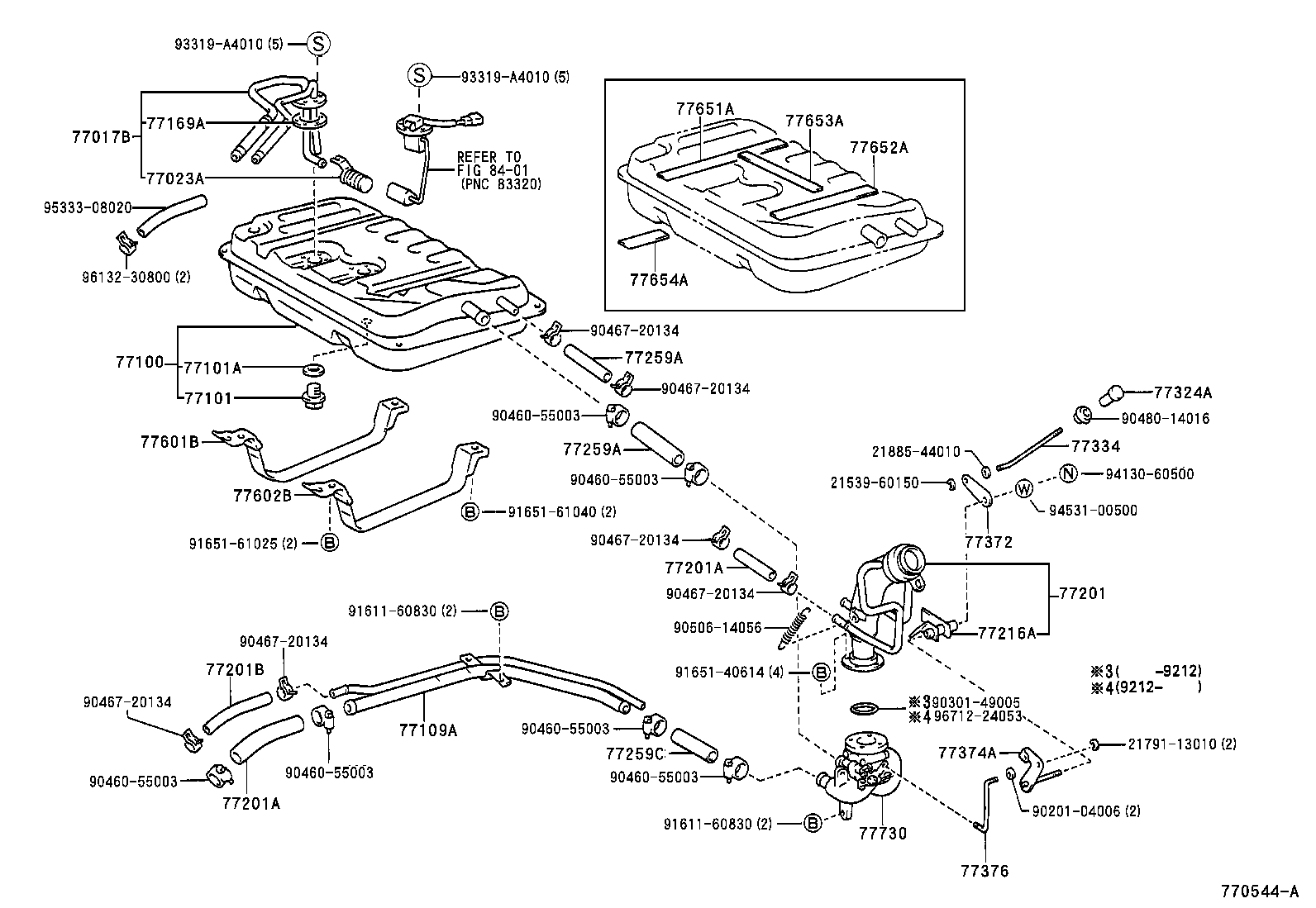

ILLUST NO. 2 OF 3(9001- )
W(SUB-TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-60150 |
HDJ80 |
1 | ||
| 77017-60110 |
HDJ80 W(SUB TANK),SUB-TANK |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-69055 |
FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK |
1 | ||
| 77001-69015 |
FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK |
1 | ||
| 77001-69055 |
HZJ80..ARL,GEN;FJ80,HDJ80..CBR,TD2 W(SUB TANK),SUB-TANK |
1 | ||
| 77100-60912 |
HZJ80..VX..GCC;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..(ARL,GEN)..(CBR,DSL,TD2) W(SUB TANK),SUB-TANK |
1 | ||
| 77001-69015 |
FJ80,FZJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77001-69055 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK),SUB-TANK |
1 | ||
| 77001-69015 |
HZJ80..ARL,GEN;HZJ80..VX..GCC;FJ80,HDJ80..CBR,TD2;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK),MAIN-TANK |
1 | ||
| 77001-69055 |
HZJ80..GX..ARL;HDJ80..RHD..5F..TD2;HZJ80..5F..(GCC,GEN);FZJ80..LHD..SOB..STD;FZJ80..4FC..(GX,VX)..GEN;FZJ80,HDJ80..(ARL,GCC)..(EFI,TD4);FZJ80,HDJ80..LHD..(GX,VX)..(CBR,TD2) W(SUB TANK),SUB-TANK |
1 | ||
| 77001-69065 |
FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4 MAIN-TANK |
1 | ||
| 77101 - PLUG(FOR FUEL SUB-TANK) | ||||
| 90105-12116 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77101A - GASKET(FOR FUEL SUB-TANK) | ||||
| 90430-12245 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77109A - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77109-60051 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD |
1 | ||
| 77109-60051 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77109-60050 |
FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
HDJ80,HZJ80;FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR W(SUB TANK),SUB-TANK |
1 | ||
| 77169-60010 |
FJ80,FZJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77169-60010 |
FZJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77169-60010 |
HDJ80,HZJ80;FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR W(SUB TANK),MAIN-TANK |
1 | ||
| 77169-14020 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK |
1 | ||
| 77169-60010 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60310 |
HDJ80,HZJ80;FJ80..GCC,GEN W(SUB TANK) |
1 | ||
| 77201-60330 |
HDJ80,HZJ80;FJ80..GCC,GEN |
1 | ||
| 77201-60311 |
HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK) |
1 | ||
| 77201-60331 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77201-60331 |
HDJ80,HZJ80;FZJ80..GCC,GEN |
1 | ||
| 77201-60311 |
HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK) |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 77213-60090 |
FJ80,FZJ80,HDJ80,HZJ80 MARK=TANK |
1 | ||
| 95311-13013 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD *H,L=130,W(SUB TANK) |
1 | ||
| 95311-13013 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 *H,L=130,W(SUB TANK) |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 77213-60090 |
FJ80,FZJ80,HDJ80,HZJ80 MARK=TANK |
1 | ||
| 95311-13013 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD *H,L=130,W(SUB TANK) |
1 | ||
| 95311-13013 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 *H,L=130,W(SUB TANK) |
1 | ||
| 77201B - HOSE, FUEL, NO.2(FOR FUEL TANK INLET PIPE) | ||||
| 95311-13022 |
FJ80,FZJ80,HDJ80,HZJ80 L=220 |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-60110 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 L=215 |
1 | ||
| 95311-13017 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 L=170 |
1 | ||
| 77259-60110 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD L=215 |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-60110 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 L=215 |
1 | ||
| 95311-13017 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 L=170 |
1 | ||
| 77259-60110 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD L=215 |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-60120 |
FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77259-60121 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77259-60121 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD |
1 | ||
| 77324A - KNOB, FUEL LID LOCK OPEN LEVER | ||||
| 77324-60012 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77324-60011 |
FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77334 - SHAFT, FUEL TANK CAP LOCK | ||||
| 77334-60011 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77334-60010 |
FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77372 - ARM, FUEL FILLER OPENING LID LOCK | ||||
| 77372-60010 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77374A - PIN, FUEL FILLER OPENING LID LOCK | ||||
| 77374-60010 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77374-60010 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD |
1 | ||
| 77376 - ROD, FUEL LOCK CONTROL | ||||
| 77376-60010 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77376-60010 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-60150 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77601-60150 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77601-60150 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK),MAIN-TANK |
1 | ||
| 77601-60140 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK |
1 | ||
| 77601-60140 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK),SUB-TANK |
1 | ||
| 77601-60150 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-60050 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK |
1 | ||
| 77602-60050 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK),SUB-TANK |
1 | ||
| 77602-60060 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77602-60060 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK |
1 | ||
| 77602-60060 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77602-60060 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK),MAIN-TANK |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-60080 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK),SUB-TANK |
1 | ||
| 77651-60090 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK),MAIN-TANK |
1 | ||
| 77651-60080 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK |
1 | ||
| 77651-60090 |
FZJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77651-60090 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77651-60090 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-60040 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK |
1 | ||
| 77652-60050 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 77652-60050 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77652-60050 |
HDJ80..LHD;HZJ80..GCC,GEN;HZJ80..GX..ARL;HDJ80..RHD..5F..TD2;FZJ80,HDJ80..CBR,EFI,TD4 |
1 | ||
| 77652-60040 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK),SUB-TANK |
1 | ||
| 77652-60050 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK |
1 | ||
| 77652-60050 |
HDJ80;HZJ80..5F;FZJ80..LHD..SOB..STD;FZJ80..(ARL,GCC)..EFI;FZJ80..LHD..(GX,VX)..CBR;FZJ80..4FC..(GX,VX)..GEN W(SUB TANK),MAIN-TANK |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77653-60050 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK |
1 | ||
| 77653-60040 |
FZJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77653-60040 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK |
1 | ||
| 77653-60050 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK),SUB-TANK |
1 | ||
| 77653-60040 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD W(SUB TANK),MAIN-TANK |
1 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-60040 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD |
2 | ||
| 77654-60040 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
2 | ||
| 77730 - VALVE ASSY, FUEL INLET | ||||
| 77730-60010 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77730-60011 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD |
1 | ||
| 77730-60010 |
FZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD |
1 | ||
| Common parts | ||||
| 21539-60150 | ||||
| 21791-13010 | ||||
| 21885-44010 | ||||
| 90201-04006 | ||||
| 90301-49005 | ||||
| 90460-55003 | ||||
| 90467-20134 | ||||
| 90480-14016 | ||||
| 90506-14056 | ||||
| 91611-60830 | ||||
| 91651-40614 | ||||
| 91651-61025 | ||||
| 91651-61040 | ||||
| 93319-A4010 | ||||
| 94130-60500 | ||||
| 94531-00500 | ||||
| 95333-08020 | ||||
| 96132-30800 | ||||
| 96712-24053 | ||||
| Linked diagrams | ||||
| 8401 | ||||

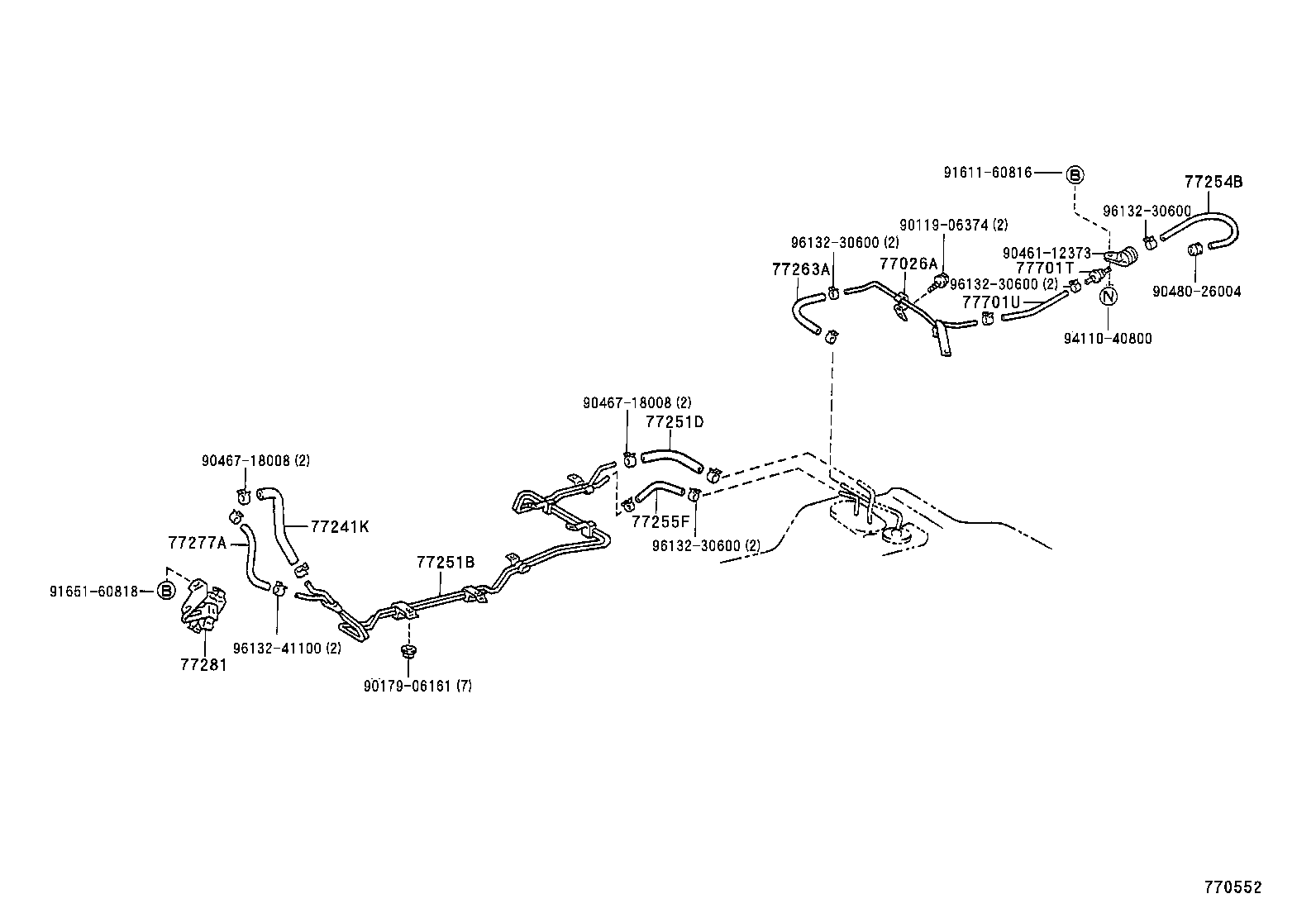

ILLUST NO. 3 OF 3(9001- )HDJ80
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-60060 |
FZJ80..GEN;HDJ80,HZJ80 |
1 | ||
| 77026-60060 |
HDJ80,HZJ80;FJ80,FZJ80..GEN |
1 | ||
| 77241K - HOSE, FUEL, NO.9 | ||||
| 95332-12048 |
HDJ80 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-60431 |
HDJ80 |
1 | ||
| 77205-60430 |
HDJ80 |
1 | ||
| 77205-60431 |
HDJ80 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95332-12024 |
HDJ80 *H,L=240,ID=12,W(SUB TANK) |
1 | ||
| 95332-12028 |
HDJ80 *H,L=280,ID=12 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 90445-12244 |
FZJ80..GEN;HDJ80,HZJ80 L=600 |
1 | ||
| 90445-12244 |
HDJ80,HZJ80;FJ80,FZJ80..GEN L=600 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 77250-60130 |
HDJ80,HZJ80 L=220,W(SUB TANK) |
1 | ||
| 95333-06030 |
HDJ80,HZJ80 *H,L=220 |
1 | ||
| 95333-06030 |
HDJ80,HZJ80 *H,L=220 |
1 | ||
| 77250-60130 |
HDJ80,HZJ80 L=220,W(SUB TANK) |
1 | ||
| 77263A - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER NO.3 TUBE) | ||||
| 95333-06020 |
HDJ80,HZJ80;FJ80,FZJ80..GEN |
1 | ||
| 95333-06020 |
FZJ80..GEN;HDJ80,HZJ80 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06030 |
HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN *H,L=260,W(SUB TANK) |
1 | ||
| 95333-06060 |
HDJ80,HZJ80 *H,L=460 |
1 | ||
| 23274-17020 |
HDJ80,HZJ80 L=460 |
1 | ||
| 95333-06030 |
HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN *H,L=260,W(SUB TANK) |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-60020 |
HDJ80,HZJ80 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10069 |
HDJ80,HZJ80;FJ80,FZJ80..GEN |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06020 |
FZJ80..GEN;HDJ80,HZJ80 *H,L=160 |
1 | ||
| 95333-06020 |
HDJ80,HZJ80;FJ80,FZJ80..GEN *H,L=160 |
1 | ||
| Common parts | ||||
| 90119-06374 | ||||
| 90179-06161 | ||||
| 90461-12373 | ||||
| 90467-18008 | ||||
| 90480-26004 | ||||
| 91611-60816 | ||||
| 91651-60818 | ||||
| 94110-40800 | ||||
| 96132-30600 | ||||
| 96132-41100 | ||||
ILLUST NO. 3 OF 3(9001- )HDJ80
W(SUB-TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06020 |
FJ80..GEN;HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN *H,L=130 |
1 | ||
| 95333-06020 |
HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN *H,L=130 |
1 | ||
| 77024 - TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT | ||||
| 77024-60070 |
HDJ80 |
1 | ||
| 77025 - TUBE SUB-ASSY, FUEL MAIN & RETURN, REAR | ||||
| 77025-60080 |
HDJ80 |
1 | ||
| 77027A - TUBE SUB-ASSY, FUEL MAIN & RETURN, NO.3 | ||||
| 77027-60060 |
HDJ80 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 77209-60070 |
HDJ80,HZJ80 L=340 |
1 | ||
| 77434-60020 |
HDJ80 L=150 |
1 | ||
| 95332-12015 |
HDJ80 *H,L=150,ID=12 |
1 | ||
| 77209-60070 |
FJ80..GEN;HDJ80,HZJ80 L=340 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 77209-60070 |
HDJ80,HZJ80 L=340 |
1 | ||
| 77434-60020 |
HDJ80 L=150 |
1 | ||
| 95332-12015 |
HDJ80 *H,L=150,ID=12 |
1 | ||
| 77209-60070 |
FJ80..GEN;HDJ80,HZJ80 L=340 |
1 | ||
| 77241G - HOSE, FUEL, NO.6 | ||||
| 95332-12018 |
HDJ80 |
1 | ||
| 77241K - HOSE, FUEL, NO.9 | ||||
| 95332-12048 |
HDJ80 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-60431 |
HDJ80 |
1 | ||
| 77205-60430 |
HDJ80 |
1 | ||
| 77205-60431 |
HDJ80 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95332-12024 |
HDJ80 *H,L=240,ID=12,W(SUB TANK) |
1 | ||
| 95332-12028 |
HDJ80 *H,L=280,ID=12 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 77250-60130 |
HDJ80,HZJ80 L=220,W(SUB TANK) |
1 | ||
| 95333-06030 |
HDJ80,HZJ80 *H,L=220 |
1 | ||
| 95333-06030 |
HDJ80,HZJ80 *H,L=220 |
1 | ||
| 77250-60130 |
HDJ80,HZJ80 L=220,W(SUB TANK) |
1 | ||
| 77260 - HOSE ASSY, FUEL MAIN | ||||
| 77260-60150 |
HDJ80 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06030 |
HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN *H,L=260,W(SUB TANK) |
1 | ||
| 95333-06060 |
HDJ80,HZJ80 *H,L=460 |
1 | ||
| 23274-17020 |
HDJ80,HZJ80 L=460 |
1 | ||
| 95333-06030 |
HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN *H,L=260,W(SUB TANK) |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06030 |
HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN *H,L=260,W(SUB TANK) |
1 | ||
| 95333-06060 |
HDJ80,HZJ80 *H,L=460 |
1 | ||
| 23274-17020 |
HDJ80,HZJ80 L=460 |
1 | ||
| 95333-06030 |
HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN *H,L=260,W(SUB TANK) |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95333-06020 |
HDJ80,HZJ80 *H,L=130 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
HDJ80,HZJ80 *H,L=190 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06030 |
HDJ80,HZJ80 *H,L=240 |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-60020 |
HDJ80,HZJ80 |
1 | ||
| 77296 - PLATE, FUEL TUBE GROMMET SUPPORT | ||||
| 77296-60091 |
FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77296A - PLATE, FUEL TUBE SUPPORT, NO.2 | ||||
| 77297-60010 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77433 - HOSE, FUEL MAIN, NO.1 | ||||
| 77433-60030 |
HDJ80 |
1 | ||
| 77439 - HOSE, FUEL RETURN | ||||
| 77439-60020 |
HDJ80,HZJ80 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10069 |
HDJ80,HZJ80;FJ80,FZJ80..GEN |
1 | ||
| 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN | ||||
| 77710-60030 |
HDJ80,HZJ80 |
1 | ||
| 77717 - BRACKET, FUEL SOLENOID VALVE RETURN | ||||
| 77717-60010 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77717-60010 |
HDJ80,HZJ80;FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR |
1 | ||
| 77720E - VALVE ASSY, FUEL TANK SOLENOID RETURN | ||||
| 77720-60020 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 77720-60020 |
HDJ80,HZJ80;FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 90119-06374 | ||||
| 90179-06161 | ||||
| 90461-12894 | ||||
| 90467-18002 | ||||
| 90467-18008 | ||||
| 90480-26004 | ||||
| 91611-60816 | ||||
| 91651-60818 | ||||
| 96132-30600 | ||||
| 96132-41100 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
