HDJ80L-GNMEX (1990)
Toyota Land Cruiser
ILLUST NO. 1 OF 2(9001- )FZJ70,75..ARL ; (9001- )FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08038 | ||||

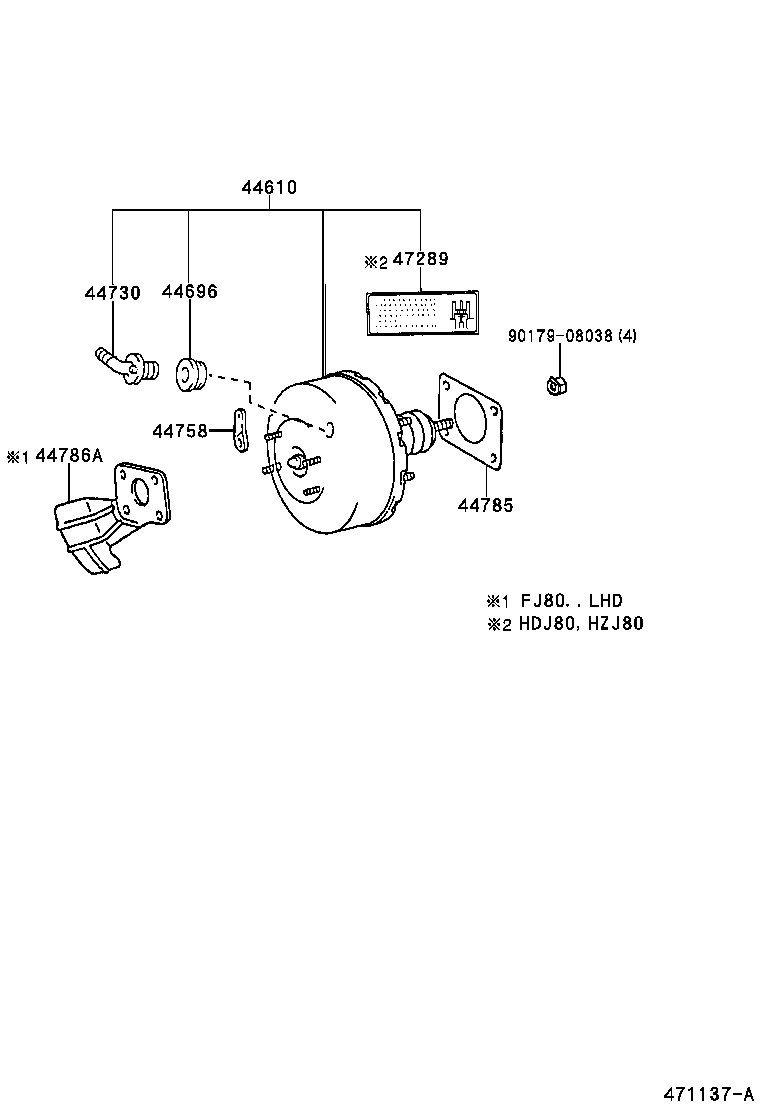

ILLUST NO. 1 OF 2(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-60580 |
HDJ80,HZJ80..LHD |
1 | ||
| 44610-60781 |
HDJ80,HZJ80..LHD |
1 | ||
| 44610-60782 |
HDJ80,HZJ80..LHD |
1 | ||
| 44610-60780 |
HDJ80,HZJ80..LHD |
1 | ||
| 44610-60783 |
HDJ80,HZJ80..LHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60050 |
HDJ80,HZJ80..5F..VX |
2 | ||
| 44730-60050 |
HDJ80,HZJ80..5F..VX |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 44785-35020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47289 - LABEL, BRAKE MASTER CYLINDER ADJUST INFORMATION | ||||
| 47289-60010 |
HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

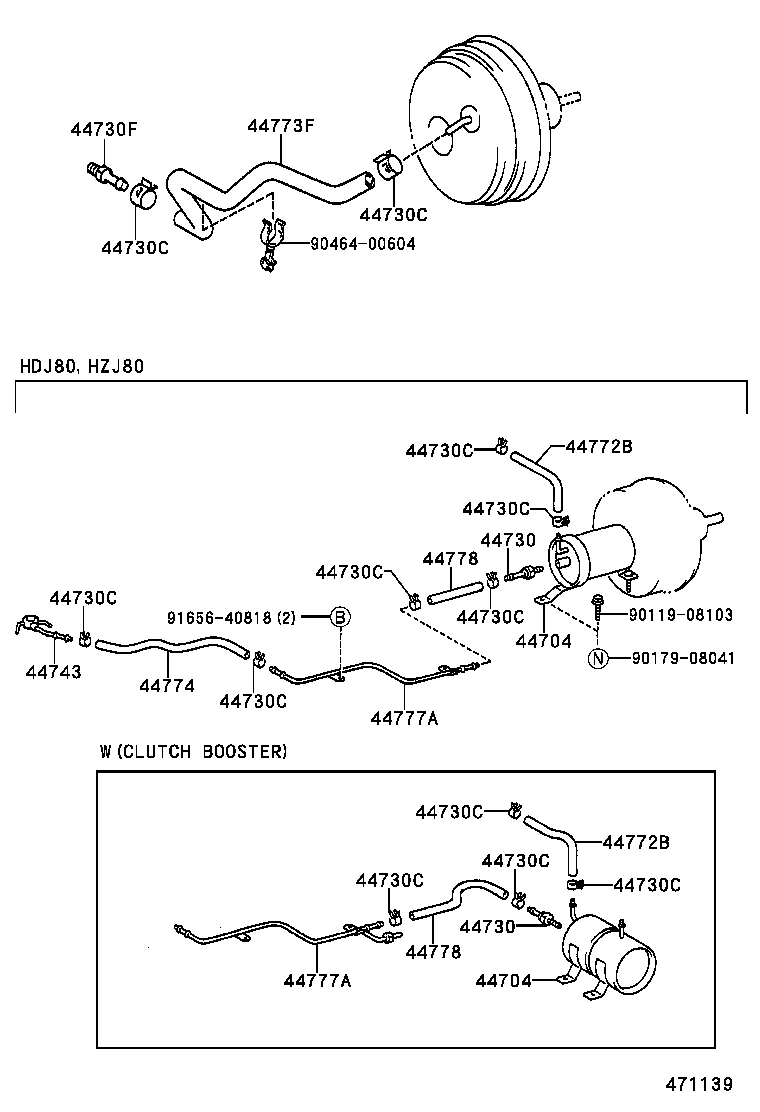

ILLUST NO. 2 OF 2(9001- )FZJ80,HDJ80,HZJ80..LHD..CBR,DSL,TD2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-60190 |
HDJ80,HZJ80..5F..VX |
1 | ||
| 44704-60190 |
HDJ80,HZJ80..5F..VX |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-60190 |
HDJ80,HZJ80..5F..VX |
1 | ||
| 44704-60190 |
HDJ80,HZJ80..5F..VX |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60050 |
HDJ80,HZJ80..5F..VX |
2 | ||
| 44730-60050 |
HDJ80,HZJ80..5F..VX |
2 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60050 |
HDJ80,HZJ80..5F..VX |
2 | ||
| 44730-60050 |
HDJ80,HZJ80..5F..VX |
2 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96134-51500 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 90467-16017 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 96134-51500 |
FJ80,FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96134-51500 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 90467-16017 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 96134-51500 |
FJ80,FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96134-51500 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 90467-16017 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 96134-51500 |
FJ80,FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96134-51500 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 90467-16017 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 96134-51500 |
FJ80,FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96134-51500 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 90467-16017 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 96134-51500 |
FJ80,FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96134-51500 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 90467-16017 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 96134-51500 |
FJ80,FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96134-51500 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 90467-16017 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 96134-51500 |
FJ80,FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96134-51500 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 90467-16017 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 96134-51500 |
FJ80,FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96134-51500 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 90467-16017 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 96134-51500 |
FJ80,FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96134-51500 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 90467-16017 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 96134-51500 |
FJ80,FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96134-51500 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 90467-16017 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 96134-51500 |
FJ80,FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96134-51500 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 90467-16017 |
FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 96134-51500 |
FJ80,FZJ80..RHD;HDJ80,HZJ80..LHD |
4 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09142 |
HDJ80;HZJ80..GX,STD;HZJ80..VX..GEN W(AIR CONDITIONER) |
1 | ||
| 90405-09142 |
HDJ80;HZJ80..GX,STD;HZJ80..VX..GEN W(AIR CONDITIONER) |
1 | ||
| 90405-09141 |
HDJ80;HZJ80..GX,STD;HZJ80..VX..GEN |
1 | ||
| 90405-09141 |
HDJ80;HZJ80..GX,STD;HZJ80..VX..GEN |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-60090 |
HDJ80,HZJ80..LHD..5F..VX |
1 | ||
| 44772-60090 |
HDJ80,HZJ80..LHD..5F..VX |
1 | ||
| 44772-60080 |
HDJ80,HZJ80..LHD |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-60090 |
HDJ80,HZJ80..LHD..5F..VX |
1 | ||
| 44772-60090 |
HDJ80,HZJ80..LHD..5F..VX |
1 | ||
| 44772-60080 |
HDJ80,HZJ80..LHD |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-60120 |
HDJ80,HZJ80 |
1 | ||
| 44777A - CONNECTOR, VACUUM HOSE, NO.2 | ||||
| 44777-60181 |
HDJ80,HZJ80..5F..VX |
1 | ||
| 44777-60181 |
HDJ80,HZJ80..5F..VX |
1 | ||
| 44777A - CONNECTOR, VACUUM HOSE, NO.2 | ||||
| 44777-60181 |
HDJ80,HZJ80..5F..VX |
1 | ||
| 44777-60181 |
HDJ80,HZJ80..5F..VX |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-60070 |
HDJ80,HZJ80..5F..LUB..VX NO.2 |
1 | ||
| 44778-60070 |
HDJ80,HZJ80..LHD..5F..VX |
1 | ||
| 44778-60070 |
HDJ80,HZJ80..LHD..5F..VX |
1 | ||
| 44778-60080 |
HDJ80,HZJ80..LHD |
1 | ||
| 44778-60110 |
HDJ80..LHD..LUB W(ABS) |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-60070 |
HDJ80,HZJ80..5F..LUB..VX NO.2 |
1 | ||
| 44778-60070 |
HDJ80,HZJ80..LHD..5F..VX |
1 | ||
| 44778-60070 |
HDJ80,HZJ80..LHD..5F..VX |
1 | ||
| 44778-60080 |
HDJ80,HZJ80..LHD |
1 | ||
| 44778-60110 |
HDJ80..LHD..LUB W(ABS) |
1 | ||
| Common parts | ||||
| 90119-08103 | ||||
| 90179-08041 | ||||
| 90464-00604 | ||||
| 91656-40818 | ||||
