HDJ80L-GNMEX (1990)
Toyota Land Cruiser
(9001-0105)
SEMI FLOATING AXLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-60090 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN RH |
1 | ||
| 42311-60100 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(FULL FLOATING AXLE),RH |
1 | ||
| 42311-60100 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(FULL FLOATING AXLE),RH |
1 | ||
| 42312-60090 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(FULL FLOATING AXLE),LH |
1 | ||
| 42311-60110 |
HDJ80,HZJ80;FZJ80..SOB..STD;FZJ80..(GX,VX)..(GCC,GEN) W(FULL FLOATING AXLE & REAR DIFFERENTIAL LOCK),RH |
1 | ||
| 42312-60080 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN LH |
1 | ||
| 42312-60090 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(FULL FLOATING AXLE),LH |
1 | ||
| 42311-60110 |
HDJ80..LHD;HDJ80..ARL..TD2;FZJ80..LHD..4FC..VX;FZJ80..GX..GEN..EFI;HDJ80..RHD..5F..GEN;HZJ80..5F..(ARL,GEN);FZJ80..(GX,VX)..GEN..CBR;FZJ80..SOB..STD..(ARL,GEN);FZJ80,HZJ80..VX..GCC..(CBR,DSL) W(FULL FLOATING AXLE & REAR DIFFERENTIAL LOCK),RH |
1 | ||
| 42311-60110 |
FZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80 W(FULL FLOATING AXLE & REAR DIFFERENTIAL LOCK),RH |
1 | ||
| 42312-60090 |
FZJ80..GEN;HDJ80..LHD;HZJ80..5F..GEN;HDJ80..RHD..5F..TD2;FZJ80..4FC..VX..GCC;FZJ80,HZJ80..VX..GCC..(CBR,DSL) W(FULL FLOATING AXLE),LH |
1 | ||
| 42312-60080 |
FZJ80,HDJ80,HZJ80..GCC,GEN LH |
1 | ||
| 42311-60090 |
FZJ80,HDJ80,HZJ80..GCC,GEN RH |
1 | ||
| 42311-60100 |
FZJ80..GEN;HDJ80..LHD;HZJ80..5F..GEN;HDJ80..RHD..5F..TD2 W(FULL FLOATING AXLE),RH |
1 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 90365-47013 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 90368-49084 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(FULL FLOATING AXLE) |
2 | ||
| 90365-47013 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90311-47001 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 90310-35001 |
FZJ80..GEN;HDJ80..LHD;HZJ80..5F..GEN;HDJ80..RHD..5F..TD2 W(FULL FLOATING AXLE) |
2 | ||
| 90310-35001 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(FULL FLOATING AXLE) |
2 | ||
| 90311-47001 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 90310-35001 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(FULL FLOATING AXLE) |
2 | ||
| 42325 - LOCK, REAR AXLE SHAFT | ||||
| 42325-55010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 42325-55010 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-60140 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(FULL FLOATING AXLE) |
2 | ||
| 42431-60070 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01117 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 10G |
1 | ||
| 90937-01196 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 50G |
1 | ||
| 90937-01409 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 30G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01408 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 20G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01416 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 100G |
1 | ||
| 90937-01413 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 70G |
1 | ||
| 90937-01419 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 10G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01118 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 20G |
1 | ||
| 90937-01411 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 50G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01195 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 40G |
1 | ||
| 90937-01197 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 60G |
1 | ||
| 90937-01415 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 90G |
1 | ||
| 90937-01418 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 120G |
1 | ||
| 90937-01119 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 30G |
1 | ||
| 90937-01414 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 80G |
1 | ||
| 90937-01410 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 40G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01119 |
FZJ80,HDJ80,HZJ80..GCC,GEN 30G |
1 | ||
| 90937-01196 |
FZJ80,HDJ80,HZJ80..GCC,GEN 50G |
1 | ||
| 90937-01417 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 110G |
1 | ||
| 90937-01117 |
FZJ80,HDJ80,HZJ80..GCC,GEN 10G |
1 | ||
| 90937-01195 |
FZJ80,HDJ80,HZJ80..GCC,GEN 40G |
1 | ||
| 90937-01118 |
FZJ80,HDJ80,HZJ80..GCC,GEN 20G |
1 | ||
| 90937-01197 |
FZJ80,HDJ80,HZJ80..GCC,GEN 60G |
1 | ||
| 90937-01411 |
FZJ80,HDJ80,HZJ80..GCC,GEN 50G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01412 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 60G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01409 |
FZJ80,HDJ80,HZJ80..GCC,GEN 30G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01408 |
FZJ80,HDJ80,HZJ80..GCC,GEN 20G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01410 |
FZJ80,HDJ80,HZJ80..GCC,GEN 40G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01412 |
FZJ80,HDJ80,HZJ80..GCC,GEN 60G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01419 |
FZJ80,HDJ80,HZJ80..GCC,GEN 10G,W(FULL FLOATING AXLE) |
1 | ||
| 42441 - DEFLECTOR, BRAKE DRUM OIL | ||||
| 42441-30010 |
FJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 42441-30010 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 42441-30010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 42443 - GASKET, BRAKE DRUM OIL DEFLECTOR | ||||
| 42443-55020 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 42443-55020 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 42443-55020 |
FJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02052 |
FJ80,FZJ80,HDJ80,HZJ80 |
12 | ||
| 90942-02052 |
FZJ80,HDJ80,HZJ80 |
12 | ||
(9001- )

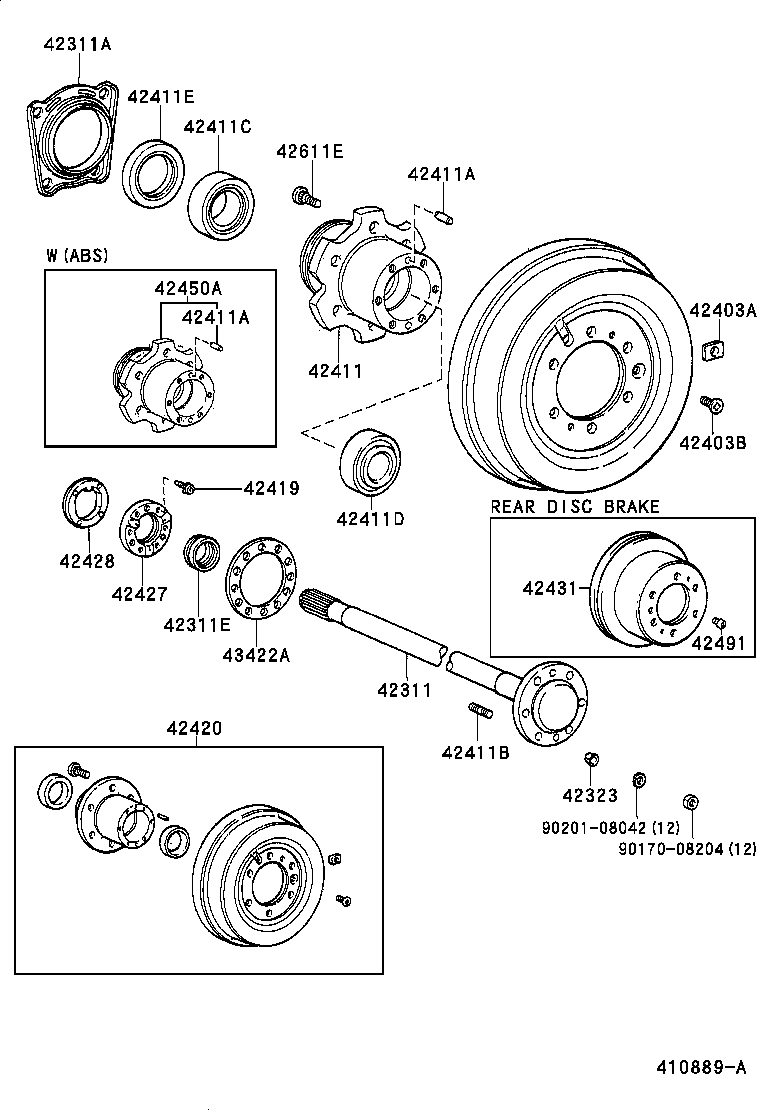

FULL FLOATING AXLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-60090 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN RH |
1 | ||
| 42311-60100 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(FULL FLOATING AXLE),RH |
1 | ||
| 42311-60100 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(FULL FLOATING AXLE),RH |
1 | ||
| 42312-60090 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(FULL FLOATING AXLE),LH |
1 | ||
| 42311-60110 |
HDJ80,HZJ80;FZJ80..SOB..STD;FZJ80..(GX,VX)..(GCC,GEN) W(FULL FLOATING AXLE & REAR DIFFERENTIAL LOCK),RH |
1 | ||
| 42312-60080 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN LH |
1 | ||
| 42312-60090 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(FULL FLOATING AXLE),LH |
1 | ||
| 42311-60110 |
HDJ80..LHD;HDJ80..ARL..TD2;FZJ80..LHD..4FC..VX;FZJ80..GX..GEN..EFI;HDJ80..RHD..5F..GEN;HZJ80..5F..(ARL,GEN);FZJ80..(GX,VX)..GEN..CBR;FZJ80..SOB..STD..(ARL,GEN);FZJ80,HZJ80..VX..GCC..(CBR,DSL) W(FULL FLOATING AXLE & REAR DIFFERENTIAL LOCK),RH |
1 | ||
| 42311-60110 |
FZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80 W(FULL FLOATING AXLE & REAR DIFFERENTIAL LOCK),RH |
1 | ||
| 42312-60090 |
FZJ80..GEN;HDJ80..LHD;HZJ80..5F..GEN;HDJ80..RHD..5F..TD2;FZJ80..4FC..VX..GCC;FZJ80,HZJ80..VX..GCC..(CBR,DSL) W(FULL FLOATING AXLE),LH |
1 | ||
| 42312-60080 |
FZJ80,HDJ80,HZJ80..GCC,GEN LH |
1 | ||
| 42311-60090 |
FZJ80,HDJ80,HZJ80..GCC,GEN RH |
1 | ||
| 42311-60100 |
FZJ80..GEN;HDJ80..LHD;HZJ80..5F..GEN;HDJ80..RHD..5F..TD2 W(FULL FLOATING AXLE),RH |
1 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90313-93001 |
HZJ80..GX,VX;FJ80,HDJ80..LHD;HZJ80..STD..ARL;HZJ80..LHD..STD;FJ80,HDJ80..(GX,STD)..ARL |
2 | ||
| 90313-93001 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL |
2 | ||
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90311-47001 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 90310-35001 |
FZJ80..GEN;HDJ80..LHD;HZJ80..5F..GEN;HDJ80..RHD..5F..TD2 W(FULL FLOATING AXLE) |
2 | ||
| 90310-35001 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(FULL FLOATING AXLE) |
2 | ||
| 90311-47001 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 90310-35001 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(FULL FLOATING AXLE) |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
12 | ||
| 42323-60010 |
FJ80..LHD;FJ80..ARL;HZJ80..STD..ARL;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX |
12 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01117 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 10G |
1 | ||
| 90937-01196 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 50G |
1 | ||
| 90937-01409 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 30G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01408 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 20G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01416 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 100G |
1 | ||
| 90937-01413 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 70G |
1 | ||
| 90937-01419 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 10G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01118 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 20G |
1 | ||
| 90937-01411 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 50G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01195 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 40G |
1 | ||
| 90937-01197 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 60G |
1 | ||
| 90937-01415 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 90G |
1 | ||
| 90937-01418 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 120G |
1 | ||
| 90937-01119 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 30G |
1 | ||
| 90937-01414 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 80G |
1 | ||
| 90937-01410 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 40G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01119 |
FZJ80,HDJ80,HZJ80..GCC,GEN 30G |
1 | ||
| 90937-01196 |
FZJ80,HDJ80,HZJ80..GCC,GEN 50G |
1 | ||
| 90937-01417 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 110G |
1 | ||
| 90937-01117 |
FZJ80,HDJ80,HZJ80..GCC,GEN 10G |
1 | ||
| 90937-01195 |
FZJ80,HDJ80,HZJ80..GCC,GEN 40G |
1 | ||
| 90937-01118 |
FZJ80,HDJ80,HZJ80..GCC,GEN 20G |
1 | ||
| 90937-01197 |
FZJ80,HDJ80,HZJ80..GCC,GEN 60G |
1 | ||
| 90937-01411 |
FZJ80,HDJ80,HZJ80..GCC,GEN 50G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01412 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL 60G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01409 |
FZJ80,HDJ80,HZJ80..GCC,GEN 30G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01408 |
FZJ80,HDJ80,HZJ80..GCC,GEN 20G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01410 |
FZJ80,HDJ80,HZJ80..GCC,GEN 40G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01412 |
FZJ80,HDJ80,HZJ80..GCC,GEN 60G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01419 |
FZJ80,HDJ80,HZJ80..GCC,GEN 10G,W(FULL FLOATING AXLE) |
1 | ||
| 42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING) | ||||
| 90113-10003 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL |
2 | ||
| 42411 - HUB, REAR AXLE | ||||
| 42411-60030 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 42411-60030 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 42411-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-07057 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| 90250-07057 |
FJ80..LHD;FJ80..ARL;HZJ80..STD..ARL;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX |
2 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-07057 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| 90250-07057 |
FJ80..LHD;FJ80..ARL;HZJ80..STD..ARL;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX |
2 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-08325 |
FJ80,FZJ80,HDJ80,HZJ80 |
12 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-49084 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 90368-49084 |
FJ80..LHD;FJ80..ARL;HZJ80..STD..ARL;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX |
2 | ||
| 90368-49084 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-45087 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 90368-45087 |
FJ80..LHD;FJ80..ARL;HZJ80..STD..ARL;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX |
2 | ||
| 90368-45087 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-62001 |
HZJ80..GX,VX;FJ80,HDJ80..LHD;HZJ80..STD..ARL;HZJ80..LHD..STD;FJ80,HDJ80..(GX,STD)..ARL |
2 | ||
| 90311-62002 |
HZJ80..GEN;FZJ80..SOB..STD..GEN;FZJ80,HZJ80..VX..GCC;FZJ80,HDJ80..(GX,VX)..GEN W(*FFA & *RDL & DISC BRAKE) |
2 | ||
| 90311-62002 |
HDJ80,HZJ80..GCC,GEN;FZJ80..SOB..STD..CBR;FZJ80..(GX,VX)..(GCC,GEN) W(*FFA & *RDL & DISC BRAKE) |
2 | ||
| 90311-62001 |
HZJ80..GEN;FZJ80,HDJ80..GCC,GEN W(*FFA) |
2 | ||
| 90311-62001 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL |
2 | ||
| 90311-62001 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(*FFA) |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 42419-60011 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| 42419-60011 |
FJ80..LHD;FJ80..ARL;HZJ80..STD..ARL;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-60130 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL |
2 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-60021 |
FJ80..LHD;FJ80..ARL;HZJ80..STD..ARL;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX |
2 | ||
| 42427-60021 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-60011 |
FJ80..LHD;FJ80..ARL;HZJ80..STD..ARL;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX |
2 | ||
| 42428-60011 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02052 |
FJ80,FZJ80,HDJ80,HZJ80 |
12 | ||
| 90942-02052 |
FZJ80,HDJ80,HZJ80 |
12 | ||
| 43422A - GASKET, REAR AXLE OUTER SHAFT FLANGE | ||||
| 43422-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 43422-60050 |
FJ80,HDJ80,HZJ80 |
2 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 90201-08042 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
