HDJ80L-GNMEX (1990)
Toyota Land Cruiser

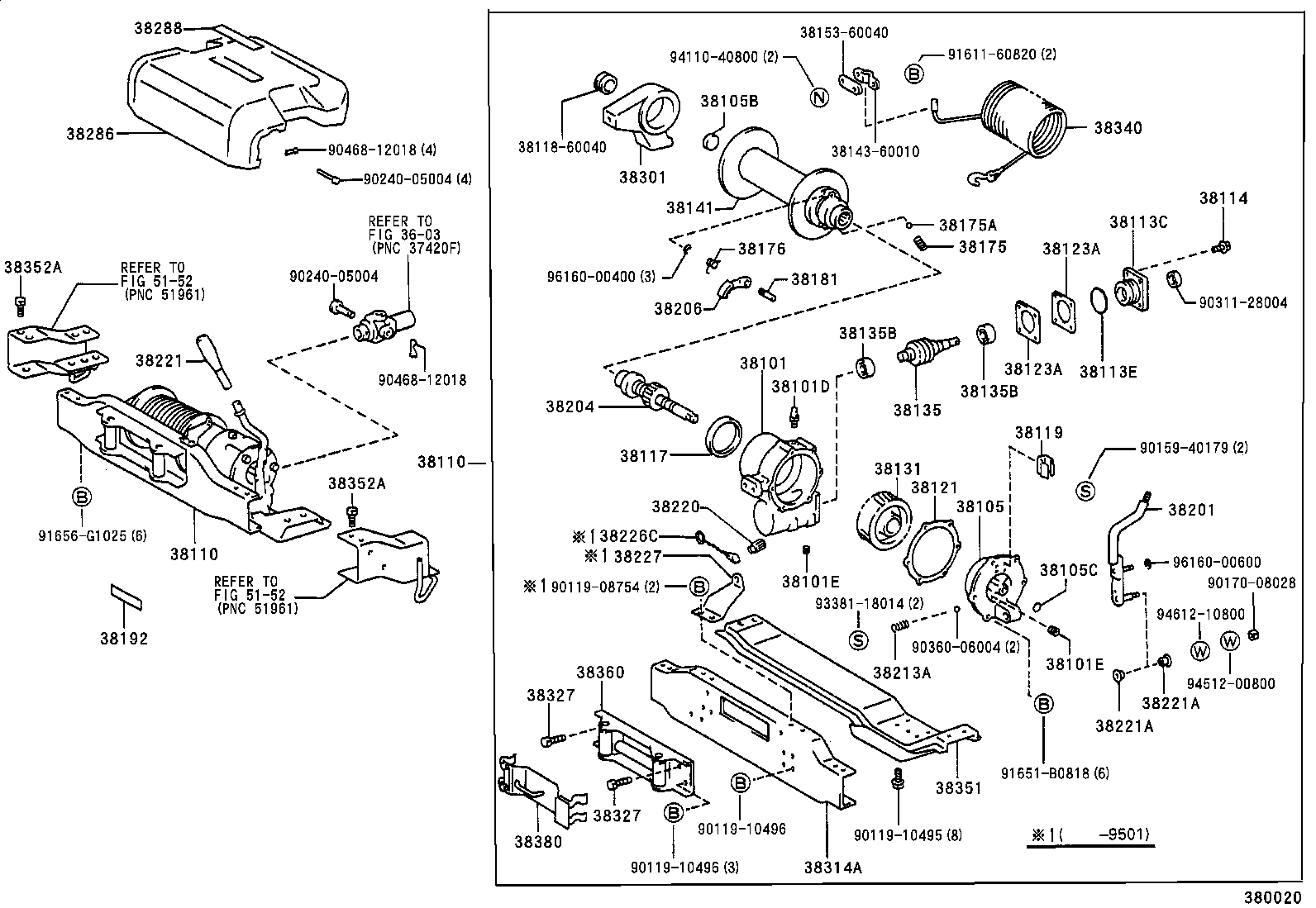

ILLUST NO. 3 OF 3(9001- )GCC,GEN
ELECTRICAL WINCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-50800 | ||||
| 96150-01500 | ||||

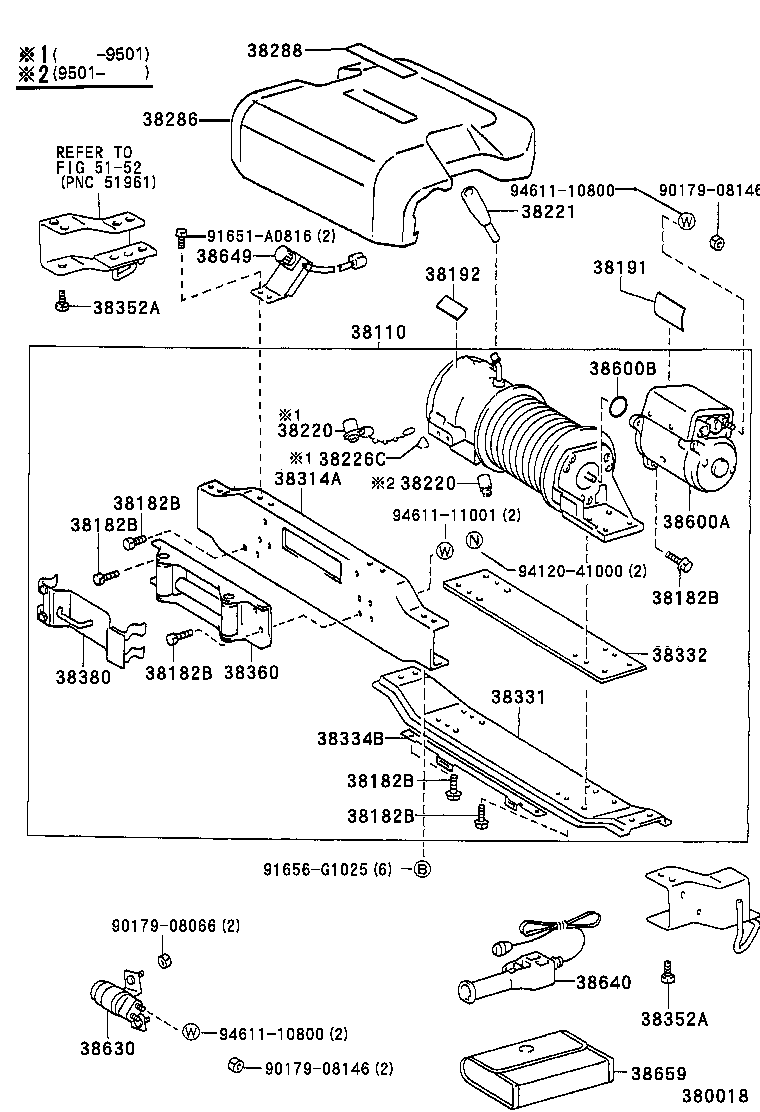

ILLUST NO. 1 OF 3(9001-9208)HZJ80..4FC ; (9001-9901)HZJ80..MTM..GCC,GEN ; (9001-9909)FJ80,FZJ80,HDJ8
ELECTRIC WINCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38110 - WINCH ASSY | ||||
| 38110-60180 |
FJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38110-60172 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38110-60182 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38110-60172 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38110-60171 |
FJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38110-60181 |
FJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38110-60170 |
FJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38110-60182 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38110-60183 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38110-60173 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-41022 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *10-1.25PX22-22 |
6 | ||
| 38182-41025 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *10-1.25PX25-25,(4T) |
2 | ||
| 38182-61025 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *10-1.25PX25-25,(6T) |
2 | ||
| 38183-61235 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *12-1.25PX35-30 |
6 | ||
| 38182-60830 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 91651-A0816 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *8-1.25PX16-16 |
2 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-41022 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *10-1.25PX22-22 |
6 | ||
| 38182-41025 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *10-1.25PX25-25,(4T) |
2 | ||
| 38182-61025 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *10-1.25PX25-25,(6T) |
2 | ||
| 38183-61235 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *12-1.25PX35-30 |
6 | ||
| 38182-60830 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 91651-A0816 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *8-1.25PX16-16 |
2 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-41022 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *10-1.25PX22-22 |
6 | ||
| 38182-41025 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *10-1.25PX25-25,(4T) |
2 | ||
| 38182-61025 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *10-1.25PX25-25,(6T) |
2 | ||
| 38183-61235 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *12-1.25PX35-30 |
6 | ||
| 38182-60830 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 91651-A0816 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *8-1.25PX16-16 |
2 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-41022 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *10-1.25PX22-22 |
6 | ||
| 38182-41025 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *10-1.25PX25-25,(4T) |
2 | ||
| 38182-61025 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *10-1.25PX25-25,(6T) |
2 | ||
| 38183-61235 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *12-1.25PX35-30 |
6 | ||
| 38182-60830 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 91651-A0816 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *8-1.25PX16-16 |
2 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-41022 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *10-1.25PX22-22 |
6 | ||
| 38182-41025 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *10-1.25PX25-25,(4T) |
2 | ||
| 38182-61025 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *10-1.25PX25-25,(6T) |
2 | ||
| 38183-61235 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *12-1.25PX35-30 |
6 | ||
| 38182-60830 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 91651-A0816 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *8-1.25PX16-16 |
2 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-41022 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *10-1.25PX22-22 |
6 | ||
| 38182-41025 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *10-1.25PX25-25,(4T) |
2 | ||
| 38182-61025 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *10-1.25PX25-25,(6T) |
2 | ||
| 38183-61235 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *12-1.25PX35-30 |
6 | ||
| 38182-60830 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 91651-A0816 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN *8-1.25PX16-16 |
2 | ||
| 38191 - PLATE, WINCH CAUTION, NO.1 | ||||
| 38191-60120 |
FZJ80,HDJ80..GCC,GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 38191-60120 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38192 - PLATE, WINCH CAUTION, NO.2 | ||||
| 38192-60050 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38192-60060 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38192-60050 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38192-60060 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38220 - CAP ASSY, WINCH CLUTCH LEVER | ||||
| 38220-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38220-60010 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38220 - CAP ASSY, WINCH CLUTCH LEVER | ||||
| 38220-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38220-60010 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38221 - LEVER, CLUTCH HUB SHIFT | ||||
| 38221-60181 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38221-60180 |
FJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38226C - CHAIN, WINCH LEVER | ||||
| 38226-60170 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38226-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38286 - COVER, WINCH | ||||
| 38208-60060 |
FJ80,FZJ80,HDJ80,HZJ80..VX..(GCC,GEN) W(ELECTRIC WINCH) |
1 | ||
| 38208-60021 |
FJ80,FZJ80,HDJ80,HZJ80..VX..(GCC,GEN) W(MECHANICAL WINCH) |
1 | ||
| 38208-60021 |
FZJ80,HDJ80,HZJ80..VX..(GCC,GEN) W(MECHANICAL WINCH) |
1 | ||
| 38208-60060 |
FZJ80,HDJ80,HZJ80..VX..(GCC,GEN) W(ELECTRIC WINCH) |
1 | ||
| 38286-60160 |
FZJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN) W(FRON BUMPER GUARD) |
1 | ||
| 38288 - LABEL, WINCH COVER | ||||
| 38288-60010 |
FZJ80..GEN;FZJ80..VX..GCC;FJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38288-60020 |
FZJ80..GEN;FZJ80..VX..GCC;FJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38288-60010 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38288-60020 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38314A - CROSSMEMBER, WINCH SUPPORT, FRONT | ||||
| 38314-60180 |
FJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38314-60181 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38314-60181 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38331 - BASE, WINCH, NO.1 | ||||
| 38331-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38332 - BASE, WINCH, NO.2 | ||||
| 38332-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38334B - BRACKET, WINCH BASE | ||||
| 38334-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38352A - BOLT (FOR WINCH BASE SUPPORT) | ||||
| 90119-12220 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
10 | ||
| 90119-12214 |
FJ80,HDJ80,HZJ80..GCC,GEN |
10 | ||
| 38352A - BOLT (FOR WINCH BASE SUPPORT) | ||||
| 90119-12220 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
10 | ||
| 90119-12214 |
FJ80,HDJ80,HZJ80..GCC,GEN |
10 | ||
| 38360 - BRACKET ASSY, WINCH ROLLER | ||||
| 38360-60081 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38360-60081 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38360-60080 |
FJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38380 - HOLDER ASSY, WINCH HOOK | ||||
| 38380-60021 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38380-60021 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38380-60020 |
FJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38600A - MOTOR ASSY, W/MAGNET SWITCH, WINCH | ||||
| 38600-60050 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38600B - RING, O (FOR WINCH MOTOR) | ||||
| 90301-59044 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38630 - SWITCH ASSY, MAGNET, NO.1 | ||||
| 38630-60130 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38640 - SWITCH ASSY, WINCH CONTROL | ||||
| 38640-35010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38649 - WIRE, WINCH CONTROL | ||||
| 38649-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38659 - COVER, WINCH CONTROL SWITCH | ||||
| 38659-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| Common parts | ||||
| 90179-08066 | ||||
| 90179-08146 | ||||
| 91651-A0816 | ||||
| 91656-G1025 | ||||
| 94120-41000 | ||||
| 94611-10800 | ||||
| 94611-11001 | ||||
| Linked diagrams | ||||
| 5152 | ||||

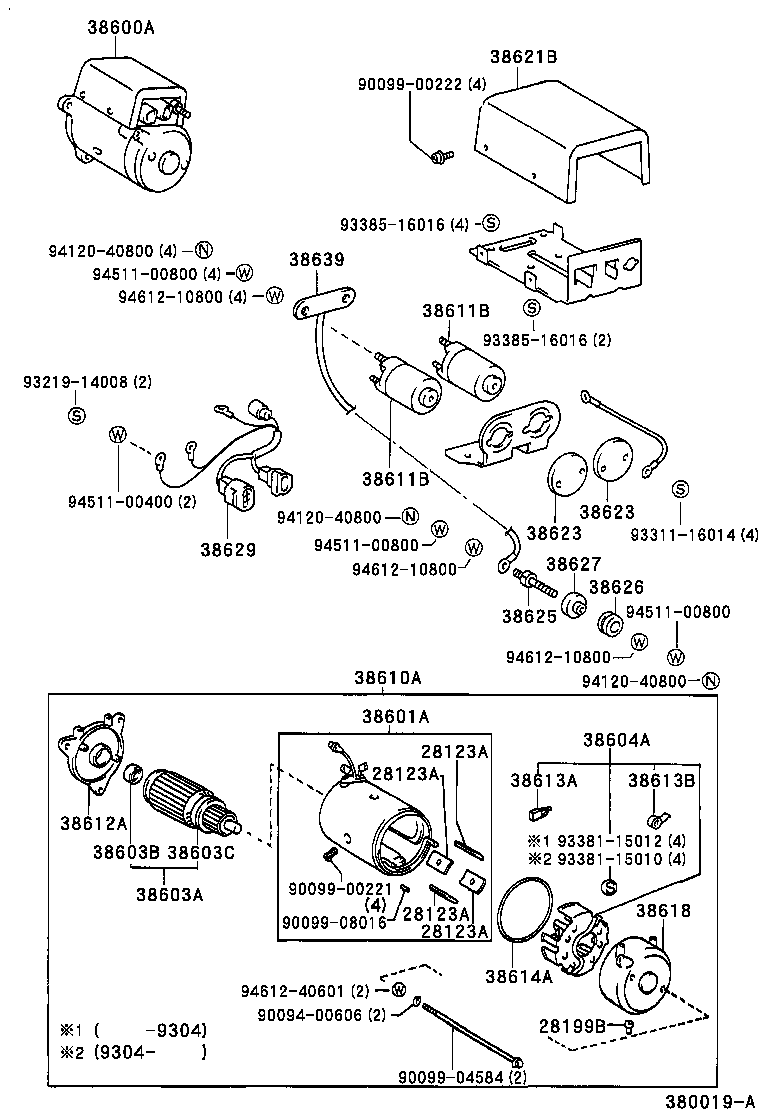

ILLUST NO. 2 OF 3(9001-9208)HZJ80..4FC ; (9001-9901)HZJ80..MTM..GCC,GEN ; (9001-9909)FJ80,FZJ80,HDJ8
ELECTRIC WINCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28199B - PROTECTOR, DUST WINCH MOTOR | ||||
| 28199-15090 |
1FZF,3F,1H#..FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38600A - MOTOR ASSY, W/MAGNET SWITCH, WINCH | ||||
| 38600-60050 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38601A - YOKE SUB-ASSY, WINCH MOTOR | ||||
| 38601-60050 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38603A - ARMATURE SUB-ASSY, WINCH MOTOR | ||||
| 38603-60050 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38603B - BEARING, NO.1 (FOR WINCH MOTOR ARMATURE) | ||||
| 90099-10130 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38603C - BEARING, NO.2 (FOR WINCH MOTOR ARMATURE) | ||||
| 90099-10201 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38604A - HOLDER ASSY, WINCH MOTOR BRUSH | ||||
| 38604-60050 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38610A - MOTOR ASSY, WINCH | ||||
| 38610-60050 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38610-60050 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38611B - SWITCH, MAGNET, NO.2 (FOR WINCH MOTOR) | ||||
| 38611-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 38611B - SWITCH, MAGNET, NO.2 (FOR WINCH MOTOR) | ||||
| 38611-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 38612A - FRAME, WINCH MOTOR END | ||||
| 38612-60050 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38612-60050 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38613A - BRUSH, WINCH MOTOR | ||||
| 38613-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
4 | ||
| 38613B - SPRING, WINCH MOTOR BRUSH | ||||
| 28143-46012 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
4 | ||
| 38614A - RING, O(FOR WINCH MOTOR) | ||||
| 90099-14023 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38618 - FRAME, WINCH MOTOR COMMUTATOR END | ||||
| 38618-60050 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38618-60050 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38621B - COVER, MAGNET SWITCH WINCH | ||||
| 38621-60050 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38623 - STOPPER, WINCH MOTOR | ||||
| 38623-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 38623 - STOPPER, WINCH MOTOR | ||||
| 38623-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 38625 - BOLT, STUD WINCH MOTOR | ||||
| 38625-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38626 - BUSHING, STEPPED FEMALE WINCH MOTOR | ||||
| 38626-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38627 - BUSHING, STEPPED MALE WINCH MOTOR | ||||
| 38627-60011 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38629 - WIRE, WINCH MOTOR | ||||
| 38629-60050 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38639 - WIRE (FOR WINCH MOTOR) | ||||
| 38639-60050 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| Common parts | ||||
| 90094-00606 | ||||
| 90099-00221 | ||||
| 90099-00222 | ||||
| 90099-04584 | ||||
| 90099-08016 | ||||
| 93219-14008 | ||||
| 93311-16014 | ||||
| 93381-15010 | ||||
| 93381-15012 | ||||
| 93385-16016 | ||||
| 94120-40800 | ||||
| 94511-00400 | ||||
| 94511-00800 | ||||
| 94612-10800 | ||||
| 94612-40601 | ||||
(9001-9501)GCC,GEN ; (9501-9901)RHD..5F..TD2 ; (9501-9901)HZJ80..5F..GCC,GEN ; (950

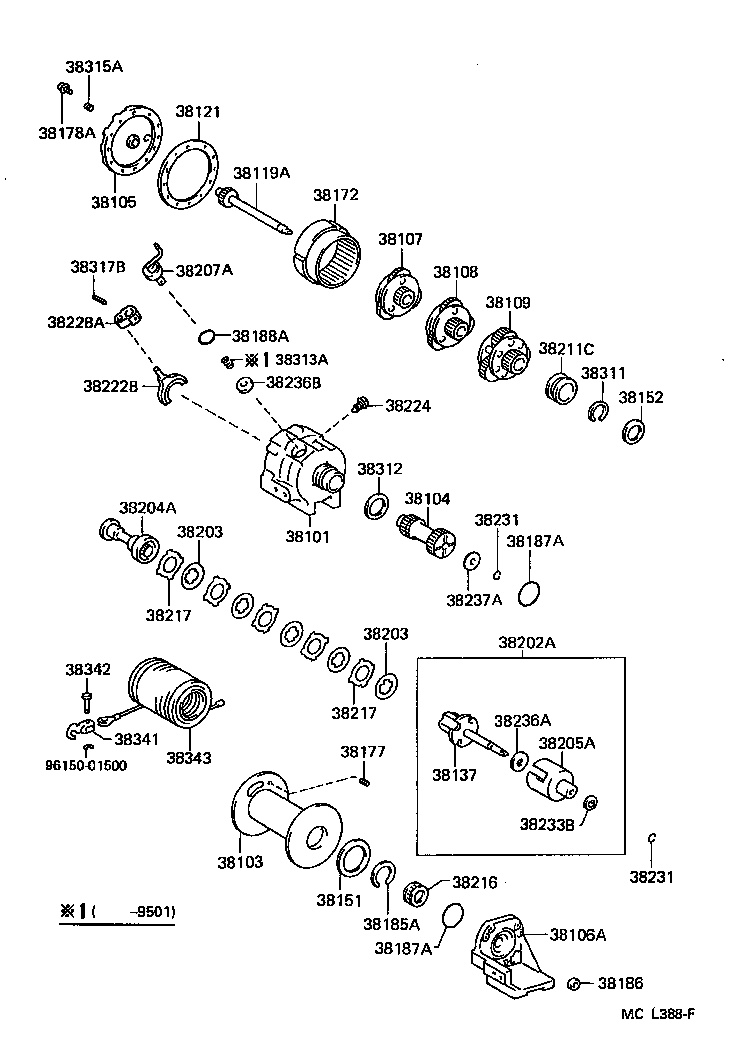

MECHANICAL WINCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38101 - CASE SUB-ASSY, WINCH GEAR | ||||
| 38101-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38101-60170 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38101-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38101-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38101-60171 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38101D - PLUG, BREATHER (FOR WINCH GEAR CASE) | ||||
| 90930-03058 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 90930-03058 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38101E - PLUG (FOR WINCH GEAR CASE) | ||||
| 90344-51005 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 90072-34402 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 90344-51005 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 38101E - PLUG (FOR WINCH GEAR CASE) | ||||
| 90344-51005 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 90072-34402 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 90344-51005 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 38105 - COVER SUB-ASSY, WINCH GEAR CASE | ||||
| 38105-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38105-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38105-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38105-60170 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38105-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38105B - PLUG, TIGHT (FOR WINCH GEAR CASE COVER) | ||||
| 90331-55001 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 90331-55001 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38105C - RING, O (FOR WINCH GEAR CASE COVER) | ||||
| 96721-24016 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 96721-24016 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38110 - WINCH ASSY | ||||
| 38110-60180 |
FJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38110-60172 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38110-60182 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38110-60172 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38110-60171 |
FJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38110-60181 |
FJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38110-60170 |
FJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38110-60182 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38110-60183 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38110-60173 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38110 - WINCH ASSY | ||||
| 38110-60180 |
FJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38110-60172 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38110-60182 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38110-60172 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38110-60171 |
FJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38110-60181 |
FJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38110-60170 |
FJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38110-60182 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38110-60183 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38110-60173 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38113C - RETAINER, WORM BEARING, NO.1 | ||||
| 38113-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38113-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38113E - RING, O (FOR WINCH WORM BEARING RETAINER NO.1) | ||||
| 96721-35071 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 96721-35071 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38114 - BOLT, WINCH WORM BEARING RETAINER | ||||
| 38114-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
4 | ||
| 38114-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
4 | ||
| 38117 - SEAL, WINCH GEAR CASE COVER | ||||
| 38117-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38117-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38119 - CLIP, WINCH GEAR CASE COVER | ||||
| 38119-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38119-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38121 - GASKET, WINCH GEAR CASE COVER | ||||
| 38121-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38121-60170 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38121-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38121-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38123A - SHIM, WINCH WORM ADJUST, NO.1 | ||||
| 38125-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN T=1.000 |
1 | ||
| 38123-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN T=0.228 |
1 | ||
| 38123-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN T=0.228 |
1 | ||
| 38125-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN T=1.000 |
1 | ||
| 38124-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN T=0.500 |
1 | ||
| 38124-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN T=0.500 |
1 | ||
| 38123A - SHIM, WINCH WORM ADJUST, NO.1 | ||||
| 38125-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN T=1.000 |
1 | ||
| 38123-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN T=0.228 |
1 | ||
| 38123-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN T=0.228 |
1 | ||
| 38125-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN T=1.000 |
1 | ||
| 38124-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN T=0.500 |
1 | ||
| 38124-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN T=0.500 |
1 | ||
| 38131 - GEAR, WORM | ||||
| 38131-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38131-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38135 - WORM, WINCH | ||||
| 38135-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38135-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38135B - BEARING (FOR WINCH WORM) | ||||
| 97600-30206 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 97600-30206 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 38135B - BEARING (FOR WINCH WORM) | ||||
| 97600-30206 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 97600-30206 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 38141 - DRUM, WINCH | ||||
| 38141-60180 |
FJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38141-60181 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38141-60181 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38175 - SPRING, WINCH BRAKE, NO.1 | ||||
| 38175-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
3 | ||
| 38175-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
3 | ||
| 38175A - BALL (FOR WINCH BRAKE SPRING NO.1) | ||||
| 90360-11001 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
3 | ||
| 90360-11001 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
3 | ||
| 38176 - SPRING, WINCH BRAKE, NO.1 | ||||
| 38176-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
3 | ||
| 38176-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
3 | ||
| 38181 - PIN, WINCH BRAKE | ||||
| 38181-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
3 | ||
| 38181-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
3 | ||
| 38192 - PLATE, WINCH CAUTION, NO.2 | ||||
| 38192-60050 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38192-60060 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38192-60050 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38192-60060 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38201 - LEVER SUB-ASSY, WINCH CLUTCH | ||||
| 38201-60181 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38201-60181 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38201-60180 |
FJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38204 - SHAFT ASSY, WINCH CLUTCH HUB | ||||
| 38204-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38204-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38206 - BRAKE ASSY, WINCH | ||||
| 38206-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
3 | ||
| 38206-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
3 | ||
| 38213A - SPRING, WINCH CLUTCH HUB SHIFT | ||||
| 38213-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 38213-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 38220 - CAP ASSY, WINCH CLUTCH LEVER | ||||
| 38220-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38220-60010 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38221 - LEVER, CLUTCH HUB SHIFT | ||||
| 38221-60181 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38221-60180 |
FJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38221A - BUSH (FOR CLUTCH HUB SHIFT LEVER) | ||||
| 90386-13007 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 90386-13007 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 38221A - BUSH (FOR CLUTCH HUB SHIFT LEVER) | ||||
| 90386-13007 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 90386-13007 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 38226C - CHAIN, WINCH LEVER | ||||
| 38226-60170 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38226-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38227 - PLATE, WINCH CLUTCH LEVER SHIFT LOCK | ||||
| 38227-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38227-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38286 - COVER, WINCH | ||||
| 38208-60060 |
FJ80,FZJ80,HDJ80,HZJ80..VX..(GCC,GEN) W(ELECTRIC WINCH) |
1 | ||
| 38208-60021 |
FJ80,FZJ80,HDJ80,HZJ80..VX..(GCC,GEN) W(MECHANICAL WINCH) |
1 | ||
| 38208-60021 |
FZJ80,HDJ80,HZJ80..VX..(GCC,GEN) W(MECHANICAL WINCH) |
1 | ||
| 38208-60060 |
FZJ80,HDJ80,HZJ80..VX..(GCC,GEN) W(ELECTRIC WINCH) |
1 | ||
| 38286-60160 |
FZJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN) W(FRON BUMPER GUARD) |
1 | ||
| 38288 - LABEL, WINCH COVER | ||||
| 38288-60010 |
FZJ80..GEN;FZJ80..VX..GCC;FJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38288-60020 |
FZJ80..GEN;FZJ80..VX..GCC;FJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38288-60010 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38288-60020 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38301 - BRACKET SUB-ASSY, WINCH END | ||||
| 38301-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38301-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38314A - CROSSMEMBER, WINCH SUPPORT, FRONT | ||||
| 38314-60180 |
FJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38314-60181 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38314-60181 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38327 - BOLT, WINCH R0LLER BRACKET | ||||
| 38327-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 38327-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 38327 - BOLT, WINCH R0LLER BRACKET | ||||
| 38327-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 38327-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 38340 - WIRE ASSY, WINCH CHAIN | ||||
| 38340-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38340-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38351 - BASE, WINCH | ||||
| 38351-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38351-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38352A - BOLT (FOR WINCH BASE SUPPORT) | ||||
| 90119-12220 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
10 | ||
| 90119-12214 |
FJ80,HDJ80,HZJ80..GCC,GEN |
10 | ||
| 38352A - BOLT (FOR WINCH BASE SUPPORT) | ||||
| 90119-12220 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
10 | ||
| 90119-12214 |
FJ80,HDJ80,HZJ80..GCC,GEN |
10 | ||
| 38360 - BRACKET ASSY, WINCH ROLLER | ||||
| 38360-60081 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38360-60081 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38360-60080 |
FJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38380 - HOLDER ASSY, WINCH HOOK | ||||
| 38380-60021 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38380-60021 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38380-60020 |
FJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| Common parts | ||||
| 38118-60040 | ||||
| 38143-60010 | ||||
| 38153-60040 | ||||
| 90119-08754 | ||||
| 90119-10495 | ||||
| 90119-10496 | ||||
| 90159-40179 | ||||
| 90170-08028 | ||||
| 90240-05004 | ||||
| 90311-28004 | ||||
| 90360-06004 | ||||
| 90468-12018 | ||||
| 91611-60820 | ||||
| 91651-B0818 | ||||
| 91656-G1025 | ||||
| 93381-18014 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 3603 | ||||
| 5152 | ||||
ILLUST NO. 3 OF 3(9001-9208)HZJ80..4FC ; (9001-9901)HZJ80..MTM..GCC,GEN ; (9001-9909)FJ80,FZJ80,HDJ8
ELECTRIC WINCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38101 - CASE SUB-ASSY, WINCH GEAR | ||||
| 38101-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38101-60170 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38101-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38101-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38101-60171 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38103 - DRUM SUB-ASSY, WINCH | ||||
| 38103-60171 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38103-60170 |
FJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38104 - SHAFT, WINCH OUTPUT | ||||
| 38104-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38105 - COVER SUB-ASSY, WINCH GEAR CASE | ||||
| 38105-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38105-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38105-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38105-60170 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38105-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38106A - CASE, WINCH BRAKE | ||||
| 38201-60170 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38201-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38107 - GEAR SUB-ASSY, WINCH PLANETARY, NO.1 | ||||
| 38107-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38108 - GEAR SUB-ASSY, WINCH PLANETARY, NO.2 | ||||
| 38108-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38109 - GEAR SUB-ASSY, WINCH PLANETARY, NO.3 | ||||
| 38109-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38119A - SHAFT, WINCH DRIVE | ||||
| 38119-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38121 - GASKET, WINCH GEAR CASE COVER | ||||
| 38121-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38121-60170 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(ELECTRIC WINCH) |
1 | ||
| 38121-60180 |
FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38121-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(MECHANICAL WINCH) |
1 | ||
| 38137 - SHAFT, WINCH INPUT | ||||
| 38137-60170 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38137-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38151 - SPACER, WINCH DRUM, NO.1 | ||||
| 38151-60170 |
FJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38151-60171 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38152 - SPACER, WINCH DRUM, NO.2 | ||||
| 38152-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38172 - GEAR, WINCH RING | ||||
| 38172-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38177 - BOLT, WINCH SET | ||||
| 38177-35010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38178A - BOLT, WINCH GEAR CASE COVER | ||||
| 38178-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
12 | ||
| 38185A - RING, WINCH 1 WAY CLUTCH SNAP | ||||
| 38185-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38186 - SEAL, GEAR CASE COVER OIL | ||||
| 38186-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38187A - RING, WINCH | ||||
| 38187-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 38187A - RING, WINCH | ||||
| 38187-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 38188A - RING, WINCH CLUTCH SHIFT HANDLE | ||||
| 38188-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38202A - CLUTCH SUB-ASSY, WINCH, OUTER | ||||
| 38202-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38202-60170 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
5 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
5 | ||
| 38204A - CLUTCH SUB-ASSY, WINCH INNER | ||||
| 38204-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38205A - CASE SUB-ASSY, WINCH CLUTCH, OUTER | ||||
| 38205-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38207A - LEVER SUB-ASSY, WINCH CLUTCH SHIFT | ||||
| 38207-60170 |
FJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38207-60171 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38207-60171 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38211C - SLEEVE, WINCH CLUTCH | ||||
| 38211-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38216 - CLUTCH, WINCH 1 WAY | ||||
| 38216-60040 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
5 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
5 | ||
| 38222B - FORK, WINCH CLUTCH SHIFT | ||||
| 38222-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38224 - BOLT, WINCH CLUTCH SHIFT HANDLE | ||||
| 38224-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38228A - ADAPTER, WINCH CLUTCH SHIFT | ||||
| 38228-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38231 - SHOE, BRAKE | ||||
| 38231-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 38231 - SHOE, BRAKE | ||||
| 38231-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 38233B - WASHER, WINCH CLUTCH INPUT SHAFT THRUST | ||||
| 38233-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38236A - WASHER, WINCH CLUTCH THRUST, NO.1 | ||||
| 38236-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38236B - WASHWE, WINCH CLUTCH THRUST | ||||
| 38236-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38237A - WASHER, WINCH CLUTCH THRUST, NO.2 | ||||
| 38237-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38311 - RING, WINCH OUTPUT SHAFT SNAP | ||||
| 38311-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38312 - SPACER, WINCH OUTPUT SHAFT, NO.2 | ||||
| 38312-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38313A - SPRING, WINCH CLUTCH SHIFT HANDLE | ||||
| 38313-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38313-60170 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38315A - PLUG, WINCH FILLER | ||||
| 38315-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38317B - PIN, WINCH CLUTCH SHIFT HANDLE SPRING | ||||
| 38317-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38341 - HOOK, WINCH WIRE | ||||
| 38341-60170 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38341-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38342 - PIN, WINCH WIRE HOOK | ||||
| 38342-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38343 - WINCH WIRE | ||||
| 38343-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 38343-60170 |
FZJ80,HDJ80..GCC,GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 96150-01500 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
