Toyota Land cruiser HDJ80 CLUTCH MASTER CYLINDER

Manufacturers Home
Toyota
GR
LAND CRUISER
HDJ80L-GNMEX (1990)
3103 - CLUTCH MASTER CYLINDER

HDJ80L-GNMEX (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1998

Engine 1HDT

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

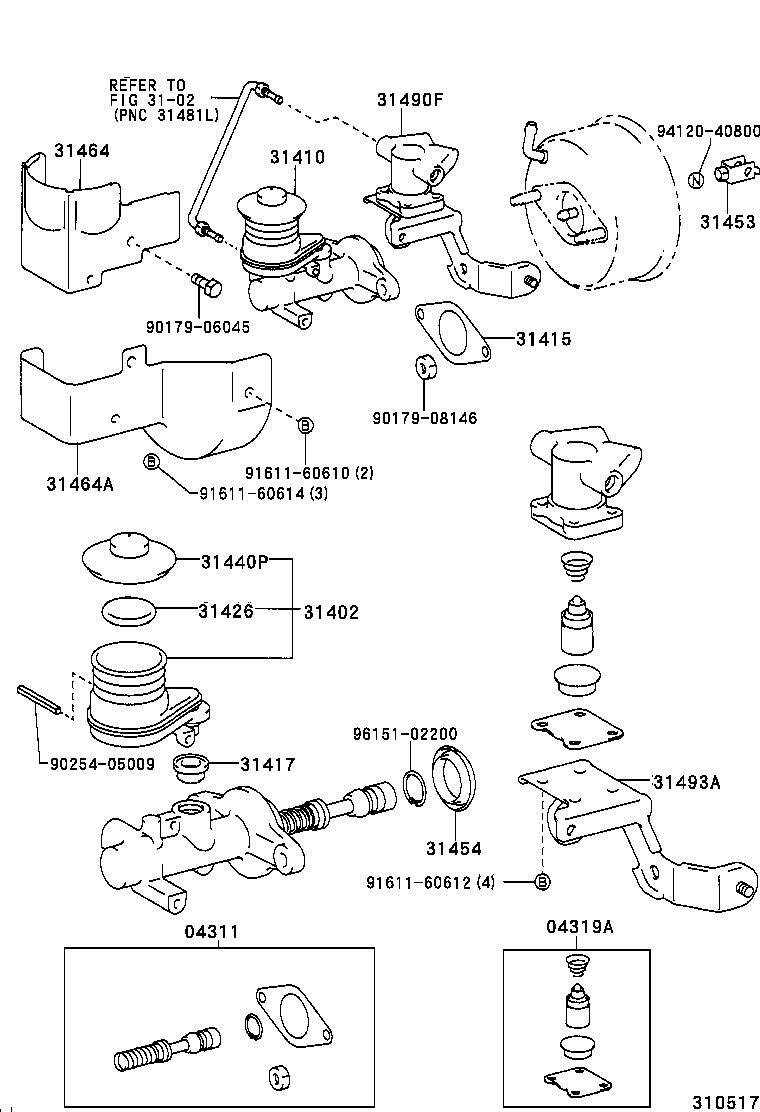

(9001-9501)5F..VX

Click highlighted areas on diagram

Part #	Description	Period	Qty
04311 - CYLINDER KIT, CLUTCH MASTER
04311-60110	HDJ80..5F..VX;FJ80,FZJ80,HZJ80..LHD..5F..VX	01/1990 - 08/1992	1
04311-60110	HDJ80..5F..VX;FZJ80,HZJ80..LHD..5F..VX	08/1992 - 01/1995	1
04311-60100	FZJ80,HDJ80,HZJ80..5F	01/1995 - 12/2999	1
04319A - CYLINDER KIT, CLUTCH ACCUMULATOR
04319-36011	HDJ80,HZJ80..5F..VX	01/1990 - 09/1990	1
04319-60030	HDJ80,HZJ80..5F..VX	09/1990 - 08/1992	1
04319-60030	HDJ80..5F..VX;FZJ80,HZJ80..LHD..5F..VX	05/1993 - 01/1995	1
04319-60030	HDJ80,HZJ80..5F..VX	08/1992 - 05/1993	1
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
31402-60030	HDJ80..5F..VX;FJ80,FZJ80,HZJ80..LHD..5F..VX	01/1990 - 08/1992	1
31402-60030	HDJ80..5F..VX;FZJ80,HZJ80..LHD..5F..VX	08/1992 - 01/1995	1
31402-35030	FZJ80,HDJ80,HZJ80..5F	01/1995 - 12/2999	1
31410 - CYLINDER ASSY, CLUTCH MASTER
31401-60050	FZJ80,HDJ80,HZJ80..LHD..5F..VX	08/1992 - 01/1995	1
31401-60050	FJ80,FZJ80,HDJ80,HZJ80..LHD..5F..VX	01/1990 - 08/1992	1
31415 - GASKET, CLUTCH MASTER CYLINDER
47275-14010	HDJ80..5F..VX;FZJ80,HZJ80..LHD..5F..VX	08/1992 - 01/1995	1
31415-60020	FZJ80,HDJ80,HZJ80..5F	01/1995 - 12/2999	1
47275-14010	HDJ80..5F..VX;FJ80,FZJ80,HZJ80..LHD..5F..VX	01/1990 - 08/1992	1
31417 - GROMMET, CLUTCH RESERVOIR
31417-35010	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 08/1992	1
31417-35010	HDJ80,HZJ80..5F;FZJ80..5F..GX..EFI;FZJ80..5F..(GCC,GEN)	08/1992 - 12/2999	1
31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
31426-30011	HDJ80,HZJ80..5F;FZJ80..5F..GX..EFI;FZJ80..5F..(GCC,GEN)	08/1992 - 12/2999	1
31426-30011	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 08/1992	1
31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER
47230-20040	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 08/1992	1
47230-20040	HDJ80,HZJ80..5F;FZJ80..5F..GX..EFI;FZJ80..5F..(GCC,GEN)	08/1992 - 12/2999	1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-60020	HDJ80..5F..VX;FZJ80,HZJ80..LHD..5F..VX	08/1992 - 01/1995	1
31453-60020	HDJ80..5F..VX;FJ80,FZJ80,HZJ80..LHD..5F..VX	01/1990 - 08/1992	1
31454 - BOOT, CLUTCH MASTER CYLINDER
47265-20050	HDJ80..5F..VX;FJ80,FZJ80,HZJ80..LHD..5F..VX	01/1990 - 08/1992	1
31454-60020	FZJ80,HDJ80,HZJ80..5F	01/1995 - 12/2999	1
47265-20050	HDJ80..5F..VX;FZJ80,HZJ80..LHD..5F..VX	08/1992 - 01/1995	1
31490F - ACCUMULATOR ASSY, MASTER CYLINDER
31490-60030	HDJ80,HZJ80..5F..VX..GEN	01/1990 - 07/1991	1
31490-60031	HDJ80,HZJ80..LHD..5F..VX	08/1992 - 01/1995	1
31490-60031	HDJ80,HZJ80..LHD..5F..VX	07/1991 - 08/1992	1
31493A - BRACKET, CLUTCH ACCUMULATOR
31493-60010	HDJ80,HZJ80..LHD..5F..VX	01/1990 - 08/1992	1
31493-60010	HDJ80,HZJ80..LHD..5F..VX	08/1992 - 01/1995	1
Common parts
90179-06045
90179-08146
90254-05009
91611-60610
91611-60612
91611-60614
94120-40800
96151-02200
Linked diagrams
3102

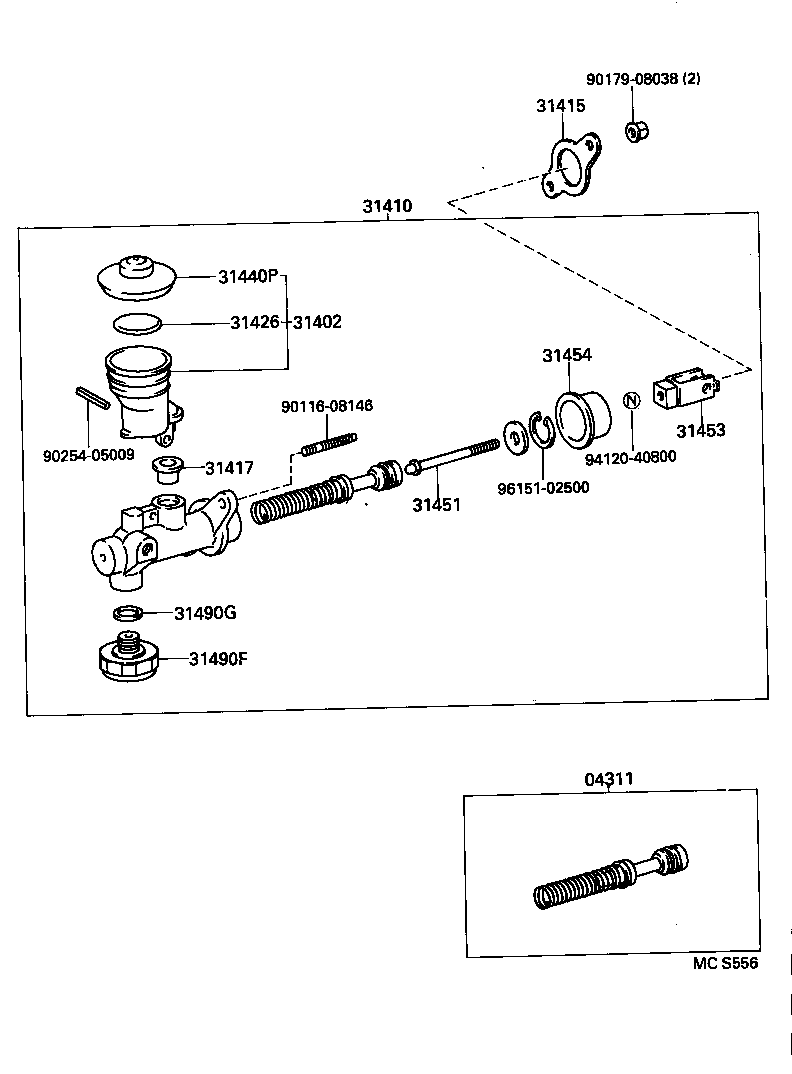

(9405-9501)HDJ80,HZJ80..5F..GX,STD ; (9501- )HDJ80,HZJ80..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
04311 - CYLINDER KIT, CLUTCH MASTER
04311-60110	HDJ80..5F..VX;FJ80,FZJ80,HZJ80..LHD..5F..VX	01/1990 - 08/1992	1
04311-60110	HDJ80..5F..VX;FZJ80,HZJ80..LHD..5F..VX	08/1992 - 01/1995	1
04311-60100	FZJ80,HDJ80,HZJ80..5F	01/1995 - 12/2999	1
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
31402-60030	HDJ80..5F..VX;FJ80,FZJ80,HZJ80..LHD..5F..VX	01/1990 - 08/1992	1
31402-60030	HDJ80..5F..VX;FZJ80,HZJ80..LHD..5F..VX	08/1992 - 01/1995	1
31402-35030	FZJ80,HDJ80,HZJ80..5F	01/1995 - 12/2999	1
31410 - CYLINDER ASSY, CLUTCH MASTER
31401-60050	FZJ80,HDJ80,HZJ80..LHD..5F..VX	08/1992 - 01/1995	1
31401-60050	FJ80,FZJ80,HDJ80,HZJ80..LHD..5F..VX	01/1990 - 08/1992	1
31415 - GASKET, CLUTCH MASTER CYLINDER
47275-14010	HDJ80..5F..VX;FZJ80,HZJ80..LHD..5F..VX	08/1992 - 01/1995	1
31415-60020	FZJ80,HDJ80,HZJ80..5F	01/1995 - 12/2999	1
47275-14010	HDJ80..5F..VX;FJ80,FZJ80,HZJ80..LHD..5F..VX	01/1990 - 08/1992	1
31417 - GROMMET, CLUTCH RESERVOIR
31417-35010	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 08/1992	1
31417-35010	HDJ80,HZJ80..5F;FZJ80..5F..GX..EFI;FZJ80..5F..(GCC,GEN)	08/1992 - 12/2999	1
31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
31426-30011	HDJ80,HZJ80..5F;FZJ80..5F..GX..EFI;FZJ80..5F..(GCC,GEN)	08/1992 - 12/2999	1
31426-30011	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 08/1992	1
31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER
47230-20040	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 08/1992	1
47230-20040	HDJ80,HZJ80..5F;FZJ80..5F..GX..EFI;FZJ80..5F..(GCC,GEN)	08/1992 - 12/2999	1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-60020	HDJ80..5F..VX;FZJ80,HZJ80..LHD..5F..VX	08/1992 - 01/1995	1
31453-60020	HDJ80..5F..VX;FJ80,FZJ80,HZJ80..LHD..5F..VX	01/1990 - 08/1992	1
31454 - BOOT, CLUTCH MASTER CYLINDER
47265-20050	HDJ80..5F..VX;FJ80,FZJ80,HZJ80..LHD..5F..VX	01/1990 - 08/1992	1
31454-60020	FZJ80,HDJ80,HZJ80..5F	01/1995 - 12/2999	1
47265-20050	HDJ80..5F..VX;FZJ80,HZJ80..LHD..5F..VX	08/1992 - 01/1995	1
31490F - ACCUMULATOR ASSY, MASTER CYLINDER
31490-60030	HDJ80,HZJ80..5F..VX..GEN	01/1990 - 07/1991	1
31490-60031	HDJ80,HZJ80..LHD..5F..VX	08/1992 - 01/1995	1
31490-60031	HDJ80,HZJ80..LHD..5F..VX	07/1991 - 08/1992	1
Common parts
90116-08146
90179-08038
90254-05009
94120-40800
96151-02500

HDJ80L-GNMEX (1990)

(9001-9501)5F..VX

(9405-9501)HDJ80,HZJ80..5F..GX,STD ; (9501- )HDJ80,HZJ80..5F
