HDJ79R-TJMRZQ3 (2001)

Toyota Land Cruiser

Production Aug 2001 - Jan 2007
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

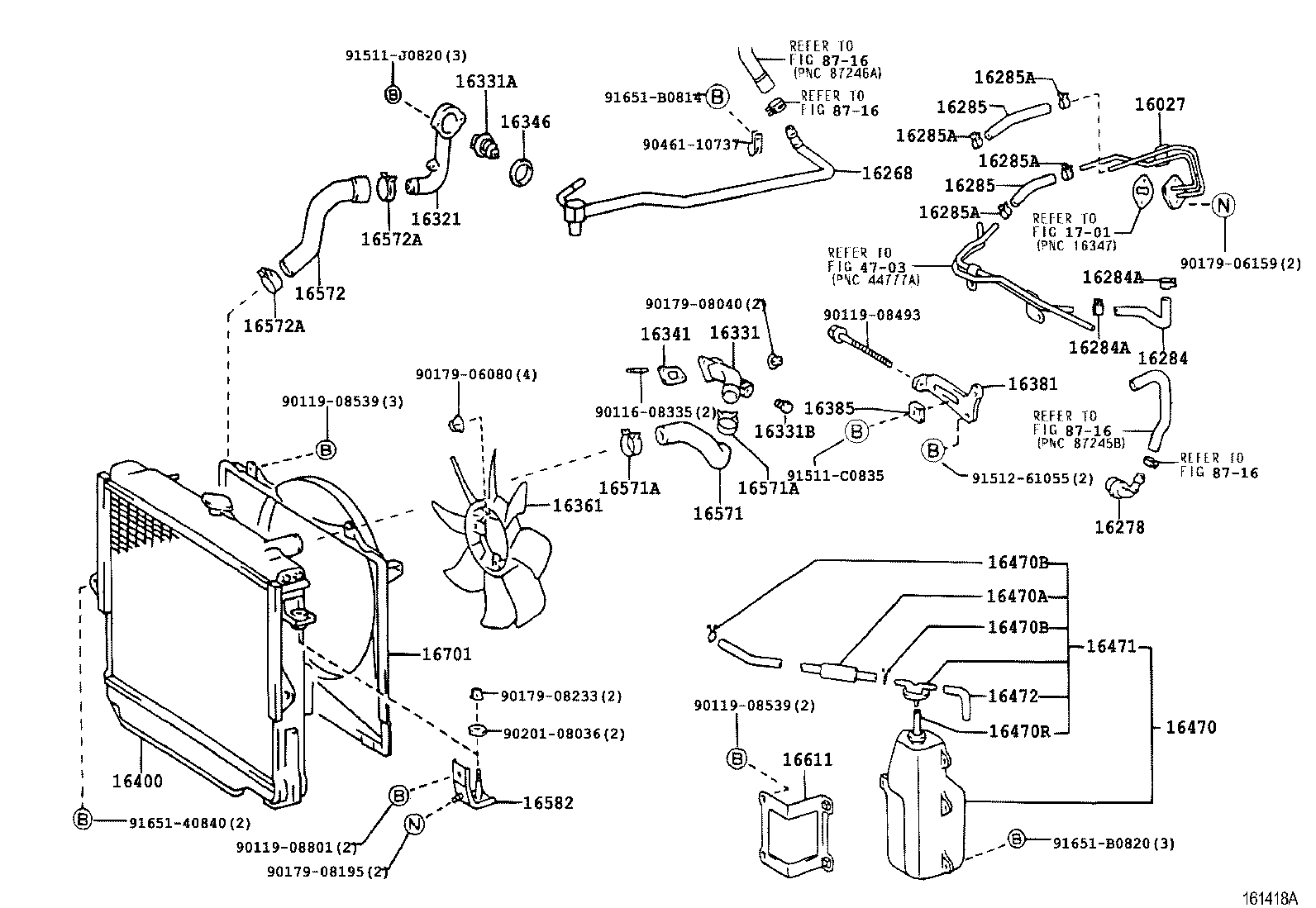

ILLUST NO. 1 OF 2(0108-0701)1HDFTE

Click highlighted areas on diagram

diagram 16027 16268 16278 16284 16284A 16284A 16285 16285 16285A 16285A 16285A 16285A 16321 16331 16331A 16331B 16341 16346 16361 16381 16385 16400 16470 16470A 16470B 16470B 16470R 16471 16472 16571 16571A 16571A 16572 16572A 16572A 16582 16611 16701 1701 4703 8716 8716 8716 8716 9011608335 9011908493 9011908539 9011908539 9011908801 9017906080 9017906159 9017908040 9017908195 9017908233 9020108036 9046110737 91511C0835 91511J0820 9151261055 9165140840 91651B0814 91651B0820
Part # Description Qty Price
16027 - PIPE SUB-ASSY, TURBO WATER, NO.1
16027-17010

1HDFTE..HDJ7#

 1
16268 - PIPE, WATER BY-PASS, NO.1
16268-17020

1HDFTE..HDJ7#

 1
16284 - HOSE, TURBO WATER, NO.1
16284-17010

1HDFTE..HDJ7#

 1
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-15022

1HDFTE..HDJ7#

 2
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-15022

1HDFTE..HDJ7#

 2
16285 - HOSE, TURBO WATER, NO.2
16285-17010

1HDFTE..HDJ7#

 2
16285 - HOSE, TURBO WATER, NO.2
16285-17010

1HDFTE..HDJ7#

 2
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90467-15022

1HDFTE..HDJ7#

 4
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90467-15022

1HDFTE..HDJ7#

 4
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90467-15022

1HDFTE..HDJ7#

 4
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90467-15022

1HDFTE..HDJ7#

 4
16331 - OUTLET, WATER
16304-17020

1HDFTE..HDJ7#

 1
16361 - FAN
16361-17040

1HDFTE..HDJ7#

 1
16361-17030

1HDFTE..HDJ7#

 1
16381 - BAR, FAN BELT ADJUSTING
16381-17020

1HDFTE..HDJ7#

 1
16400 - RADIATOR ASSY
16400-17360

1H#..HDJ7#,HZJ78,79..ARL

 1
16572 - HOSE, RADIATOR, OUTLET
16572-17150

1H#..HDJ7#,HZJ78,79..ARL

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-43002

1H#..HDJ7#,HZJ78,79..ARL

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-43002

1H#..HDJ7#,HZJ78,79..ARL

 2
16701 - SHROUD SUB-ASSY, FAN
16711-17150

1H#..HDJ7#,HZJ78,79..ARL

 1
Common parts
90116-08335
90119-08493
90119-08539
90119-08801
90179-06080
90179-06159
90179-08040
90179-08195
90179-08233
90201-08036
90461-10737
91511-C0835
91511-J0820
91512-61055
91651-40840
91651-B0814
91651-B0820
Linked diagrams
1701
4703
8716
