HDJ79R-TJMNZQ3 (2001)

Toyota Land Cruiser

Production Aug 2001 - Jan 2007
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )1HDFTE

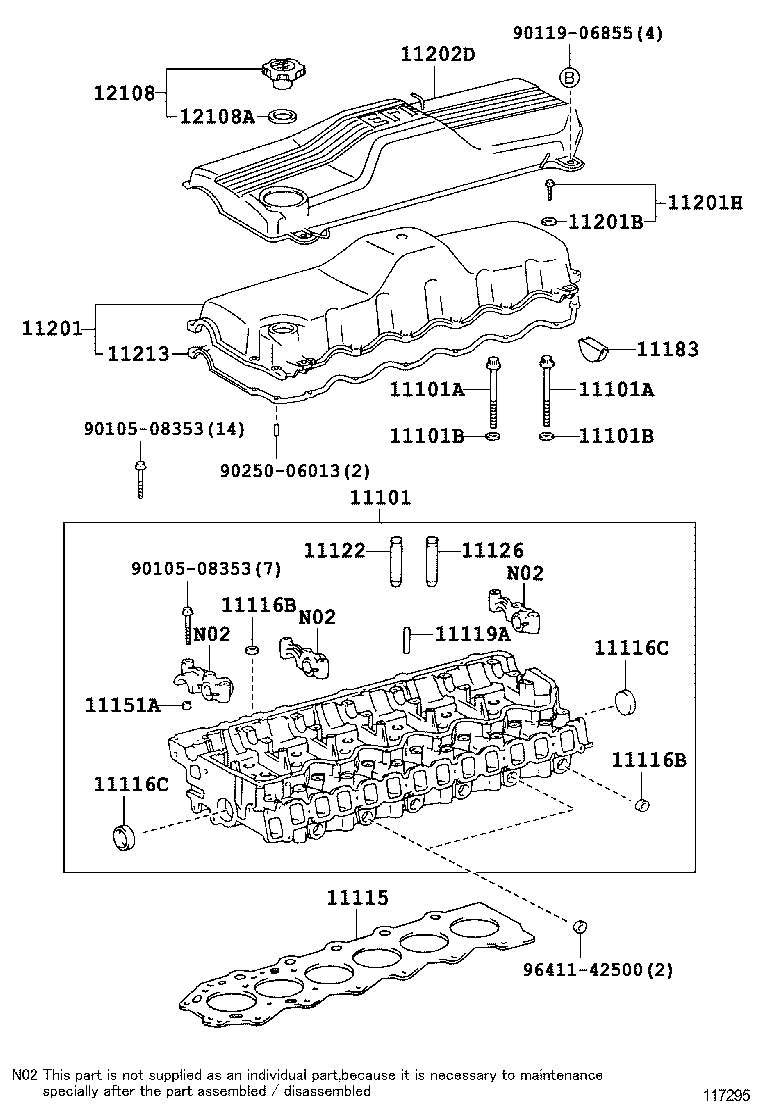

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101B 11101B 11115 11116B 11116B 11116C 11116C 11119A 11122 11126 11151A 11183 11201 11201B 11201H 11202D 11213 12108 12108A 9010508353 9010508353 9011906855 9025006013 9641142500
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-17043

1HDFTE..HDJ7#

 1
11101-17044

1HDFTE..HDJ7#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02096

1HDFTE..HDJ7#

L=133.5

 6
90910-02119

1HDFTE..HDJ7#

L=121.5

 20
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02096

1HDFTE..HDJ7#

L=133.5

 6
90910-02119

1HDFTE..HDJ7#

L=121.5

 20
11115 - GASKET, CYLINDER HEAD
11115-1703103

1HDFTE..HDJ7#

REFER TO REPAIR MANUAL,MARK 3

 1
11115-1703101

1HDFTE..HDJ7#

REFER TO REPAIR MANUAL,MARK 1

 1
11115-1703105

1HDFTE..HDJ7#

REFER TO REPAIR MANUAL,MARK 5

 1
11116B - PLUG, TIGHT, NO.2
96411-62500

1HDFTE..HDJ7#

 10
11116B - PLUG, TIGHT, NO.2
96411-62500

1HDFTE..HDJ7#

 10
11116C - PLUG, TIGHT, NO.3
96411-64000

1HDFTE..HDJ7#

 2
11116C - PLUG, TIGHT, NO.3
96411-64000

1HDFTE..HDJ7#

 2
11119A - PIN, STRAIGHT, NO.1
90250-09007

1HDFTE..HDJ7#

L=53.5,OD=9

 12
11122 - BUSH, INTAKE VALVE GUIDE
11123-17010

1HDFTE..HDJ7#

O/S 0.05

 12
11122-17010

1HDFTE..HDJ7#

STD

 12
11126 - BUSH, EXHAUST VALVE GUIDE
11123-17010

1HDFTE..HDJ7#

O/S 0.05

 12
11122-17010

1HDFTE..HDJ7#

STD

 12
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021

1HDFTE..HDJ7#

L=8,OD=11

 14
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-17011

1HDFTE..HDJ7#

 1
11210-17010

1HDFTE..HDJ7#

 1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90901-19047

1HDFTE..HDJ7#

 17
11201H - BOLT(FOR CYLINDER HEAD COVER)
90901-19047

1HDFTE..HDJ7#

 17
11202D - COVER SUB-ASSY, CYLINDER HEAD, NO.2
11202-17040

1HDFTE..HDJ7#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-17030

1HDFTE..HDJ7#

 1
Common parts
90105-08353
90119-06855
90250-06013
96411-42500
