HDJ78R-RJMRZQ (2001)
Toyota Land Cruiser
Production
Aug 2001
-
Jan 2007
Engine
1HDFTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

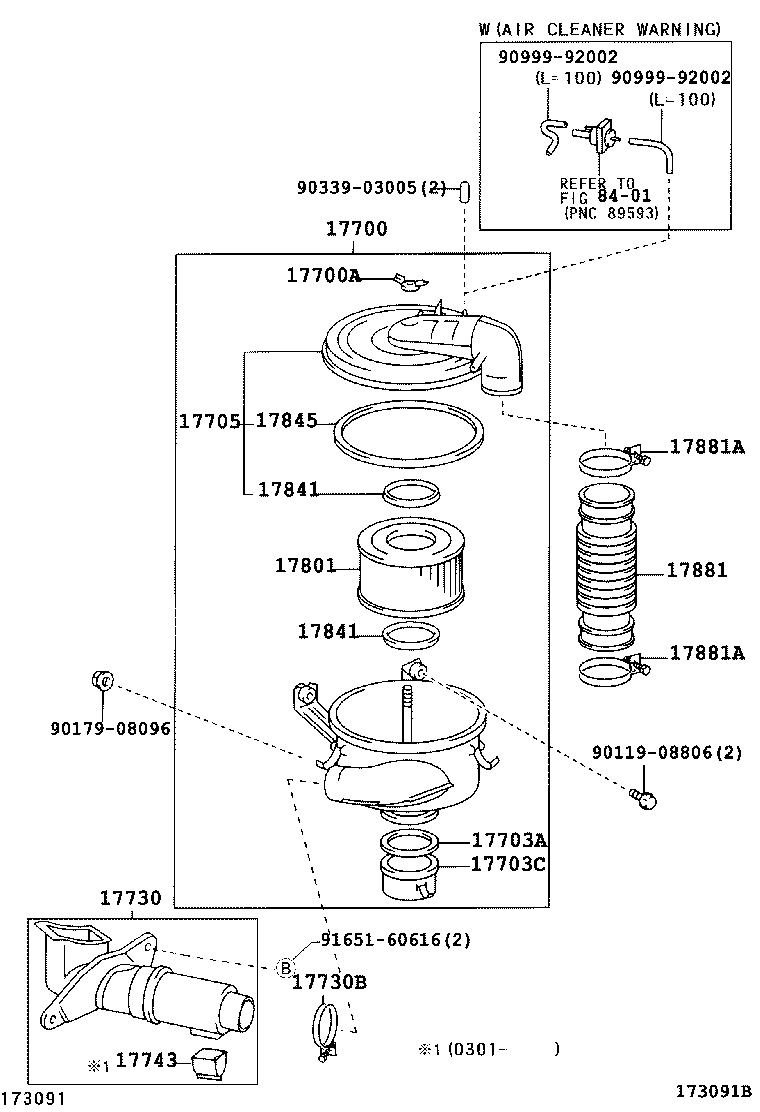

(0108-0701)1HDFTE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-17300 |
1HDFTE..HDJ7# |
1 | ||
| 17700-17310 |
1HDFTE..HDJ7# W(CYCLON & SCHNORKEL TYPE AIR CLEANER) |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-17210 |
1HDFTE..HDJ7# |
1 | ||
| 17705-17220 |
1HDFTE..HDJ7# W(CYCLON & SCHNORKEL TYPE AIR CLEANER) |
1 | ||
| 17743 - VALVE, DUST RELIEF | ||||
| 17743-50010 |
1H#..HDJ7#,HZJ7# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-17111 |
1HDFTE..HDJ7# |
1 | ||
| 17881-17110 |
1HDFTE..HDJ7# |
1 | ||
| Common parts | ||||
| 90119-08806 | ||||
| 90179-08096 | ||||
| 90339-03005 | ||||
| 90999-92002 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

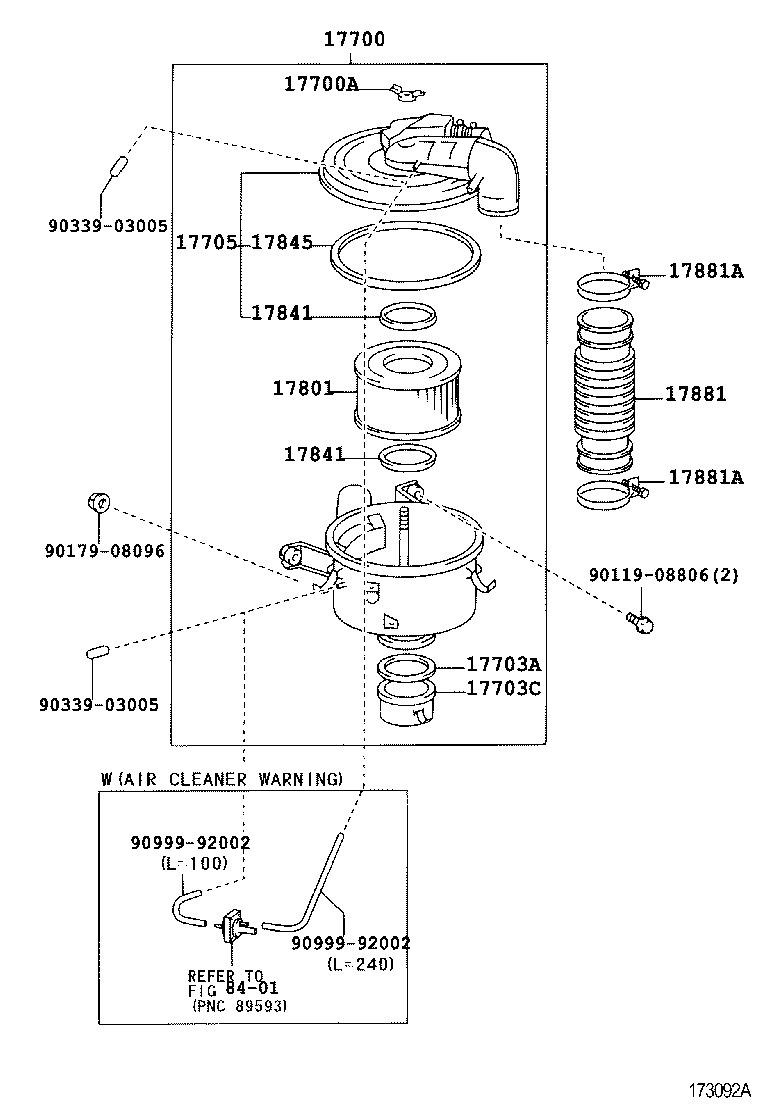

ILLUST NO. 1 OF 2(0108-0701)1HDFTE
Click highlighted areas on diagram
SCHNORKEL TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-17300 |
1HDFTE..HDJ7# |
1 | ||
| 17700-17310 |
1HDFTE..HDJ7# W(CYCLON & SCHNORKEL TYPE AIR CLEANER) |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-17210 |
1HDFTE..HDJ7# |
1 | ||
| 17705-17220 |
1HDFTE..HDJ7# W(CYCLON & SCHNORKEL TYPE AIR CLEANER) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-17111 |
1HDFTE..HDJ7# |
1 | ||
| 17881-17110 |
1HDFTE..HDJ7# |
1 | ||
| Common parts | ||||
| 90119-08806 | ||||
| 90179-08096 | ||||
| 90339-03005 | ||||
| 90999-92002 | ||||
| Linked diagrams | ||||
| 8401 | ||||

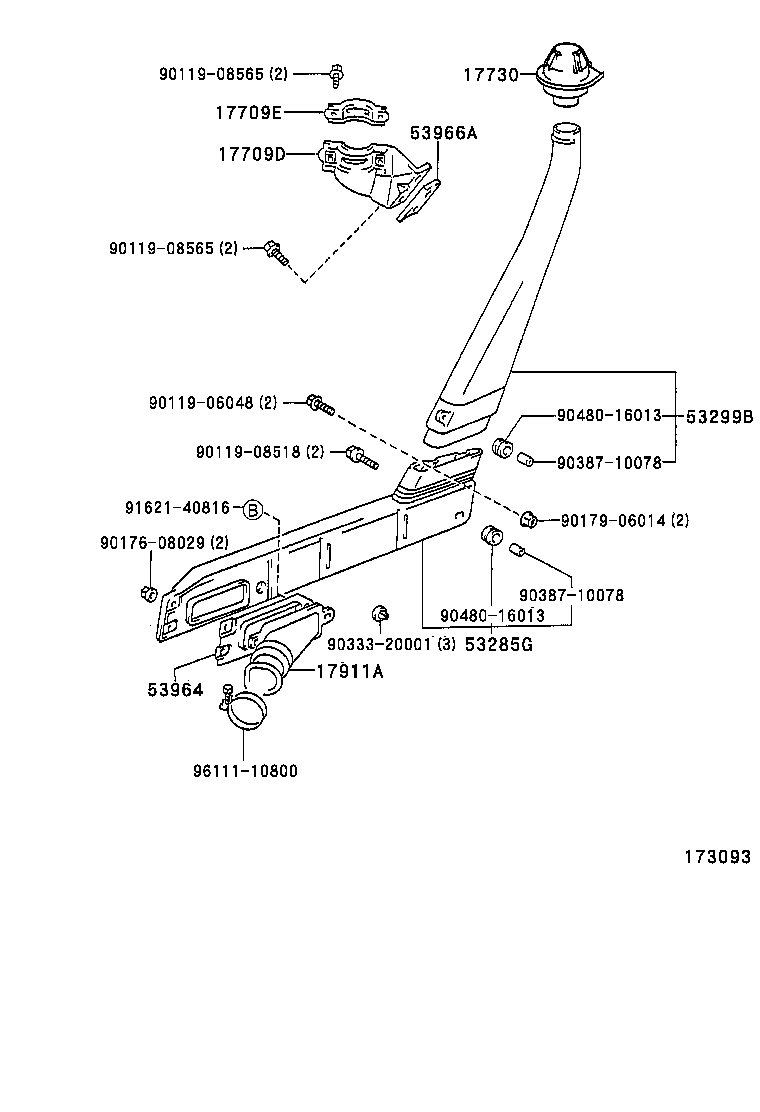

ILLUST NO. 2 OF 2(0108-0701)1HDFTE
Click highlighted areas on diagram
SCHNORKEL TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06048 | ||||
| 90119-08518 | ||||
| 90119-08565 | ||||
| 90176-08029 | ||||
| 90179-06014 | ||||
| 90333-20001 | ||||
| 90387-10078 | ||||
| 90480-16013 | ||||
| 91621-40816 | ||||
| 96111-10800 | ||||
