HDJ78R-RJMNZQ (2001)

Toyota Land Cruiser

Production Aug 2001 - Jan 2007
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )1HDFTE

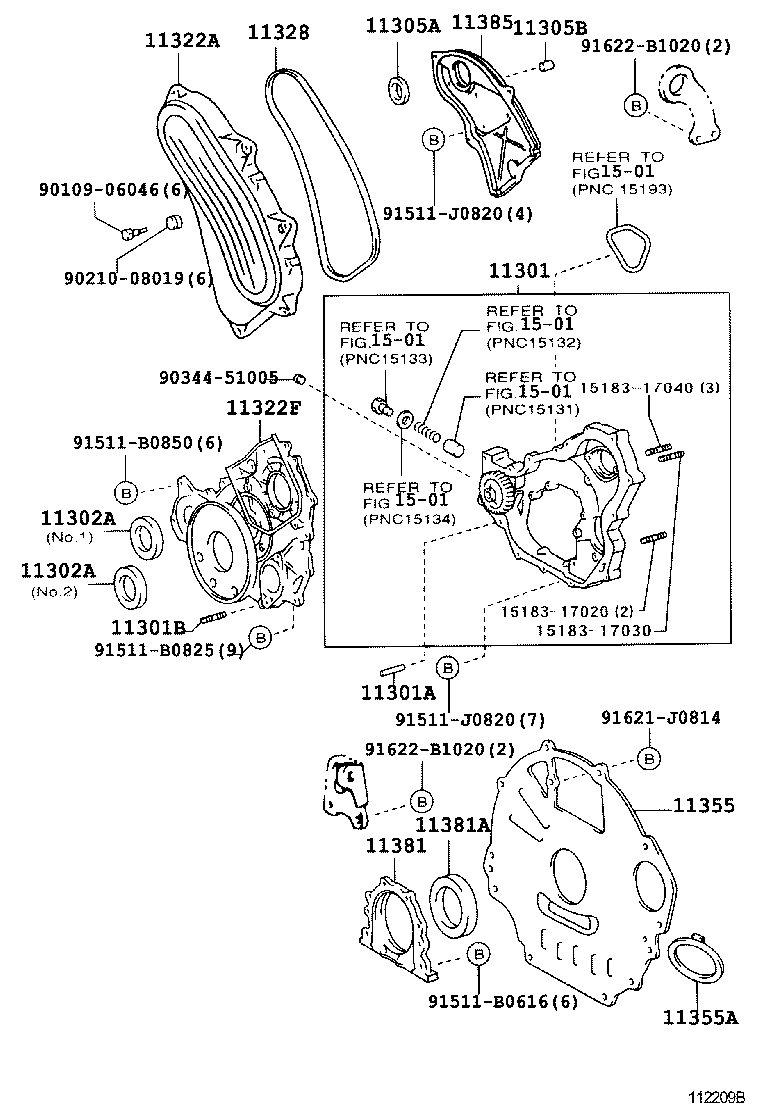

Click highlighted areas on diagram

diagram 11301 11301A 11301B 11302A 11302A 11305A 11305B 11322A 11322F 11328 11355 11355A 11381 11381A 11385 1501 1501 1501 1501 1501 9010906046 9021008019 9034451005 91511B0616 91511B0825 91511B0850 91511J0820 91511J0820 91621J0814 91622B1020 91622B1020
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-17041

1HDFTE..HDJ7#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-65003

1HDFTE..HDJ7#

NO.1

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-65003

1HDFTE..HDJ7#

NO.1

 1
11322A - COVER, TIMING BELT, NO.1
11321-17060

1HDFTE..HDJ7#

 1
11322F - COVER, TIMING GEAR, NO.2
11322-17040

1HDFTE..HDJ7#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-17040

1HDFTE..HDJ7#

 1
11385 - RETAINER, CAMSHAFT OIL SEAL
11382-17040

1HDFTE..HDJ7#

 1
Common parts
90109-06046
90210-08019
90344-51005
91511-B0616
91511-B0825
91511-B0850
91511-J0820
91621-J0814
91622-B1020
Linked diagrams
1501
