GRJ79L-TJMRKV (2009)
Toyota Land Cruiser

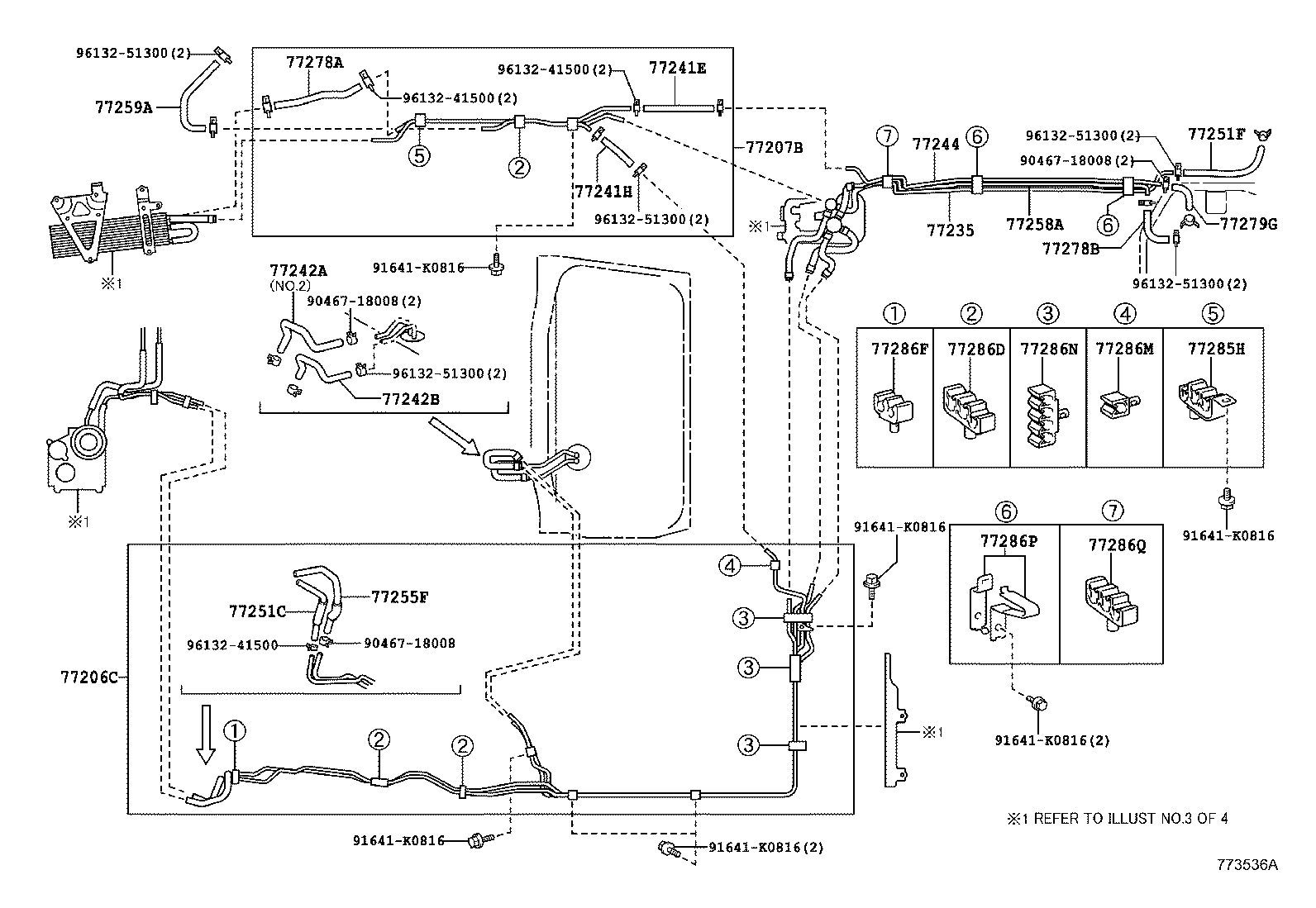

ILLUST NO. 3 OF 5(0701-1208)VDJ78,79
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60580 |
GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77206-60580 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-60C50 |
GRJ7# |
1 | ||
| 77205-60C80 |
GRJ7# |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 77259-60771 |
VDJ78,79..HT,PIC |
1 | ||
| 95333-06030 |
HZJ78,79 *H,L=300 |
1 | ||
| 77259-60770 |
VDJ78,79 |
1 | ||
| 95337-06030 |
HZJ78,79..HT,PIC L=300 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95334-06017 |
GRJ78,79 *H,L=170,FUEL TANK-W(SUB TANK) |
2 | ||
| 95334-06017 |
GRJ79 *H,L=170,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 95338-06017 |
GRJ78,79..HT,PIC L=170,FUEL TANK-W(SUB TANK) |
2 | ||
| 95338-06017 |
GRJ79..PIC..CBU L=170,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-60B30 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77259K - HOSE, FUEL | ||||
| 77259-60B40 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77259-60B40 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77406-60030 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77266-60100 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77266-60100 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),FRONT |
1 | ||
| 77266-60060 |
VDJ78,79 |
1 | ||
| 77266-60100 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),FRONT |
1 | ||
| 77266-60120 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),REAR |
1 | ||
| 77266-60120 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),REAR |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 77259-60B20 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 77259-60630 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77259-60631 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60670 |
HZJ71,VDJ78,79..HT,PIC,SOT |
1 | ||
| 77285-60B00 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77285-60B00 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-60610 |
VDJ78,79..HT,PIC |
3 | ||
| 77285-60A90 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| Common parts | ||||
| 90467-18008 | ||||
| 91611-B0816 | ||||
| 91641-K0816 | ||||
| 91674-80820 | ||||
| 96132-41500 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
ILLUST NO. 1 OF 5(0701-1608)VDJ78,79..HT,PIC..ARL ; (0701- )DCB..IV ; (0701- )HZJ78,79,VDJ78,7
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-60120 |
GRJ78,79 FUEL TANK-W(SUB TANK) |
2 | ||
| 77011-60120 |
GRJ7#,HZJ7# |
1 | ||
| 77011-60120 |
GRJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77011-60120 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
2 | ||
| 77011-60180 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77011-60180 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77011-60180 |
VDJ78,79..HT,PIC |
2 | ||
| 77011-60180 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77011-60180 |
VDJ79..DCB;GRJ79,HZJ7#;GRJ71,76,78..LHD |
1 | ||
| 77011-60120 |
VDJ78,79 |
2 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-60410 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77017-60410 |
HZJ78,79..HT,PIC |
1 | ||
| 77017-60450 |
VDJ78,79..HT,PIC SUB TANK |
1 | ||
| 77017-60440 |
VDJ78,79..HT,PIC MAIN TANK |
1 | ||
| 77017-60540 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77023-36010 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77023-60010 |
VDJ78,79..HT,PIC |
2 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-60200 |
HZJ78,79,VDJ78,79..HT,PIC |
1 | ||
| 77026-60220 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-60090 |
GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77310-60090 |
GRJ79..PIC FUEL TANK-W(FUEL TANK CAP, W/KEY) |
1 | ||
| 77310-60090 |
GRJ79..PIC FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77310-60090 |
GRJ79 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
GRJ79,HZJ79 |
1 | ||
| 77316-12050 |
GRJ79..PIC FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77316-12050 |
GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77316-12050 |
GRJ79..PIC FUEL TANK-W(FUEL TANK CAP, W/KEY) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
VDJ78,79..HT,PIC |
2 | ||
| 90105-12116 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 90105-12116 |
GRJ71,78..LHD;GRJ79,HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 90105-12116 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 90105-12116 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 90430-12245 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 90430-12245 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 90430-12245 |
VDJ78,79..HT,PIC |
2 | ||
| 90430-12245 |
GRJ71,78..LHD;GRJ79,HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22024 |
GRJ79..PIC L=385,FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 95311-13015 |
VDJ78,79..HT,PIC L=150,MAIN TANK |
1 | ||
| 90445-22024 |
GRJ79..PIC..CBU L=385,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 95311-13015 |
GRJ78..LHD;GRJ79..PIC L=150,FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 95311-13015 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC L=150 |
1 | ||
| 95311-13015 |
HZJ78,79..HT,PIC L=150,FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 95311-13015 |
GRJ79..PIC..CBU L=150,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-42010 |
VDJ78,79..HT,PIC |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77178-20010 |
VDJ79..DCB;GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ76 |
1 | ||
| 77178-20010 |
VDJ78,79..HT,PIC |
2 | ||
| 77178-20010 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77178-20010 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26011 |
GRJ78,79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| 77179-26010 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26011 |
GRJ78,79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| 77179-26010 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60720 |
GRJ79..PIC |
1 | ||
| 77201-60730 |
GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60730 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60720 |
GRJ79..PIC |
1 | ||
| 77201-60730 |
GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60730 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60720 |
GRJ79..PIC |
1 | ||
| 77201-60730 |
GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60730 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60720 |
GRJ79..PIC |
1 | ||
| 77201-60730 |
GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60730 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77169-20040 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77169-14020 |
VDJ78,79..HT,PIC |
2 | ||
| 77169-20040 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77169-14010 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77169-14020 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77169-20040 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77169-14010 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60200 |
GRJ79,HZJ79..PIC |
1 | ||
| 77213-60200 |
GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77213-60210 |
GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77213-60200 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77213-60210 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
GRJ78..LHD;GRJ79..PIC *H,L=170,FUEL TANK-W(SUB TANK) |
1 | ||
| 95333-06020 |
GRJ78..LHD;GRJ79..PIC *H,L=170 |
1 | ||
| 95333-06020 |
GRJ79..PIC..CBU *H,L=170,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 95333-06020 |
HZJ78,79,VDJ78,79..HT,PIC *H,L=140 |
1 | ||
| 95333-06020 |
HZJ78,79..HT,PIC *H,L=140,FUEL TANK-W(SUB TANK) |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-60180 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77291 - PACKING, FUEL TANK SUPPORT, UPPER | ||||
| 77293-60030 |
GRJ78..LHD;VDJ79..DCB;GRJ79,HZJ78,79,VDJ78 |
1 | ||
| 77293-60030 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77293-60030 |
GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60030 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77606-60030 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77606-60030 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77606-60130 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77606-60130 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77606-60130 |
VDJ78,79..HT,PIC MAIN TANK |
1 | ||
| 77606-60030 |
VDJ78,79..HT,PIC SUB TANK |
1 | ||
| 77606-60130 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC |
1 | ||
| 77606-60130 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC RH |
1 | ||
| 77601-60230 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60230 |
VDJ78,79..HT,PIC MAIN TANK, RH |
1 | ||
| 77601-60230 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60230 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60261 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77601-60261 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 77602-60100 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77601-60261 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
VDJ78,79..HT,PIC MAIN TANK, LH |
1 | ||
| 77602-60100 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77602-60100 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC LH |
1 | ||
| 77601-60261 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC RH |
1 | ||
| 77601-60230 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60230 |
VDJ78,79..HT,PIC MAIN TANK, RH |
1 | ||
| 77601-60230 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60230 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60261 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77601-60261 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 77602-60100 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77601-60261 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
VDJ78,79..HT,PIC MAIN TANK, LH |
1 | ||
| 77602-60100 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77602-60100 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC LH |
1 | ||
| 77601-60261 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10011 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC |
2 | ||
| 90249-14002 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 90249-14002 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
2 | ||
| 90249-14002 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 90240-10011 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK |
2 | ||
| 90240-10011 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK |
2 | ||
| 90240-10011 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
2 | ||
| 90240-10011 |
VDJ78,79..HT,PIC MAIN TANK |
2 | ||
| 90249-14002 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77616-60080 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77615-60050 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10092 |
HZJ78,79,VDJ78,79 |
1 | ||
| Common parts | ||||
| 90119-06195 | ||||
| 90119-06621 | ||||
| 90119-10153 | ||||
| 90159-50219 | ||||
| 90179-05042 | ||||
| 90460-65002 | ||||
| 90467-20134 | ||||
| 90468-14017 | ||||
| 91612-B1020 | ||||
| 91626-B0818 | ||||
| 91651-61022 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| 96135-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 5(0701-1608)VDJ78 ; (0701- )VDJ79 ; (0701-)HZJ78,79,VDJ78..HT,PIC..GCC,GEN ;
FUEL SUB TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58279A - PROTECTOR, FUEL HOSE | ||||
| 58279-90K00 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 58279-90K00 |
GRJ79..PIC..CBU FUEL TANK-W(SUB TANK) |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-60120 |
GRJ78,79 FUEL TANK-W(SUB TANK) |
2 | ||
| 77011-60120 |
GRJ7#,HZJ7# |
1 | ||
| 77011-60120 |
GRJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77011-60120 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
2 | ||
| 77011-60180 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77011-60180 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77011-60180 |
VDJ78,79..HT,PIC |
2 | ||
| 77011-60180 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77011-60180 |
VDJ79..DCB;GRJ79,HZJ7#;GRJ71,76,78..LHD |
1 | ||
| 77011-60120 |
VDJ78,79 |
2 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-60410 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77017-60410 |
HZJ78,79..HT,PIC |
1 | ||
| 77017-60450 |
VDJ78,79..HT,PIC SUB TANK |
1 | ||
| 77017-60440 |
VDJ78,79..HT,PIC MAIN TANK |
1 | ||
| 77017-60540 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77023-36010 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77023-60010 |
VDJ78,79..HT,PIC |
2 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-60090 |
GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77310-60090 |
GRJ79..PIC FUEL TANK-W(FUEL TANK CAP, W/KEY) |
1 | ||
| 77310-60090 |
GRJ79..PIC FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77310-60090 |
GRJ79 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
GRJ79,HZJ79 |
1 | ||
| 77316-12050 |
GRJ79..PIC FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77316-12050 |
GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77316-12050 |
GRJ79..PIC FUEL TANK-W(FUEL TANK CAP, W/KEY) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
VDJ78,79..HT,PIC |
2 | ||
| 90105-12116 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 90105-12116 |
GRJ71,78..LHD;GRJ79,HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 90105-12116 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 90105-12116 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 90430-12245 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 90430-12245 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 90430-12245 |
VDJ78,79..HT,PIC |
2 | ||
| 90430-12245 |
GRJ71,78..LHD;GRJ79,HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22024 |
GRJ79..PIC L=385,FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 95311-13015 |
VDJ78,79..HT,PIC L=150,MAIN TANK |
1 | ||
| 90445-22024 |
GRJ79..PIC..CBU L=385,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 95311-13015 |
GRJ78..LHD;GRJ79..PIC L=150,FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 95311-13015 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC L=150 |
1 | ||
| 95311-13015 |
HZJ78,79..HT,PIC L=150,FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 95311-13015 |
GRJ79..PIC..CBU L=150,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77133 - SUPPORT, FUEL SUB-TANK, RH | ||||
| 77133-60101 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77133-60100 |
VDJ78,79 |
1 | ||
| 77133-60100 |
GRJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77133-60101 |
VDJ78,79..HT,PIC |
1 | ||
| 77133-60101 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77133-60100 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77133-60100 |
GRJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77133-60101 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77134 - SUPPORT, FUEL SUB-TANK, LH | ||||
| 77133-60100 |
VDJ78,79 |
1 | ||
| 77133-60100 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77133-60100 |
GRJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77133-60100 |
GRJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77133-60101 |
VDJ78,79..HT,PIC |
1 | ||
| 77133-60101 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77133-60101 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77133-60101 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77178-20010 |
VDJ79..DCB;GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ76 |
1 | ||
| 77178-20010 |
VDJ78,79..HT,PIC |
2 | ||
| 77178-20010 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77178-20010 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60720 |
GRJ79..PIC |
1 | ||
| 77201-60730 |
GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60730 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60720 |
GRJ79..PIC |
1 | ||
| 77201-60730 |
GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60730 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77169-20040 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77169-14020 |
VDJ78,79..HT,PIC |
2 | ||
| 77169-20040 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77169-14010 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77169-14020 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77169-20040 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77169-14010 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60200 |
GRJ79,HZJ79..PIC |
1 | ||
| 77213-60200 |
GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77213-60210 |
GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77213-60200 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77213-60210 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77291 - PACKING, FUEL TANK SUPPORT, UPPER | ||||
| 77293-60030 |
GRJ78..LHD;VDJ79..DCB;GRJ79,HZJ78,79,VDJ78 |
1 | ||
| 77293-60030 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77293-60030 |
GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60030 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77606-60030 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77606-60030 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77606-60130 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77606-60130 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77606-60130 |
VDJ78,79..HT,PIC MAIN TANK |
1 | ||
| 77606-60030 |
VDJ78,79..HT,PIC SUB TANK |
1 | ||
| 77606-60130 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC |
1 | ||
| 77606-60130 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC RH |
1 | ||
| 77601-60230 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60230 |
VDJ78,79..HT,PIC MAIN TANK, RH |
1 | ||
| 77601-60230 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60230 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60261 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77601-60261 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 77602-60100 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77601-60261 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
VDJ78,79..HT,PIC MAIN TANK, LH |
1 | ||
| 77602-60100 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77602-60100 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC LH |
1 | ||
| 77601-60261 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC RH |
1 | ||
| 77601-60230 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60230 |
VDJ78,79..HT,PIC MAIN TANK, RH |
1 | ||
| 77601-60230 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60230 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60261 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77601-60261 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 77602-60100 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77601-60261 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
VDJ78,79..HT,PIC MAIN TANK, LH |
1 | ||
| 77602-60100 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77602-60100 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC LH |
1 | ||
| 77601-60261 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10011 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC |
2 | ||
| 90249-14002 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 90249-14002 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
2 | ||
| 90249-14002 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 90240-10011 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK |
2 | ||
| 90240-10011 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK |
2 | ||
| 90240-10011 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
2 | ||
| 90240-10011 |
VDJ78,79..HT,PIC MAIN TANK |
2 | ||
| 90249-14002 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| Common parts | ||||
| 90119-06195 | ||||
| 90119-06621 | ||||
| 90119-06724 | ||||
| 90119-10153 | ||||
| 90119-10556 | ||||
| 90159-50219 | ||||
| 90460-65002 | ||||
| 90467-20134 | ||||
| 91626-B0818 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 5(0907-1608)GRJ78,79..HT,PIC
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-60640 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-60C50 |
GRJ7# |
1 | ||
| 77205-60C80 |
GRJ7# |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-60210 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-60A30 |
HZJ78,79..HT,PIC |
1 | ||
| 77251-60A70 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77252-60840 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-60A20 |
HZJ78,79..HT,PIC |
1 | ||
| 77255-60A40 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77256-60860 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77256-60830 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77256-60830 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77262-60460 |
GRJ78,79..HT,PIC |
1 | ||
| 77262-60320 |
GRJ78,79 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77406-60030 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77266-60100 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77266-60100 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),FRONT |
1 | ||
| 77266-60060 |
VDJ78,79 |
1 | ||
| 77266-60100 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),FRONT |
1 | ||
| 77266-60120 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),REAR |
1 | ||
| 77266-60120 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),REAR |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77266-60110 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),FRONT |
1 | ||
| 77266-60110 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77266-60130 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),REAR |
1 | ||
| 77266-60110 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),FRONT |
1 | ||
| 77266-60130 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),REAR |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 77259-60B20 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60790 |
GRJ79;GRJ71,76,78..LHD |
2 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60B00 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-60610 |
VDJ78,79..HT,PIC |
3 | ||
| 77285-60A90 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77285-34031 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77296A - PLATE, FUEL TUBE SUPPORT, NO.2 | ||||
| 77296-60150 |
GRJ79;GRJ78..LHD |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-60160 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-60330 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95333-06020 |
GRJ7# *H,L=200 |
1 | ||
| 95333-06030 |
GRJ7# *H,L=220 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-60350 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-60360 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-60060 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| Common parts | ||||
| 90464-00803 | ||||
| 90464-00817 | ||||
| 90466-11003 | ||||
| 91511-B0616 | ||||
| 91553-A0816 | ||||
| 91641-K0816 | ||||
| 91673-80816 | ||||
| 91674-80820 | ||||
| 91674-80825 | ||||
| 96132-51100 | ||||
| 96135-51100 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 3 OF 5(0907-1608)GRJ78,79..HT,PIC
FUEL TUBE, W(FUEL SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60580 |
GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77206-60580 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4 | ||||
| 77208-60230 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77208-60230 |
GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-60C50 |
GRJ7# |
1 | ||
| 77205-60C80 |
GRJ7# |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-60210 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77249B - HOSE, FUEL | ||||
| 95333-06020 |
GRJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 95333-06020 |
GRJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 95338-06020 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 95337-06018 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),NO.1 |
1 | ||
| 95333-06020 |
HZJ78,79 FUEL TANK-W(SUB TANK),NO.1 |
1 | ||
| 95338-06020 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-60A30 |
HZJ78,79..HT,PIC |
1 | ||
| 77251-60A70 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77252-60840 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77253A - TUBE, FUEL MAIN, NO.3 | ||||
| 77253-60350 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77253-60350 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77253D - HOSE, FUEL | ||||
| 95334-08030 |
GRJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 95338-08030 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 95338-08030 |
GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 95334-08030 |
GRJ79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77254G - TUBE, FUEL MAIN, NO.4 | ||||
| 77253-60360 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77253-60360 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-60A20 |
HZJ78,79..HT,PIC |
1 | ||
| 77255-60A40 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77256-60860 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77256-60830 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77256-60830 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95334-06017 |
GRJ78,79 *H,L=170,FUEL TANK-W(SUB TANK) |
2 | ||
| 95334-06017 |
GRJ79 *H,L=170,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 95338-06017 |
GRJ78,79..HT,PIC L=170,FUEL TANK-W(SUB TANK) |
2 | ||
| 95338-06017 |
GRJ79..PIC..CBU L=170,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95334-06017 |
GRJ78,79 *H,L=170,FUEL TANK-W(SUB TANK) |
2 | ||
| 95334-06017 |
GRJ79 *H,L=170,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 95338-06017 |
GRJ78,79..HT,PIC L=170,FUEL TANK-W(SUB TANK) |
2 | ||
| 95338-06017 |
GRJ79..PIC..CBU L=170,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77257C - TUBE, FUEL RETURN, NO.3 | ||||
| 77257-60290 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77257-60290 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77258A - TUBE, FUEL RETURN, NO.4 | ||||
| 77257-60300 |
GRJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77258-60170 |
VDJ78,79..HT,PIC |
1 | ||
| 77257-60301 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77257-60301 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77257-60300 |
GRJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-60610 |
VDJ78,79 |
1 | ||
| 77259-60611 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77259-60610 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77259-60610 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77259-60611 |
VDJ78,79..HT,PIC |
1 | ||
| 77259-60610 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-60B50 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77259-60B50 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77259-60670 |
VDJ78,79 |
1 | ||
| 77259-60671 |
VDJ78,79..HT,PIC |
1 | ||
| 77259F - HOSE, FUEL | ||||
| 95334-06017 |
GRJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 95334-06017 |
GRJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77259-60810 |
VDJ78,79 |
1 | ||
| 77259-60600 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77259-60811 |
VDJ78,79..HT,PIC |
1 | ||
| 77259-60600 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77259K - HOSE, FUEL | ||||
| 77259-60B40 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77259-60B40 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77262-60460 |
GRJ78,79..HT,PIC |
1 | ||
| 77262-60320 |
GRJ78,79 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77406-60030 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77266-60100 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77266-60100 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),FRONT |
1 | ||
| 77266-60060 |
VDJ78,79 |
1 | ||
| 77266-60100 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),FRONT |
1 | ||
| 77266-60120 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),REAR |
1 | ||
| 77266-60120 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),REAR |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77406-60030 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77266-60100 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77266-60100 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),FRONT |
1 | ||
| 77266-60060 |
VDJ78,79 |
1 | ||
| 77266-60100 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),FRONT |
1 | ||
| 77266-60120 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),REAR |
1 | ||
| 77266-60120 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),REAR |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77266-60110 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),FRONT |
1 | ||
| 77266-60110 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77266-60130 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),REAR |
1 | ||
| 77266-60110 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),FRONT |
1 | ||
| 77266-60130 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),REAR |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77266-60110 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),FRONT |
1 | ||
| 77266-60110 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77266-60130 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),REAR |
1 | ||
| 77266-60110 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),FRONT |
1 | ||
| 77266-60130 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),REAR |
1 | ||
| 77268A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77266-60140 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77266-60140 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 77259-60B20 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77277D - HOSE, FUEL, NO.4 (FOR RETURN TUBE, NO.1) | ||||
| 95334-06017 |
GRJ79..PIC..CBU *H,L=170,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 95334-06017 |
GRJ78..LHD;GRJ79..PIC *H,L=170,FUEL TANK-W(SUB TANK) |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-60320 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77281-60320 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60790 |
GRJ79;GRJ71,76,78..LHD |
2 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60670 |
HZJ71,VDJ78,79..HT,PIC,SOT |
1 | ||
| 77285-60B00 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77285-60B00 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77285J - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60B10 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77285-60B10 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60B20 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77285-60B20 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77285L - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60B30 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77285-60B30 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77285M - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60B40 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77285-60B40 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-60610 |
VDJ78,79..HT,PIC |
3 | ||
| 77285-60A90 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77285-34031 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77285-60460 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77285-60460 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77285-60380 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77285-60790 |
GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77285-60790 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77296A - PLATE, FUEL TUBE SUPPORT, NO.2 | ||||
| 77296-60150 |
GRJ79;GRJ78..LHD |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-60160 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77406 - PROTECTOR SUB-ASSY, FUEL TUBE | ||||
| 77406-60040 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77406-60040 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77406-60020 |
VDJ78,79..HT,PIC |
1 | ||
| 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN | ||||
| 77710-60210 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77710-60190 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77710-60210 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77710-60180 |
VDJ78,79..HT,PIC |
1 | ||
| 77720E - VALVE ASSY, FUEL TANK SOLENOID RETURN | ||||
| 77720-60150 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77720-60140 |
VDJ78,79..HT,PIC |
1 | ||
| 77720-60070 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77720-60070 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-60330 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95333-06020 |
GRJ7# *H,L=200 |
1 | ||
| 95333-06030 |
GRJ7# *H,L=220 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-60350 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-60360 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-60060 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| Common parts | ||||
| 90461-10750 | ||||
| 90464-00803 | ||||
| 90464-00817 | ||||
| 90466-11003 | ||||
| 91511-B0616 | ||||
| 91553-A0816 | ||||
| 91641-K0816 | ||||
| 91651-B0640 | ||||
| 91671-A0818 | ||||
| 91673-80816 | ||||
| 91674-80820 | ||||
| 91674-80825 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| 96135-51100 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 1 OF 5(0907- )GRJ78,79..HT,PIC
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-31140 |
1GRFE..GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 23217-31140 |
1GRFE..GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 23217-31140 |
1GRFE..GRJ7# |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-31150 |
1GRFE..GRJ79;1GRFE..GRJ71,76,78..LHD |
1 | ||
| 23221-31150 |
1GRFE..GRJ78..LHD;1GRFE..GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 23221-31150 |
1GRFE..GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1GRFE..GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 23229-16010 |
1GRFE..GRJ7# |
1 | ||
| 23229-16010 |
1GRFE..GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 23239A - HOSE | ||||
| 23239-11010 |
1GRFE..GRJ79;1GRFE..GRJ71,76,78..LHD |
1 | ||
| 23239-11010 |
1GRFE..GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 23239-11010 |
1GRFE..GRJ78..LHD;1GRFE..GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 23249A - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
1GRFE..GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 23249-74610 |
1GRFE..GRJ79;1GRFE..GRJ71,76,78..LHD |
1 | ||
| 23249-74610 |
1GRFE..GRJ78..LHD;1GRFE..GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-60120 |
GRJ78,79 FUEL TANK-W(SUB TANK) |
2 | ||
| 77011-60120 |
GRJ7#,HZJ7# |
1 | ||
| 77011-60120 |
GRJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77011-60120 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
2 | ||
| 77011-60180 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77011-60180 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77011-60180 |
VDJ78,79..HT,PIC |
2 | ||
| 77011-60180 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77011-60180 |
VDJ79..DCB;GRJ79,HZJ7#;GRJ71,76,78..LHD |
1 | ||
| 77011-60120 |
VDJ78,79 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77249-60090 |
GRJ78..LHD;GRJ79..PIC L=60 |
1 | ||
| 77249-60090 |
GRJ79..PIC..CBU L=60,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77249-60090 |
GRJ78..LHD;GRJ79..PIC L=60,FUEL TANK-W(SUB TANK) |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-60200 |
HZJ78,79,VDJ78,79..HT,PIC |
1 | ||
| 77026-60220 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-60090 |
GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77310-60090 |
GRJ79..PIC FUEL TANK-W(FUEL TANK CAP, W/KEY) |
1 | ||
| 77310-60090 |
GRJ79..PIC FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77310-60090 |
GRJ79 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
GRJ79,HZJ79 |
1 | ||
| 77316-12050 |
GRJ79..PIC FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77316-12050 |
GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77316-12050 |
GRJ79..PIC FUEL TANK-W(FUEL TANK CAP, W/KEY) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
VDJ78,79..HT,PIC |
2 | ||
| 90105-12116 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 90105-12116 |
GRJ71,78..LHD;GRJ79,HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 90105-12116 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 90105-12116 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 90430-12245 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 90430-12245 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 90430-12245 |
VDJ78,79..HT,PIC |
2 | ||
| 90430-12245 |
GRJ71,78..LHD;GRJ79,HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22024 |
GRJ79..PIC L=385,FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 95311-13015 |
VDJ78,79..HT,PIC L=150,MAIN TANK |
1 | ||
| 90445-22024 |
GRJ79..PIC..CBU L=385,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 95311-13015 |
GRJ78..LHD;GRJ79..PIC L=150,FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 95311-13015 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC L=150 |
1 | ||
| 95311-13015 |
HZJ78,79..HT,PIC L=150,FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 95311-13015 |
GRJ79..PIC..CBU L=150,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77178-20010 |
VDJ79..DCB;GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ76 |
1 | ||
| 77178-20010 |
VDJ78,79..HT,PIC |
2 | ||
| 77178-20010 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77178-20010 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26011 |
GRJ78,79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| 77179-26010 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26011 |
GRJ78,79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| 77179-26010 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60720 |
GRJ79..PIC |
1 | ||
| 77201-60730 |
GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60730 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60720 |
GRJ79..PIC |
1 | ||
| 77201-60730 |
GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60730 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60720 |
GRJ79..PIC |
1 | ||
| 77201-60730 |
GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60730 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60720 |
GRJ79..PIC |
1 | ||
| 77201-60730 |
GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60730 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77209-60560 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77203B - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-60280 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77203-60280 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77203-60290 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77203-60290 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77203-60280 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77169-20040 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77169-14020 |
VDJ78,79..HT,PIC |
2 | ||
| 77169-20040 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77169-14010 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77169-14020 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77169-20040 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77169-14010 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60200 |
GRJ79,HZJ79..PIC |
1 | ||
| 77213-60200 |
GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77213-60210 |
GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77213-60200 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77213-60210 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-60B30 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
GRJ78..LHD;GRJ79..PIC *H,L=170,FUEL TANK-W(SUB TANK) |
1 | ||
| 95333-06020 |
GRJ78..LHD;GRJ79..PIC *H,L=170 |
1 | ||
| 95333-06020 |
GRJ79..PIC..CBU *H,L=170,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 95333-06020 |
HZJ78,79,VDJ78,79..HT,PIC *H,L=140 |
1 | ||
| 95333-06020 |
HZJ78,79..HT,PIC *H,L=140,FUEL TANK-W(SUB TANK) |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-60180 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77291 - PACKING, FUEL TANK SUPPORT, UPPER | ||||
| 77293-60030 |
GRJ78..LHD;VDJ79..DCB;GRJ79,HZJ78,79,VDJ78 |
1 | ||
| 77293-60030 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77293-60030 |
GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60030 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77606-60030 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77606-60030 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77606-60130 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77606-60130 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77606-60130 |
VDJ78,79..HT,PIC MAIN TANK |
1 | ||
| 77606-60030 |
VDJ78,79..HT,PIC SUB TANK |
1 | ||
| 77606-60130 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC |
1 | ||
| 77606-60130 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC RH |
1 | ||
| 77601-60230 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60230 |
VDJ78,79..HT,PIC MAIN TANK, RH |
1 | ||
| 77601-60230 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60230 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60261 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77601-60261 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 77602-60100 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77601-60261 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
VDJ78,79..HT,PIC MAIN TANK, LH |
1 | ||
| 77602-60100 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77602-60100 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC LH |
1 | ||
| 77601-60261 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC RH |
1 | ||
| 77601-60230 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60230 |
VDJ78,79..HT,PIC MAIN TANK, RH |
1 | ||
| 77601-60230 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60230 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60261 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77601-60261 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 77602-60100 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77601-60261 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
VDJ78,79..HT,PIC MAIN TANK, LH |
1 | ||
| 77602-60100 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77602-60100 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC LH |
1 | ||
| 77601-60261 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10011 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC |
2 | ||
| 90249-14002 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 90249-14002 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
2 | ||
| 90249-14002 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 90240-10011 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK |
2 | ||
| 90240-10011 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK |
2 | ||
| 90240-10011 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
2 | ||
| 90240-10011 |
VDJ78,79..HT,PIC MAIN TANK |
2 | ||
| 90249-14002 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77616-60080 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77615-60050 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| Common parts | ||||
| 90119-06347 | ||||
| 90119-06621 | ||||
| 90119-10153 | ||||
| 90159-50219 | ||||
| 90179-05042 | ||||
| 90460-65002 | ||||
| 90467-12067 | ||||
| 90467-20134 | ||||
| 90468-14017 | ||||
| 91612-B1020 | ||||
| 91626-B0818 | ||||
| 91673-A0612 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| 96132-51100 | ||||
| 96135-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 5(0907- )GRJ78,79
FUEL SUB TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-31140 |
1GRFE..GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 23217-31140 |
1GRFE..GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 23217-31140 |
1GRFE..GRJ7# |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-31150 |
1GRFE..GRJ79;1GRFE..GRJ71,76,78..LHD |
1 | ||
| 23221-31150 |
1GRFE..GRJ78..LHD;1GRFE..GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 23221-31150 |
1GRFE..GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1GRFE..GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 23229-16010 |
1GRFE..GRJ7# |
1 | ||
| 23229-16010 |
1GRFE..GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 23239A - HOSE | ||||
| 23239-11010 |
1GRFE..GRJ79;1GRFE..GRJ71,76,78..LHD |
1 | ||
| 23239-11010 |
1GRFE..GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 23239-11010 |
1GRFE..GRJ78..LHD;1GRFE..GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 23249A - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
1GRFE..GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 23249-74610 |
1GRFE..GRJ79;1GRFE..GRJ71,76,78..LHD |
1 | ||
| 23249-74610 |
1GRFE..GRJ78..LHD;1GRFE..GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 58279A - PROTECTOR, FUEL HOSE | ||||
| 58279-90K00 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 58279-90K00 |
GRJ79..PIC..CBU FUEL TANK-W(SUB TANK) |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-60120 |
GRJ78,79 FUEL TANK-W(SUB TANK) |
2 | ||
| 77011-60120 |
GRJ7#,HZJ7# |
1 | ||
| 77011-60120 |
GRJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77011-60120 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
2 | ||
| 77011-60180 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77011-60180 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77011-60180 |
VDJ78,79..HT,PIC |
2 | ||
| 77011-60180 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77011-60180 |
VDJ79..DCB;GRJ79,HZJ7#;GRJ71,76,78..LHD |
1 | ||
| 77011-60120 |
VDJ78,79 |
2 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-60540 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77017-60410 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77017-60410 |
HZJ78,79..HT,PIC |
1 | ||
| 77017-60450 |
VDJ78,79..HT,PIC SUB TANK |
1 | ||
| 77017-60440 |
VDJ78,79..HT,PIC MAIN TANK |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-60090 |
GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77310-60090 |
GRJ79..PIC FUEL TANK-W(FUEL TANK CAP, W/KEY) |
1 | ||
| 77310-60090 |
GRJ79..PIC FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77310-60090 |
GRJ79 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
GRJ79,HZJ79 |
1 | ||
| 77316-12050 |
GRJ79..PIC FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77316-12050 |
GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77316-12050 |
GRJ79..PIC FUEL TANK-W(FUEL TANK CAP, W/KEY) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
VDJ78,79..HT,PIC |
2 | ||
| 90105-12116 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 90105-12116 |
GRJ71,78..LHD;GRJ79,HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 90105-12116 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 90105-12116 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 90430-12245 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 90430-12245 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 90430-12245 |
VDJ78,79..HT,PIC |
2 | ||
| 90430-12245 |
GRJ71,78..LHD;GRJ79,HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22024 |
GRJ79..PIC L=385,FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 95311-13015 |
VDJ78,79..HT,PIC L=150,MAIN TANK |
1 | ||
| 90445-22024 |
GRJ79..PIC..CBU L=385,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 95311-13015 |
GRJ78..LHD;GRJ79..PIC L=150,FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 95311-13015 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC L=150 |
1 | ||
| 95311-13015 |
HZJ78,79..HT,PIC L=150,FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 95311-13015 |
GRJ79..PIC..CBU L=150,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77133 - SUPPORT, FUEL SUB-TANK, RH | ||||
| 77133-60101 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77133-60100 |
VDJ78,79 |
1 | ||
| 77133-60100 |
GRJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77133-60101 |
VDJ78,79..HT,PIC |
1 | ||
| 77133-60101 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77133-60100 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77133-60100 |
GRJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77133-60101 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77134 - SUPPORT, FUEL SUB-TANK, LH | ||||
| 77133-60100 |
VDJ78,79 |
1 | ||
| 77133-60100 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77133-60100 |
GRJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77133-60100 |
GRJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77133-60101 |
VDJ78,79..HT,PIC |
1 | ||
| 77133-60101 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77133-60101 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77133-60101 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77178-20010 |
VDJ79..DCB;GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ76 |
1 | ||
| 77178-20010 |
VDJ78,79..HT,PIC |
2 | ||
| 77178-20010 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77178-20010 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60720 |
GRJ79..PIC |
1 | ||
| 77201-60730 |
GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60730 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60720 |
GRJ79..PIC |
1 | ||
| 77201-60730 |
GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60730 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
GRJ79..PIC FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77203B - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-60280 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77203-60280 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77203-60290 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77203-60290 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77203-60280 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77169-20040 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77169-14020 |
VDJ78,79..HT,PIC |
2 | ||
| 77169-20040 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77169-14010 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77169-14020 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77169-20040 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77169-14010 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77169-20040 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77169-14020 |
VDJ78,79..HT,PIC |
2 | ||
| 77169-20040 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77169-14010 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77169-14020 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77169-20040 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77169-14010 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60200 |
GRJ79,HZJ79..PIC |
1 | ||
| 77213-60200 |
GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77213-60210 |
GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77213-60200 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77213-60210 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-60180 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-60180 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77291 - PACKING, FUEL TANK SUPPORT, UPPER | ||||
| 77293-60030 |
GRJ78..LHD;VDJ79..DCB;GRJ79,HZJ78,79,VDJ78 |
1 | ||
| 77293-60030 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77293-60030 |
GRJ79..PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77295F - GROMMET, FUEL HOSE | ||||
| 90480-01303 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 90480-01303 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77296 - PLATE, FUEL TUBE GROMMET SUPPORT | ||||
| 90949-01182 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 90949-01182 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60030 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77606-60030 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77606-60030 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77606-60130 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77606-60130 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77606-60130 |
VDJ78,79..HT,PIC MAIN TANK |
1 | ||
| 77606-60030 |
VDJ78,79..HT,PIC SUB TANK |
1 | ||
| 77606-60130 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC |
1 | ||
| 77606-60130 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC RH |
1 | ||
| 77601-60230 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60230 |
VDJ78,79..HT,PIC MAIN TANK, RH |
1 | ||
| 77601-60230 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60230 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60261 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77601-60261 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 77602-60100 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77601-60261 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
VDJ78,79..HT,PIC MAIN TANK, LH |
1 | ||
| 77602-60100 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77602-60100 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC LH |
1 | ||
| 77601-60261 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC RH |
1 | ||
| 77601-60230 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60230 |
VDJ78,79..HT,PIC MAIN TANK, RH |
1 | ||
| 77601-60230 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60230 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60261 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77601-60261 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 77602-60100 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77601-60261 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
VDJ78,79..HT,PIC MAIN TANK, LH |
1 | ||
| 77602-60100 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77602-60100 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC LH |
1 | ||
| 77601-60261 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10011 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC |
2 | ||
| 90249-14002 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 90249-14002 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
2 | ||
| 90249-14002 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 90240-10011 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK |
2 | ||
| 90240-10011 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),MAIN TANK |
2 | ||
| 90240-10011 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
2 | ||
| 90240-10011 |
VDJ78,79..HT,PIC MAIN TANK |
2 | ||
| 90249-14002 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| Common parts | ||||
| 90119-06195 | ||||
| 90119-06621 | ||||
| 90119-06724 | ||||
| 90119-10556 | ||||
| 90159-50219 | ||||
| 90460-65002 | ||||
| 90467-12067 | ||||
| 90467-20134 | ||||
| 91626-B0818 | ||||
| 91651-61022 | ||||
| 91674-K1035 | ||||
| 93383-15014 | ||||
| 94130-60800 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 5(1208-1608)VDJ78,79..HT,PIC ; (1208- )VDJ79..LX..CBU
FUEL TUBE, W(FUEL SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60580 |
GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77206-60580 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77235 - TUBE, FUEL TANK BREATHER, NO.1 | ||||
| 77235-60020 |
VDJ78,79..HT,PIC |
1 | ||
| 77241E - HOSE, FUEL, NO.5 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08030 |
VDJ78,79 *H,L=220,ID=7.6 |
1 | ||
| 95338-08022 |
VDJ78,79..HT,PIC L=220 |
1 | ||
| 77241H - HOSE, FUEL, NO.7 | ||||
| 95332-10016 |
VDJ78,79 |
1 | ||
| 95337-10016 |
VDJ78,79..HT,PIC |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 77259-60771 |
VDJ78,79..HT,PIC |
1 | ||
| 95333-06030 |
HZJ78,79 *H,L=300 |
1 | ||
| 77259-60770 |
VDJ78,79 |
1 | ||
| 95337-06030 |
HZJ78,79..HT,PIC L=300 |
1 | ||
| 77244 - TUBE, FUEL MAIN, NO.4 | ||||
| 77254-60240 |
VDJ78,79..HT,PIC |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 77259-60820 |
VDJ78,79 |
1 | ||
| 77259-60821 |
VDJ78,79..HT,PIC |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95334-06017 |
GRJ78,79 *H,L=170,FUEL TANK-W(SUB TANK) |
2 | ||
| 95334-06017 |
GRJ79 *H,L=170,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 95338-06017 |
GRJ78,79..HT,PIC L=170,FUEL TANK-W(SUB TANK) |
2 | ||
| 95338-06017 |
GRJ79..PIC..CBU L=170,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77258A - TUBE, FUEL RETURN, NO.4 | ||||
| 77257-60300 |
GRJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77258-60170 |
VDJ78,79..HT,PIC |
1 | ||
| 77257-60301 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77257-60301 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77257-60300 |
GRJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-60610 |
VDJ78,79 |
1 | ||
| 77259-60611 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77259-60610 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77259-60610 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77259-60611 |
VDJ78,79..HT,PIC |
1 | ||
| 77259-60610 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 77259-60630 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77259-60631 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08034 |
VDJ78,79..HT,PIC L=180 |
1 | ||
| 95332-10040 |
HZJ78,79 *H,L=320 |
1 | ||
| 95338-10032 |
HZJ78,79..HT,PIC L=320 |
1 | ||
| 77279G - HOSE, FUEL, NO.2 | ||||
| 77259-60410 |
VDJ78,79 |
1 | ||
| 77259-60411 |
VDJ78,79..HT,PIC |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60670 |
HZJ71,VDJ78,79..HT,PIC,SOT |
1 | ||
| 77285-60B00 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77285-60B00 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-60610 |
VDJ78,79..HT,PIC |
3 | ||
| 77285-60A90 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77285-34380 |
VDJ78,79..HT,PIC |
1 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77285-60830 |
VDJ78,79..HT,PIC |
3 | ||
| 77286P - CLAMP, FUEL TUBE, NO.8 | ||||
| 77285-60740 |
VDJ78,79..HT,PIC |
2 | ||
| 77286Q - CLAMP, FUEL TUBE, NO.9 | ||||
| 77285-60610 |
VDJ78,79..HT,PIC |
1 | ||
| Common parts | ||||
| 90467-18008 | ||||
| 91641-K0816 | ||||
| 96132-41500 | ||||
| 96132-51300 | ||||
ILLUST NO. 3 OF 5(0701-1208)VDJ78,79
FUEL TUBE, W(FUEL SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60580 |
GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77206-60580 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77235 - TUBE, FUEL TANK BREATHER, NO.1 | ||||
| 77235-60020 |
VDJ78,79..HT,PIC |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-60C50 |
GRJ7# |
1 | ||
| 77205-60C80 |
GRJ7# |
1 | ||
| 77241E - HOSE, FUEL, NO.5 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08030 |
VDJ78,79 *H,L=220,ID=7.6 |
1 | ||
| 95338-08022 |
VDJ78,79..HT,PIC L=220 |
1 | ||
| 77241H - HOSE, FUEL, NO.7 | ||||
| 95332-10016 |
VDJ78,79 |
1 | ||
| 95337-10016 |
VDJ78,79..HT,PIC |
1 | ||
| 77241J - HOSE, FUEL, NO.8 | ||||
| 77259-60A80 |
VDJ78,79 |
1 | ||
| 77259-60A81 |
VDJ78,79..HT,PIC |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 77259-60771 |
VDJ78,79..HT,PIC |
1 | ||
| 95333-06030 |
HZJ78,79 *H,L=300 |
1 | ||
| 77259-60770 |
VDJ78,79 |
1 | ||
| 95337-06030 |
HZJ78,79..HT,PIC L=300 |
1 | ||
| 77244 - TUBE, FUEL MAIN, NO.4 | ||||
| 77254-60240 |
VDJ78,79..HT,PIC |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 77259-60820 |
VDJ78,79 |
1 | ||
| 77259-60821 |
VDJ78,79..HT,PIC |
1 | ||
| 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) | ||||
| 77259-60830 |
VDJ78,79 |
1 | ||
| 77259-60831 |
VDJ78,79..HT,PIC |
1 | ||
| 77258A - TUBE, FUEL RETURN, NO.4 | ||||
| 77257-60300 |
GRJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77258-60170 |
VDJ78,79..HT,PIC |
1 | ||
| 77257-60301 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77257-60301 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77257-60300 |
GRJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-60610 |
VDJ78,79 |
1 | ||
| 77259-60611 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77259-60610 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77259-60610 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77259-60611 |
VDJ78,79..HT,PIC |
1 | ||
| 77259-60610 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-60B50 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77259-60B50 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77259-60670 |
VDJ78,79 |
1 | ||
| 77259-60671 |
VDJ78,79..HT,PIC |
1 | ||
| 77259E - HOSE, FUEL | ||||
| 95332-12016 |
VDJ78,79 |
1 | ||
| 95338-12016 |
VDJ78,79..HT,PIC |
1 | ||
| 77259F - HOSE, FUEL | ||||
| 95334-06017 |
GRJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 95334-06017 |
GRJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77259-60810 |
VDJ78,79 |
1 | ||
| 77259-60600 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77259-60811 |
VDJ78,79..HT,PIC |
1 | ||
| 77259-60600 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77406-60030 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77266-60100 |
GRJ78..LHD;GRJ79..PIC |
1 | ||
| 77266-60100 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),FRONT |
1 | ||
| 77266-60060 |
VDJ78,79 |
1 | ||
| 77266-60100 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),FRONT |
1 | ||
| 77266-60120 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),REAR |
1 | ||
| 77266-60120 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK),REAR |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 77259-60B20 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 77259-60630 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77259-60631 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08034 |
VDJ78,79..HT,PIC L=180 |
1 | ||
| 95332-10040 |
HZJ78,79 *H,L=320 |
1 | ||
| 95338-10032 |
HZJ78,79..HT,PIC L=320 |
1 | ||
| 77279G - HOSE, FUEL, NO.2 | ||||
| 77259-60410 |
VDJ78,79 |
1 | ||
| 77259-60411 |
VDJ78,79..HT,PIC |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60670 |
HZJ71,VDJ78,79..HT,PIC,SOT |
1 | ||
| 77285-60B00 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77285-60B00 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-60610 |
VDJ78,79..HT,PIC |
3 | ||
| 77285-60A90 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77285-34380 |
VDJ78,79..HT,PIC |
1 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77285-60830 |
VDJ78,79..HT,PIC |
3 | ||
| 77286P - CLAMP, FUEL TUBE, NO.8 | ||||
| 77285-60740 |
VDJ78,79..HT,PIC |
2 | ||
| 77406 - PROTECTOR SUB-ASSY, FUEL TUBE | ||||
| 77406-60040 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77406-60040 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77406-60020 |
VDJ78,79..HT,PIC |
1 | ||
| 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN | ||||
| 77710-60210 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77710-60190 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77710-60210 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77710-60180 |
VDJ78,79..HT,PIC |
1 | ||
| 77720E - VALVE ASSY, FUEL TANK SOLENOID RETURN | ||||
| 77720-60150 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77720-60140 |
VDJ78,79..HT,PIC |
1 | ||
| 77720-60070 |
GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77720-60070 |
GRJ78..LHD;GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| Common parts | ||||
| 82666-43040 | ||||
| 90119-10240 | ||||
| 90467-18008 | ||||
| 91611-B0816 | ||||
| 91616-40820 | ||||
| 91641-K0816 | ||||
| 91674-80820 | ||||
| 96132-41500 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
