GRJ79L-TJMRK3 (2016)

Toyota Land Cruiser

Production Aug 2016 - Sep 9999
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 4 OF 8(1608- )VDJ79..RHD..PIC ; (1608- )GRJ79,HZJ79..PIC ; (1701- )VDJ79..LX..GC

Click highlighted areas on diagram

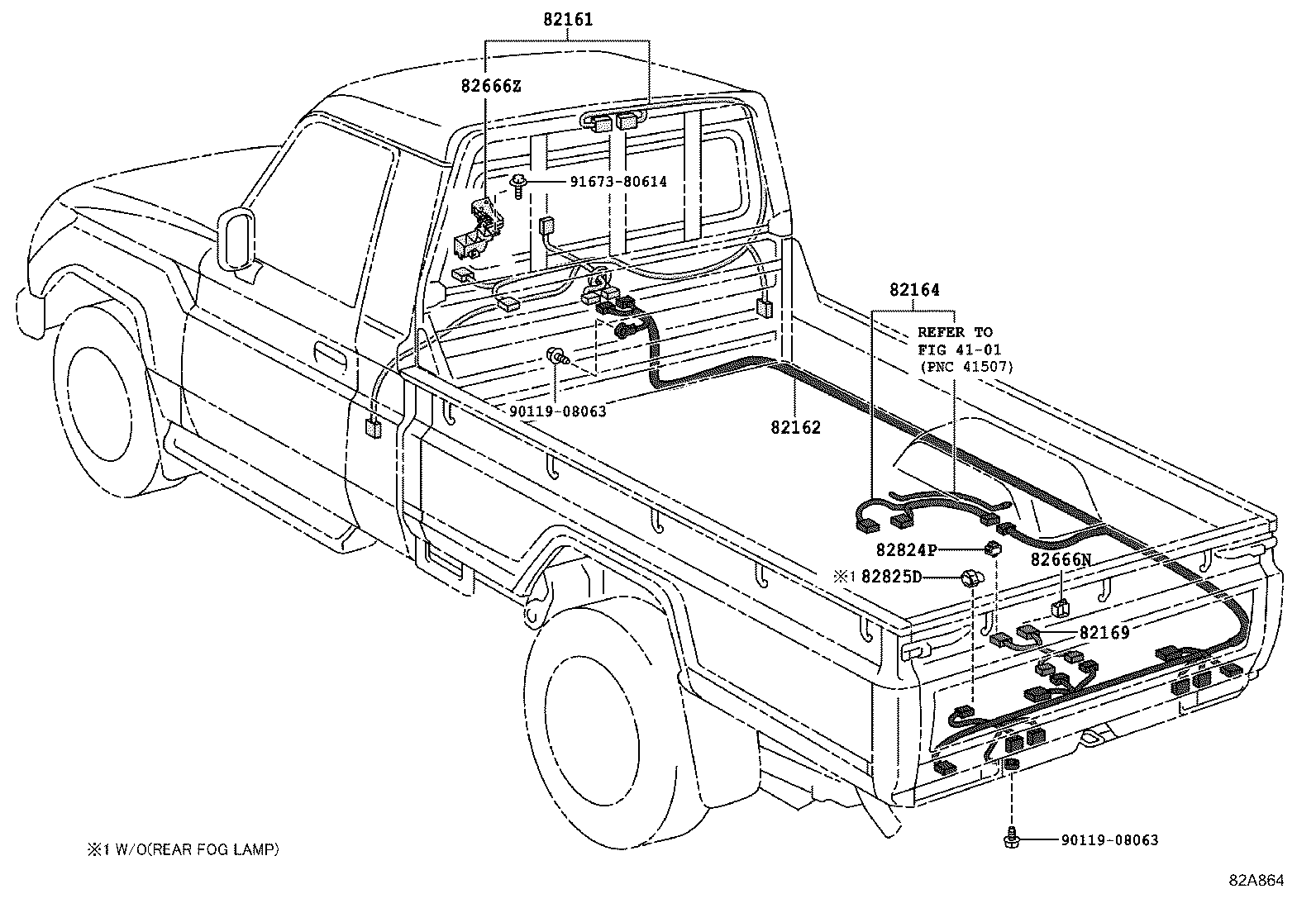

FLOOR & ROOF & FRAME

diagram 4101 82161 82162 82164 82169 82666N 82666Z 82824P 82825D 9011908063 9011908063 9167380614
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-6AL20

HZJ79..PIC;GRJ79..LHD..PIC

 1
82161-6AL30

HZJ79..PIC;GRJ79..LHD..PIC

REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&REAR WHEEL BRAKE-DISCFS14 18V

 1
82161-6AL30

HZJ79..PIC;GRJ79..LHD..PIC

REAR WHEEL BRAKE-DISC FS14 18V

 1
82161-6AL30

HZJ79..PIC;GRJ79..LHD..PIC

REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK

 1
82161-6AL21

HZJ79..PIC;GRJ79..LHD..PIC..GEN

 1
82161-6AL31

HZJ79..PIC;GRJ79..LHD..PIC..GEN

REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&REAR WHEEL BRAKE-DISCFS14 18V

 1
82161-6AL31

HZJ79..PIC;GRJ79..LHD..PIC..GEN

REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK

 1
82161-6AL31

HZJ79..PIC;GRJ79..LHD..PIC..GEN

REAR WHEEL BRAKE-DISC FS14 18V

 1
82161-6AL22

HZJ79..PIC;GRJ79..LHD..PIC..GEN

 1
82161-6AL32

HZJ79..PIC;GRJ79..LHD..PIC..GEN

REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK

 1
82161-6AL32

HZJ79..PIC;GRJ79..LHD..PIC..GEN

REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&ABS (ANTI-LOCK BRK SYSTM)-WITH(ACT DRY)

 1
82161-6AL32

HZJ79..PIC;GRJ79..LHD..PIC..GEN

ABS (ANTI-LOCK BRK SYSTM)-WITH(ACT DRY)

 1
82162 - WIRE, FLOOR, NO.2
82162-60Z50

HZJ79..PIC;GRJ79..PIC..GEN

 1
82162-6AS80

HZJ79..PIC;GRJ79..PIC..GEN

REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK

 1
82162-6AS80

HZJ79..PIC;GRJ79..PIC..GEN

REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&TRAILER WIRING HARNESS-WITH

 1
82162-6AS80

HZJ79..PIC;GRJ79..PIC..GEN

TRAILER WIRING HARNESS-WITH

 1
82162-6AT30

GRJ79..PIC..GEN

FUEL TANK-W(SUB TANK)&REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&TRAILER WIRING HARNESS-WITH

 1
82162-6AT20

GRJ79..PIC..GEN

FUEL TANK-W(SUB TANK)

 1
82162-6AT30

GRJ79..PIC..GEN

FUEL TANK-W(SUB TANK)&REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK

 1
82162-6AT30

GRJ79..PIC..GEN

FUEL TANK-W(SUB TANK)&TRAILER WIRING HARNESS-WITH

 1
82162-60Z51

GRJ79,HZJ79..PIC..GEN

 1
82162-6AS81

GRJ79,HZJ79..PIC..GEN

TRAILER WIRING HARNESS-WITH

 1
82162-6AS81

GRJ79,HZJ79..PIC..GEN

REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK

 1
82162-6AS81

GRJ79,HZJ79..PIC..GEN

REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&TRAILER WIRING HARNESS-WITH

 1
82162-6AT31

GRJ79..PIC..GEN

FUEL TANK-W(SUB TANK)&REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&TRAILER WIRING HARNESS-WITH

 1
82162-6AT31

GRJ79..PIC..GEN

FUEL TANK-W(SUB TANK)&REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK

 1
82162-6AT31

GRJ79..PIC..GEN

FUEL TANK-W(SUB TANK)&TRAILER WIRING HARNESS-WITH

 1
82162-6AT21

GRJ79..PIC..GEN

FUEL TANK-W(SUB TANK)

 1
82164 - WIRE, FRAME
82164-60G40

HZJ79;GRJ79..LHD..GEN

REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&REAR WHEEL BRAKE-DISCFS14 18V

 1
82164-60G50

HZJ79;GRJ79..LHD..GEN

REAR WHEEL BRAKE-DISC FS14 18V

 1
82164-60G40

GRJ79,HZJ79

REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK

 1
82164-60G40

HZJ79;GRJ79..LHD..GEN

REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&ABS (ANTI-LOCK BRK SYSTM)-WITH(ACT DRY)

 1
82164-60G50

HZJ79;GRJ79..LHD..GEN

ABS (ANTI-LOCK BRK SYSTM)-WITH(ACT DRY)

 1
82169 - WIRE FRAME, NO.3
82169-60150

VDJ78..GCC;HZJ78,79..(HT,PIC)..GEN

FUEL TANK-W(SUB TANK)

 1
82169-60140

GRJ78,79..HT,PIC

FUEL TANK-W(SUB TANK)

 1
82666Z - HOLDER, CONNECTOR NO.19
82666-60G21

GRJ7#,HZJ7#,VDJ7#

 1
82666-60G20

GRJ7#,HZJ7#,VDJ7#

 1
82825D - CONNECTOR, WIRING HARNESS
82824-60C30

HZJ79;GRJ79,VDJ79..GEN

 1
Common parts
90119-08063
91673-80614
Linked diagrams
4101
