GRJ79L-TJMRK3 (2016)
Toyota Land Cruiser

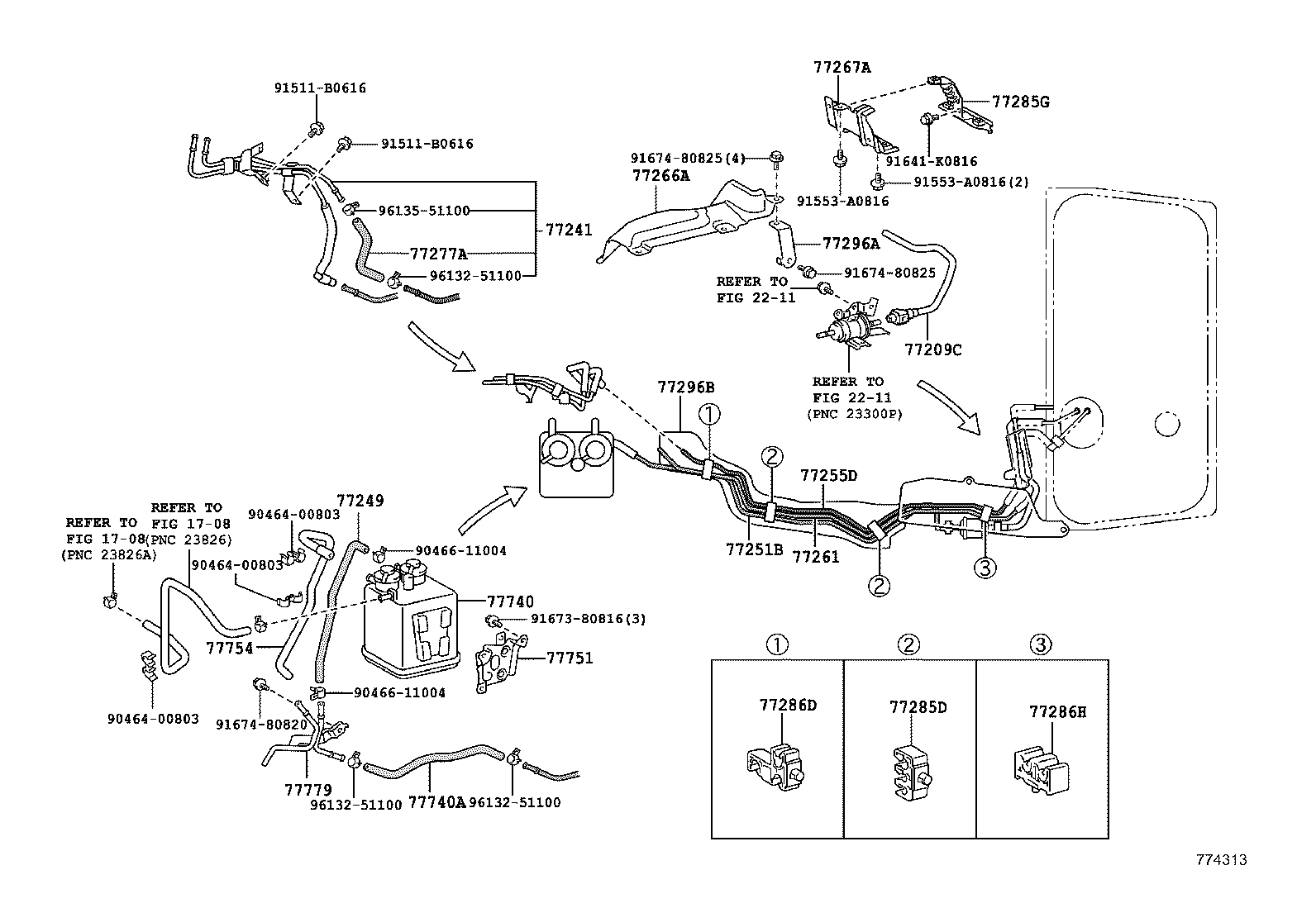

ILLUST NO. 3 OF 5(1608- )GRJ78,79..HT,PIC
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-60640 |
GRJ78,79..HT,PIC |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-60C80 |
GRJ7# |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-60210 |
GRJ7# |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-60A70 |
HZJ78,79..(HT,PIC)..GEN FUEL TANK-W(SUB TANK) |
1 | ||
| 77251-60A30 |
HZJ78,79..(HT,PIC)..GEN |
1 | ||
| 77252-60840 |
GRJ7# |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-60A40 |
HZJ78,79..(HT,PIC)..GEN FUEL TANK-W(SUB TANK) |
1 | ||
| 77256-60830 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77255-60A20 |
HZJ78,79..(HT,PIC)..GEN |
1 | ||
| 77256-60860 |
GRJ78,79..HT,PIC |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77262-60460 |
GRJ78,79..HT,PIC |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-60100 |
GRJ78,79..HT,PIC |
1 | ||
| 77266-60120 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),REAR |
1 | ||
| 77406-60030 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77266-60130 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),REAR |
1 | ||
| 77266-60110 |
GRJ78,79..HT,PIC |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 77259-60B20 |
GRJ7# |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60790 |
GRJ7# |
2 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60B00 |
GRJ78,79..HT,PIC |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-60A90 |
GRJ7# |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77285-34031 |
GRJ7# |
1 | ||
| 77296A - PLATE, FUEL TUBE SUPPORT, NO.2 | ||||
| 77296-60150 |
GRJ78,79 |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-60160 |
GRJ7# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-60330 |
GRJ7# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95333-06020 |
GRJ7# *H,L=200 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-60350 |
GRJ7# |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-60360 |
GRJ7# |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-60060 |
GRJ7# |
1 | ||
| Common parts | ||||
| 90464-00803 | ||||
| 90466-11004 | ||||
| 91511-B0616 | ||||
| 91553-A0816 | ||||
| 91641-K0816 | ||||
| 91673-80816 | ||||
| 91674-80820 | ||||
| 91674-80825 | ||||
| 96132-51100 | ||||
| 96135-51100 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

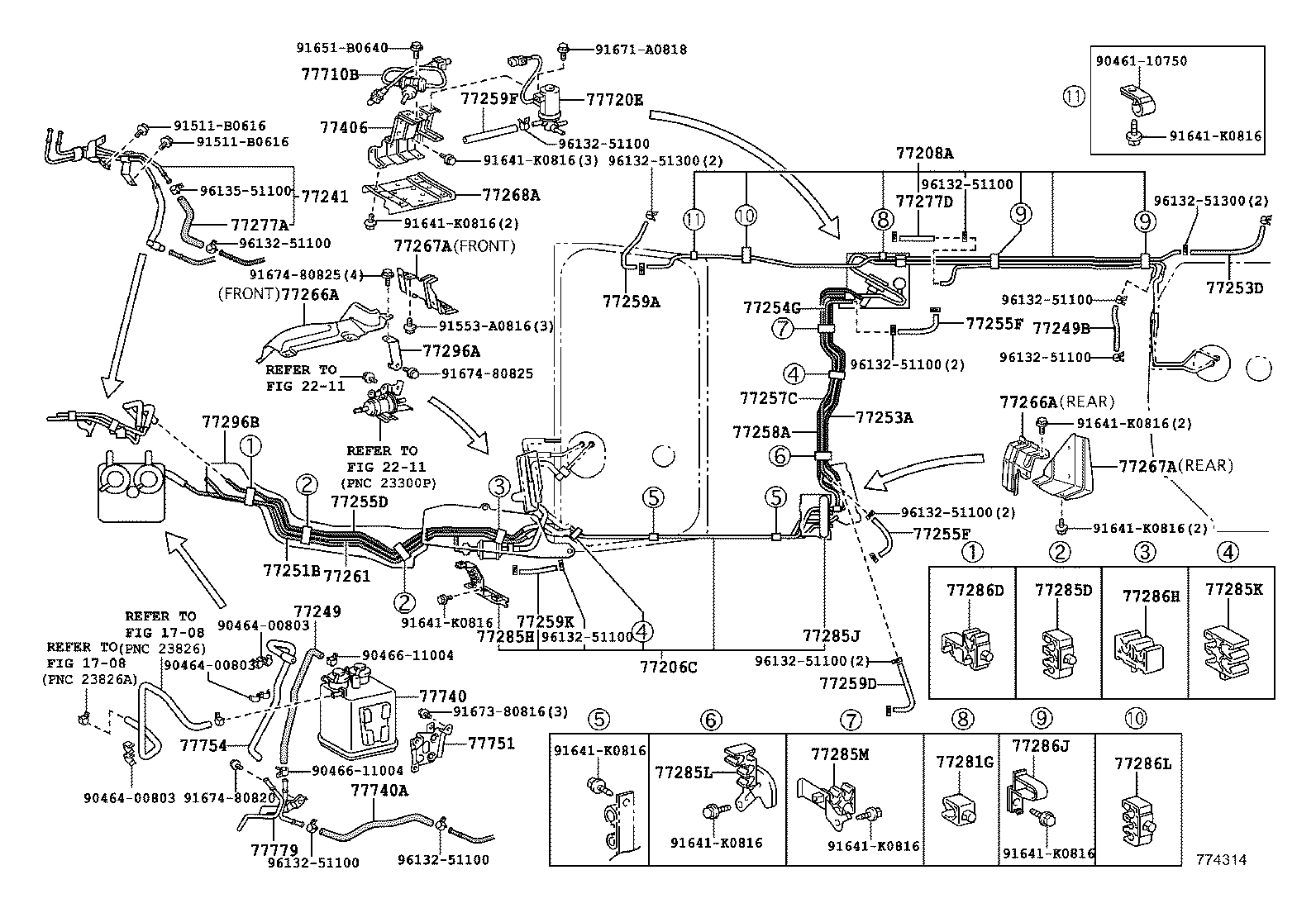

ILLUST NO. 3 OF 5(1608- )GRJ78,79..HT,PIC
FUEL TUBE, W(FUEL SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60580 |
GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4 | ||||
| 77208-60230 |
GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-60C80 |
GRJ7# |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-60210 |
GRJ7# |
1 | ||
| 77249B - HOSE, FUEL | ||||
| 95337-06018 |
HZJ78,79..(HT,PIC)..GEN FUEL TANK-W(SUB TANK),NO.1 |
1 | ||
| 95338-06020 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-60A70 |
HZJ78,79..(HT,PIC)..GEN FUEL TANK-W(SUB TANK) |
1 | ||
| 77251-60A30 |
HZJ78,79..(HT,PIC)..GEN |
1 | ||
| 77252-60840 |
GRJ7# |
1 | ||
| 77253A - TUBE, FUEL MAIN, NO.3 | ||||
| 77253-60350 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77253D - HOSE, FUEL | ||||
| 95338-08030 |
GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77254G - TUBE, FUEL MAIN, NO.4 | ||||
| 77253-60360 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-60A40 |
HZJ78,79..(HT,PIC)..GEN FUEL TANK-W(SUB TANK) |
1 | ||
| 77256-60830 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77255-60A20 |
HZJ78,79..(HT,PIC)..GEN |
1 | ||
| 77256-60860 |
GRJ78,79..HT,PIC |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95338-06017 |
GRJ78,79..HT,PIC L=170,FUEL TANK-W(SUB TANK) |
2 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95338-06017 |
GRJ78,79..HT,PIC L=170,FUEL TANK-W(SUB TANK) |
2 | ||
| 77257C - TUBE, FUEL RETURN, NO.3 | ||||
| 77257-60290 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77258A - TUBE, FUEL RETURN, NO.4 | ||||
| 77257-60301 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-60610 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77259-60611 |
HZJ78,79,VDJ78..(HT,PIC)..(GCC,GEN) FUEL TANK-W(SUB TANK) |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-60B50 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77259F - HOSE, FUEL | ||||
| 77259-60600 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77259K - HOSE, FUEL | ||||
| 77259-60B40 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77262-60460 |
GRJ78,79..HT,PIC |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-60100 |
GRJ78,79..HT,PIC |
1 | ||
| 77266-60120 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),REAR |
1 | ||
| 77406-60030 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-60100 |
GRJ78,79..HT,PIC |
1 | ||
| 77266-60120 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),REAR |
1 | ||
| 77406-60030 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77266-60130 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),REAR |
1 | ||
| 77266-60110 |
GRJ78,79..HT,PIC |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77266-60130 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),REAR |
1 | ||
| 77266-60110 |
GRJ78,79..HT,PIC |
1 | ||
| 77268A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77266-60140 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 77259-60B20 |
GRJ7# |
1 | ||
| 77277D - HOSE, FUEL, NO.4 (FOR RETURN TUBE, NO.1) | ||||
| 95334-06017 |
GRJ78,79..HT,PIC *H,L=170,FUEL TANK-W(SUB TANK) |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-60320 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60790 |
GRJ7# |
2 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60B00 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77285-60670 |
VDJ79..STD..GCC;HZJ71,VDJ78,79..(HT,PIC,SOT)..(GCC,GEN) |
1 | ||
| 77285J - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60B10 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60B20 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77285L - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60B30 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77285M - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60B40 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-60A90 |
GRJ7# |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77285-34031 |
GRJ7# |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77285-60460 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77285-60790 |
GRJ79..PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77285-60380 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77296A - PLATE, FUEL TUBE SUPPORT, NO.2 | ||||
| 77296-60150 |
GRJ78,79 |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-60160 |
GRJ7# |
1 | ||
| 77406 - PROTECTOR SUB-ASSY, FUEL TUBE | ||||
| 77406-60040 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN | ||||
| 77710-60190 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77710-60210 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77720E - VALVE ASSY, FUEL TANK SOLENOID RETURN | ||||
| 77720-60150 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77720-60070 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-60330 |
GRJ7# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95333-06020 |
GRJ7# *H,L=200 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-60350 |
GRJ7# |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-60360 |
GRJ7# |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-60060 |
GRJ7# |
1 | ||
| Common parts | ||||
| 90461-10750 | ||||
| 90464-00803 | ||||
| 90466-11004 | ||||
| 91511-B0616 | ||||
| 91553-A0816 | ||||
| 91641-K0816 | ||||
| 91651-B0640 | ||||
| 91671-A0818 | ||||
| 91673-80816 | ||||
| 91674-80820 | ||||
| 91674-80825 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| 96135-51100 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
