GRJ79L-TJMRK3 (2016)
Toyota Land Cruiser
ILLUST NO. 2 OF 2(1608- )GRJ79..LX ; (1608- )GRJ79..PIC..GEN..CBU ; (1608- )GRJ71,HZJ71,79,
SIDE STEP(ALUMINUM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51077A - BRACKET SUB-ASSY, SIDE STEP, NO.2, RH | ||||
| 51783-60010 |
VDJ79..LX..CBU;GRJ7#,HZJ7#,VDJ76,78..HT,PIC,SOT |
2 | ||
| 51077A - BRACKET SUB-ASSY, SIDE STEP, NO.2, RH | ||||
| 51783-60010 |
VDJ79..LX..CBU;GRJ7#,HZJ7#,VDJ76,78..HT,PIC,SOT |
2 | ||
| 51077B - BRACKET SUB-ASSY, SIDE STEP, NO.2, LH | ||||
| 51783-60010 |
VDJ79..LX..CBU;GRJ7#,HZJ7#,VDJ76,78..HT,PIC,SOT |
2 | ||
| 51077B - BRACKET SUB-ASSY, SIDE STEP, NO.2, LH | ||||
| 51783-60010 |
VDJ79..LX..CBU;GRJ7#,HZJ7#,VDJ76,78..HT,PIC,SOT |
2 | ||
| 51078A - BRACKET SUB-ASSY, SIDE STEP, NO.3, RH | ||||
| 51078-90K01 |
VDJ79..LX..CBU;GRJ78,79,HZJ78,79,VDJ78..HT,PIC |
1 | ||
| 51078B - BRACKET SUB-ASSY, SIDE STEP, NO.3, LH | ||||
| 51078-90K01 |
VDJ79..LX..CBU;GRJ78,79,HZJ78,79,VDJ78..HT,PIC |
1 | ||
| 51707 - STEP SUB-ASSY, RH | ||||
| 51707-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| 51770-60440 |
GRJ78,79,HZJ78,79,VDJ78..(HT,PIC)..STD..(GCC,GEN) GRADE PACKAGE-PLATING PACKAGE |
1 | ||
| 51708 - STEP SUB-ASSY, LH | ||||
| 51780-60450 |
GRJ78,79,HZJ78,79,VDJ78..(HT,PIC)..STD..(GCC,GEN) GRADE PACKAGE-PLATING PACKAGE |
1 | ||
| 51708-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| 51759A - COVER, SIDE DOOR STEP PLATE, REAR LH | ||||
| 51759-60030 |
GRJ78,79,HZJ78,79,VDJ78..(HT,PIC)..STD..(GCC,GEN) GRADE PACKAGE-PLATING PACKAGE |
1 | ||
| 51773B - COVER, SIDE DOOR STEP PLATE, FRONT RH | ||||
| 51773-60030 |
HZJ71..HT;GRJ71,78,79,HZJ78,79,VDJ78..(HT,PIC,SOT)..STD..(GCC,GEN) GRADE PACKAGE-PLATING PACKAGE |
1 | ||
| 51774A - COVER, SIDE DOOR STEP PLATE, FRONT LH | ||||
| 51774-60030 |
HZJ71..HT;GRJ71,78,79,HZJ78,79,VDJ78..(HT,PIC,SOT)..STD..(GCC,GEN) GRADE PACKAGE-PLATING PACKAGE |
1 | ||
| 51779A - COVER, SIDE DOOR STEP PLATE, REAR RH | ||||
| 51779-60030 |
GRJ78,79,HZJ78,79,VDJ78..(HT,PIC)..STD..(GCC,GEN) GRADE PACKAGE-PLATING PACKAGE |
1 | ||
| 51793A - BRACKET, SIDE STEP, NO.1 RH | ||||
| 51793-60030 |
HZJ71..HT;GRJ71,78,79,HZJ78,79,VDJ78..(HT,PIC,SOT)..STD..(GCC,GEN) GRADE PACKAGE-PLATING PACKAGE |
1 | ||
| 51793-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| 51793B - BRACKET, SIDE STEP, NO.1, LH | ||||
| 51793-60030 |
HZJ71..HT;GRJ71,78,79,HZJ78,79,VDJ78..(HT,PIC,SOT)..STD..(GCC,GEN) GRADE PACKAGE-PLATING PACKAGE |
1 | ||
| 51793-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| Common parts | ||||
| 90149-40024 | ||||
| 90179-04021 | ||||
| 91611-A0616 | ||||
| 91635-40618 | ||||
| 91651-40614 | ||||
ILLUST NO. 2 OF 2(1608- )VDJ78..LX ; (1608- )HZJ79,VDJ79..PIC..GEN ; (1608- )GRJ78,79,HZJ78
SIDE STEP(PLATING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51077A - BRACKET SUB-ASSY, SIDE STEP, NO.2, RH | ||||
| 51783-60010 |
VDJ79..LX..CBU;GRJ7#,HZJ7#,VDJ76,78..HT,PIC,SOT |
2 | ||
| 51077A - BRACKET SUB-ASSY, SIDE STEP, NO.2, RH | ||||
| 51783-60010 |
VDJ79..LX..CBU;GRJ7#,HZJ7#,VDJ76,78..HT,PIC,SOT |
2 | ||
| 51077B - BRACKET SUB-ASSY, SIDE STEP, NO.2, LH | ||||
| 51783-60010 |
VDJ79..LX..CBU;GRJ7#,HZJ7#,VDJ76,78..HT,PIC,SOT |
2 | ||
| 51077B - BRACKET SUB-ASSY, SIDE STEP, NO.2, LH | ||||
| 51783-60010 |
VDJ79..LX..CBU;GRJ7#,HZJ7#,VDJ76,78..HT,PIC,SOT |
2 | ||
| 51078A - BRACKET SUB-ASSY, SIDE STEP, NO.3, RH | ||||
| 51078-90K01 |
VDJ79..LX..CBU;GRJ78,79,HZJ78,79,VDJ78..HT,PIC |
1 | ||
| 51078B - BRACKET SUB-ASSY, SIDE STEP, NO.3, LH | ||||
| 51078-90K01 |
VDJ79..LX..CBU;GRJ78,79,HZJ78,79,VDJ78..HT,PIC |
1 | ||
| 51707 - STEP SUB-ASSY, RH | ||||
| 51707-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| 51770-60440 |
GRJ78,79,HZJ78,79,VDJ78..(HT,PIC)..STD..(GCC,GEN) GRADE PACKAGE-PLATING PACKAGE |
1 | ||
| 51708 - STEP SUB-ASSY, LH | ||||
| 51780-60450 |
GRJ78,79,HZJ78,79,VDJ78..(HT,PIC)..STD..(GCC,GEN) GRADE PACKAGE-PLATING PACKAGE |
1 | ||
| 51708-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| 51759A - COVER, SIDE DOOR STEP PLATE, REAR LH | ||||
| 51759-60030 |
GRJ78,79,HZJ78,79,VDJ78..(HT,PIC)..STD..(GCC,GEN) GRADE PACKAGE-PLATING PACKAGE |
1 | ||
| 51773B - COVER, SIDE DOOR STEP PLATE, FRONT RH | ||||
| 51773-60030 |
HZJ71..HT;GRJ71,78,79,HZJ78,79,VDJ78..(HT,PIC,SOT)..STD..(GCC,GEN) GRADE PACKAGE-PLATING PACKAGE |
1 | ||
| 51774A - COVER, SIDE DOOR STEP PLATE, FRONT LH | ||||
| 51774-60030 |
HZJ71..HT;GRJ71,78,79,HZJ78,79,VDJ78..(HT,PIC,SOT)..STD..(GCC,GEN) GRADE PACKAGE-PLATING PACKAGE |
1 | ||
| 51779A - COVER, SIDE DOOR STEP PLATE, REAR RH | ||||
| 51779-60030 |
GRJ78,79,HZJ78,79,VDJ78..(HT,PIC)..STD..(GCC,GEN) GRADE PACKAGE-PLATING PACKAGE |
1 | ||
| 51793A - BRACKET, SIDE STEP, NO.1 RH | ||||
| 51793-60030 |
HZJ71..HT;GRJ71,78,79,HZJ78,79,VDJ78..(HT,PIC,SOT)..STD..(GCC,GEN) GRADE PACKAGE-PLATING PACKAGE |
1 | ||
| 51793-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| 51793B - BRACKET, SIDE STEP, NO.1, LH | ||||
| 51793-60030 |
HZJ71..HT;GRJ71,78,79,HZJ78,79,VDJ78..(HT,PIC,SOT)..STD..(GCC,GEN) GRADE PACKAGE-PLATING PACKAGE |
1 | ||
| 51793-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| Common parts | ||||
| 91611-A0616 | ||||
| 91635-40618 | ||||
| 91651-40614 | ||||
ILLUST NO. 2 OF 2(1608- )GRJ71,78,79,HZJ71,78,79,VDJ78..HT,PIC,SOT..STD
SIDE STEP(PAINTING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51077A - BRACKET SUB-ASSY, SIDE STEP, NO.2, RH | ||||
| 51783-60010 |
VDJ79..LX..CBU;GRJ7#,HZJ7#,VDJ76,78..HT,PIC,SOT |
2 | ||
| 51077A - BRACKET SUB-ASSY, SIDE STEP, NO.2, RH | ||||
| 51783-60010 |
VDJ79..LX..CBU;GRJ7#,HZJ7#,VDJ76,78..HT,PIC,SOT |
2 | ||
| 51077B - BRACKET SUB-ASSY, SIDE STEP, NO.2, LH | ||||
| 51783-60010 |
VDJ79..LX..CBU;GRJ7#,HZJ7#,VDJ76,78..HT,PIC,SOT |
2 | ||
| 51077B - BRACKET SUB-ASSY, SIDE STEP, NO.2, LH | ||||
| 51783-60010 |
VDJ79..LX..CBU;GRJ7#,HZJ7#,VDJ76,78..HT,PIC,SOT |
2 | ||
| 51078A - BRACKET SUB-ASSY, SIDE STEP, NO.3, RH | ||||
| 51078-90K01 |
VDJ79..LX..CBU;GRJ78,79,HZJ78,79,VDJ78..HT,PIC |
1 | ||
| 51078B - BRACKET SUB-ASSY, SIDE STEP, NO.3, LH | ||||
| 51078-90K01 |
VDJ79..LX..CBU;GRJ78,79,HZJ78,79,VDJ78..HT,PIC |
1 | ||
| 51707 - STEP SUB-ASSY, RH | ||||
| 51707-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| 51770-60440 |
GRJ78,79,HZJ78,79,VDJ78..(HT,PIC)..STD..(GCC,GEN) GRADE PACKAGE-PLATING PACKAGE |
1 | ||
| 51708 - STEP SUB-ASSY, LH | ||||
| 51780-60450 |
GRJ78,79,HZJ78,79,VDJ78..(HT,PIC)..STD..(GCC,GEN) GRADE PACKAGE-PLATING PACKAGE |
1 | ||
| 51708-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-90K00 |
HZJ78,79..(HT,PIC)..GEN;GRJ71,78,79,HZJ71,VDJ78,79..(HT,PIC,SOT)..STD NO PAINT REQ. |
2 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-90K00 |
HZJ78,79..(HT,PIC)..GEN;GRJ71,78,79,HZJ71,VDJ78,79..(HT,PIC,SOT)..STD NO PAINT REQ. |
2 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51773-90K00 |
HZJ78,79..(HT,PIC)..GEN;GRJ71,78,79,HZJ71,VDJ78,79..(HT,PIC,SOT)..STD |
2 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51773-90K00 |
HZJ78,79..(HT,PIC)..GEN;GRJ71,78,79,HZJ71,VDJ78,79..(HT,PIC,SOT)..STD |
2 | ||
| 51793A - BRACKET, SIDE STEP, NO.1 RH | ||||
| 51793-60030 |
HZJ71..HT;GRJ71,78,79,HZJ78,79,VDJ78..(HT,PIC,SOT)..STD..(GCC,GEN) GRADE PACKAGE-PLATING PACKAGE |
1 | ||
| 51793-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| 51793B - BRACKET, SIDE STEP, NO.1, LH | ||||
| 51793-60030 |
HZJ71..HT;GRJ71,78,79,HZJ78,79,VDJ78..(HT,PIC,SOT)..STD..(GCC,GEN) GRADE PACKAGE-PLATING PACKAGE |
1 | ||
| 51793-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| Common parts | ||||
| 90179-05102 | ||||
| 91635-40618 | ||||
| 91651-40614 | ||||

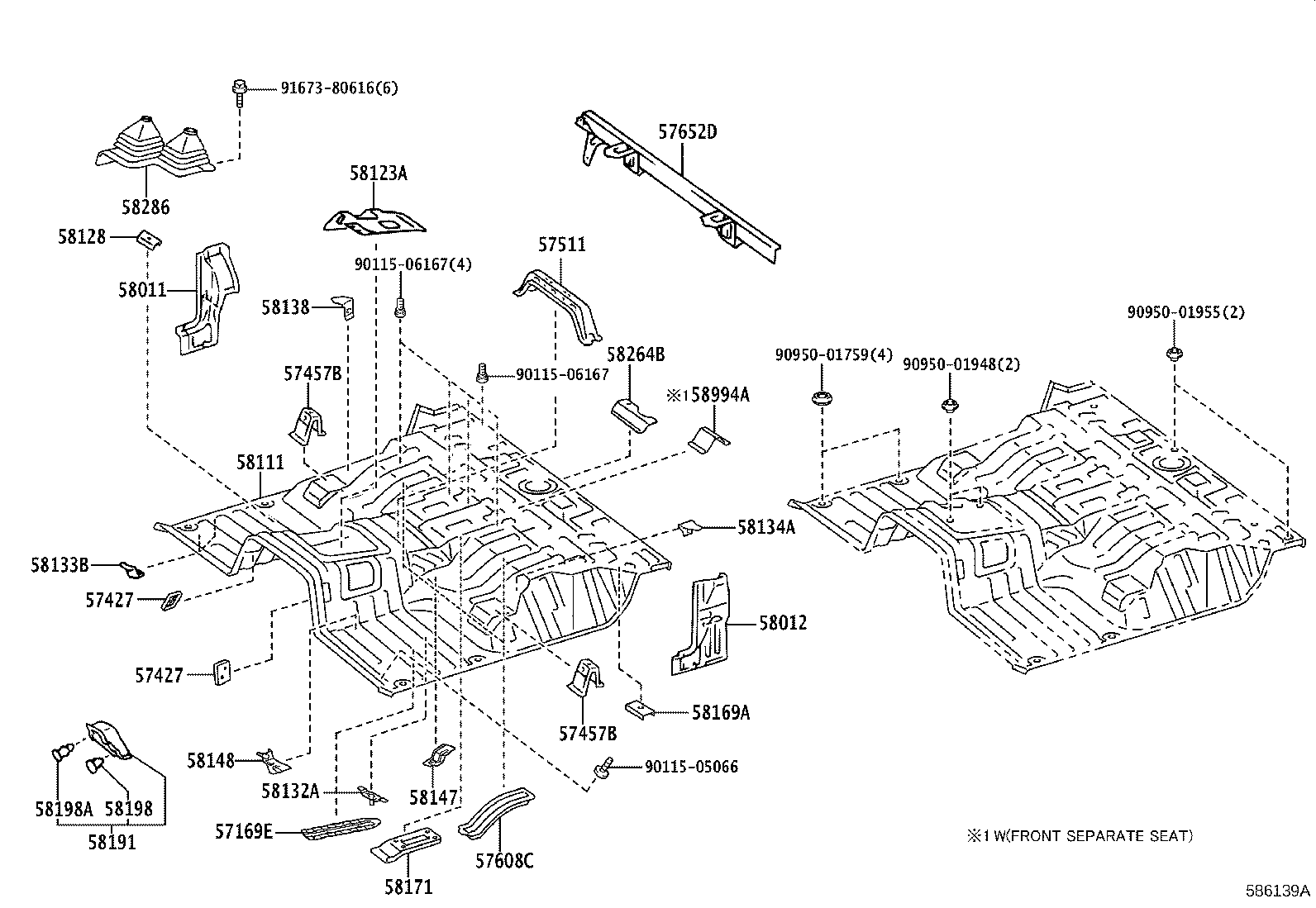

ILLUST NO. 1 OF 2(1608- )GRJ79..LHD..PIC
FRONT FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57169E - REINFORCEMENT, FRONT CROSSMEMBER, NO.4 | ||||
| 57169-60020 |
GRJ7# |
1 | ||
| 57427 - REINFORCEMENT, FRONT FLOOR TO BRACE | ||||
| 57427-90K00 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 57427 - REINFORCEMENT, FRONT FLOOR TO BRACE | ||||
| 57427-90K00 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 57457B - BRACKET, FRONT SEAT, FRONT | ||||
| 57457-60020 |
VDJ79..LX..CBU;GRJ78,79,HZJ78,79,VDJ78..HT,PIC |
2 | ||
| 57457B - BRACKET, FRONT SEAT, FRONT | ||||
| 57457-60020 |
VDJ79..LX..CBU;GRJ78,79,HZJ78,79,VDJ78..HT,PIC |
2 | ||
| 57511 - REINFORCEMENT, FRONT FLOOR, CENTER | ||||
| 57511-90K00 |
VDJ79..DCB;GRJ7#,HZJ7#,VDJ76;VDJ78,79..(HT,PIC)..GCC |
1 | ||
| 57608C - BRACKET SUB-ASSY, FUEL TANK MOUNTING | ||||
| 57608-60060 |
VDJ79..LX..CBU;GRJ78,79,HZJ78,79,VDJ78..HT,PIC |
2 | ||
| 57652D - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57605-60280 |
GRJ79,HZJ79,VDJ79..PIC..(GCC,GEN) |
1 | ||
| 58011 - PANEL SUB-ASSY, FRONT FLOOR SIDE, RH | ||||
| 58011-60080 |
GRJ79,HZJ79,VDJ79..PIC..(GCC,GEN) |
1 | ||
| 58012 - PANEL SUB-ASSY, FRONT FLOOR SIDE, LH | ||||
| 58012-60030 |
GRJ79,HZJ79,VDJ79..PIC..(GCC,GEN) |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-60E40 |
GRJ79,HZJ79,VDJ79..LHD..PIC |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58013-60071 |
VDJ79..CBU;GRJ7#,VDJ76,78;VDJ79..DCB..IV |
1 | ||
| 58128 - PLATE, FRONT FLOOR, NO.1 | ||||
| 58145-60010 |
GRJ7# |
1 | ||
| 58132A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2 | ||||
| 58132-60030 |
GRJ7# |
2 | ||
| 58133B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3 | ||||
| 58133-90A01 |
HZJ79;GRJ78,79,HZJ71,76,78..HT,PIC,SOT |
2 | ||
| 58134A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.4 | ||||
| 58134-60040 |
VDJ78..ARL;GRJ78,79..HT,PIC |
1 | ||
| 58138 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.4 | ||||
| 58133-60030 |
GRJ78,79..HT,PIC |
1 | ||
| 58147 - BRACKET, FRONT FLOOR HOUSING, FRONT LH | ||||
| 58148-60031 |
GRJ78,79..HT,PIC |
1 | ||
| 58148 - BRACKET, FRONT FLOOR HOUSING, REAR LH | ||||
| 58148-60020 |
VDJ79..CBU;VDJ79..DCB..IV;GRJ7#,HZJ7#,VDJ76,78 |
1 | ||
| 58169A - RETAINER, REAR HEATER MOUNTING | ||||
| 58169-90A00 |
GRJ79,HZJ79,VDJ79..PIC..(GCC,GEN) |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-90K01 |
VDJ79..LX..CBU;GRJ78,79,HZJ78,79,VDJ78..HT,PIC |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58190-60070 |
HZJ76,78,79..LHD..GEN;GRJ7#,HZJ71,VDJ7#..LHD |
1 | ||
| 58198 - CLIP, FOOTREST | ||||
| 58198-60060 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 58198-60080 |
VDJ79..CBU;VDJ79..DCB..IV;HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ76,78 |
1 | ||
| 58198A - CLIP, FOOTREST, NO.1 | ||||
| 58198-60050 |
HZJ76,78,79..LHD..GEN;GRJ7#,HZJ71,VDJ7#..LHD |
1 | ||
| 58264B - BRACKET, PARKING BRAKE CABLE GUIDE | ||||
| 58264-60020 |
VDJ79..LX..CBU;GRJ78,79,HZJ78,79,VDJ78..HT,PIC |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58280-60370 |
GRJ7#,VDJ7# |
1 | ||
| Common parts | ||||
| 90115-05066 | ||||
| 90115-06167 | ||||
| 90950-01759 | ||||
| 90950-01948 | ||||
| 90950-01955 | ||||
| 91673-80616 | ||||
