GRJ79L-DKMRK (2012)

Toyota Land Cruiser

Production Aug 2012 - Aug 2016
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )KZJ7#,LJ7#,RJ7#

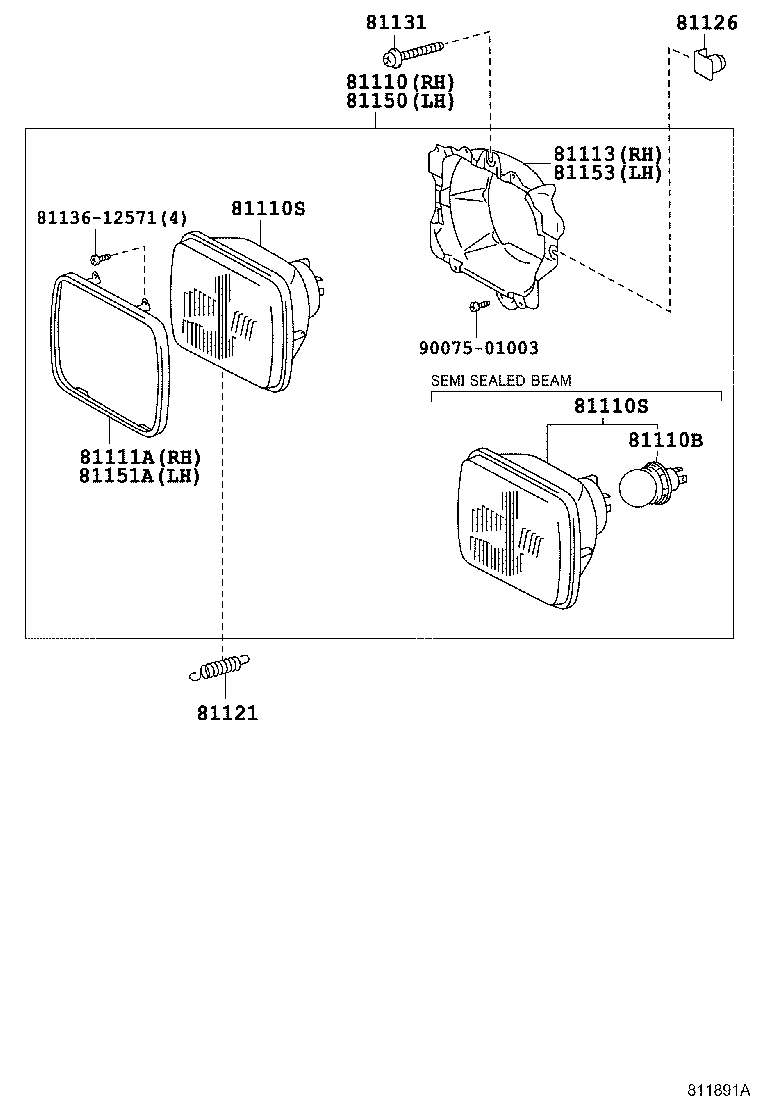

Click highlighted areas on diagram

diagram 81110 81110B 81110S 81110S 81111A 81113 81121 81126 81131 8113612571 81150 81151A 81153 9007501003
Part # Description Qty Price
Common parts
81136-12571
90075-01003

(0701- )

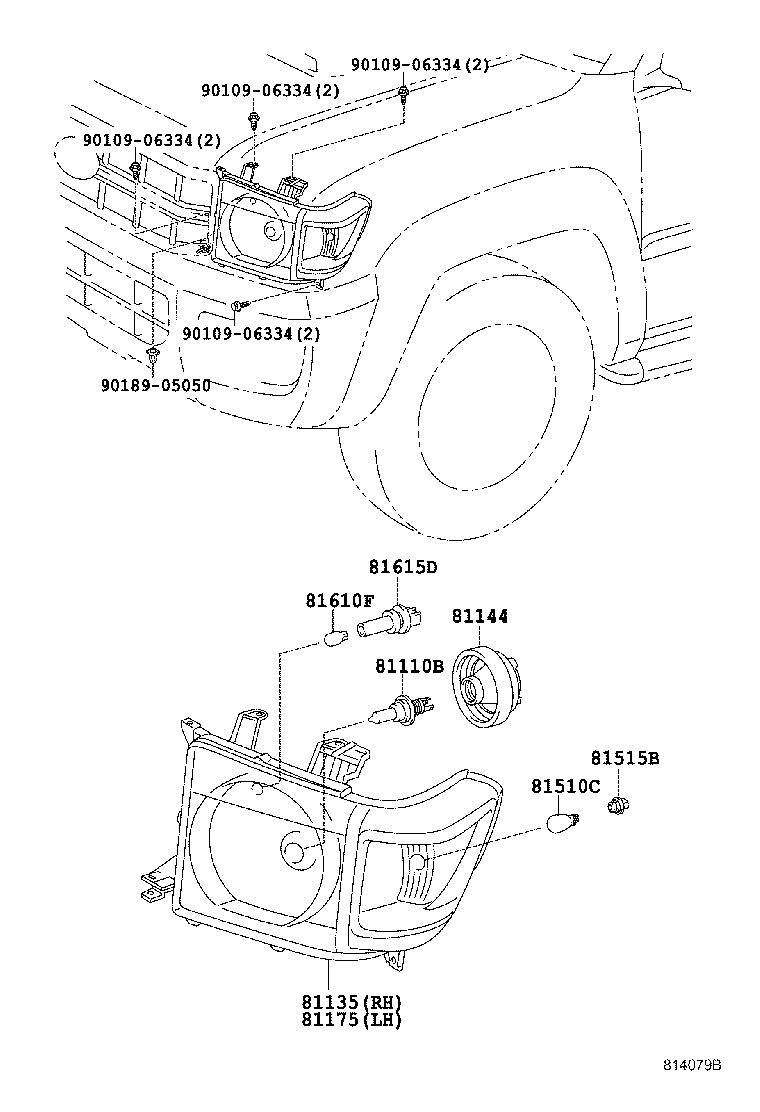

Click highlighted areas on diagram

diagram 81110B 81135 81144 81175 81510C 81515B 81610F 81615D 9010906334 9010906334 9010906334 9010906334 9018905050
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

12V 60/55W,HALOGEN

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-60C40

GRJ7#,HZJ7#..LHD

 1
81144 - COVER, HEADLAMP, NO.1
90075-65019

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 2
81175 - UNIT ASSY, HEADLAMP, LH
81170-60C10

GRJ7#,HZJ7#..LHD

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

12V 21W

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-99078

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60077

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 2
Common parts
90109-06334
90189-05050
