GRJ79L-DKMRK (2012)

Toyota Land Cruiser

Production Aug 2012 - Aug 2016
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1208- )DCB..CBU

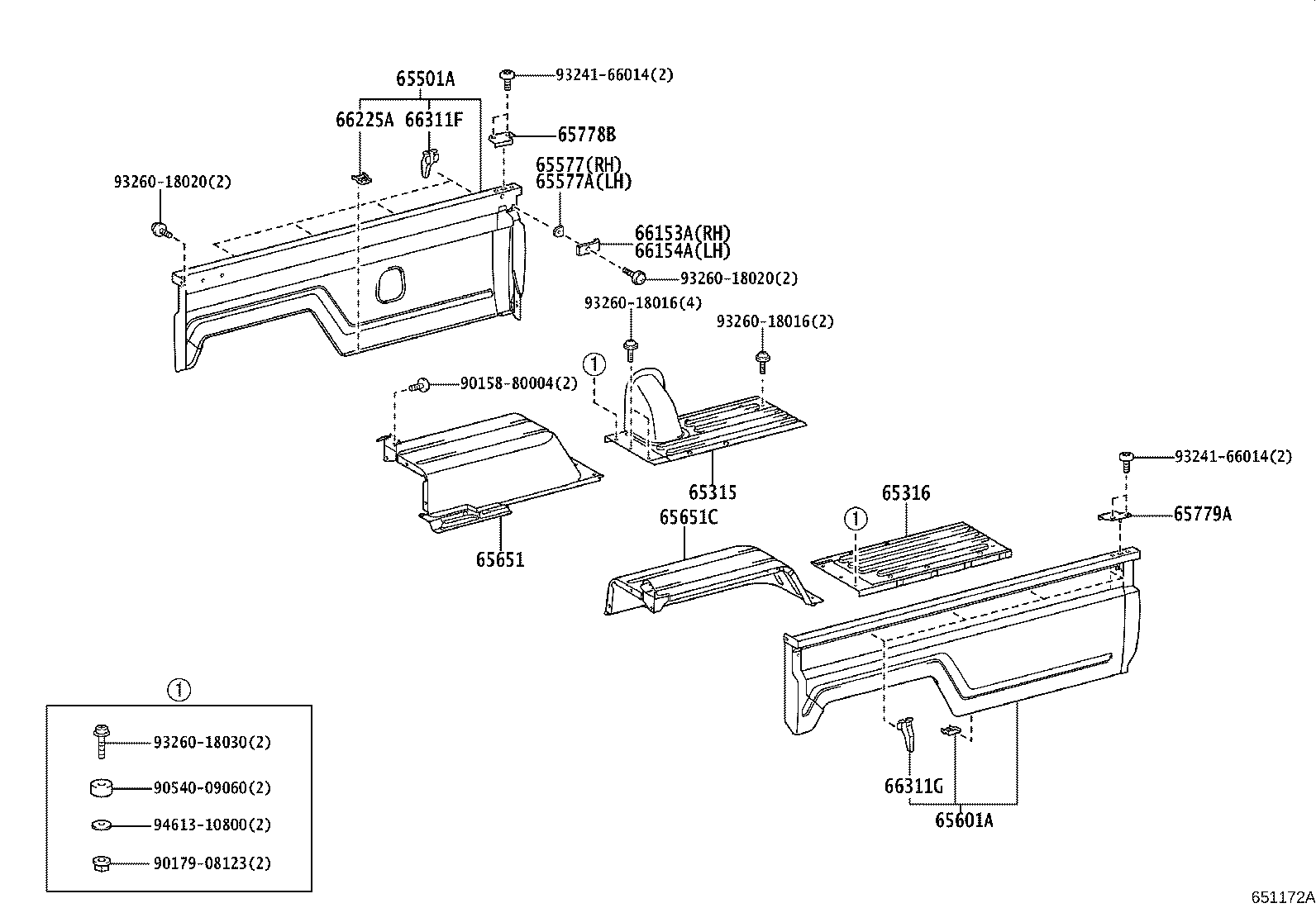

Click highlighted areas on diagram

diagram 65315 65316 65501A 65577 65577A 65601A 65651 65651C 65778B 65779A 66153A 66154A 66225A 66311F 66311G 9015880004 9017908123 9054009060 9324166014 9324166014 9326018016 9326018016 9326018020 9326018020 9326018030 9461310800
Part # Description Qty Price
65315 - PANEL, FLOOR REAR CORNER, RH
65037-90K00

VDJ79..CBU;GRJ79,HZJ79..DCB

 1
65316 - PANEL, FLOOR REAR CORNER, LH
65316-60010

FZJ79,GRJ79,HZJ79,VDJ79..CBU

 1
65501A - PANEL SUB-ASSY, REAR BODY SIDE, RH
65501-60130

GRJ79,HZJ79,VDJ79..DCB..CBU

 1
65501-60131

GRJ79,HZJ79,VDJ79..DCB..CBU

 1
65577 - RETAINER, TAIL GATE LATCH FEMALE
65577-95012

GRJ79,HZJ79,VDJ79..CBU

 1
65577A - RETAINER, TAIL GATE FEMALE
65577-95012

GRJ79,HZJ79,VDJ79..CBU

 1
65601A - PANEL SUB-ASSY, REAR BODY SIDE, LH
65601-60100

GRJ79,HZJ79,VDJ79..DCB..CBU

 1
65601-60101

GRJ79,HZJ79,VDJ79..DCB..CBU

 1
65651 - PANEL, WHEEL HOUSE
65605-60010

GRJ79,HZJ79,VDJ79..DCB..CBU

 1
65651C - PANEL, WHEEL HOUSE
65606-60020

GRJ79,HZJ79,VDJ79..DCB..CBU

 1
66153A - LATCH, TAIL GATE FEMALE, RH
66153-60010

GRJ79,HZJ79,VDJ79..CBU

 1
66154A - LATCH, TAIL GATE FEMALE, LH
66153-60010

GRJ79,HZJ79,VDJ79..CBU

 1
66225A - SUPPORT, BAFFLE RUBBER
66243-90K00

GRJ79,HZJ79,VDJ79..CBU

 1
66311F - HOOK, ROPE, NO.2
66311-90K00

GRJ79,HZJ79,VDJ79..DCB..CBU

 4
66311G - HOOK, ROPE
66311-90K00

GRJ79,HZJ79,VDJ79..DCB..CBU

 4
Common parts
90158-80004
90179-08123
90540-09060
93241-66014
93260-18016
93260-18020
93260-18030
94613-10800
