GRJ79L-DKMRK (2012)
Toyota Land Cruiser
(1208- )DCB..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

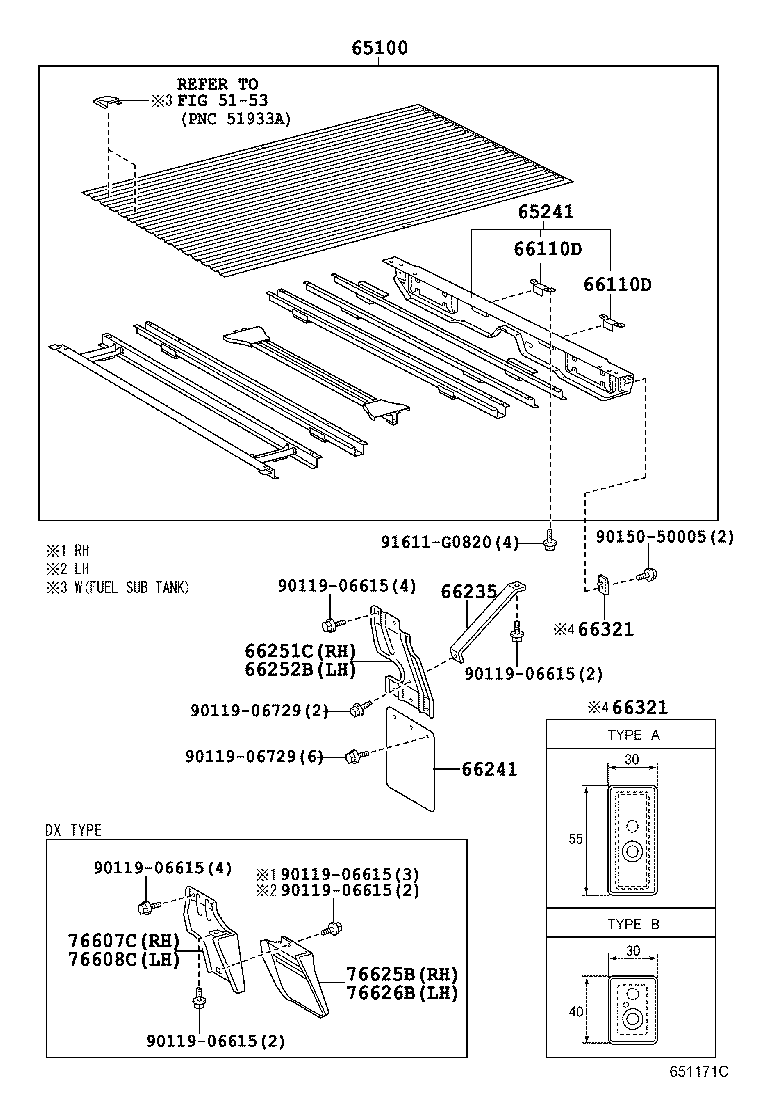

| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-60420 |
GRJ79,HZJ79..DCB |
1 | ||
| 65100-60430 |
GRJ79,HZJ79..LHD..DCB..GEN ALGERIA SPEC |
1 | ||
| 65241 - SILL, REAR CROSS | ||||
| 65240-90K00 |
GRJ79,HZJ79..CBU |
1 | ||
| 65240-90K02 |
GRJ79,HZJ79..LHD..GEN..CBU ALGERIA SPEC |
1 | ||
| 66110D - HINGE ASSY, TAIL GATE | ||||
| 66110-95014 |
GRJ79,HZJ79,VDJ79..CBU |
2 | ||
| 66110D - HINGE ASSY, TAIL GATE | ||||
| 66110-95014 |
GRJ79,HZJ79,VDJ79..CBU |
2 | ||
| 66235 - STAY, REAR FENDER, NO.1 | ||||
| 66235-90K00 |
GRJ79,HZJ79..STD..CBU MUD GUARD-WITH(FRONT & REAR) |
2 | ||
| 66241 - MUDGUARD, REAR | ||||
| 66241-60010 |
GRJ79,HZJ79..STD..CBU MUD GUARD-WITH(FRONT & REAR) |
2 | ||
| 66251C - SUPPORT, MUDGUARD REAR, RH | ||||
| 66251-90K00 |
GRJ79,HZJ79..STD..CBU MUD GUARD-WITH(FRONT & REAR) |
1 | ||
| 66252B - SUPPORT, MUDGUARD, REAR LH | ||||
| 66252-90K00 |
GRJ79,HZJ79..STD..CBU MUD GUARD-WITH(FRONT & REAR) |
1 | ||
| 66321 - BUMPER, GATE RUBBER | ||||
| 66321-37010 |
GRJ79,HZJ79..CBU TYPE A:REFER ILLUST. |
2 | ||
| 66321-90K00 |
GRJ79,HZJ79..LHD..GEN..CBU ALGERIA SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
HZJ79..GEN..CBU;GRJ79..LHD..GEN..CBU TOWING HOOK-FRONT(2) & REAR(1),PINTLE HOOK,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
GRJ79,HZJ79..LHD..GEN..CBU ALGERIA SPEC&TOWING HOOK-FRONT(2) & REAR(1),PINTLE HOOK,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
GRJ79,HZJ79..CBU TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
GRJ79,HZJ79..STD..CBU TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&REAR BUMPER-PAINTED,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
HZJ79..GEN..CBU;GRJ79..LHD..GEN..CBU TOWING HOOK-FRONT(2) & REAR(1),PINTLE HOOK&REAR BUMPER-PAINTED,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
HZJ79..GEN..CBU;GRJ79..LHD..GEN..CBU TOWING HOOK-FRONT(1) & REAR(1),PINTLE HOOK&REAR BUMPER-PAINTED,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
GRJ79,HZJ79..LHD..GEN..CBU ALGERIA SPEC&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
GRJ79,HZJ79..CBU REAR BUMPER-PLATING,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
HZJ79..GEN..CBU;GRJ79..LHD..GEN..CBU TOWING HOOK-FRONT(1) & REAR(1),PINTLE HOOK&REAR BUMPER-PLATING,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
GRJ79,HZJ79..LHD..GEN..CBU ALGERIA SPEC&TOWING HOOK-FRONT(1) & REAR(1),PINTLE HOOK,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
GRJ79,HZJ79..CBU TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&REAR BUMPER-PLATING,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
GRJ79,HZJ79..STD..CBU REAR BUMPER-PAINTED,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
HZJ79..GEN..CBU;GRJ79..LHD..GEN..CBU TOWING HOOK-FRONT(2) & REAR(1),PINTLE HOOK&REAR BUMPER-PLATING,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
HZJ79..GEN..CBU;GRJ79..LHD..GEN..CBU TOWING HOOK-FRONT(1) & REAR(1),PINTLE HOOK,TYPE B:REFER ILLUST. |
2 | ||
| 66321 - BUMPER, GATE RUBBER | ||||
| 66321-37010 |
GRJ79,HZJ79..CBU TYPE A:REFER ILLUST. |
2 | ||
| 66321-90K00 |
GRJ79,HZJ79..LHD..GEN..CBU ALGERIA SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
HZJ79..GEN..CBU;GRJ79..LHD..GEN..CBU TOWING HOOK-FRONT(2) & REAR(1),PINTLE HOOK,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
GRJ79,HZJ79..LHD..GEN..CBU ALGERIA SPEC&TOWING HOOK-FRONT(2) & REAR(1),PINTLE HOOK,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
GRJ79,HZJ79..CBU TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
GRJ79,HZJ79..STD..CBU TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&REAR BUMPER-PAINTED,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
HZJ79..GEN..CBU;GRJ79..LHD..GEN..CBU TOWING HOOK-FRONT(2) & REAR(1),PINTLE HOOK&REAR BUMPER-PAINTED,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
HZJ79..GEN..CBU;GRJ79..LHD..GEN..CBU TOWING HOOK-FRONT(1) & REAR(1),PINTLE HOOK&REAR BUMPER-PAINTED,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
GRJ79,HZJ79..LHD..GEN..CBU ALGERIA SPEC&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
GRJ79,HZJ79..CBU REAR BUMPER-PLATING,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
HZJ79..GEN..CBU;GRJ79..LHD..GEN..CBU TOWING HOOK-FRONT(1) & REAR(1),PINTLE HOOK&REAR BUMPER-PLATING,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
GRJ79,HZJ79..LHD..GEN..CBU ALGERIA SPEC&TOWING HOOK-FRONT(1) & REAR(1),PINTLE HOOK,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
GRJ79,HZJ79..CBU TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&REAR BUMPER-PLATING,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
GRJ79,HZJ79..STD..CBU REAR BUMPER-PAINTED,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
HZJ79..GEN..CBU;GRJ79..LHD..GEN..CBU TOWING HOOK-FRONT(2) & REAR(1),PINTLE HOOK&REAR BUMPER-PLATING,TYPE B:REFER ILLUST. |
2 | ||
| 66321-90K00 |
HZJ79..GEN..CBU;GRJ79..LHD..GEN..CBU TOWING HOOK-FRONT(1) & REAR(1),PINTLE HOOK,TYPE B:REFER ILLUST. |
2 | ||
| 76607C - MUDGUARD SUB-ASSY, REAR BODY, RH | ||||
| 76607-60300 |
GRJ79..STD..CBU;HZJ79,VDJ79..CBU MUD GUARD-WITH(FRONT & REAR),DX TYPE |
1 | ||
| 76608C - MUDGUARD SUB-ASSY, REAR BODY, LH | ||||
| 76608-60300 |
GRJ79..STD..CBU;HZJ79,VDJ79..CBU MUD GUARD-WITH(FRONT & REAR),DX TYPE |
1 | ||
| 76625B - MUDGUARD, REAR BODY, RH | ||||
| 76625-60100 |
GRJ79..STD..CBU;HZJ79,VDJ79..CBU MUD GUARD-WITH(FRONT & REAR),DX TYPE |
1 | ||
| 76626B - MUDGUARD, REAR BODY, LH | ||||
| 76626-60100 |
GRJ79..STD..CBU;HZJ79,VDJ79..CBU MUD GUARD-WITH(FRONT & REAR),DX TYPE |
1 | ||
| Common parts | ||||
| 90119-06615 | ||||
| 90119-06729 | ||||
| 90150-50005 | ||||
| 91611-G0820 | ||||
| Linked diagrams | ||||
| 5153 | ||||
