GRJ79L-DKMRK (2012)

Toyota Land Cruiser

Production Aug 2012 - Aug 2016
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1208- )DCB

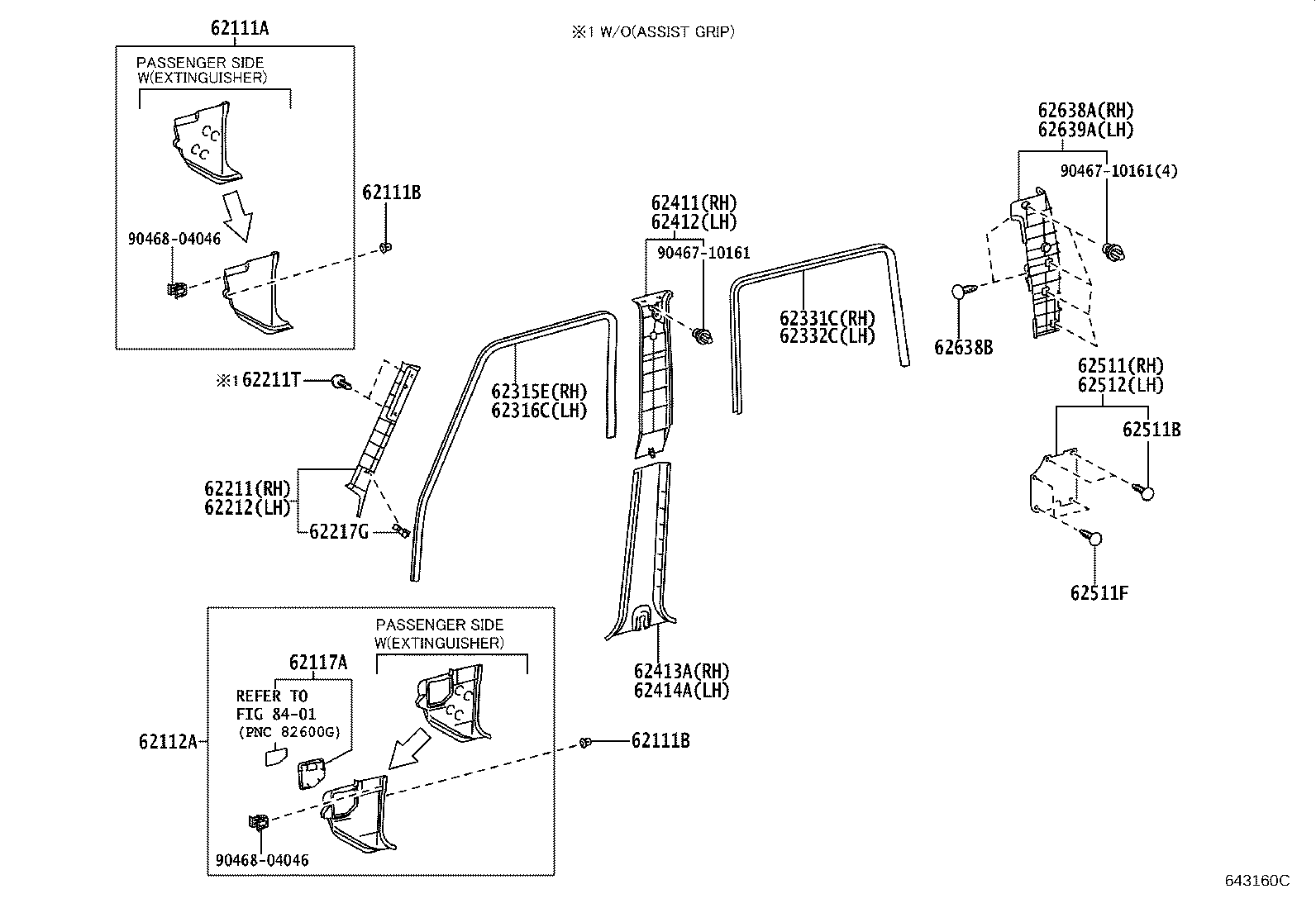

Click highlighted areas on diagram

diagram 62111A 62111B 62111B 62112A 62117A 62211 62211T 62212 62217G 62315E 62316C 62331C 62332C 62411 62412 62413A 62414A 62511 62511B 62511F 62512 62638A 62638B 62639A 8401 9046710161 9046710161 9046804046 9046804046
Part # Description Qty Price
62112A - TRIM SUB-ASSY, COWL SIDE, LH
62102-60201E0

HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7#

MD.OAK,TRIM4#

 1
62102-60201B0

GRJ7#,HZJ7#,VDJ7#

SLATE GRAY,TRIM1#

 1
62102-60202E0

HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7#

MD.OAK,TRIM4#

 1
62102-60202B0

GRJ7#,HZJ7#,VDJ7#

SLATE GRAY,TRIM1#

 1
62117A - COVER, COWL SIDE TRIM SERVICE HOLE
62117-60031B0

GRJ7#,HZJ7#,VDJ7#

SLATE GRAY,TRIM1#,CAUTION LABEL:12V

 1
62117-60031E0

HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7#

MD.OAK,TRIM4#,CAUTION LABEL:12V

 1
62117-60032B0

GRJ7#,HZJ7#,VDJ7#

SLATE GRAY,TRIM1#,CAUTION LABEL:12V

 1
62117-60032E0

HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7#

MD.OAK,TRIM4#,CAUTION LABEL:12V

 1
62331C - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62335-60020B0

GRJ79,HZJ79,VDJ79..DCB

LT.GRAY,TRIM1#,4#

 1
62332C - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62335-60020B0

GRJ79,HZJ79,VDJ79..DCB

LT.GRAY,TRIM1#,4#

 1
62511 - BOARD, QUARTER INSIDE TRIM, RH
62511-60C90C0

GRJ79,HZJ79,VDJ79..DCB

BLACK,TRIM1#,4#

 1
62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD)
90467-05164C0

GRJ79,HZJ79,VDJ79..DCB

BLACK,TRIM1#,4#

 4
62512 - BOARD, QUARTER INSIDE TRIM, LH
62512-60600C0

GRJ79,HZJ79,VDJ79..DCB

BLACK,TRIM1#,4#

 1
62638A - GARNISH, QUARTER PILLAR, RH
62638-60170B0

GRJ79,HZJ79,VDJ79..DCB

LT.GRAY,TRIM1#,4#

 1
62638B - CLIP
90467-05164B0

GRJ79,HZJ79,VDJ79..DCB

LT.GRAY,TRIM1#,4#

 4
62639A - GARNISH, QUARTER PILLAR, LH
62639-60140B0

GRJ79,HZJ79,VDJ79..DCB

LT.GRAY,TRIM1#,4#

 1
Common parts
90467-10161
90468-04046
Linked diagrams
8401
