GRJ79L-DKMRK (2012)

Toyota Land Cruiser

Production Aug 2012 - Aug 2016
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )KZJ7#,LJ7#,RJ7#

Click highlighted areas on diagram

diagram 51065 51100C 51100F 51201A 51203 51204 51205 51206 51291 51321 51321 51322 51322 51401 51402 51528B 51528B 51529B 51529B 51531 51537 51538 51541 51701 51701 51703 51704 51705A 51705A 51705A 51705A 51707C 51707C 51708A 51708A 51709A 51709A 9011910449
Part # Description Qty Price
Common parts
90119-10449

ILLUST NO. 2 OF 2(0701- )

Click highlighted areas on diagram

diagram 38307A 38308A 51491A 51491A 9011912357 91674E1235 9413001202 9461211200
Part # Description Qty Price
51491A - BAR, UNDER GUARD, FRONT NO.1
51491-60020

HZJ79..GEN;HZJ71,76,78;GRJ79..LHD..GEN;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK

 1
51491-60020

HZJ79..GEN;HZJ71,76,78;GRJ79..LHD..GEN;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)

 1
51491-60020

HZJ79..GEN;HZJ71,76,78..HT;GRJ79..LHD..GEN;GRJ71,76,78..LHD..HT

WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&SRS AIR BAG-WITH(DRIVER ONLY)

 1
51491-60020

HZJ79..GEN;HZJ71,76,78..HT;GRJ79..LHD..GEN;GRJ71,76,78..LHD..HT

WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
51491-60020

HZJ79..GEN;HZJ71,76,78..HT;GRJ79..LHD..GEN;GRJ71,76,78..LHD..HT

WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
51491-60020

HZJ79..GEN;HZJ71,76,78;GRJ79..LHD..GEN;GRJ71,76,78..LHD

 1
51491-60020

HZJ79..GEN;HZJ71,76,78..HT;GRJ79..LHD..GEN;GRJ71,76,78..LHD..HT

WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&SRS AIR BAG-WITH(DRIVER ONLY)

 1
51491A - BAR, UNDER GUARD, FRONT NO.1
51491-60020

HZJ79..GEN;HZJ71,76,78;GRJ79..LHD..GEN;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK

 1
51491-60020

HZJ79..GEN;HZJ71,76,78;GRJ79..LHD..GEN;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)

 1
51491-60020

HZJ79..GEN;HZJ71,76,78..HT;GRJ79..LHD..GEN;GRJ71,76,78..LHD..HT

WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&SRS AIR BAG-WITH(DRIVER ONLY)

 1
51491-60020

HZJ79..GEN;HZJ71,76,78..HT;GRJ79..LHD..GEN;GRJ71,76,78..LHD..HT

WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
51491-60020

HZJ79..GEN;HZJ71,76,78..HT;GRJ79..LHD..GEN;GRJ71,76,78..LHD..HT

WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
51491-60020

HZJ79..GEN;HZJ71,76,78;GRJ79..LHD..GEN;GRJ71,76,78..LHD

 1
51491-60020

HZJ79..GEN;HZJ71,76,78..HT;GRJ79..LHD..GEN;GRJ71,76,78..LHD..HT

WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&SRS AIR BAG-WITH(DRIVER ONLY)

 1
Common parts
90119-12357
91674-E1235
94130-01202
94612-11200

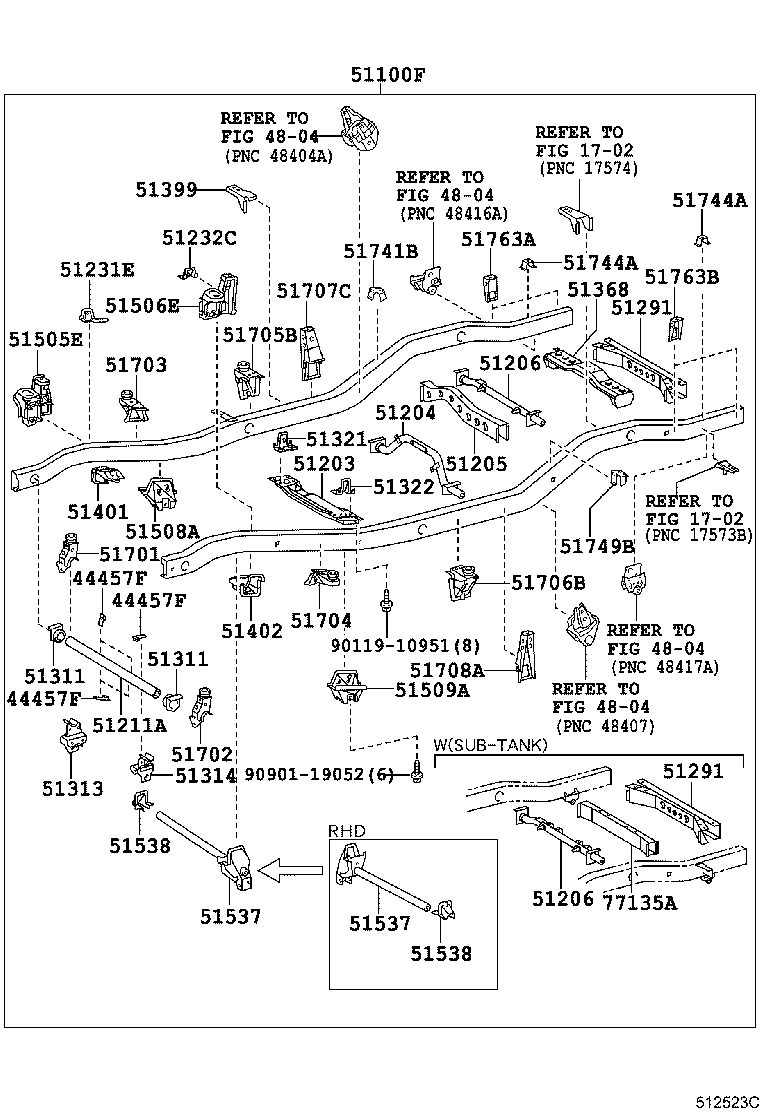

ILLUST NO. 1 OF 2(1208- )DCB ; (1208- )VDJ79..LX..GCC

Click highlighted areas on diagram

diagram 1702 1702 44457F 44457F 44457F 4804 4804 4804 4804 51100F 51203 51204 51205 51206 51206 51211A 51231E 51232C 51291 51291 51311 51311 51313 51314 51321 51322 51368 51399 51401 51402 51505E 51506E 51508A 51509A 51537 51537 51538 51538 51701 51702 51703 51704 51705B 51706B 51707C 51708A 51741B 51744A 51744A 51749B 51763A 51763B 77135A 9011910951 9090119052
Part # Description Qty Price
44457F - BRACKET, TUBE SUPPORT
44457-60150

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 5
44457F - BRACKET, TUBE SUPPORT
44457-60150

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 5
44457F - BRACKET, TUBE SUPPORT
44457-60150

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 5
51100F - FRAME SUB-ASSY
51001-6AE80

GRJ79..LHD..DCB

 1
51001-6AE81

GRJ79..LHD..DCB

 1
51001-6AE82

GRJ79..LHD..DCB

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-60270

GRJ79,VDJ7#;GRJ71,76,78..LHD

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-60240

GRJ71,76,79..DCB,HT,SOT

 1
51203-60220

VDJ76,79..DCB,HT

 1
51203-60132

HZJ71,79..DCB,HT,SOT

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-60160

GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51250-60120

GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51250-60120

GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT

 1
51211A - CROSSMEMBER, FRAME, FRONT
51211-60090

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 1
51291 - CROSSMEMBER, FRAME, REAR
51209-60250

GRJ79,HZJ79,VDJ79..DCB

 1
51291 - CROSSMEMBER, FRAME, REAR
51209-60250

GRJ79,HZJ79,VDJ79..DCB

 1
51311 - GUSSET, FRAME FRONT CROSSMEMBER
51311-60042

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 2
51311 - GUSSET, FRAME FRONT CROSSMEMBER
51311-60042

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 2
51313 - GUSSET, FRONT FRAME, LOWER RH
51313-60030

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 1
51314 - GUSSET, FRONT FRAME, LOWER LH
51314-60030

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 1
51321 - GUSSET, CROSSMEMBER, NO.2 RH
51322-60090

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 1
51322 - GUSSET, CROSSMEMBER, NO.2 LH
51322-60090

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 1
51368 - MEMBER, FRAME FUEL TANK MOUNTING
51368-60020

GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT

 1
51399 - BRACKET, EXHAUST PIPE CLAMP, NO.2
51399-60050

GRJ79..DCB

 1
51506E - BRACKET SUB-ASSY, FRONT SPRING SUPPORT, LH
51506-60040

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 1
51508A - BRACKET SUB-ASSY, LOWER ARM, RH
51518-60060

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 1
51509A - BRACKET SUB-ASSY, LOWER ARM, LH
51519-60040

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 1
51537 - BRACKET, LATERAL ROD SUPPORT
51547-60020

GRJ7#,HZJ7#..LHD

 1
51537 - BRACKET, LATERAL ROD SUPPORT
51547-60020

GRJ7#,HZJ7#..LHD

 1
51538 - STAY, LATERAL ROD SUPPORT
51538-60050

GRJ7#,HZJ7#..LHD

 1
51538 - STAY, LATERAL ROD SUPPORT
51538-60050

GRJ7#,HZJ7#..LHD

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-60070

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51701-60070

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-60090

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51704-60080

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 1
51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH
51705-60130

GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT

 1
51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
51705-60130

GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT

 1
51707C - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH
51707-60120

GRJ79,HZJ79,VDJ79..DCB

 1
51708A - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH
51708-60100

GRJ79,HZJ79,VDJ79..DCB

 1
51741B - BRACKET, BODY REAR MOUNTING, NO.1 RH
51741-60100

GRJ79,HZJ79,VDJ79..DCB

 1
51744A - BRACKET, REAR BODY MOUNTING, NO.4
51744-60020

GRJ79,HZJ79,VDJ79

 2
51744A - BRACKET, REAR BODY MOUNTING, NO.4
51744-60020

GRJ79,HZJ79,VDJ79

 2
51749B - BRACKET, BODY REAR MOUNTING, NO.1 LH
51749-60010

GRJ79,HZJ79,VDJ79..DCB

 1
51763A - BRACKET, BODY SUPPORT, NO.6 RH
51763-60010

GRJ79,HZJ79,VDJ79..DCB

 2
51763B - BRACKET, BODY SUPPORT, NO.6
51763-60010

GRJ79,HZJ79,VDJ79..DCB

 2
Common parts
90119-10951
90901-19052
Linked diagrams
1702
4804
