GRJ79L-DKMRK (2012)

Toyota Land Cruiser

Production Aug 2012 - Aug 2016
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )GRJ7#

Click highlighted areas on diagram

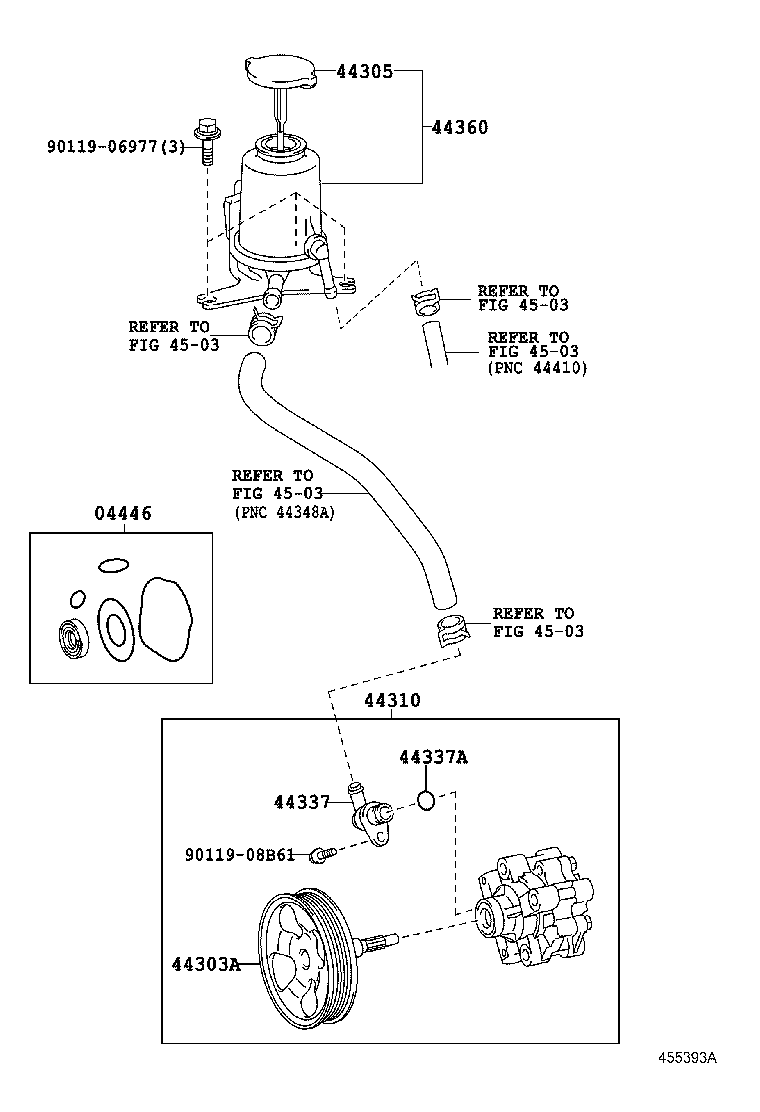

diagram 04446 44303A 44305 44310 44337 44337A 44360 4503 4503 4503 4503 4503 9011906977 9011908B61
Part # Description Qty Price
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-15025

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-60280

GRJ79,VDJ7#;GRJ71,76,78..LHD

 1
Common parts
90119-06977
90119-08B61
Linked diagrams
4503
