GRJ78R-RJMRK (2009)
Toyota Land Cruiser

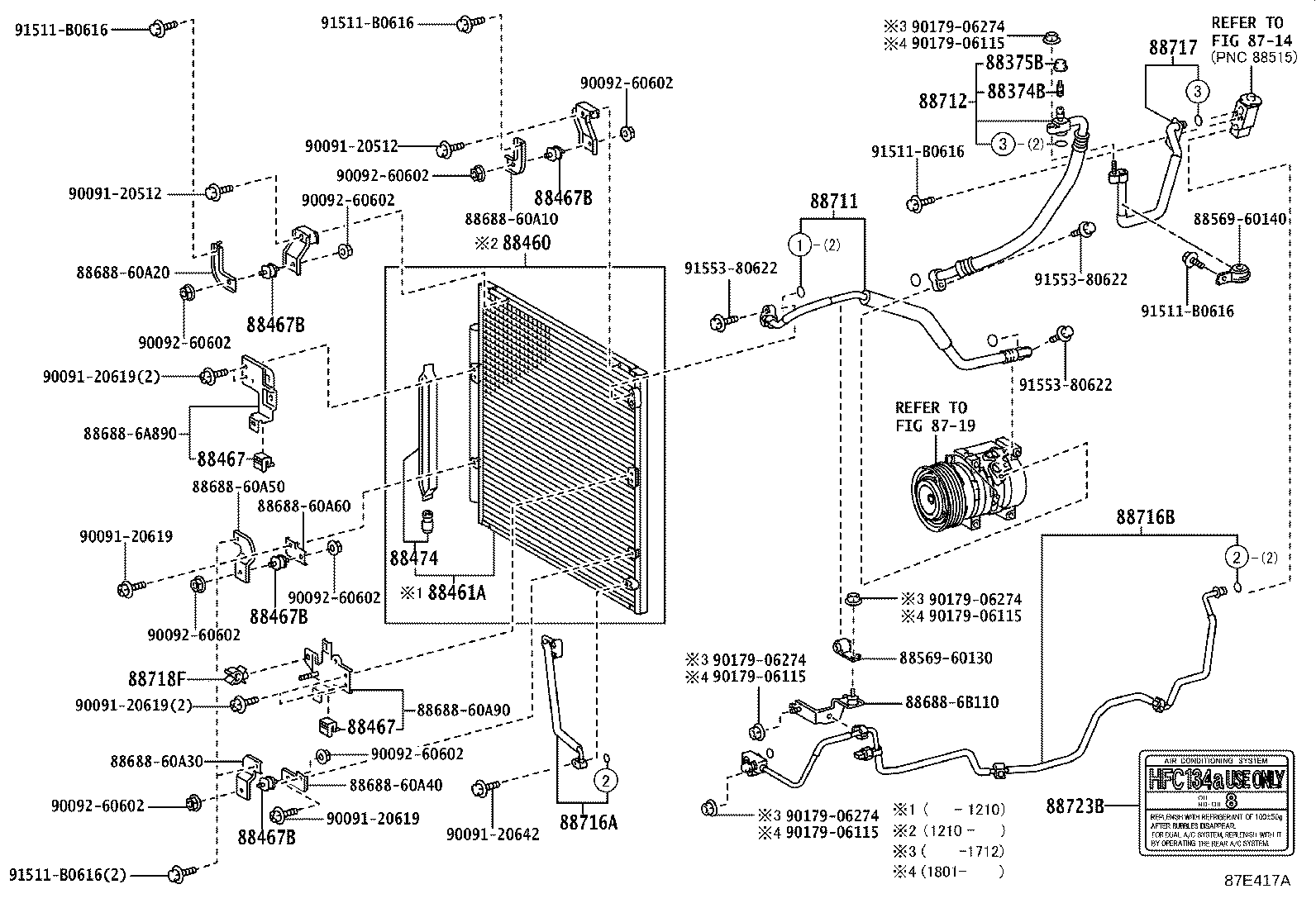

ILLUST NO. 1 OF 2(0907- )GRJ71,78,79..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GRJ71,78..RHD AIR CONDITIONER-WITH |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
GRJ71,78..RHD AIR CONDITIONER-WITH |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-60160 |
GRJ71,78..RHD AIR CONDITIONER-WITH |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-35080 |
GRJ71,78..RHD AIR CONDITIONER-WITH |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-35080 |
GRJ71,78..RHD AIR CONDITIONER-WITH |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-30270 |
GRJ71,78..RHD AIR CONDITIONER-WITH |
4 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-30270 |
GRJ71,78..RHD AIR CONDITIONER-WITH |
4 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-30270 |
GRJ71,78..RHD AIR CONDITIONER-WITH |
4 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-30270 |
GRJ71,78..RHD AIR CONDITIONER-WITH |
4 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
GRJ71,78..RHD AIR CONDITIONER-WITH |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60860 |
GRJ71,78..RHD AIR CONDITIONER-WITH |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-6A470 |
GRJ71,78,79..RHD AIR CONDITIONER-WITH |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6C250 |
GRJ71,78..RHD AIR CONDITIONER-WITH |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-6C360 |
GRJ71,78..RHD AIR CONDITIONER-WITH |
1 | ||
| 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88717-6B160 |
GRJ71,78..RHD AIR CONDITIONER-WITH |
1 | ||
| 88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-2F110 |
GRJ71,78..RHD AIR CONDITIONER-WITH |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-28220 |
GRJ71,78..RHD AIR CONDITIONER-WITH |
1 | ||
| Common parts | ||||
| 88569-60130 | ||||
| 88569-60140 | ||||
| 88688-60A10 | ||||
| 88688-60A20 | ||||
| 88688-60A30 | ||||
| 88688-60A40 | ||||
| 88688-60A50 | ||||
| 88688-60A60 | ||||
| 88688-60A90 | ||||
| 88688-6A890 | ||||
| 88688-6B110 | ||||
| 90091-20512 | ||||
| 90091-20619 | ||||
| 90091-20642 | ||||
| 90092-60602 | ||||
| 90179-06115 | ||||
| 90179-06274 | ||||
| 91511-B0616 | ||||
| 91553-80622 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
