GRJ78R-RJMRK (2009)
Toyota Land Cruiser

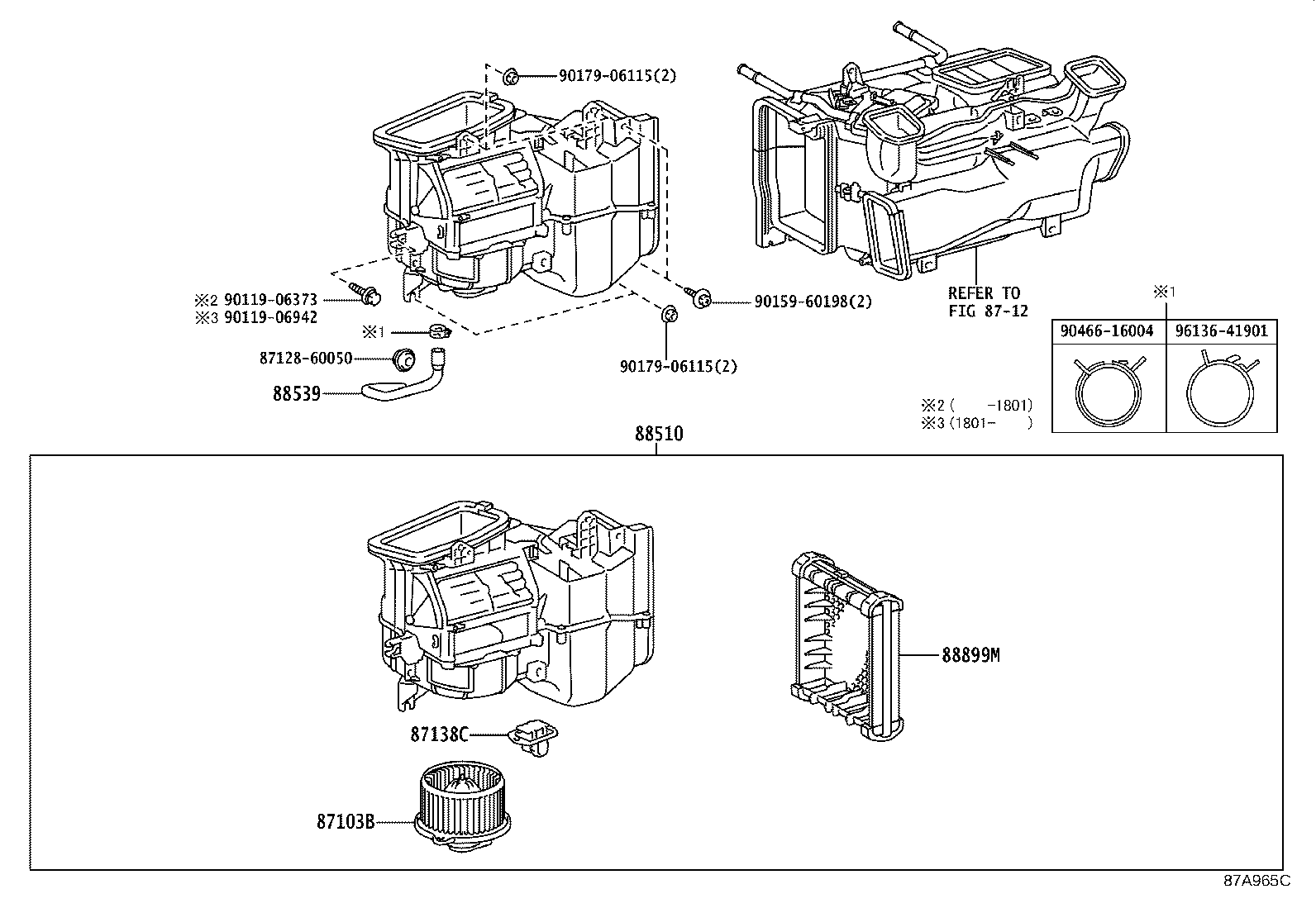

ILLUST NO. 1 OF 2(0907- )GRJ71,78,79..RHD
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-60430 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 87103-60431 |
GRJ71,78..RHD |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-60300 |
GRJ71,78..RHD |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-6A410 |
GRJ71,78..RHD |
1 | ||
| 88510-6A420 |
GRJ71,78,79,HZJ7#..RHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 88510-6A420 |
GRJ78,HZJ76,78..RHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-60320 |
GRJ71,78..RHD |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-60350 |
GRJ71,78..RHD |
1 | ||
| Common parts | ||||
| 87128-60050 | ||||
| 90119-06373 | ||||
| 90119-06942 | ||||
| 90159-60198 | ||||
| 90179-06115 | ||||
| 90466-16004 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 8712 | ||||

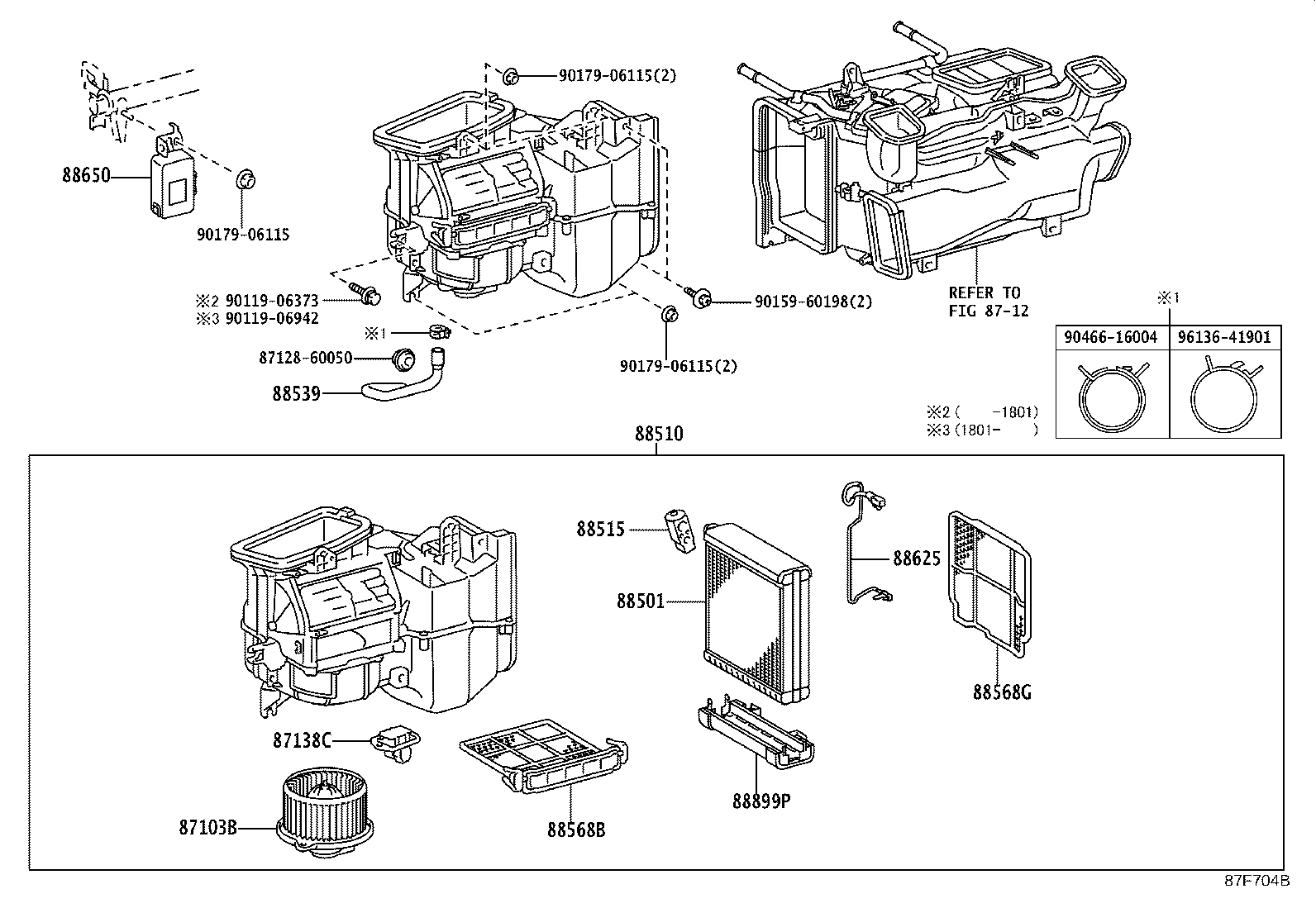

ILLUST NO. 1 OF 2(0907- )GRJ71,78,79..RHD
FRONT:W(COOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-60430 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 87103-60431 |
GRJ71,78..RHD |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-60300 |
GRJ71,78..RHD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-60401 |
GRJ71,78,79,HZJ7#..RHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 88501-60401 |
GRJ78,HZJ76,78..RHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-6A410 |
GRJ71,78..RHD |
1 | ||
| 88510-6A420 |
GRJ71,78,79,HZJ7#..RHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 88510-6A420 |
GRJ78,HZJ76,78..RHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-12090 |
GRJ78;HZJ76,78..RHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88515-12090 |
GRJ71..STD..GEN;GRJ78,79,HZJ7#..RHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-60320 |
GRJ71,78..RHD |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-60070 |
GRJ78;HZJ76,78..RHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88568-60070 |
GRJ71..STD..GEN;GRJ78,79,HZJ7#..RHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 88568G - FILTER, AIR | ||||
| 88568-60030 |
GRJ78,HZJ76,78..RHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88568-60030 |
GRJ71,78,79,HZJ7#..RHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60200 |
GRJ71..STD..GEN;GRJ78,79,HZJ7#..RHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 88625-60200 |
GRJ71,VDJ79..DCB,PIC,SOT;GRJ79,HZJ79,VDJ76,78..RHD..(DCB,HT) AIR CONDITIONER-WITH |
1 | ||
| 88625-60200 |
GRJ78;HZJ76,78..RHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88899P - PLATE, COVER | ||||
| 88899-60330 |
GRJ78;HZJ76,78..RHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88899-60330 |
GRJ71..STD..GEN;GRJ78,79,HZJ7#..RHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 88899-60330 |
GRJ71,VDJ79..DCB,PIC,SOT;GRJ79,HZJ79,VDJ76,78..RHD..(DCB,HT) AIR CONDITIONER-WITH |
1 | ||
| Common parts | ||||
| 87128-60050 | ||||
| 90119-06373 | ||||
| 90119-06942 | ||||
| 90159-60198 | ||||
| 90179-06115 | ||||
| 90466-16004 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 8712 | ||||
