GRJ78R-RJMRK (2009)

Toyota Land Cruiser

Production Jul 2009 - Aug 2012
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

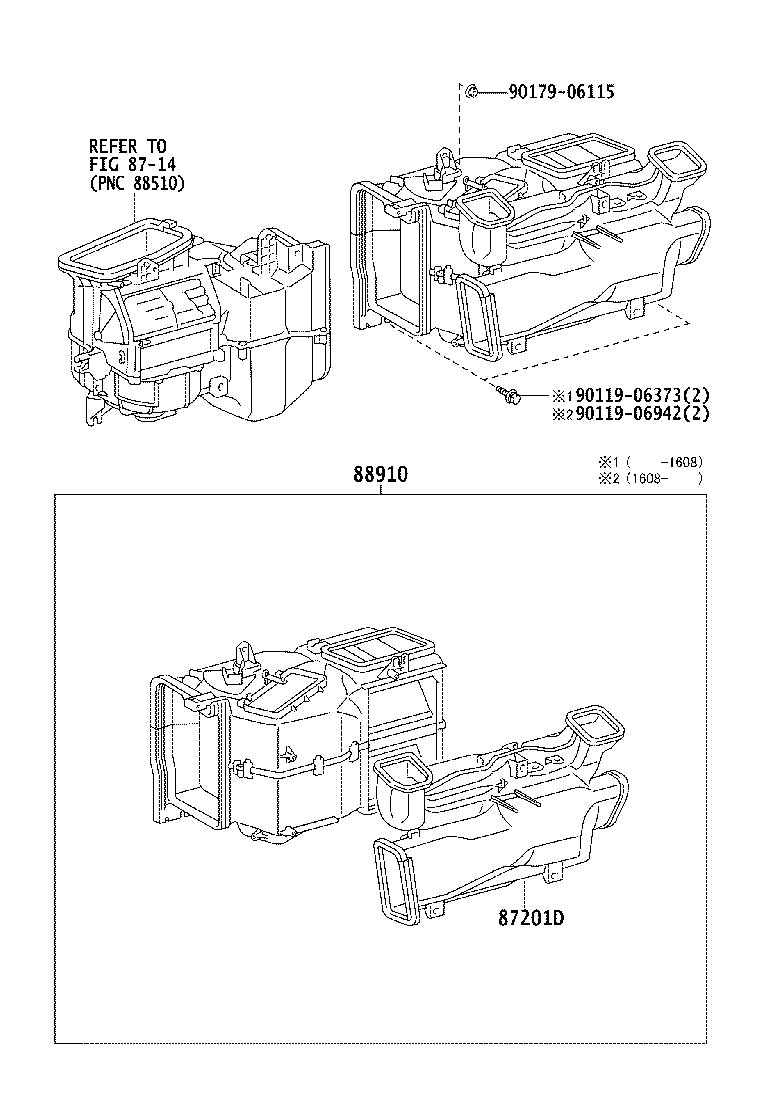

ILLUST NO. 1 OF 3(0907- )GRJ71,78,79,HZJ7#..RHD..HT,PIC,SOT

Click highlighted areas on diagram

BOOST VENTILATOR

diagram 8714 87201D 88910 9011906373 9011906942 9017906115
Part # Description Qty Price
87201D - DUCT SUB-ASSY, AIR
87201-60190

GRJ71,78,79,HZJ7#,VDJ7#..RHD

 1
87201-60210

GRJ71,78..RHD

 1
88910 - VENTILATOR ASSY, BOOST
88910-60120

GRJ71,78,79,HZJ7#..RHD

 1
88910-60140

GRJ71,78,79,HZJ7#..RHD

 1
Common parts
90119-06373
90119-06942
90179-06115
Linked diagrams
8714

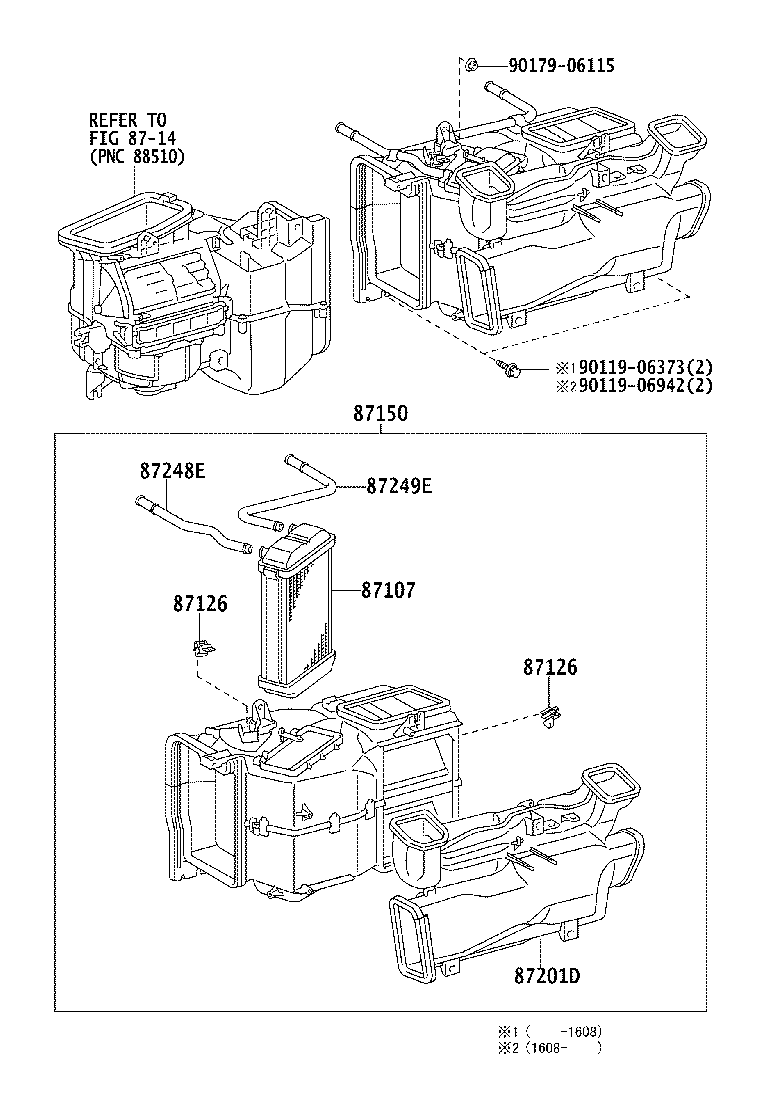

ILLUST NO. 2 OF 3(0907- )RHD

Click highlighted areas on diagram

FRONT HEATER

diagram 87107 87126 87126 8714 87150 87201D 87248E 87249E 9011906373 9011906942 9017906115
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-60210

GRJ71,78,79,HZJ7#..RHD

HEATER-W(FRONT)

 1
87107-60210

GRJ78,HZJ76,78..RHD

HEATER-W(FRONT & REAR)

 1
87126 - CLAMP, HEATER CONTROL
87126-12050

GRJ78;HZJ76,78..RHD

HEATER-W(FRONT & REAR)

 2
87126-12050

GRJ71..STD..GEN;GRJ78,79,HZJ7#..RHD

HEATER-W(FRONT)

 2
87126-12050

GRJ71,VDJ79..DCB,PIC,SOT;GRJ79,HZJ79,VDJ76,78..RHD..(DCB,HT)

 2
87126 - CLAMP, HEATER CONTROL
87126-12050

GRJ78;HZJ76,78..RHD

HEATER-W(FRONT & REAR)

 2
87126-12050

GRJ71..STD..GEN;GRJ78,79,HZJ7#..RHD

HEATER-W(FRONT)

 2
87126-12050

GRJ71,VDJ79..DCB,PIC,SOT;GRJ79,HZJ79,VDJ76,78..RHD..(DCB,HT)

 2
87150 - RADIATOR ASSY, HEATER
87150-60490

GRJ71,78,79,HZJ7#..RHD

HEATER-W(FRONT)

 1
87150-60530

GRJ71,78,79,HZJ7#..RHD

HEATER-W(FRONT)

 1
87150-60490

GRJ78,HZJ76,78..RHD

HEATER-W(FRONT & REAR)

 1
87150-60530

GRJ78,HZJ76,78..RHD

HEATER-W(FRONT & REAR)

 1
87201D - DUCT SUB-ASSY, AIR
87201-60190

GRJ71,78,79,HZJ7#,VDJ7#..RHD

 1
87201-60210

GRJ71,78..RHD

 1
87248E - PIPE, HEATER WATER INLET, E
87248-60560

GRJ71,78,79,HZJ7#..RHD

HEATER-W(FRONT)

 1
87248-60560

GRJ78,HZJ76,78..RHD

HEATER-W(FRONT & REAR)

 1
87249E - PIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT)
87248-60600

GRJ78,HZJ76,78..RHD

HEATER-W(FRONT & REAR)

 1
87248-60600

GRJ71,78,79,HZJ7#..RHD

HEATER-W(FRONT)

 1
Common parts
90119-06373
90119-06942
90179-06115
Linked diagrams
8714
