GRJ78R-RJMRK (2009)
Toyota Land Cruiser
ILLUST NO. 1 OF 7(0907- )GRJ7#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60060 |
GRJ71,78,79..RHD SPEEDOMETER-KM/H |
1 | ||
| 83520-35031 |
HZJ79..DCB..GCC;HZJ76,78,79..GEN..CBU SPEEDOMETER-KM/H |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
GRJ7#..STD |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60030 |
FZJ7#,GRJ7#,VDJ7# |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-12010 |
FZJ7#,GRJ7#,VDJ7# TYPE A:REFER ILLUST. |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-60330 |
GRJ71,78..RHD |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-60420 |
GRJ71,78..RHD |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-60070 |
GRJ71,78..RHD |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-35110 |
GRJ71,78..RHD |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GRJ71,78..RHD |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GRJ71,78..RHD |
2 | ||
| Common parts | ||||
| 82715-60010 | ||||
| 82715-60Q70 | ||||
| 82715-60Q80 | ||||
| 82715-60Q90 | ||||
| 82715-60R00 | ||||
| 90430-18008 | ||||
| 91551-80830 | ||||
| 91671-80612 | ||||
ILLUST NO. 2 OF 7(0907- )GRJ7#

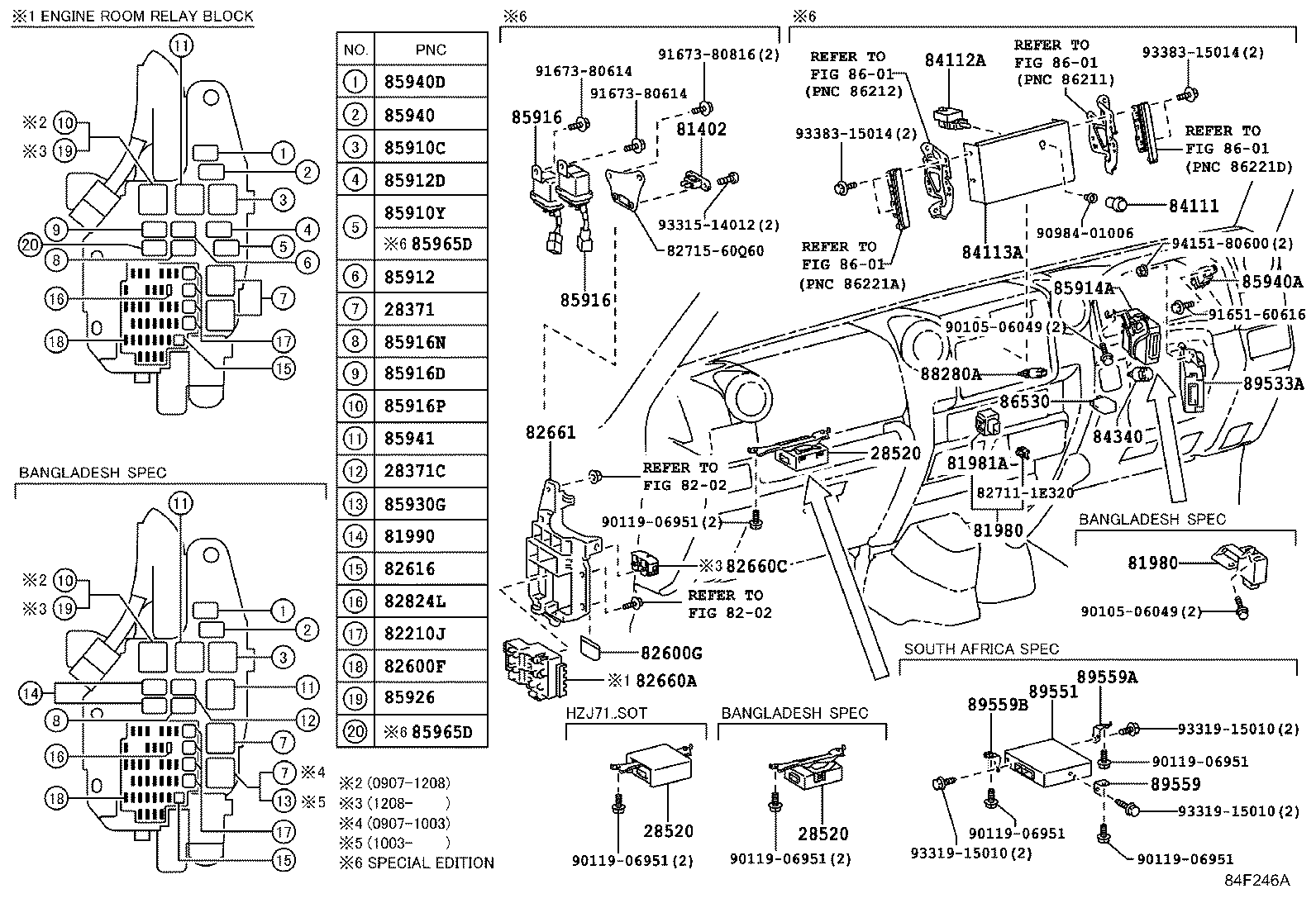

ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-31180 |
1GRFE..GRJ71,78..RHD |
1 | ||
| Common parts | ||||
| 91673-80816 | ||||
ILLUST NO. 4 OF 7(0907- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02025 |
1GRFE..GRJ71,78..RHD |
2 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-30170 |
GRJ71,78..RHD |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-30170 |
GRJ71,78..RHD |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
GRJ71,78..RHD 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08303 |
GRJ71,78..RHD 50A-50A-50A,FEMALE |
1 | ||
| 90982-08296 |
GRJ71,78..RHD 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRJ71,78..RHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
GRJ71,78..RHD 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GRJ71,78..RHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
GRJ71,78..RHD 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GRJ71,78..RHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
GRJ71,78..RHD 30A,MINI FUSE,GRN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GRJ71,78..RHD |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-60160 |
GRJ71,78..RHD |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-60240 |
GRJ71,78..RHD |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
GRJ71,78..RHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-42020 |
GRJ71,78..RHD |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
GRJ71,78..RHD |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02027 |
GRJ78 HEATER-W(FRONT & REAR) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
GRJ71,78..RHD FRONT FOG LAMP-WITH |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02027 |
GRJ71,78..RHD |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
GRJ71,78..RHD |
1 | ||
| Common parts | ||||
| 82711-1E320 | ||||
| 82715-60Q60 | ||||
| 90105-06049 | ||||
| 90119-06951 | ||||
| 90984-01006 | ||||
| 91651-60616 | ||||
| 91673-80614 | ||||
| 91673-80816 | ||||
| 93315-14012 | ||||
| 93319-15010 | ||||
| 93383-15014 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8601 | ||||
ILLUST NO. 5 OF 7(0907- )RHD

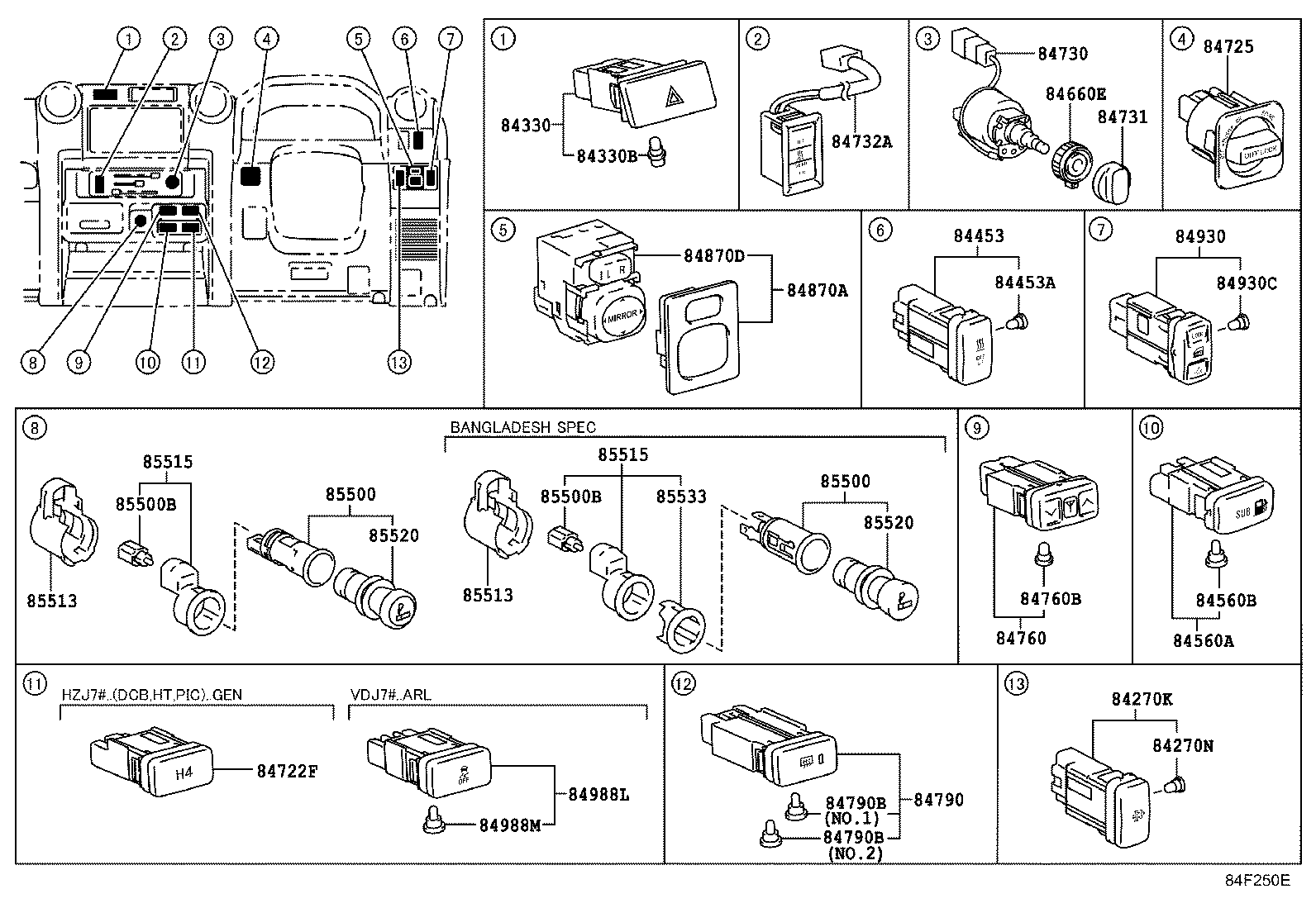

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-60330 |
GRJ71,78..RHD |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
GRJ71,78..RHD 14V 0.91W |
1 | ||
| 84560A - SWITCH ASSY, FUEL CONTROL | ||||
| 84560-60050 |
GRJ78..RHD FUEL TANK-W(SUB TANK) |
1 | ||
| 84560B - BULB, FUEL CONTROL SWITCH | ||||
| 90010-01039 |
GRJ78..RHD FUEL TANK-W(SUB TANK) |
1 | ||
| 84660E - KNOB, COOLER SWITCH | ||||
| 84731-12032 |
GRJ71..STD..GEN;GRJ78,79,HZJ7#..RHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 84731-12032 |
GRJ78;HZJ76,78..RHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 84731-12032 |
GRJ71,VDJ79..DCB,PIC,SOT;GRJ79,HZJ79,VDJ76,78..RHD..(DCB,HT) AIR CONDITIONER-WITH |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84660-60020 |
GRJ71,78,79,HZJ7#..RHD..(HT,PIC) HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 84660-60020 |
GRJ78,HZJ76,78..RHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 84732-60060 |
GRJ71,78,79,HZJ7#..RHD..(HT,PIC) HEATER-W(FRONT) |
1 | ||
| 84732-60060 |
GRJ78,HZJ76,78..RHD HEATER-W(FRONT & REAR) |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-20030 |
GRJ78;HZJ76,78..RHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 84731-12010 |
GRJ71,78..RHD |
1 | ||
| 84731-20030 |
GRJ71,VDJ79..DCB,PIC,SOT;GRJ79,HZJ79,VDJ76,78..RHD..(DCB,HT) AIR CONDITIONER-WITH |
1 | ||
| 84731-12010 |
GRJ79..LX;GRJ79,HZJ79..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ7#;GRJ79,HZJ79..DCB..GCC |
1 | ||
| 84731-20030 |
GRJ71..STD..GEN;GRJ78,79,HZJ7#..RHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-60080 |
GRJ78 HEATER-W(FRONT & REAR) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
GRJ71,78..RHD |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
GRJ71,78..RHD |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
GRJ71,78..RHD 14V 1.4W |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
GRJ71,78..RHD 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
GRJ71,78..RHD |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
GRJ71,78..RHD |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22030 |
GRJ71,78..RHD |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22030 |
GRJ71,78..RHD |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
GRJ71,78..RHD |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
GRJ71,78..RHD |
1 | ||
ILLUST NO. 6 OF 7(0907- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-60310 |
GRJ71,78..RHD FRONT FOG LAMP-WITH |
1 | ||
| 84140-60190 |
GRJ71,78..RHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-60310 |
GRJ71,78..RHD FRONT FOG LAMP-WITH |
1 | ||
| 84140-60190 |
GRJ71,78..RHD |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52100 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 84306-52100 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 84306-60120 |
GRJ71,78,79..RHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12A00 |
GRJ71,78..RHD |
1 | ||
| 84652-52270 |
GRJ71,78..RHD INTERMITTENT WIPER-WITHOUT(TIME ADJUSTMENT) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12A00 |
GRJ71,78..RHD |
1 | ||
| 84652-52270 |
GRJ71,78..RHD INTERMITTENT WIPER-WITHOUT(TIME ADJUSTMENT) |
1 | ||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 3 OF 7(0907- )GRJ7#
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
1GRFE..GRJ71,78..RHD |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
GRJ71,78..RHD 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08303 |
GRJ71,78..RHD 50A-50A-50A,FEMALE |
1 | ||
| 90982-08296 |
GRJ71,78..RHD 50A,TERM.:FEMALE,RED |
1 | ||
| 82600 - BLOCK ASSY, FUSE | ||||
| 82600-60090 |
GRJ7#,HZJ7# ACCESSORY CONNECTOR-WITH(ENGINE ROOM) |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRJ71,78..RHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
GRJ71,78..RHD 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GRJ71,78..RHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
GRJ71,78..RHD 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GRJ71,78..RHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
GRJ71,78..RHD 30A,MINI FUSE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRJ71,78..RHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
GRJ71,78..RHD 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GRJ71,78..RHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
GRJ71,78..RHD 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GRJ71,78..RHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
GRJ71,78..RHD 30A,MINI FUSE,GRN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-60090 |
GRJ71,78..RHD |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-90K00 |
GRJ71,78..RHD ACCESSORY CONNECTOR-WITH(ENGINE ROOM) |
1 | ||
| 82611A - COVER, FUSE BLOCK, NO.2 | ||||
| 82611-60070 |
GRJ71,78..RHD |
1 | ||
| 82613 - COVER, FUSE BLOCK | ||||
| 82611-60080 |
GRJ7# |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82615-60060 |
GRJ7#,HZJ7# ACCESSORY CONNECTOR-WITH(ENGINE ROOM) |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60080 |
GRJ71,78..RHD |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-60020 |
GRJ71,78..RHD |
1 | ||
| 82622 - COVER, FUSIBLE LINK, UPPER | ||||
| 82622-60010 |
GRJ71,78..RHD |
1 | ||
| 82623 - COVER, FUSIBLE LINK, LOWER | ||||
| 82623-60010 |
GRJ71,78..RHD |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-60130 |
GRJ71,78..RHD |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-60180 |
GRJ71,78..RHD |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-60420 |
GRJ71,78..RHD |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-60050 |
GRJ71,78..RHD |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
GRJ71,78..RHD |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02028 |
GRJ71,78..RHD AIR CONDITIONER-WITH |
1 | ||
| Common parts | ||||
| 91553-80618 | ||||
| 91673-80614 | ||||
| 93313-15016 | ||||
| 93313-16016 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
