GRJ78R-RJMRK (2009)

Toyota Land Cruiser

Production Jul 2009 - Aug 2012
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 5(0907- )

Click highlighted areas on diagram

diagram 5539460050 83100 83138 83821A 83910 9007600030 9007600030 9015950322 9015950384
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-60U80

GRJ78,79..GEN

FUEL TANK-W(SUB TANK)

 1
83800-60U70

GRJ7#..STD..GEN

 1
83800-60V10

GRJ7#..STD..GEN

WATER TEMPERATURE METER-WIDE TYPE

 1
83800-60V20

GRJ78,79..GEN

FUEL TANK-W(SUB TANK)&WATER TEMPERATURE METER-WIDE TYPE

 1
83800-60V80

GRJ78,79..GEN

FUEL TANK-W(SUB TANK)&SPEEDOMETER-KM/H

 1
83800-60V70

GRJ7#..STD..GEN

SPEEDOMETER-KM/H

 1
83800-60V90

HZJ76,78,79..GEN..CBU

SPEEDOMETER-KM/H

 1
83138 - GLASS, SPEEDOMETER
83852-60T50

GRJ71,78..RHD

 1
83821A - COVER, COMBINATION METER, NO.1
83821-60T50

GRJ71,78..RHD

 1
83910 - CLOCK ASSY
83910-60230

GRJ71,78..RHD

CLOCK-WITH

 1
Common parts
55394-60050
90076-00030
90159-50322
90159-50384

ILLUST NO. 4 OF 5(0907- )VDJ7#..RHD ; (0907- )GRJ7#,HZJ7#

Click highlighted areas on diagram

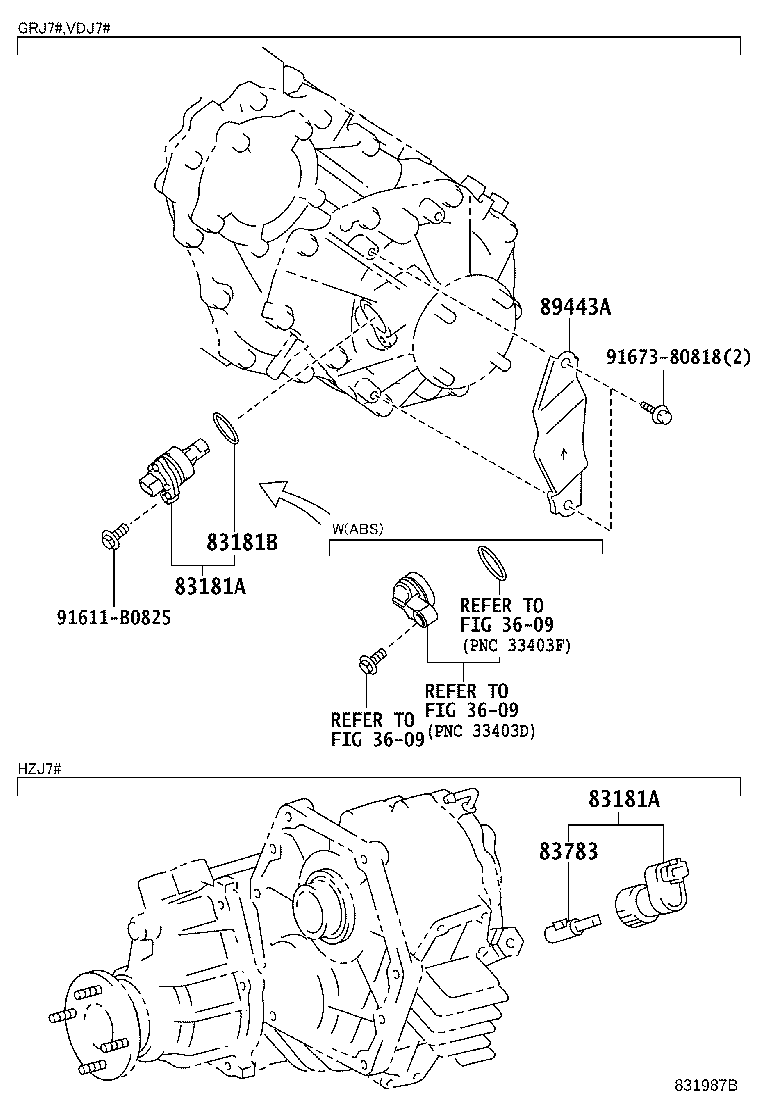

SPEED SENSOR

diagram 3609 3609 3609 83181A 83181A 83181B 83783 89443A 91611B0825 9167380818
Part # Description Qty Price
83181A - SENSOR, SPEEDOMETER
83181-12020

GRJ79..LHD;FZJ7#,GRJ71,76,78

 1
83181A - SENSOR, SPEEDOMETER
83181-12020

GRJ79..LHD;FZJ7#,GRJ71,76,78

 1
83181B - RING, O (FOR SPEEDOMETER SENSOR)
96711-24030

GRJ71,78,VDJ7#..RHD

 1
Common parts
91611-B0825
91673-80818
Linked diagrams
3609
