GRJ78R-RJMRK (2009)
Toyota Land Cruiser
ILLUST NO. 4 OF 8(0701-1608)VDJ78 ; (0701- )VDJ76..GEN ; (0701- )FZJ71,78,GRJ71,78,HZJ71,78
FLOOR & ROOF & FRAME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-60L50 |
GRJ78,HZJ78 |
1 | ||
| 82161-60L60 |
GRJ78,HZJ78..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 82161-60L51 |
GRJ78,HZJ78 |
1 | ||
| 82161-60L61 |
GRJ78,HZJ78..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-60M50 |
GRJ78,HZJ78..RHD MOZAMBIQUE SPEC |
1 | ||
| 82162-60M30 |
HZJ71,78;GRJ71..LHD..STD..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 82162-60M20 |
GRJ71,78,HZJ71,78 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-60460 |
GRJ78..RHD |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-60090 |
GRJ78..RHD FUEL TANK-W(SUB TANK) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-60F00 |
GRJ78..RHD HIGH MOUNT STOP LAMP-WITH |
1 | ||
| 82171-60E90 |
GRJ78..RHD |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-60F00 |
GRJ78..RHD HIGH MOUNT STOP LAMP-WITH |
1 | ||
| 82171-60E90 |
GRJ78..RHD |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-36250 |
GRJ71,78..RHD HIGH MOUNT STOP LAMP-WITH |
1 | ||
| 82666Z - HOLDER, CONNECTOR NO.19 | ||||
| 82666-60B40 |
GRJ71,78..RHD |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-08701 | ||||
| 91673-80614 | ||||
| Linked diagrams | ||||
| 4101 | ||||

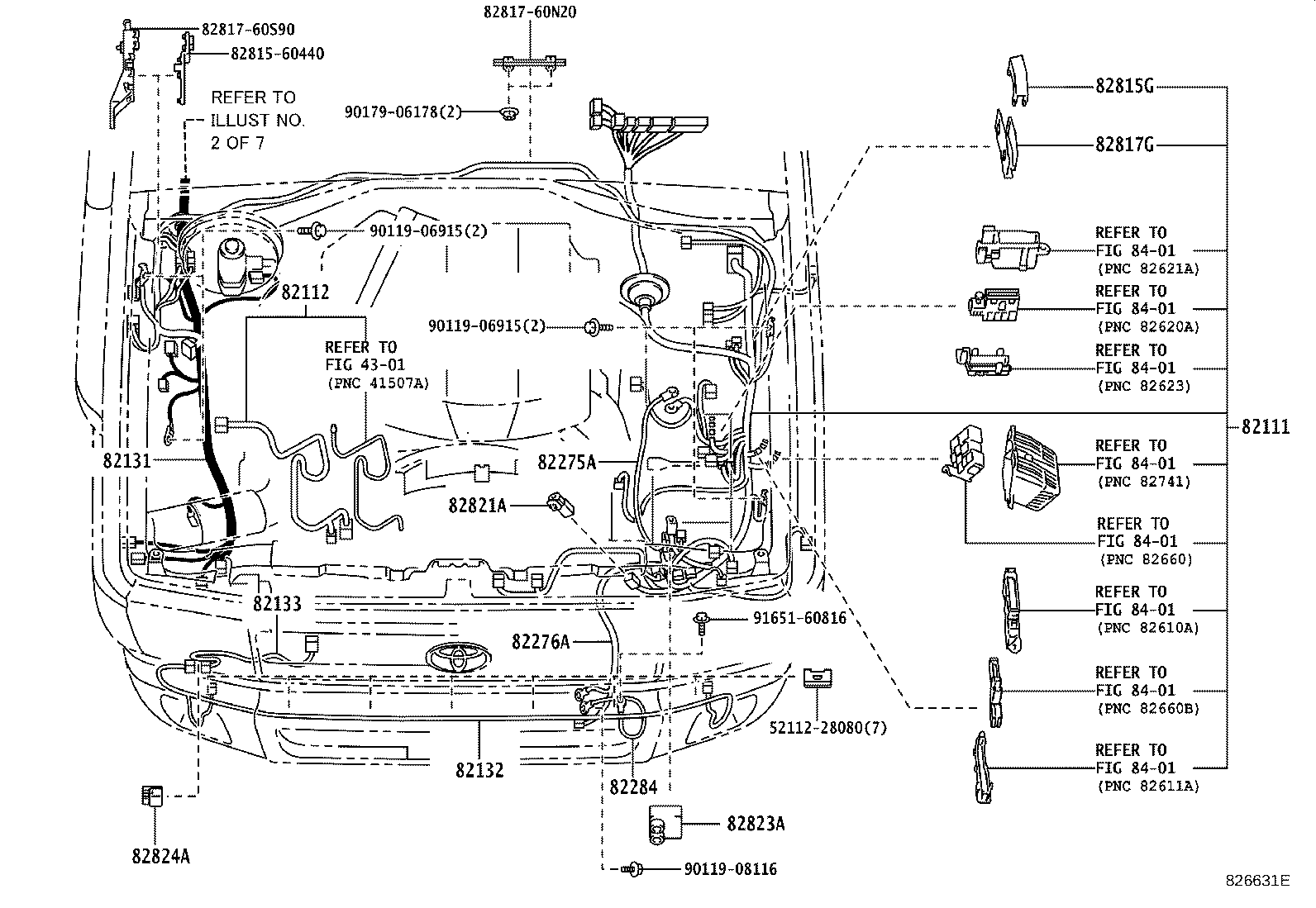

ILLUST NO. 1 OF 8(0907- )RHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-60J60 |
GRJ71,78,79..RHD |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-60C70 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60C70 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60D60 |
GRJ71,78,79..RHD |
1 | ||
| 82131-60C30 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60C30 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60E60 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&HEATER-W(FRONT)&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60E60 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&HEATER-W(FRONT)&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-60100 |
FZJ79..GEN;FZJ71,76,78 FRONT FOG LAMP-WITH |
1 | ||
| 82132-60100 |
HZJ79..GEN;VDJ79..PIC..IV;GRJ79..LHD..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ76,78 FRONT FOG LAMP-WITH |
1 | ||
| 82132-60120 |
GRJ78,HZJ76,78..RHD TOWING HOOK-FRONT(1),W(*SB)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
GRJ78,HZJ76,78..RHD TOWING HOOK-FRONT(1),W(*SB)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-60050 |
GRJ78,HZJ76,78..RHD TOWING HOOK-FRONT(1),W(*SB)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60050 |
GRJ78,HZJ76,78..RHD TOWING HOOK-FRONT(1),W(*SB)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD FRONT FOG LAMP-WITH |
1 | ||
| 82275A - CABLE, BATTERY TO MAGNET SWITCH | ||||
| 82275-60140 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V) |
1 | ||
| 82276A - CABLE, MAGNET SWITCH TO WINCH | ||||
| 82276-60100 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V) |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-60120 |
FZJ7#,GRJ7#,HZJ7# WINCH-W(ELECTRIC 12V) |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-60570 |
GRJ71,78..RHD |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-60Q50 |
GRJ71,78..RHD |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-60110 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82821-60110 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82821-60110 |
GRJ71,78,79..RHD |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-90300 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V) |
1 | ||
| Common parts | ||||
| 52112-28080 | ||||
| 82815-60440 | ||||
| 82817-60N20 | ||||
| 82817-60S90 | ||||
| 90119-06915 | ||||
| 90119-08116 | ||||
| 90179-06178 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 4301 | ||||
| 8401 | ||||

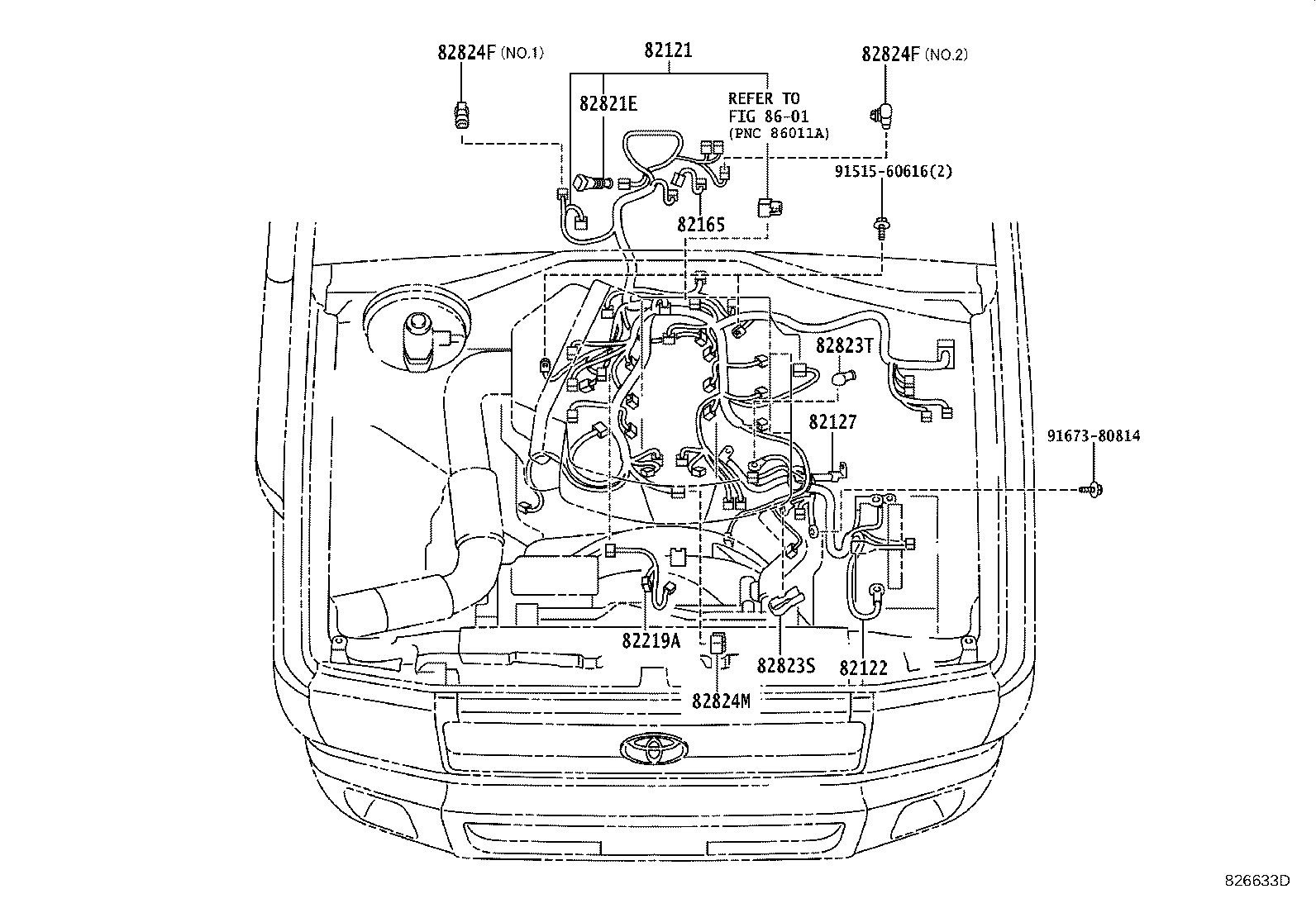

ILLUST NO. 1 OF 8(0907- )GRJ71,78,79..RHD
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-60L00 |
GRJ78,79..RHD |
1 | ||
| 82121-60L00 |
GRJ78,79..RHD FUEL TANK-W(SUB TANK)&SPEEDOMETER-KM/H |
1 | ||
| 82121-60M00 |
GRJ78,79..RHD SPEEDOMETER-KM/H |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-60690 |
GRJ7# |
1 | ||
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-60100 |
GRJ71,78..RHD |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-60320 |
GRJ78..RHD FUEL TANK-W(SUB TANK) |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-35020 |
GRJ71,78..RHD |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-28030 |
GRJ71,78..RHD |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-60050 |
GRJ71,78..RHD |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-60040 |
GRJ71,78..RHD |
1 | ||
| Common parts | ||||
| 91515-60616 | ||||
| 91673-80814 | ||||
| Linked diagrams | ||||
| 8601 | ||||
ILLUST NO. 7 OF 8(0907- )GRJ7#
CLAMP & BRACKET 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-60110 | ||||
| 82710-60120 | ||||
| 82710-60140 | ||||
| 82711-12120 | ||||
| 82711-2A730 | ||||
| 82711-37190 | ||||
| 82711-60300 | ||||
| 82714-60010 | ||||
| 82715-60060 | ||||
| 82715-60C30 | ||||
| 82715-60D60 | ||||
| 82715-60R80 | ||||
| 82715-60T30 | ||||
| 82715-60T40 | ||||
| 82715-60T50 | ||||
| 82715-60T60 | ||||
| 82715-60T90 | ||||
| 82715-60U00 | ||||
| 82715-60V40 | ||||
| 82715-60V50 | ||||
| 82715-60V60 | ||||
| 82715-60Y90 | ||||
| 82715-87003 | ||||
| 82729-60080 | ||||
| 90119-08701 | ||||
| 90159-50144 | ||||
| 90159-50311 | ||||
| 90463-08207 | ||||
| 90463-10521 | ||||
| 90463-15003 | ||||
| 90467-09043 | ||||
| 90467-13030 | ||||
| 90480-36508 | ||||
| 91553-80814 | ||||
| 91673-80614 | ||||
| 91674-80822 | ||||
| 94130-61000 | ||||
ILLUST NO. 6 OF 8(0907- )GRJ7#
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07426 |
GRJ71,78..RHD |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07442 |
GRJ71,78..RHD |
2 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07442 |
GRJ71,78..RHD |
2 | ||
| Common parts | ||||
| 86214-60010 | ||||
| 86214-60020 | ||||
| 86214-60030 | ||||
| 90119-06923 | ||||
| 90119-08063 | ||||
| 91511-60612 | ||||
| 91621-J0612 | ||||

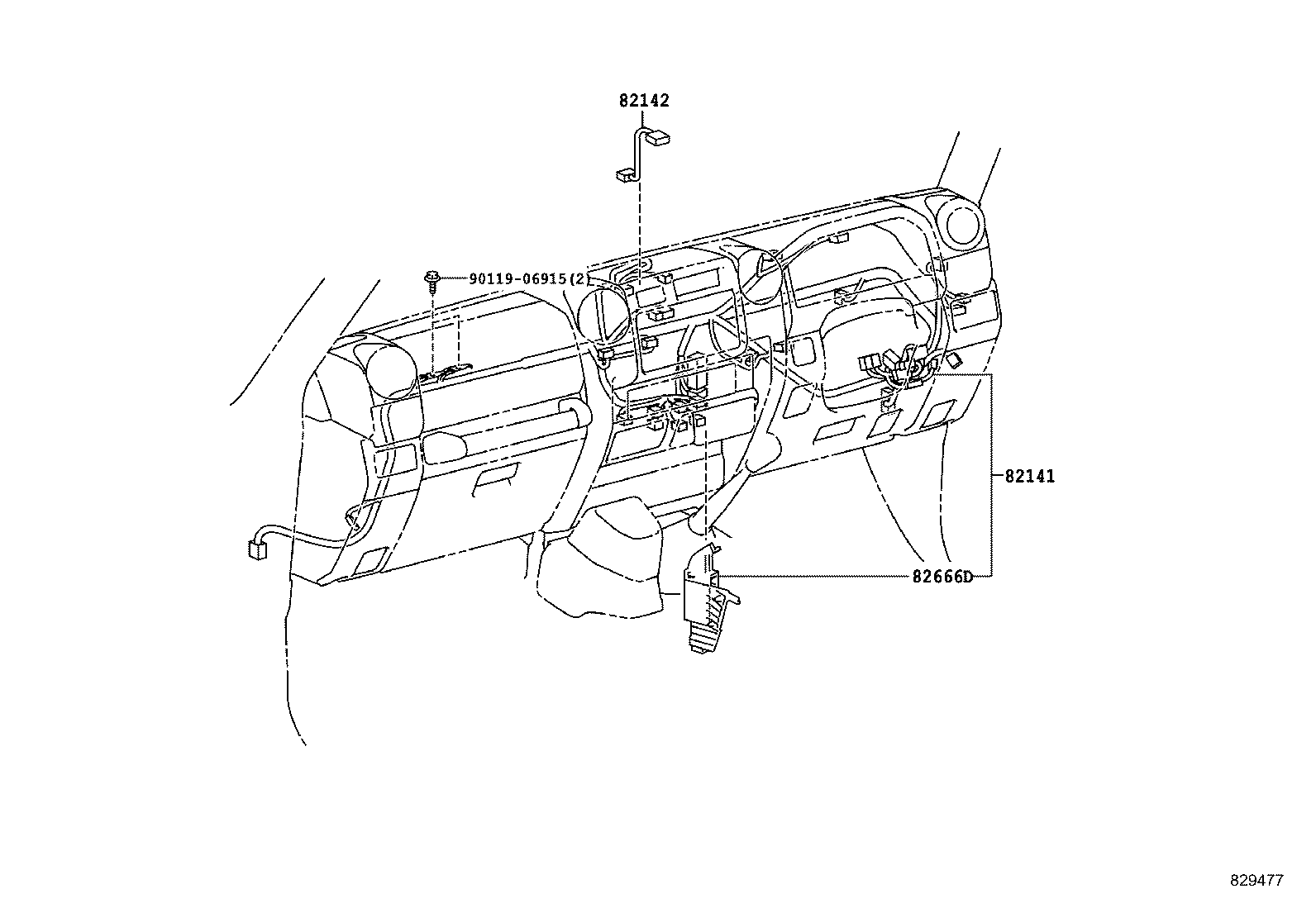

ILLUST NO. 2 OF 8(0907- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-60Q90 |
GRJ71,78,79,HZJ7#..RHD |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-60A10 |
GRJ71,78..RHD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||

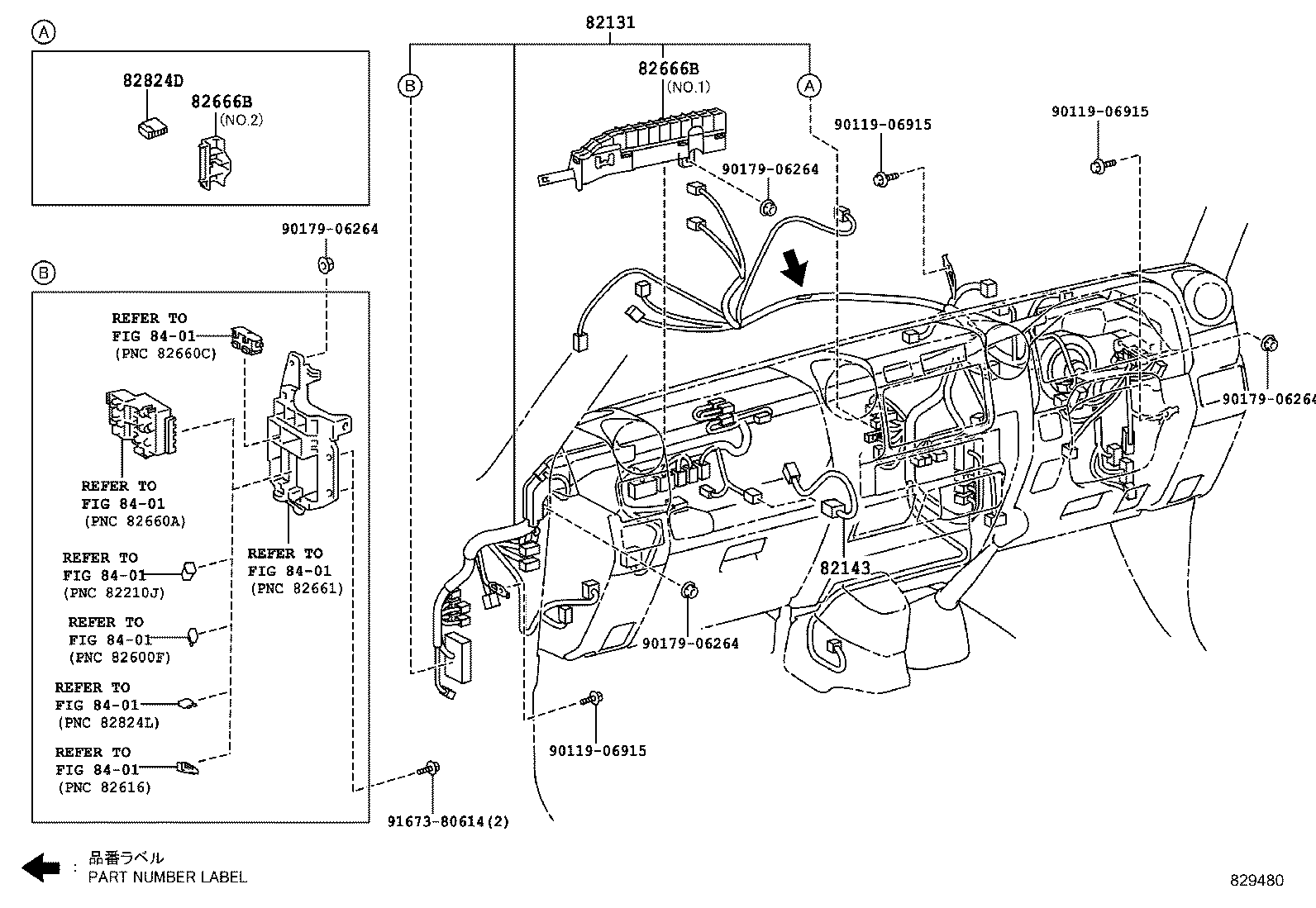

ILLUST NO. 2 OF 8(0907- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-60C70 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60C70 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60D60 |
GRJ71,78,79..RHD |
1 | ||
| 82131-60C30 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60C30 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60E60 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&HEATER-W(FRONT)&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60E60 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&HEATER-W(FRONT)&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-60350 |
GRJ71,78..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60B50 |
GRJ71,78..RHD NO.2 |
1 | ||
| 82666-60A30 |
GRJ71,78..RHD NO.1 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60B50 |
GRJ71,78..RHD NO.2 |
1 | ||
| 82666-60A30 |
GRJ71,78..RHD NO.1 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-48110 |
GRJ71,78..RHD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06264 | ||||
| 91673-80614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 7 OF 8(0907- )GRJ7#
CLAMP & BRACKET 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-60070 | ||||
| 82710-60100 | ||||
| 82710-60160 | ||||
| 82715-60C00 | ||||
| 82715-60C30 | ||||
| 82715-60F90 | ||||
| 82715-60R90 | ||||
| 82715-60T10 | ||||
| 82715-60T20 | ||||
| 82715-60U40 | ||||
| 82715-60V20 | ||||
| 82715-60V80 | ||||
| 82715-60W30 | ||||
| 82715-6A610 | ||||
| 82715-6A620 | ||||
| 82729-60060 | ||||
| 90119-06915 | ||||
| 90119-08667 | ||||
| 90119-08827 | ||||
| 91553-80612 | ||||
| 91621-J0612 | ||||
| 91651-60816 | ||||
| 91673-80614 | ||||
| 91673-80616 | ||||
ILLUST NO. 7 OF 8(0907- )GRJ7#
CLAMP & BRACKET 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1A310 | ||||
| 82711-22270 | ||||
| 82711-60240 | ||||
| 82715-3D490 | ||||
| 82715-3D560 | ||||
| 82715-60B50 | ||||
| 82715-60B90 | ||||
| 82715-60F70 | ||||
| 82715-60Q10 | ||||
| 82715-60U30 | ||||
| 82715-60U50 | ||||
| 82715-60U60 | ||||
| 82715-60U70 | ||||
| 82715-60U80 | ||||
| 82715-60V70 | ||||
| 82715-60W90 | ||||
| 82715-60Z90 | ||||
| 82715-6A210 | ||||
| 82715-6A500 | ||||
| 82715-6AE00 | ||||
| 82715-6AE10 | ||||
| 82715-6AE20 | ||||
| 82715-6AE50 | ||||
| 90179-06161 | ||||
| 90179-06178 | ||||
| 91512-G1025 | ||||
| 91611-B0825 | ||||
| 91621-J0612 | ||||
| 91671-80612 | ||||
| 91673-80812 | ||||
| 91674-80820 | ||||
