GRJ78R-RJMRK (2009)

Toyota Land Cruiser

Production Jul 2009 - Aug 2012
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 6(0907-1208)GRJ71,78..RHD ; (1208- )GRJ79..RHD

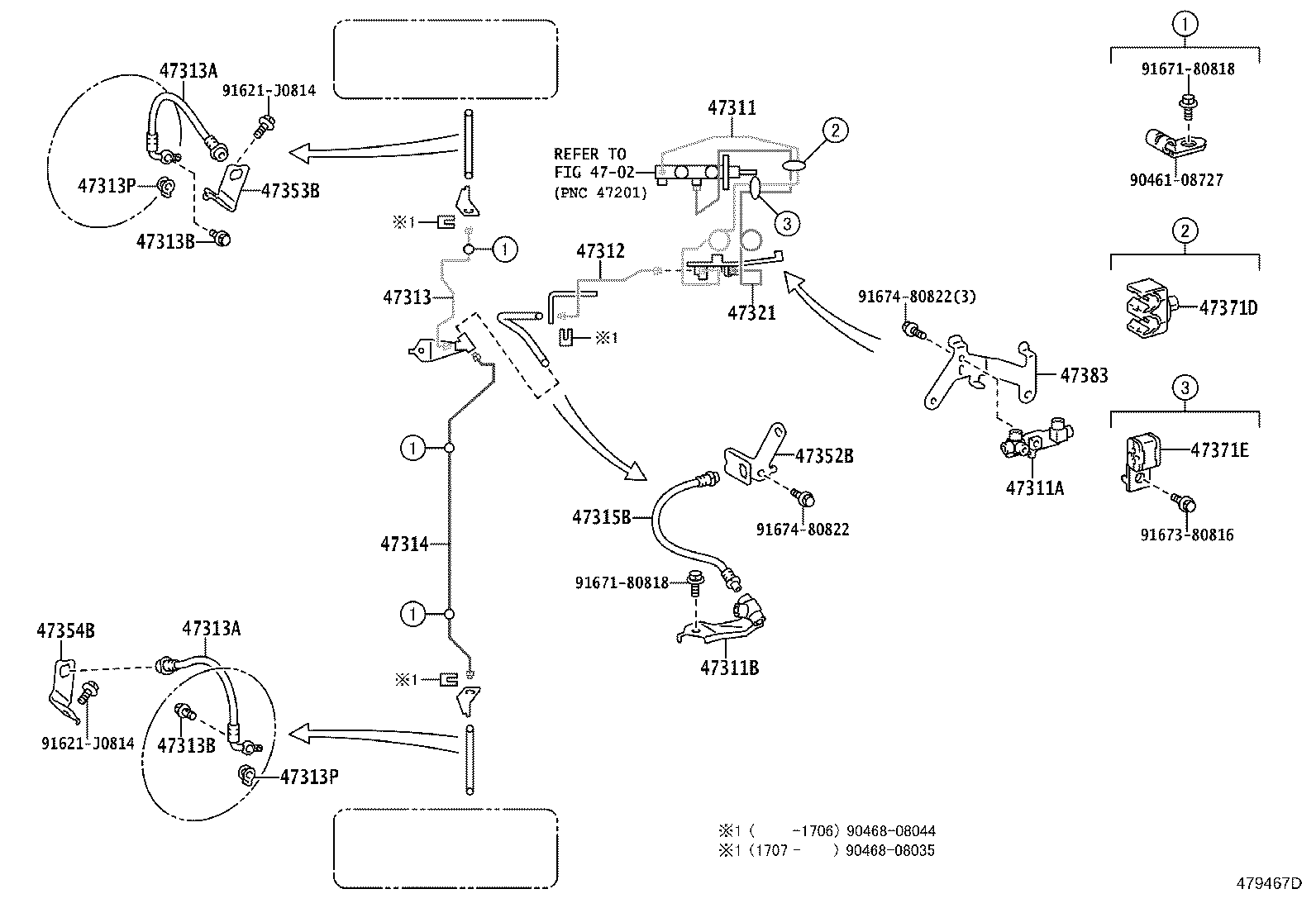

Click highlighted areas on diagram

W/O(ABS)

diagram 4702 47311 47311A 47311B 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47314 47315B 47321 47352B 47353B 47354B 47371D 47371E 47383 9046108727 91621J0814 91621J0814 9167180818 9167180818 9167380816 9167480822 9167480822
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47312-60A80

GRJ71,78,79..RHD

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10320

GRJ71,78..RHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10319

GRJ7#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47313-60490

GRJ7#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47314-60320

GRJ7#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B48

GRJ7#,HZJ7#,VDJ7#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B48

GRJ7#,HZJ7#,VDJ7#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

GRJ71,78..RHD

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

GRJ71,78..RHD

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GRJ71,78..RHD

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GRJ71,78..RHD

 2
47314 - TUBE, FRONT BRAKE, NO.4
47315-60580

GRJ7#

 1
47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02B49

GRJ7#

 1
47321 - TUBE, REAR BRAKE, NO.1
47322-60B10

GRJ71,78,79..RHD

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47354-60150

GRJ71,78..RHD

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47351-60280

GRJ71,78,VDJ7#..RHD

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47352-60170

GRJ71,78,VDJ7#..RHD

 1
47371D - CLAMP, BRAKE TUBE, NO.8
90469-07020

GRJ71,78,VDJ7#..RHD

 1
47371E - CLAMP, BRAKE TUBE, NO.9
90949-04056

GRJ71,78..RHD

 1
47383 - BRACKET, CONNECTOR
47383-60030

GRJ71,78..RHD

 1
Common parts
90461-08727
91621-J0814
91671-80818
91673-80816
91674-80822
Linked diagrams
4702
