GRJ78L-RJMRK (2009)
Toyota Land Cruiser
ILLUST NO. 1 OF 3(9001- )
FRONT(MAKER OPTION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-22270 | ||||
| 87128-60050 | ||||
| 87128-60060 | ||||
| 88688-60430 | ||||
| 90099-14122 | ||||
| 90119-06373 | ||||
| 90159-60198 | ||||
| 90179-06274 | ||||
| 91611-60812 | ||||
| 91651-40616 | ||||
ILLUST NO. 3 OF 3(9001- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
ILLUST NO. 2 OF 2(0701- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||

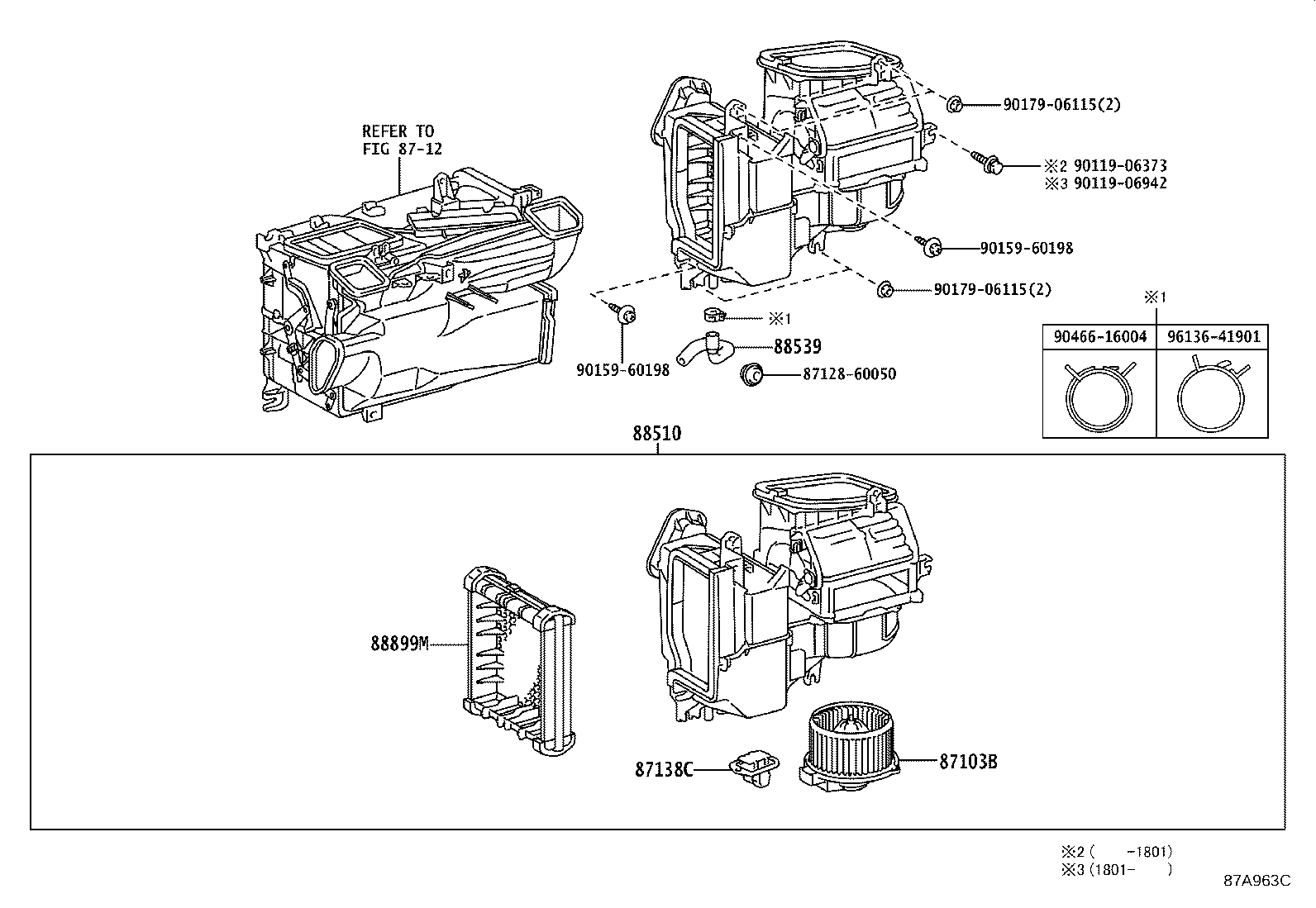

ILLUST NO. 1 OF 2(0907- )GRJ7#..LHD
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-60421 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 87103-60420 |
GRJ79..LX;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-60290 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-6A440 |
GRJ78..LHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88510-6A440 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88510-6A440 |
GRJ71..LX;GRJ79,HZJ76..LHD;GRJ76,78,HZJ71,78,79..LHD..STD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 88510-6A430 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-60310 |
HZJ79..LHD..GEN;HZJ79..DCB..GCC;HZJ71,76,78..LHD |
1 | ||
| 88539-60330 |
GRJ79..LX;GRJ79..DCB..GCC;GRJ79..LHD..GEN;GRJ71,76,78..LHD |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-60360 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| Common parts | ||||
| 87128-60050 | ||||
| 90119-06373 | ||||
| 90119-06942 | ||||
| 90159-60198 | ||||
| 90179-06115 | ||||
| 90466-16004 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 8712 | ||||
ILLUST NO. 1 OF 2(0907- )GRJ7#..LHD
FRONT:W(COOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-60421 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 87103-60420 |
GRJ79..LX;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-60290 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-60391 |
GRJ78..LHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88501-60392 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88501-60391 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 88501-60392 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 88501-60391 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-6A440 |
GRJ78..LHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88510-6A440 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88510-6A440 |
GRJ71..LX;GRJ79,HZJ76..LHD;GRJ76,78,HZJ71,78,79..LHD..STD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 88510-6A430 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-12090 |
GRJ71..LX;GRJ79,HZJ76..LHD;GRJ76,78,HZJ71,78,79..LHD..STD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 88515-12090 |
GRJ78;HZJ76,78..RHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88515-12090 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-60310 |
HZJ79..LHD..GEN;HZJ79..DCB..GCC;HZJ71,76,78..LHD |
1 | ||
| 88539-60330 |
GRJ79..LX;GRJ79..DCB..GCC;GRJ79..LHD..GEN;GRJ71,76,78..LHD |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-60070 |
GRJ78;HZJ76,78..RHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88568-60070 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88568-60070 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 88568G - FILTER, AIR | ||||
| 88568-60060 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88568-60060 |
GRJ78..LHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88568-60060 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60200 |
GRJ78;HZJ76,78..RHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88625-60200 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88625-60200 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-60G30 |
GRJ7#..LHD AIR CONDITIONER-WITH |
1 | ||
| 88899P - PLATE, COVER | ||||
| 88899-60330 |
GRJ78;HZJ76,78..RHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88899-60330 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 88899-60330 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| Common parts | ||||
| 87128-60050 | ||||
| 90119-06373 | ||||
| 90119-06942 | ||||
| 90159-60198 | ||||
| 90179-06115 | ||||
| 90466-16004 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 8712 | ||||
