GRJ78L-RJMRK (2009)
Toyota Land Cruiser
ILLUST NO. 2 OF 3(9001- )
FRONT HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06373 | ||||
| 90179-06115 | ||||
ILLUST NO. 1 OF 3(9001- )
BOOST VENTILATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06373 | ||||
| 90179-06115 | ||||
ILLUST NO. 1 OF 3(0907- )LHD..DCB,HT,PIC
BOOST VENTILATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87201D - DUCT SUB-ASSY, AIR | ||||
| 87201-60200 |
GRJ79..LX;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 87201-60220 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 88910 - VENTILATOR ASSY, BOOST | ||||
| 88910-60130 |
GRJ79..LX;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD..HT |
1 | ||
| 88910-60150 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD |
1 | ||
| Common parts | ||||
| 90119-06373 | ||||
| 90119-06942 | ||||
| 90179-06115 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 2 OF 3(0907- )LHD
FRONT HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60220 |
GRJ78..LHD HEATER-W(FRONT & REAR) |
1 | ||
| 87107-60220 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 87107-60220 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
1 | ||
| 87126 - CLAMP, HEATER CONTROL | ||||
| 87126-12050 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
2 | ||
| 87126-12050 |
GRJ78;HZJ76,78..RHD HEATER-W(FRONT & REAR) |
2 | ||
| 87126-12050 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
2 | ||
| 87126 - CLAMP, HEATER CONTROL | ||||
| 87126-12050 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
2 | ||
| 87126-12050 |
GRJ78;HZJ76,78..RHD HEATER-W(FRONT & REAR) |
2 | ||
| 87126-12050 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
2 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-60500 |
GRJ78,HZJ76,78..LHD..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 87150-60560 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 87150-60560 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
1 | ||
| 87150-60500 |
GRJ7#,HZJ7#..LHD..(HT,PIC) HEATER-W(FRONT) |
1 | ||
| 87150-60560 |
GRJ78..LHD HEATER-W(FRONT & REAR) |
1 | ||
| 87201D - DUCT SUB-ASSY, AIR | ||||
| 87201-60200 |
GRJ79..LX;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 87201-60220 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 87248E - PIPE, HEATER WATER INLET, E | ||||
| 87248-60580 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
1 | ||
| 87248-60580 |
GRJ78..LHD HEATER-W(FRONT & REAR) |
1 | ||
| 87248-60580 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 87249E - PIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT) | ||||
| 87248-60610 |
GRJ78..LHD HEATER-W(FRONT & REAR) |
1 | ||
| 87248-60610 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
1 | ||
| 87248-60610 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
1 | ||
| Common parts | ||||
| 90119-06373 | ||||
| 90119-06942 | ||||
| 90179-06115 | ||||
| Linked diagrams | ||||
| 8714 | ||||

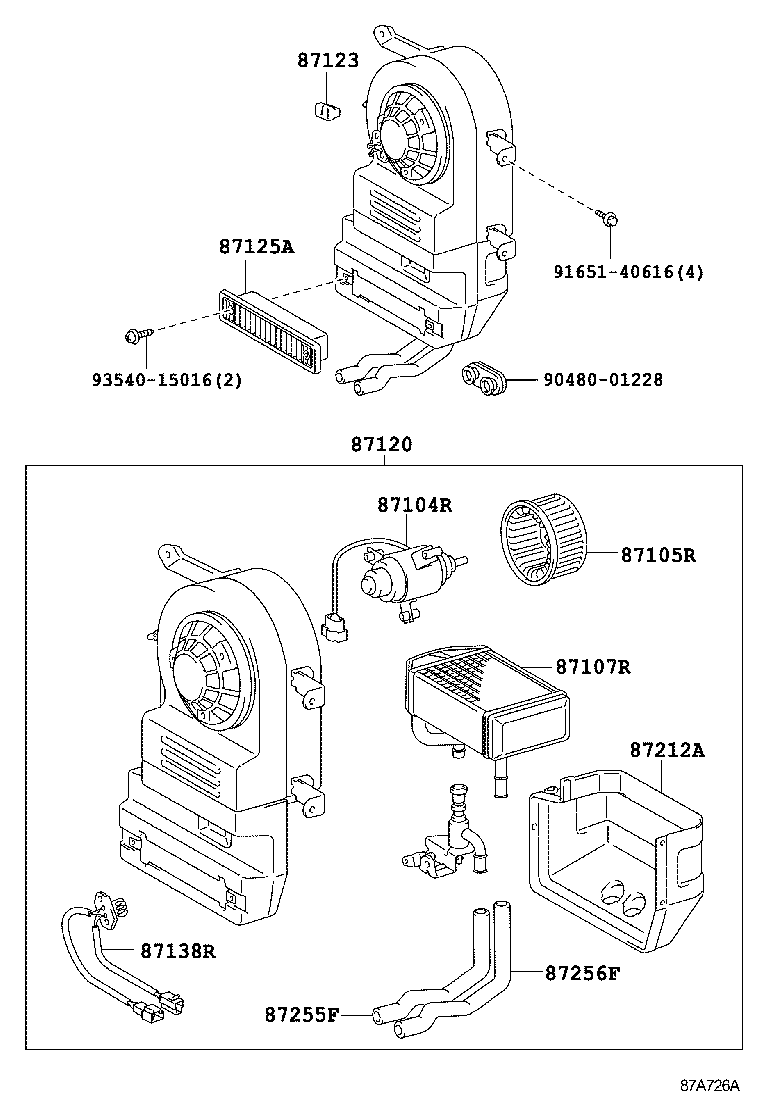

ILLUST NO. 3 OF 3(0701- )FZJ78,GRJ78,HZJ78..GEN
REAR HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-87003 |
GRJ78 HEATER-W(FRONT & REAR) |
1 | ||
| 87105R - FAN SUB-ASSY, REAR HEATER BLOWER | ||||
| 87105-87002 |
GRJ78 HEATER-W(FRONT & REAR) |
1 | ||
| 87105-87002 |
HZJ76,78,79..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-60250 |
GRJ78 HEATER-W(FRONT & REAR) |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-60170 |
GRJ78 HEATER-W(FRONT & REAR) |
1 | ||
| 87123 - KNOB, HEATER | ||||
| 55905-12080 |
GRJ78 HEATER-W(FRONT & REAR) |
1 | ||
| 87125A - GRILLE, AIR OUTLET | ||||
| 87125-95J00J0 |
GRJ78..LHD HEATER-W(FRONT & REAR),BLUE,TRIM1# |
1 | ||
| 87125-95J00M9 |
GRJ78..LHD HEATER-W(FRONT & REAR),BEIGE,TRIM4# |
1 | ||
| 87138R - RESISTOR, REAR HEATER BLOWER | ||||
| 87138-60250 |
GRJ78 HEATER-W(FRONT & REAR) |
1 | ||
| 87212A - DUCT, AIR, REAR NO.1 | ||||
| 87212-90K01 |
GRJ78 HEATER-W(FRONT & REAR) |
1 | ||
| 87255F - HOSE, REAR HEATER WATER INLET, F(FOR HEATER UNIT) | ||||
| 87245-90K34 |
GRJ78 HEATER-W(FRONT & REAR) |
1 | ||
| 87256F - HOSE, REAR HEATER WATER OUTLET, F (FOR HEATER UNIT) | ||||
| 87245-90K35 |
GRJ78 HEATER-W(FRONT & REAR) |
1 | ||
| Common parts | ||||
| 90480-01228 | ||||
| 91651-40616 | ||||
| 93540-15016 | ||||
