GRJ78L-RJMRK (2009)
Toyota Land Cruiser
(0907- )GRJ71,76,78,HZJ71,76,78,VDJ76,78
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-60350 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-60360 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 69054 - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69052-60360 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76,78 |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-60630 |
GRJ79,HZJ7#;GRJ71,76,78..LHD |
1 | ||
| 69057-60660 |
GRJ71,78,79..LHD..GEN VENEZUELA SPEC |
1 | ||
| 69057-60660 |
GRJ7#..LHD..GEN COLOMBIA SPEC&GLOVE BOX-W(KEY) |
1 | ||
| 69057-60660 |
GRJ7#..LHD..GEN VENEZUELA SPEC&GLOVE BOX-W(KEY) |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-60630 |
GRJ79,HZJ7#;GRJ71,76,78..LHD |
1 | ||
| 69057-60660 |
GRJ71,78,79..LHD..GEN VENEZUELA SPEC |
1 | ||
| 69057-60660 |
GRJ7#..LHD..GEN COLOMBIA SPEC&GLOVE BOX-W(KEY) |
1 | ||
| 69057-60660 |
GRJ7#..LHD..GEN VENEZUELA SPEC&GLOVE BOX-W(KEY) |
1 | ||
| 69058 - CYLINDER & KEY SET, FUEL FILLER LID | ||||
| 69058-60160 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76,78 |
1 | ||
| 69059A - CYLINDER & KEY SET, SPARE WHEEL LOCK | ||||
| 69059-60270 |
GRJ78..LHD FUEL TANK-W(SUB TANK) |
1 | ||
| 69059-60270 |
VDJ76,78 |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-33190 |
VDJ76,78;GRJ71,HZJ71,VDJ79..DCB,PIC,SOT |
1 | ||
| 69056-33190 |
GRJ71,76,78..LHD..HT;GRJ79,HZJ7#..DCB,HT,PIC GLOVE BOX-W(KEY) |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-60C50 |
GRJ71,78..LHD..GEN VENEZUELA SPEC |
1 | ||
| 69005-60C90 |
GRJ78..LHD VENEZUELA SPEC&FUEL TANK-W(SUB TANK) |
1 | ||
| 69005-60A90 |
HZJ71,76,78..HT;GRJ71,76,78..LHD..HT |
1 | ||
| 69005-60B00 |
HZJ71,76,78..HT;GRJ71,76,78..LHD..HT GLOVE BOX-W(KEY) |
1 | ||
| 69005-60B40 |
GRJ78..LHD FUEL TANK-W(SUB TANK)&GLOVE BOX-W(KEY) |
1 | ||
| 69005-60B30 |
GRJ78..LHD FUEL TANK-W(SUB TANK) |
1 | ||
| 69005-60C60 |
GRJ71,78..LHD..GEN VENEZUELA SPEC&GLOVE BOX-W(KEY) |
1 | ||
| 69005-60D00 |
GRJ78..LHD VENEZUELA SPEC&FUEL TANK-W(SUB TANK)&GLOVE BOX-W(KEY) |
1 | ||
| 69005-60C60 |
GRJ71,76,78..GEN COLOMBIA SPEC&GLOVE BOX-W(KEY) |
1 | ||
| 69005-60D00 |
GRJ78 COLOMBIA SPEC&FUEL TANK-W(SUB TANK)&GLOVE BOX-W(KEY) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00200 |
GRJ78..LHD SUB KEY,W(*68),FUEL TANK-W(SUB TANK)&GLOVE BOX-W(KEY) |
1 | ||
| 90999-00200 |
GRJ71,76,78..LHD..HT;GRJ79,HZJ7#..DCB,HT,PIC SUB KEY,W(*68),GLOVE BOX-W(KEY) |
1 | ||
| 90999-00251 |
GRJ78..LHD MASTER KEY,W(*68),FUEL TANK-W(SUB TANK)&GLOVE BOX-W(KEY) |
2 | ||
| 90999-00251 |
GRJ71,76,78..LHD..HT;GRJ79,HZJ7#..DCB,HT,PIC MASTER KEY,W(*68),GLOVE BOX-W(KEY) |
2 | ||
| 90999-00251 |
GRJ71,76,78..LHD..HT;GRJ79,HZJ7#..DCB,HT,PIC MASTER KEY,W(*68) |
3 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00200 |
GRJ78..LHD SUB KEY,W(*68),FUEL TANK-W(SUB TANK)&GLOVE BOX-W(KEY) |
1 | ||
| 90999-00200 |
GRJ71,76,78..LHD..HT;GRJ79,HZJ7#..DCB,HT,PIC SUB KEY,W(*68),GLOVE BOX-W(KEY) |
1 | ||
| 90999-00251 |
GRJ78..LHD MASTER KEY,W(*68),FUEL TANK-W(SUB TANK)&GLOVE BOX-W(KEY) |
2 | ||
| 90999-00251 |
GRJ71,76,78..LHD..HT;GRJ79,HZJ7#..DCB,HT,PIC MASTER KEY,W(*68),GLOVE BOX-W(KEY) |
2 | ||
| 90999-00251 |
GRJ71,76,78..LHD..HT;GRJ79,HZJ7#..DCB,HT,PIC MASTER KEY,W(*68) |
3 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-60010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-60010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 69551 - RETAINER, BACK DOOR LOCK CYLINDER | ||||
| 69511-60010 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76,78 |
1 | ||
| 69581 - RETAINER, FUEL FILLER LID CYLINDER | ||||
| 69512-87001 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76 |
1 | ||
| 69512-87001 |
GRJ78..LHD FUEL TANK-W(SUB TANK) |
2 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-32010 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76 |
4 | ||
| 69513-32010 |
GRJ78..LHD VENEZUELA SPEC&FUEL TANK-W(SUB TANK) |
5 | ||
| 69513-32010 |
GRJ78..LHD VENEZUELA SPEC&FUEL TANK-W(SUB TANK)&GLOVE BOX-W(KEY) |
5 | ||
| 69513-32010 |
GRJ78 COLOMBIA SPEC&FUEL TANK-W(SUB TANK)&GLOVE BOX-W(KEY) |
5 | ||
| 69513-32010 |
GRJ78..LHD FUEL TANK-W(SUB TANK)&GLOVE BOX-W(KEY) |
5 | ||
| 69513-32010 |
GRJ78..LHD FUEL TANK-W(SUB TANK) |
5 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-32010 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76 |
4 | ||
| 69513-32010 |
GRJ78..LHD VENEZUELA SPEC&FUEL TANK-W(SUB TANK) |
5 | ||
| 69513-32010 |
GRJ78..LHD VENEZUELA SPEC&FUEL TANK-W(SUB TANK)&GLOVE BOX-W(KEY) |
5 | ||
| 69513-32010 |
GRJ78 COLOMBIA SPEC&FUEL TANK-W(SUB TANK)&GLOVE BOX-W(KEY) |
5 | ||
| 69513-32010 |
GRJ78..LHD FUEL TANK-W(SUB TANK)&GLOVE BOX-W(KEY) |
5 | ||
| 69513-32010 |
GRJ78..LHD FUEL TANK-W(SUB TANK) |
5 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-32010 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76 |
4 | ||
| 69513-32010 |
GRJ78..LHD VENEZUELA SPEC&FUEL TANK-W(SUB TANK) |
5 | ||
| 69513-32010 |
GRJ78..LHD VENEZUELA SPEC&FUEL TANK-W(SUB TANK)&GLOVE BOX-W(KEY) |
5 | ||
| 69513-32010 |
GRJ78 COLOMBIA SPEC&FUEL TANK-W(SUB TANK)&GLOVE BOX-W(KEY) |
5 | ||
| 69513-32010 |
GRJ78..LHD FUEL TANK-W(SUB TANK)&GLOVE BOX-W(KEY) |
5 | ||
| 69513-32010 |
GRJ78..LHD FUEL TANK-W(SUB TANK) |
5 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-32010 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76 |
4 | ||
| 69513-32010 |
GRJ78..LHD VENEZUELA SPEC&FUEL TANK-W(SUB TANK) |
5 | ||
| 69513-32010 |
GRJ78..LHD VENEZUELA SPEC&FUEL TANK-W(SUB TANK)&GLOVE BOX-W(KEY) |
5 | ||
| 69513-32010 |
GRJ78 COLOMBIA SPEC&FUEL TANK-W(SUB TANK)&GLOVE BOX-W(KEY) |
5 | ||
| 69513-32010 |
GRJ78..LHD FUEL TANK-W(SUB TANK)&GLOVE BOX-W(KEY) |
5 | ||
| 69513-32010 |
GRJ78..LHD FUEL TANK-W(SUB TANK) |
5 | ||

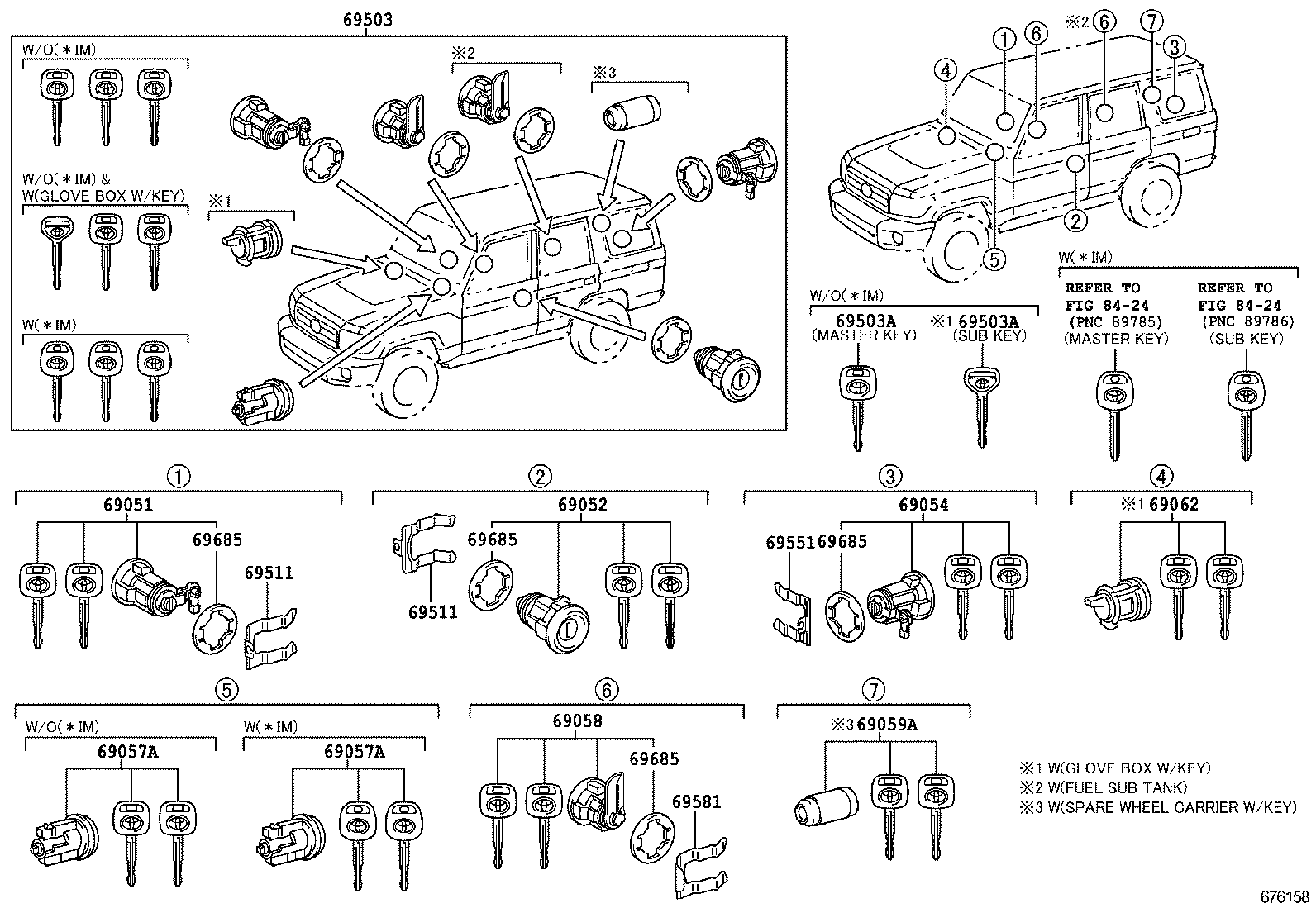

| Linked diagrams | ||||
| 8424 | ||||
