GRJ78L-RJMRK (2009)

Toyota Land Cruiser

Production Jul 2009 - Aug 2016
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )GRJ7#,VDJ7# ; (0701- )FZJ71,78,79..RHD

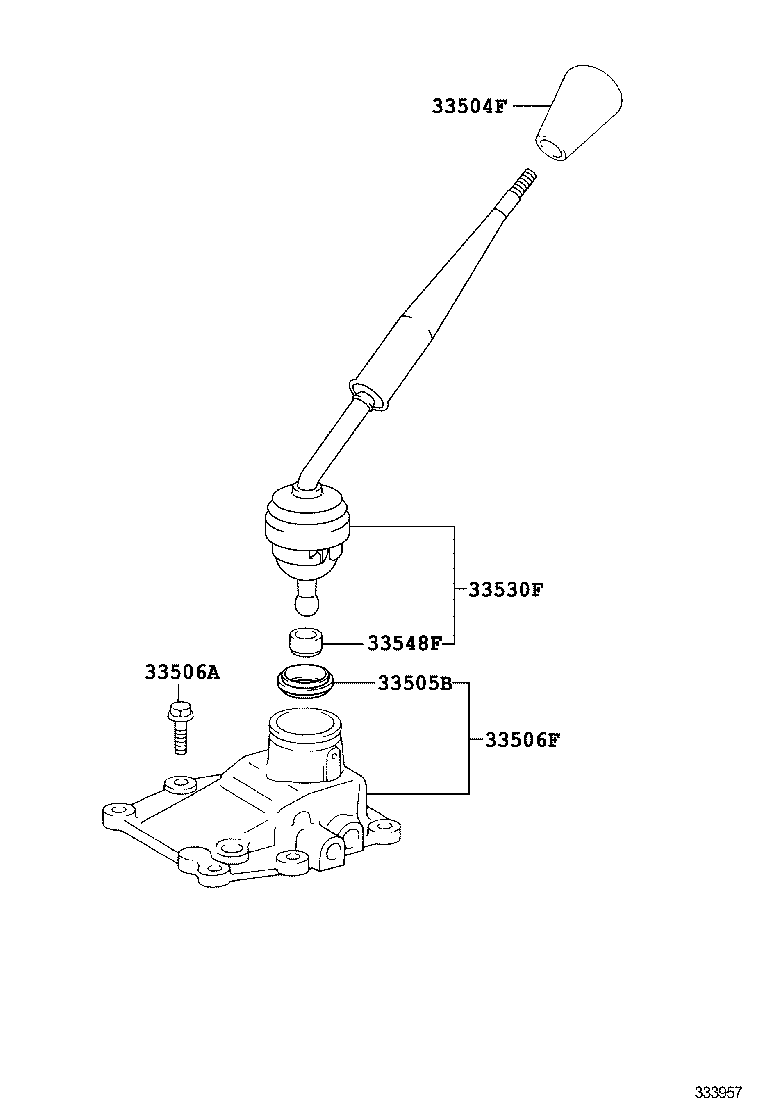

Click highlighted areas on diagram

diagram 33504F 33505B 33506A 33506F 33530F 33548F
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-24010B1

FZJ7#,GRJ7#,HZJ7#,VDJ7#

SHADOW GRAY,TRIM1#

 1
33504-24010E8

FZJ7#,GRJ7#,HZJ7#,VDJ7#

SANDAL WOOD,TRIM4#

 1
33504-24010C1

HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7#

BLACK,TRIM1#,4#

 1
33505B - SEAT SUB-ASSY, SHIFT LEVER
33505-60011

GRJ79,VDJ7#;GRJ71,76,78..LHD

 1
33506A - BOLT (FOR CONTROL SHIFT LEVER RETAINER)
90119-08332

GRJ79,VDJ7#;GRJ71,76,78..LHD

 6
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-60180

GRJ79,VDJ7#;GRJ71,76,78..LHD

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-60730

GRJ7#..LHD

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-22020

GRJ79,VDJ7#;GRJ71,76,78..LHD

 1
