GRJ71L-RJMRKV (2009)
Toyota Land Cruiser

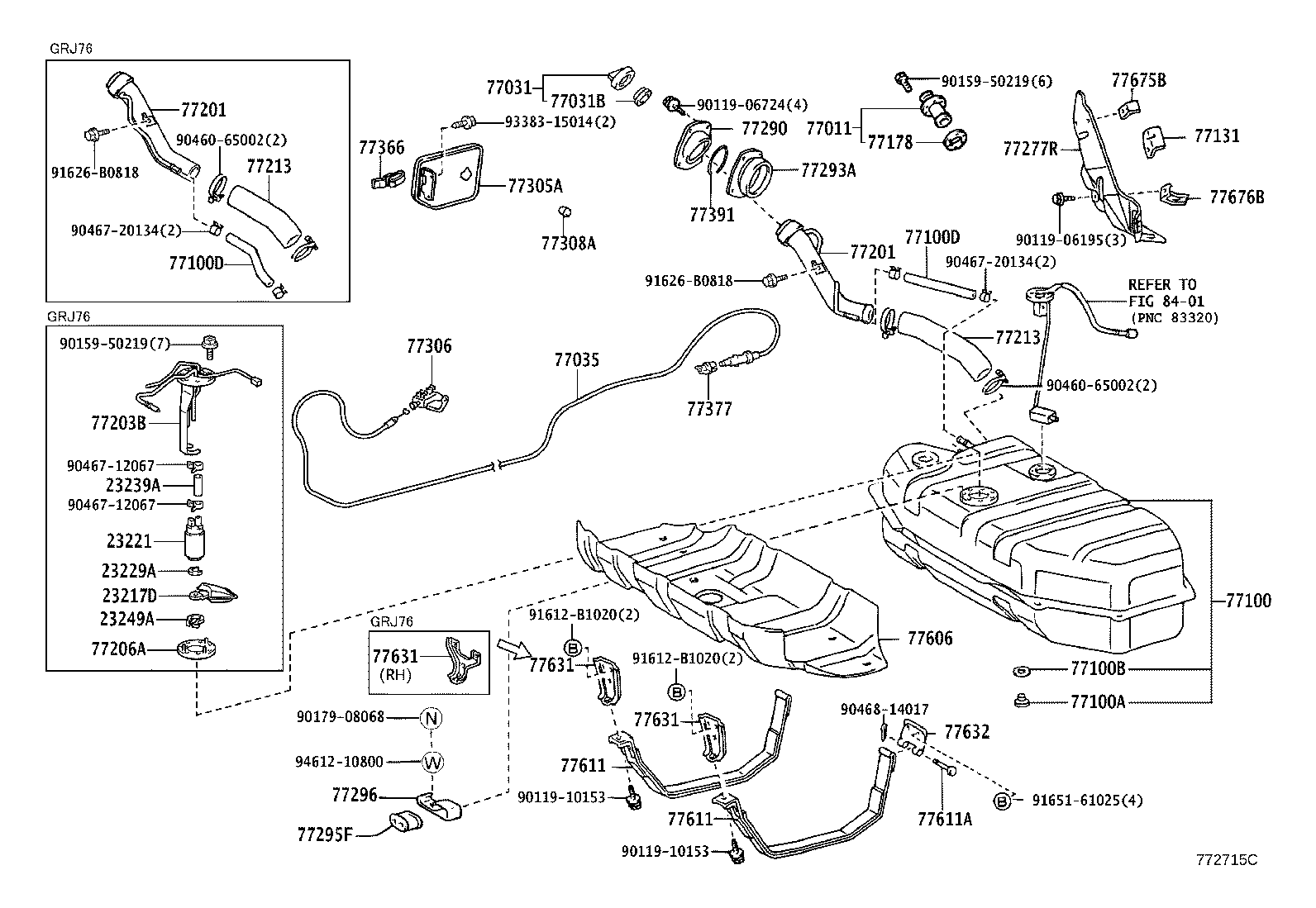

ILLUST NO. 1 OF 5(0701-1608)VDJ78,79..HT,PIC..ARL ; (0701- )DCB..IV ; (0701- )HZJ78,79,VDJ78,7
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-60120 |
GRJ7#,HZJ7# |
1 | ||
| 77011-60180 |
VDJ79..DCB;GRJ79,HZJ7#;GRJ71,76,78..LHD |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77300-28010 |
GRJ71,76,78..LHD |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-16010 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
GRJ71,78..LHD;GRJ79,HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
GRJ71,78..LHD;GRJ79,HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22024 |
HZJ71;GRJ71..LHD L=220 |
1 | ||
| 77131 - BRACKET, FUEL TANK FILLER PIPE SUPPORT | ||||
| 77131-90K00 |
GRJ71..LHD;HZJ71,VDJ78 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
VDJ79..DCB;GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ76 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60770 |
GRJ71..LHD |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60770 |
GRJ71..LHD |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60770 |
GRJ71..LHD |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60770 |
GRJ71..LHD |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14010 |
GRJ71,76..LHD;GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60160 |
HZJ71;GRJ71..LHD |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-90K01 |
GRJ71,76..LHD;HZJ71,76,VDJ76,78 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-90K00 |
GRJ71,76..LHD;HZJ71,76,VDJ76 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05018 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76 |
2 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-12010 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60030 |
HZJ71;GRJ71..LHD |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60240 |
HZJ71;GRJ71..LHD |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60240 |
HZJ71;GRJ71..LHD |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10025 |
HZJ71;GRJ71..LHD |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77614-60050 |
HZJ71;GRJ71..LHD |
2 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77625-60020 |
HZJ71;GRJ71..LHD |
2 | ||
| 77675B - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.1 | ||||
| 77675-90K00 |
GRJ71,76..LHD;HZJ71,76,VDJ76,78 |
1 | ||
| 77676B - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.2 | ||||
| 77676-90K00 |
GRJ71,76..LHD;HZJ71,76,VDJ76,78 |
1 | ||
| Common parts | ||||
| 90119-06195 | ||||
| 90119-06621 | ||||
| 90119-10153 | ||||
| 90159-50219 | ||||
| 90179-05042 | ||||
| 90460-65002 | ||||
| 90467-20134 | ||||
| 90468-14017 | ||||
| 91612-B1020 | ||||
| 91626-B0818 | ||||
| 91651-61022 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| 96135-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 5(0701-1608)VDJ78 ; (0701- )VDJ79 ; (0701-)HZJ78,79,VDJ78..HT,PIC..GCC,GEN ;
FUEL SUB TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-60120 |
GRJ7#,HZJ7# |
1 | ||
| 77011-60180 |
VDJ79..DCB;GRJ79,HZJ7#;GRJ71,76,78..LHD |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77300-28010 |
GRJ71,76,78..LHD |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-16010 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
GRJ71,78..LHD;GRJ79,HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
GRJ71,78..LHD;GRJ79,HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22024 |
HZJ71;GRJ71..LHD L=220 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
VDJ79..DCB;GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ76 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60770 |
GRJ71..LHD |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60770 |
GRJ71..LHD |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14010 |
GRJ71,76..LHD;GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60160 |
HZJ71;GRJ71..LHD |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-60030 |
GRJ71,76..LHD;HZJ71,76,VDJ76,78 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-90K00 |
GRJ71,76..LHD;HZJ71,76,VDJ76,78 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-90K00 |
GRJ71,76..LHD;HZJ71,76,VDJ76 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05018 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76 |
2 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-12010 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-32010 |
GRJ71,76..LHD;HZJ71,76,VDJ76,78 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60030 |
HZJ71;GRJ71..LHD |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60240 |
HZJ71;GRJ71..LHD |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60240 |
HZJ71;GRJ71..LHD |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10025 |
HZJ71;GRJ71..LHD |
2 | ||
| Common parts | ||||
| 90119-06195 | ||||
| 90119-06621 | ||||
| 90119-06724 | ||||
| 90119-10153 | ||||
| 90119-10556 | ||||
| 90159-50219 | ||||
| 90460-65002 | ||||
| 90467-20134 | ||||
| 91626-B0818 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 5(0907- )GRJ71
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06030 |
GRJ71..LHD NO.2 |
1 | ||
| 95333-06020 |
GRJ71..LHD NO.1 |
1 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06030 |
GRJ71..LHD NO.2 |
1 | ||
| 95333-06020 |
GRJ71..LHD NO.1 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-60C50 |
GRJ7# |
1 | ||
| 77205-60C80 |
GRJ7# |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 77259-60680 |
GRJ71..LHD |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-60210 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77252-60840 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-60890 |
GRJ71..LHD |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77256-60820 |
GRJ71,76..LHD |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77256-60890 |
GRJ71..LHD |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77262-60410 |
GRJ71,76 |
1 | ||
| 77262-60310 |
GRJ71,76 |
1 | ||
| 77262 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77262-60340 |
GRJ71..LHD |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-60090 |
GRJ71,76..LHD |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 77259-60B20 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95334-06017 |
GRJ71..LHD *H,L=170 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-60420 |
GRJ71..LHD |
4 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60790 |
GRJ79;GRJ71,76,78..LHD |
2 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-60A90 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77285-34031 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-60160 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-60330 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95333-06020 |
GRJ7# *H,L=200 |
1 | ||
| 95333-06030 |
GRJ7# *H,L=220 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-60350 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-60360 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-60060 |
GRJ79;GRJ71,76,78..LHD |
1 | ||
| Common parts | ||||
| 90461-10651 | ||||
| 90464-00803 | ||||
| 90464-00817 | ||||
| 90466-11003 | ||||
| 91511-B0616 | ||||
| 91611-B0816 | ||||
| 91673-80816 | ||||
| 91674-80820 | ||||
| 91674-80825 | ||||
| 96132-51100 | ||||
| 96135-51100 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 1 OF 5(0907-1208)GRJ76 ; (0907- )GRJ71
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-31140 |
1GRFE..GRJ7# |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-31150 |
1GRFE..GRJ79;1GRFE..GRJ71,76,78..LHD |
1 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1GRFE..GRJ7# |
1 | ||
| 23239A - HOSE | ||||
| 23239-11010 |
1GRFE..GRJ79;1GRFE..GRJ71,76,78..LHD |
1 | ||
| 23249A - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
1GRFE..GRJ79;1GRFE..GRJ71,76,78..LHD |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-60120 |
GRJ7#,HZJ7# |
1 | ||
| 77011-60180 |
VDJ79..DCB;GRJ79,HZJ7#;GRJ71,76,78..LHD |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77300-28010 |
GRJ71,76,78..LHD |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-16010 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
GRJ71,78..LHD;GRJ79,HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
GRJ71,78..LHD;GRJ79,HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22024 |
HZJ71;GRJ71..LHD L=220 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22024 |
HZJ71;GRJ71..LHD L=220 |
1 | ||
| 77131 - BRACKET, FUEL TANK FILLER PIPE SUPPORT | ||||
| 77131-90K00 |
GRJ71..LHD;HZJ71,VDJ78 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
VDJ79..DCB;GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ76 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60770 |
GRJ71..LHD |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60770 |
GRJ71..LHD |
1 | ||
| 77203B - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-60270 |
GRJ71..LHD |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14010 |
GRJ71,76..LHD;GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60160 |
HZJ71;GRJ71..LHD |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60160 |
HZJ71;GRJ71..LHD |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-90K01 |
GRJ71,76..LHD;HZJ71,76,VDJ76,78 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-60030 |
GRJ71,76..LHD;HZJ71,76,VDJ76,78 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-90K00 |
GRJ71,76..LHD;HZJ71,76,VDJ76,78 |
1 | ||
| 77295F - GROMMET, FUEL HOSE | ||||
| 90480-01303 |
GRJ79..DCB;GRJ71,76..LHD |
1 | ||
| 77296 - PLATE, FUEL TUBE GROMMET SUPPORT | ||||
| 90949-01182 |
GRJ79..DCB;GRJ71,76..LHD |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-90K00 |
GRJ71,76..LHD;HZJ71,76,VDJ76 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05018 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76 |
2 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-12010 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-32010 |
GRJ71,76..LHD;HZJ71,76,VDJ76,78 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60030 |
HZJ71;GRJ71..LHD |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60240 |
HZJ71;GRJ71..LHD |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60240 |
HZJ71;GRJ71..LHD |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10025 |
HZJ71;GRJ71..LHD |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77614-60050 |
HZJ71;GRJ71..LHD |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77614-60050 |
HZJ71;GRJ71..LHD |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77614-60050 |
HZJ71;GRJ71..LHD |
2 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77625-60020 |
HZJ71;GRJ71..LHD |
2 | ||
| 77675B - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.1 | ||||
| 77675-90K00 |
GRJ71,76..LHD;HZJ71,76,VDJ76,78 |
1 | ||
| 77676B - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.2 | ||||
| 77676-90K00 |
GRJ71,76..LHD;HZJ71,76,VDJ76,78 |
1 | ||
| Common parts | ||||
| 90119-06195 | ||||
| 90119-06724 | ||||
| 90119-10153 | ||||
| 90159-50219 | ||||
| 90179-08068 | ||||
| 90460-65002 | ||||
| 90467-12067 | ||||
| 90467-20134 | ||||
| 90468-14017 | ||||
| 91612-B1020 | ||||
| 91626-B0818 | ||||
| 91651-61025 | ||||
| 93383-15014 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
